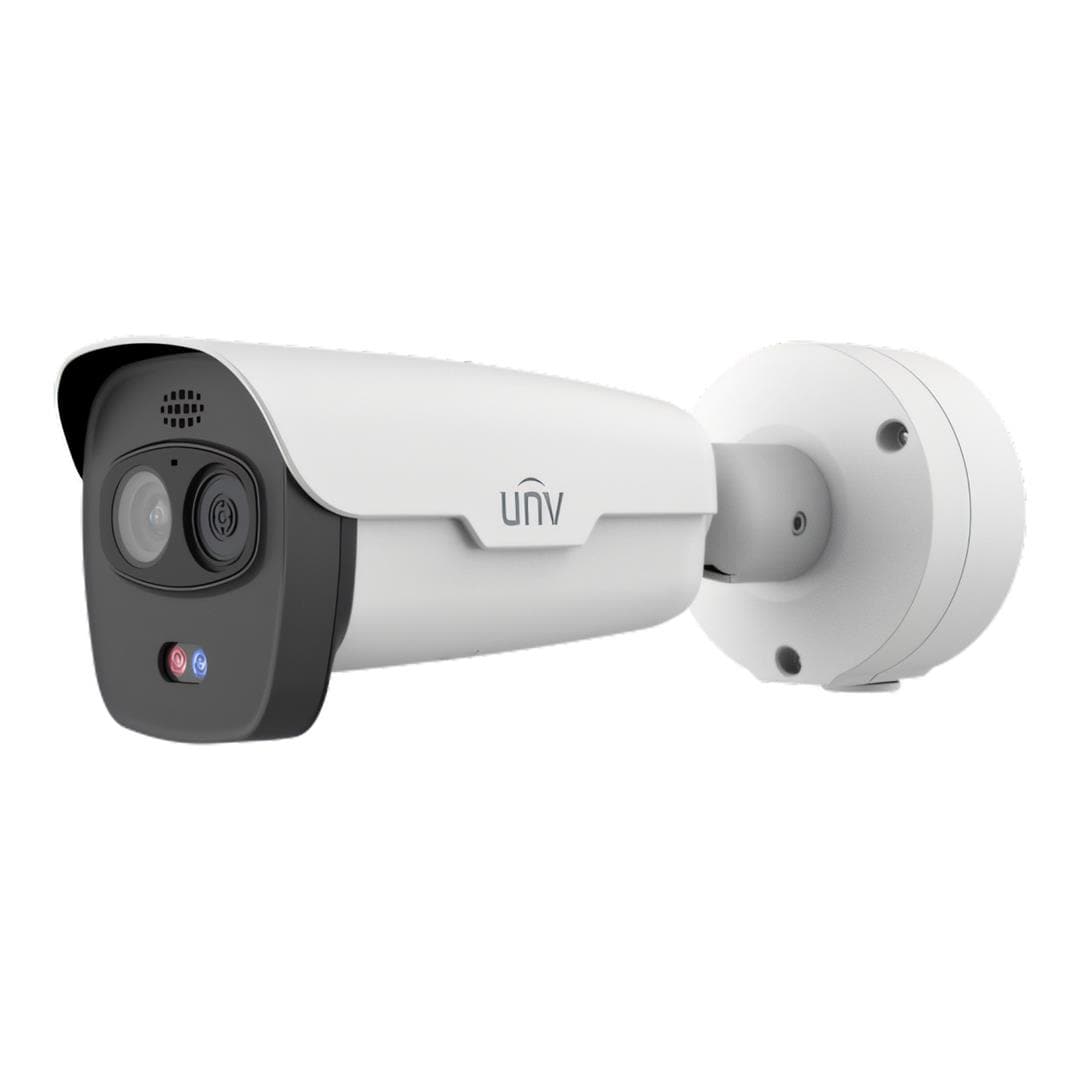

Uniview UNV H.265 4MP LightHunter Thermal & Optical Dual-spectrum Bullet Network Camera TIC2621SR-F3-4F4AC-VD

Uniview UNV H.265 4MP LightHunter Thermal & Optical Dual-spectrum Bullet Network Camera TIC2621SR-F3-4F4AC-VD

The Uniview TIC2621SR-F3-4F4AC-VD is a dual-spectrum thermal and optical bullet network camera designed for perimeter protection, fire detection and intelligent temperature monitoring. It combines a 4MP visible-light channel with a 256 × 192 thermal sensor, allowing both image streams to be accessed through a single IP address. Advanced thermal analytics include fire-point detection, smoking detection, temperature measurement and hot/cold spot tracking, while Smart Intrusion Prevention provides intelligent perimeter monitoring across both channels.

Key Features

• Thermal and optical dual-spectrum bullet network camera.
• 4MP 1/1.8-inch progressive-scan CMOS optical sensor.
• 256 × 192 Vanadium Oxide uncooled thermal sensor.
• 12µm thermal pixel size with NETD below 55mK.
• Optical video up to 2688 × 1520 at 30fps.
• Thermal video output up to 1280 × 720 at 30fps.
• 4mm F1.6 optical lens and 3.2mm F1.1 thermal lens.
• Up to 50m infrared night-vision range.
• Fire, smoke and temperature detection with hot/cold point tracking.
• Dual-spectrum Smart Intrusion Prevention.
• Built-in microphone, speaker and red/blue warning lights.
• MicroSD edge storage support up to 256GB.
• 12V DC or IEEE 802.3af PoE power.

Dual-Spectrum Thermal and Optical Imaging

The TIC2621SR-F3-4F4AC-VD combines visible-light and thermal imaging within a single bullet-camera platform. Both thermal and optical video streams are delivered through one IP address, allowing operators to compare conventional imagery with thermal information in real time and use picture-in-picture viewing for additional situational awareness.

4MP Optical Channel

The visible-light channel uses a 1/1.8-inch 4MP progressive-scan CMOS sensor with a 4mm F1.6 fixed lens. Maximum optical video resolution is 2688 × 1520 at 30fps, while 120dB WDR, 2D/3D digital noise reduction, HLC, BLC and digital defog help improve image quality in difficult lighting conditions.

256 × 192 Thermal Imaging

The thermal module uses a Vanadium Oxide uncooled focal plane array with a native resolution of 256 × 192 and a 12µm pixel pitch. Thermal sensitivity is rated at less than 55mK, allowing relatively small temperature differences to be distinguished across monitored scenes.

Fire, Smoke and Temperature Detection

Thermal analytics include fire-point detection, smoking detection, temperature measurement and automatic hot/cold point tracking. The camera supports temperature measurement from -20°C to +150°C and allows up to 12 temperature-detection rules to be configured. Fire detection can identify up to 10 fire points simultaneously.

Dual-Spectrum Smart Intrusion Prevention

Smart Intrusion Prevention functions are available on both optical and thermal channels. Supported rule types include line crossing, intrusion, enter-area and leave-area detection. The optical channel additionally supports classification of pedestrians, motor vehicles and non-motor vehicles to help reduce false alarms.

Integrated Audio and Visual Deterrence

The camera incorporates a built-in microphone and speaker and supports two-way audio. Red and blue warning lights provide visual alarm signalling, while external system integration is supported through audio and alarm input/output interfaces.

Flexible Storage and Integration

A MicroSD card slot supports up to 256GB of local edge storage, while ANR and NAS using NFS are also supported. ONVIF Profiles S, G and T, together with API and SDK support, provide integration with compatible video management and surveillance platforms.

Technical Specifications

What’s in the Box:

• Uniview TIC2621SR-F3-4F4AC-VD Thermal & Optical Dual-Spectrum Bullet Network Camera

The Uniview TIC2621SR-F3-4F4AC-VD combines thermal analytics and 4MP optical surveillance in a single network camera. With fire and smoke detection, temperature monitoring, hot/cold point tracking, dual-spectrum intrusion prevention, 50m infrared illumination, built-in audio and PoE support, it is designed for demanding perimeter, safety and industrial monitoring applications.
