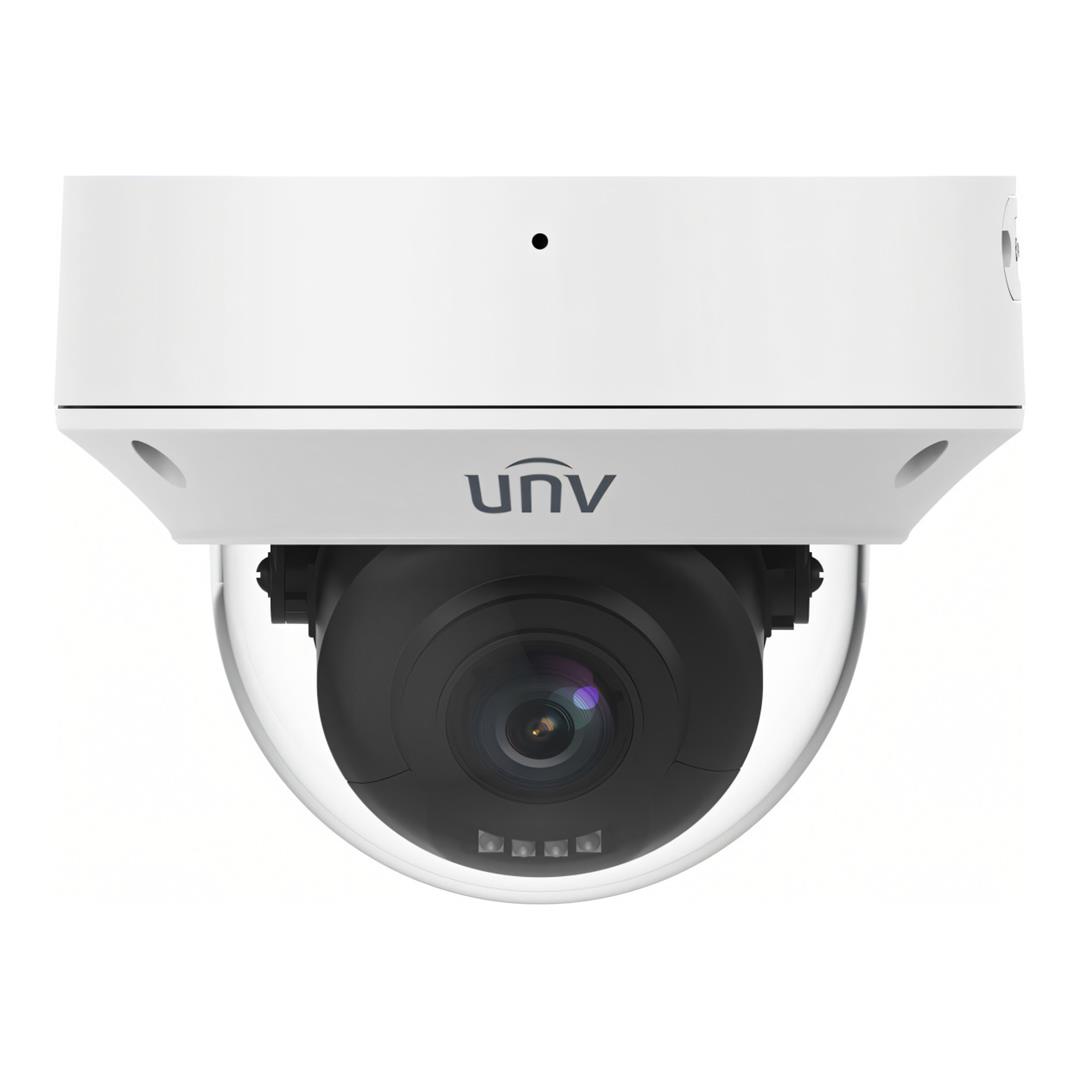

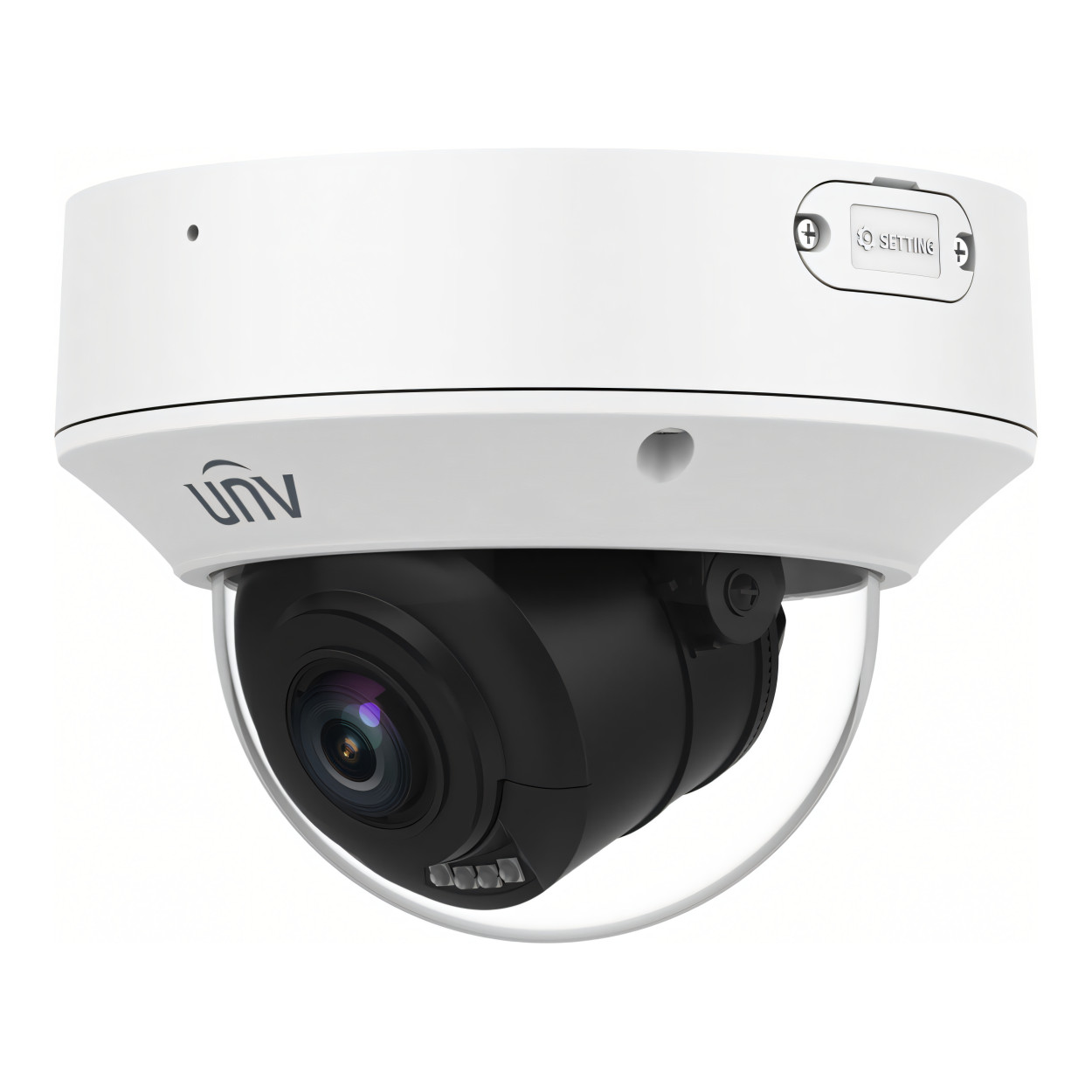

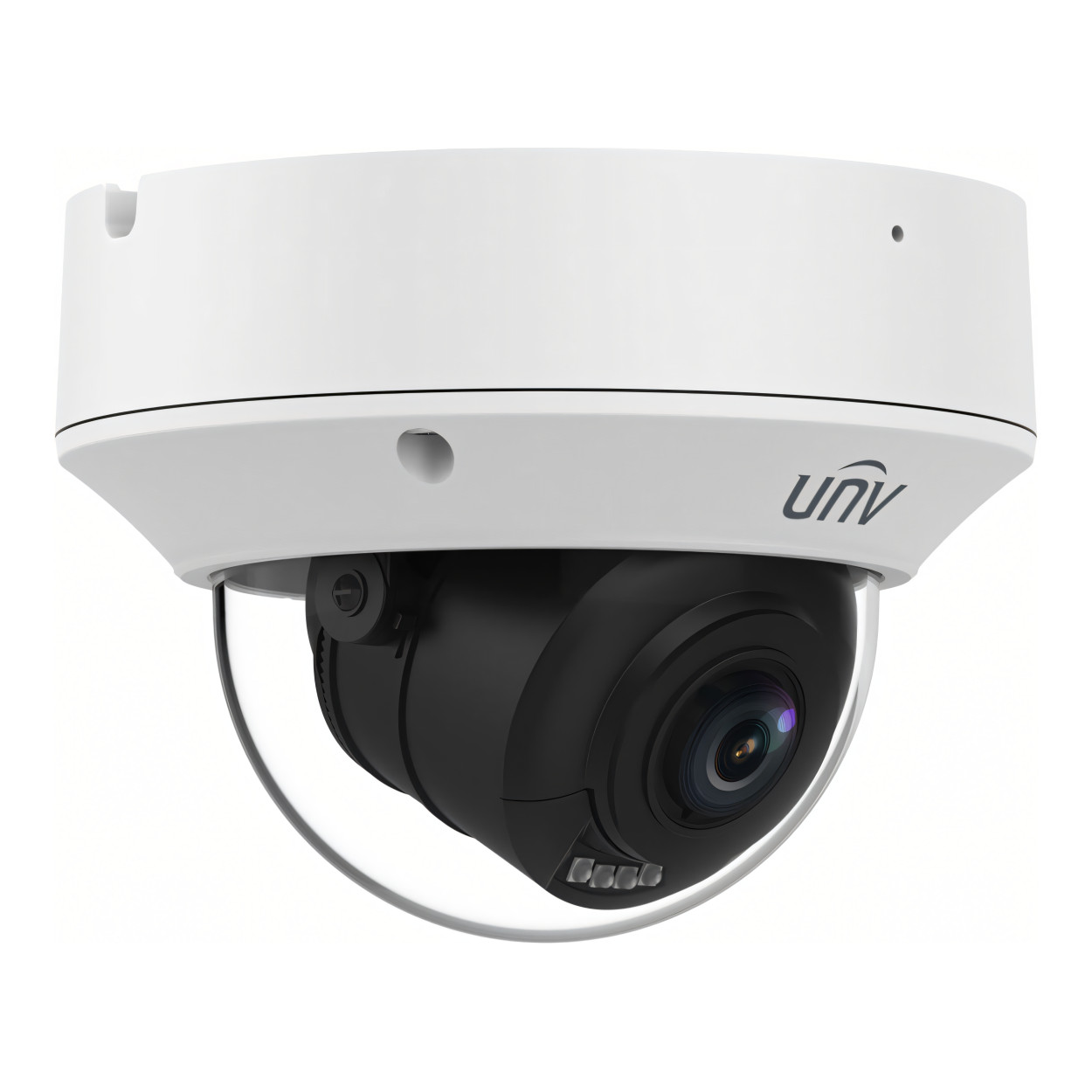

Uniview UNV 6MP 2.7-13.5mm Dual-light VF Dome Network Camera IPC3236SB-ADZKM-DL-I1
The Uniview IPC3236SB-ADZKM-DL-I1 is a 6MP Prime-I Series motorised vari-focal dome network camera designed for intelligent indoor and outdoor surveillance. Its 2.7–13.5mm motorised lens provides flexible scene coverage, while dual IR and warm-light illumination delivers visibility at distances of up to 40m. Smart Intrusion Prevention, Ultra Motion Detection, people counting and 120dB true WDR provide intelligent monitoring and clear imaging across demanding surveillance environments.
Key Features
- 6MP 1/2.5-inch CMOS sensor with resolution up to 3288 × 1860.
- 2.7–13.5mm motorised vari-focal lens for flexible viewing angles.
- Dual-light design with up to 40m IR and 40m warm-light illumination.
- Smart Intrusion Prevention with human, vehicle and non-motor vehicle classification.
- Ultra Motion Detection, people-flow counting and crowd-density detection.
- 120dB true WDR with Ultra 265, H.265, H.264 and MJPEG compression.
- IP67 weather protection and IK10 vandal-resistant metal construction.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Series | Prime-I Series |
| Model | IPC3236SB-ADZKM-DL-I1 |
| Product Type | Dual-Light Vari-Focal Dome Network Camera |
| Maximum Resolution | 6MP |
| Image Sensor | 1/2.5-inch CMOS |
| Maximum Video Resolution | 3288 × 1860 |
| Frame Rate | Up to 25fps at 6MP / Up to 30fps at 4MP and Lower Resolutions |
| Minimum Illumination | Colour: 0.001 Lux (F1.2, AGC On) / 0 Lux with IR |
| Day / Night | IR-Cut Filter with Automatic Switching (ICR) |
| Shutter | Auto / Manual, 1s to 1/100000s |
| Wide Dynamic Range | 120dB True WDR |
| Lens | 2.7–13.5mm Motorised Vari-Focal |
| Aperture | F1.2 |
| Horizontal Field of View | 110.0°–34.6° |
| Vertical Field of View | 58.6°–19.6° |
| Diagonal Field of View | 132.0°–39.8° |
| Camera Adjustment | Pan: 0°–355° / Tilt: 0°–76° / Rotate: 0°–355° |
| Supplemental Lighting | Dual Light – IR and Warm Light |
| IR Illumination Distance | Up to 40m |
| Warm-Light Distance | Up to 40m |
| IR Wavelength | 850nm |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Streams | Triple Streams |
| Video Bit Rate | 128Kbps–16Mbps |
| Image Features | Smart IR / 2D & 3D DNR / HLC / BLC / Digital Defog / ROI / Privacy Mask |
| Corridor Mode | 9:16 Supported |
| Smart Intrusion Prevention | Cross Line / Intrusion / Enter Area / Leave Area Detection |
| Target Classification | Human / Motor Vehicle / Non-Motor Vehicle |
| Additional Intelligent Functions | Ultra Motion Detection / People Flow Counting / Crowd Density Detection |
| Basic Detection | Motion Detection / Ultra Motion Detection / Tampering Alarm / Audio Detection |
| Built-In Microphone | Yes |
| Audio I/O | 1 Input / 1 Output |
| Two-Way Audio | Supported |
| Alarm I/O | 1 Input / 1 Output |
| Edge Storage | microSD Card up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet |
| Integration | ONVIF Profiles S / G / T / M, API, SDK |
| Power | 12V DC ±25% / IEEE 802.3af PoE |
| Maximum Power Consumption | 7.6W |
| Surge Protection | 4kV |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Metal |
| Dimensions | Ø148 × 111mm |
| Weight | 0.93kg |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | Up to 95% RH, Non-Condensing |
Deploy intelligent 6MP surveillance with the Uniview IPC3236SB-ADZKM-DL-I1, combining flexible motorised optics, dual-light illumination and advanced smart detection in a robust IP67 and IK10 dome housing.
