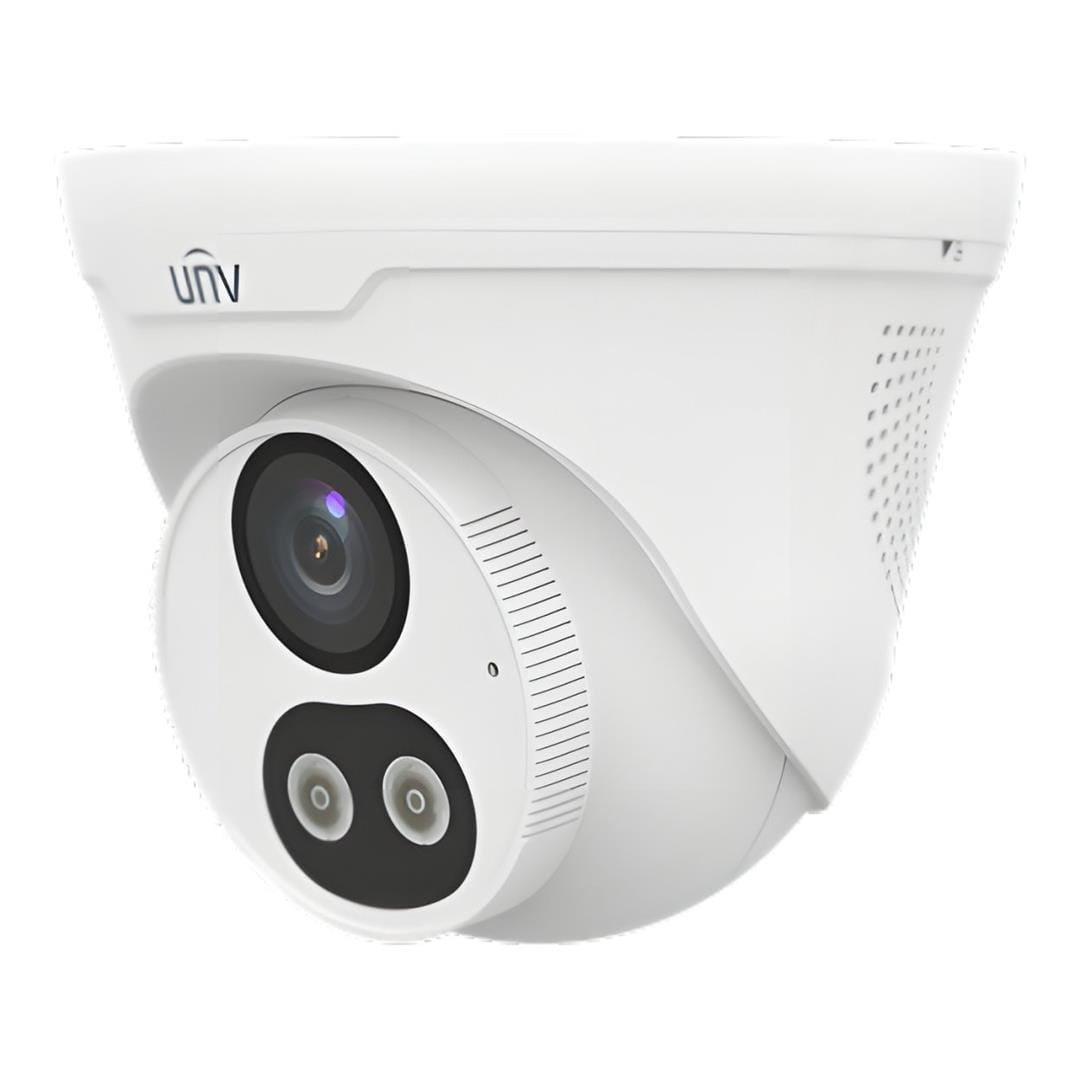

Uniview UNV 4MP 2.8mm ColorHunter Fixed Dual-light Turret Network Camera IPC3614LE-ADF28KC-DL

Uniview UNV 4MP 2.8mm ColorHunter Fixed Dual-light Turret Network Camera IPC3614LE-ADF28KC-DL

Features

• High quality image with 4 MP, 1/3.0" CMOS sensor
• 4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• White light, up to 30 m (98.4 ft) warm light distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
• 3-axis

Technical Specifications:

Camera
Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Color: 0.003 Lux (F1.6, AGC On), 0 Lux with Light
Day/Night: IR-Cut Filter with Auto Switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle:

• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°

S/N: >52 dB
WDR: 120 dB

Lens
Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 97.0°
Field of View (V): 52.2°
Field of View (D): 107.5°

DORI
DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 63.0 m
DORI Distance (Observe): 25.2 m
DORI Distance (Recognize): 12.6 m
DORI Distance (Identify): 6.3 m

Illuminator
Supplemental Light: Dual Light
Illumination Distance (IR): 30 m
Illumination Distance (Warm Light): 30 m
Wavelength: 850 nm
Light On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline Profile, Main Profile, High Profile
Frame Rate:

• Main Stream: 4 MP (2688 × 1520) Max. 25 fps, 4 MP (2560 × 1440) Max. 25 fps, 3 MP (2304 × 1296) Max. 30 fps, 1080P (1920 × 1080) Max. 30 fps, 720P (1280 × 720) Max. 30 fps
• Sub Stream: 720P (1280 × 720) Max. 30 fps, D1 (720 × 576) Max. 30 fps, 640 × 360 Max. 30 fps

Video Bit Rate: 128 Kbps to 16 Mbps
U-Code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 Areas
ROI: Support
Video Stream: Dual Streams

White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-Clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Events
Basic Detection:

• Cross Line (Based on Human Body Detection)
• Intrusion (Based on Human Body Detection)
• Motion Detection
• Ultra Motion Detection
• Tampering Alarm
• Audio Detection

General Function:

• Watermark
• IP Address Filtering
• Access Policy
• ARP Protection
• RTSP Authentication
• User Authentication
• HTTP Authentication

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-Way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz

Storage
Edge Storage: MicroSD, Up to 512 GB
Network Storage: ANR, NAS (NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 Users, 3 User Levels: Administrator, Common User and Operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client: EZStation, APP
Web Browser: Plug-In Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-In Free Live View: Chrome 57+, Firefox 58+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-In Mic: Support
Built-In Speaker: Support
WiFi: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification
EMC:

• CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
• FCC (FCC 47 CFR Part 15 B)

Safety:

• CE LVD (EN 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment:

• CE-RoHS (2011/65/EU, (EU)2015/863)
• WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General
Power: DC 12 V ±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 5.0 W (Without Speaker)
Power Interface: Ø5.5 mm Coaxial Power Plug
Dimensions: Ø118 mm × 96 mm (Ø × H)
Weight: 0.32 kg
Material: Metal + Plastic
Working Environment: -30 °C to 60 °C, Humidity ≤ 95% RH (Non-Condensing)
Storage Environment: -30 °C to 60 °C, Humidity ≤ 95% RH (Non-Condensing)
Surge Protection: 4 kV
Reset Button: Support
Web Client Language: English, Russian, Spanish, Vietnamese
