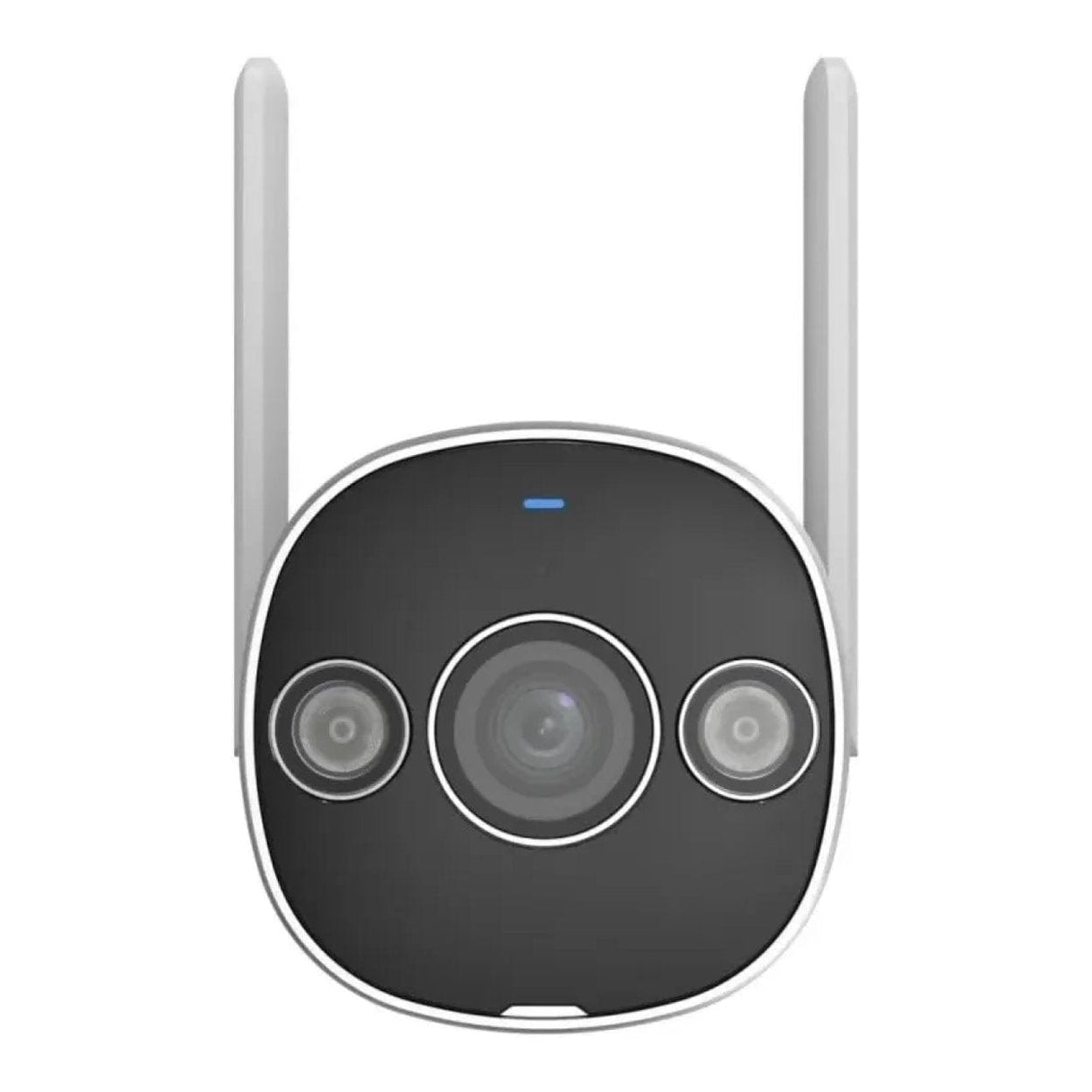

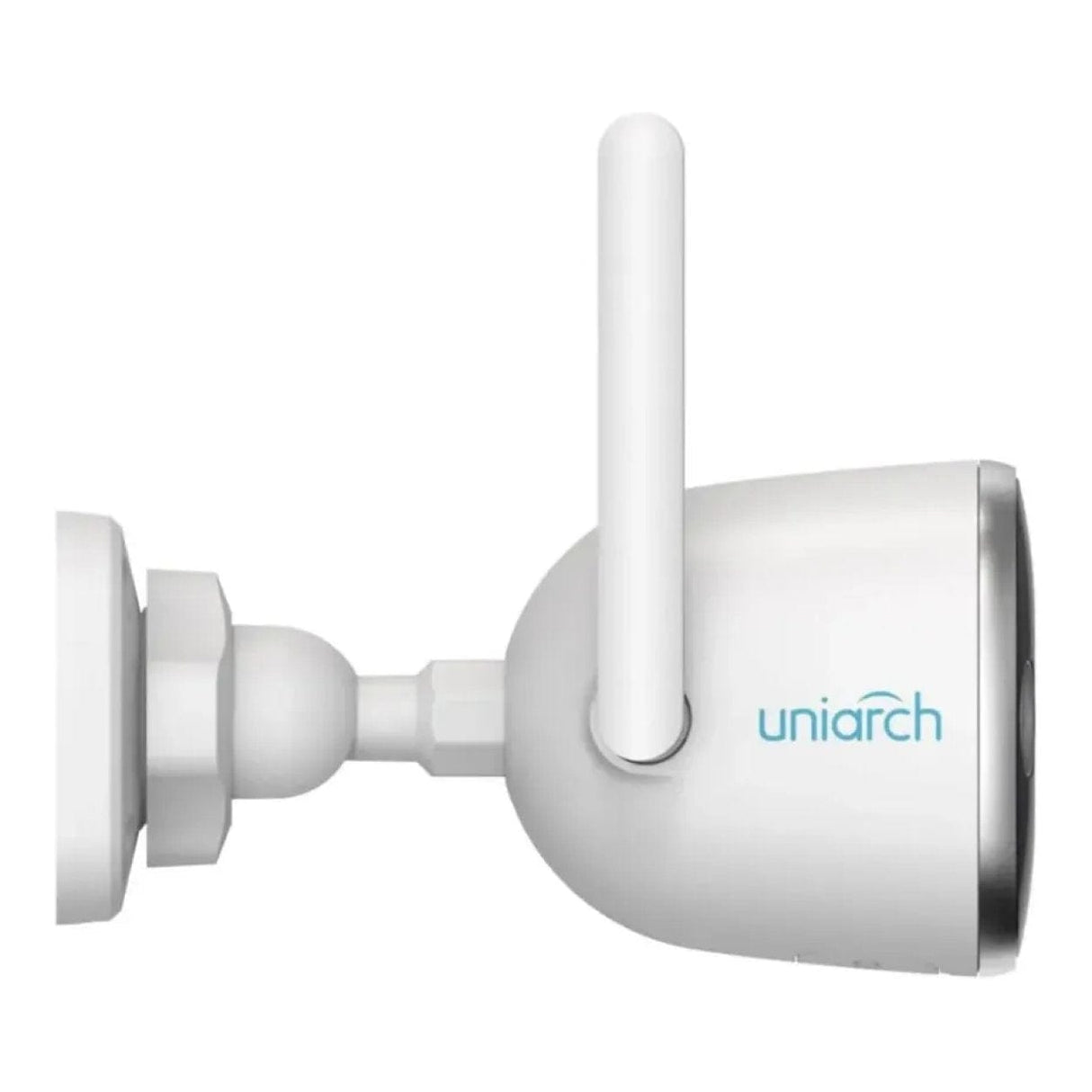

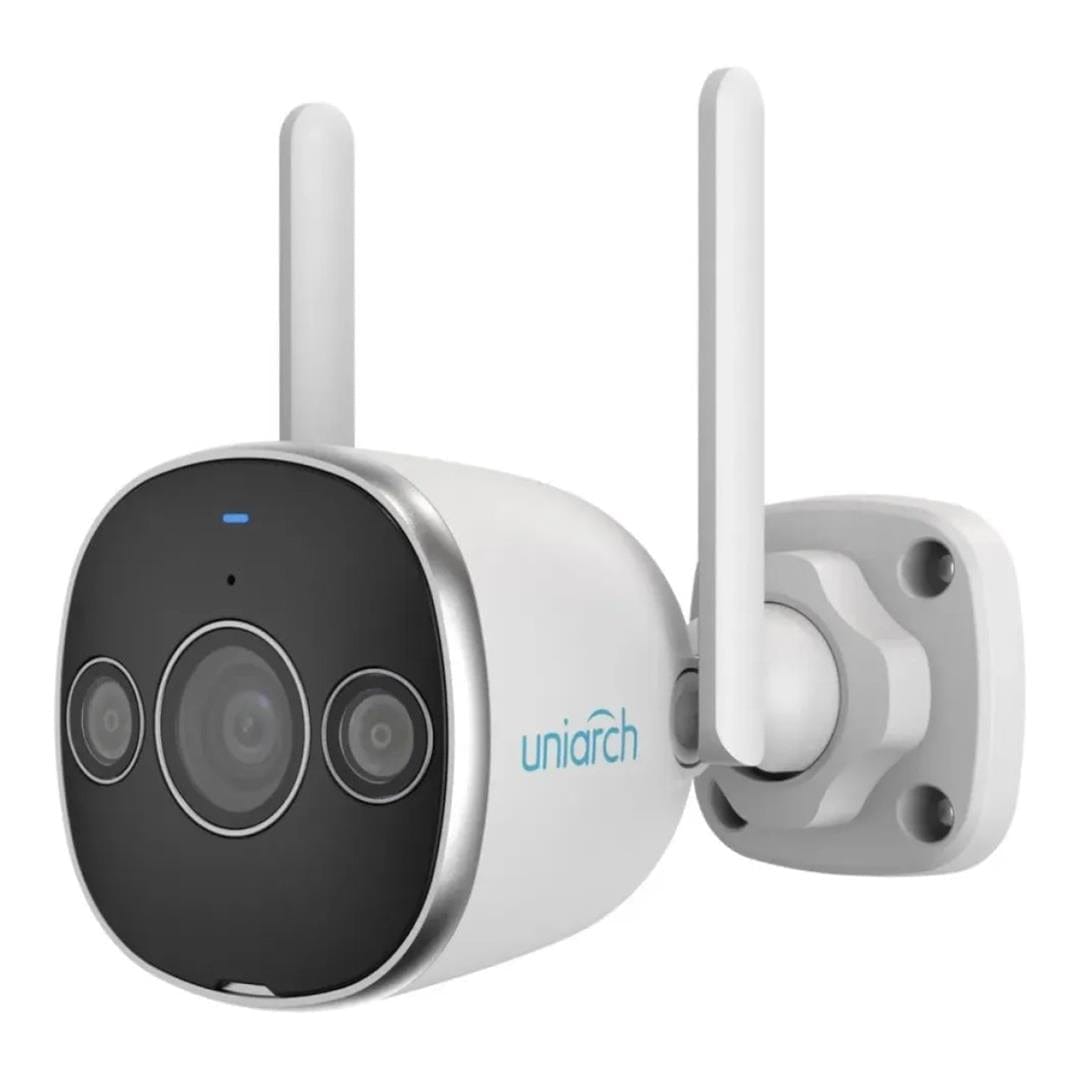

Uniview Uniarch UNV 3MP Wi-Fi Dual Light Bullet Camera Uho-B2D-M3F4D

Uniview Uniarch UNV 3MP Wi‑Fi Dual Light Bullet Camera Uho-B2D-M3F4D

The Uniview Uniarch Uho-B2D-M3F4D is a 3MP fixed-lens camera designed for reliable property monitoring in outdoor and semi-outdoor environments. Its 4.00mm lens delivers a narrower, more focused field of view, making it ideal for watching over entry points, gates, driveways, or other key access areas where detail matters.

Features

• 3MP resolution for high-quality video capture
• 4.00mm fixed lens for focused monitoring
• Infrared night vision with a 20-metre range
• Supports up to 512GB MicroSD local storage
• Weather-resistant housing for outdoor use
• Suitable for homes, offices, and small business premises

The camera captures sharp 3MP footage and ensures uninterrupted visibility at night with built-in infrared (IR) LEDs, providing up to 20 meters of coverage in low-light or complete darkness. A built-in MicroSD card slot supports up to 512GB of local storage, allowing continuous or event-based recording without external devices.

Technical Specifications:

Camera

Sensor: 1/3.0", 3.0 MP, progressive scan CMOS

Min. Illumination: Color 0.003 Lux @ F1.6, AGC ON; 0 Lux with IR

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100,000 s

S/N Ratio: >52 dB

WDR: DWDR

Adjustment Angle: Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°

Lens

Type: 2.8 mm @ F1.6, 4.0 mm @ F1.6

Iris: Fixed

FOV (H × V × D): 2.8 mm: 97.5° × 52.9° × 108.0°; 4.0 mm: 80.2° × 42.9° × 86.0°

DORI

2.8 mm: Detect 46.7 m, Observe 18.7 m, Recognize 9.3 m, Identify 4.7 m

4.0 mm: Detect 66.7 m, Observe 26.7 m, Recognize 13.3 m, Identify 6.7 m

Illuminator

IR Range: Up to 20 m

Warm Light Range: Up to 10 m

Wavelength: 850 nm

IR Control: Auto/Manual

Video

Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Profiles: Baseline, Main, High

Frame Rate: Main stream: 3MP (2304×1296) max 25 fps; 1080p max 30 fps; 720p max 30 fps. Sub-stream: 640×360 max 30 fps; 2CIF 704×288 max 30 fps; CIF 352×288 max 30 fps

Bit Rate: 128 Kbps–6 Mbps

U-code: Supported

OSD: Up to 4

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Video Stream: Dual streams


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Supported

Flip: Normal/Vertical/Horizontal/180°

Defog: Digital Defog

Image Settings: Brightness, Contrast, Smart IR, Sharpness, Anti-Banding, AGC

Events

Basic Detection: Motion detection, Ultra motion detection, Audio detection, Tampering alarm

General Function: IP address filtering, Access policy, ARP protection, RTSP & user authentication, HTTP authentication

Audio

Compression: G.711U, G.711A

Bitrate: 64 Kbps

Two-way Audio: Supported

Suppression: Supported

Sampling Rate: 8 kHz

Storage

Edge Storage: Micro SD up to 128 GB

Network Storage: ANR

Network

Wi-Fi: 2.4G IEEE802.11b/g/n, built-in antenna

Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP

Compatible Integration: API, SDK

User/Host: Up to 6 users, 2 levels (admin, common user)

Client: Uniarch Client, Uniarch APP

Web Browser: Plug-in required: IE10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Built-in Mic: Supported

Built-in Speaker: Supported

Network: 1×RJ45 10/100 Mbps

Video Output: N/A

Certifications

EMC: CE EMC, FCC

RF: FCC ID, CE RED

Safety: CE LVD

Environment: CE-RoHS, WEEE

Protection: IP67

General

Power: DC 12V ±25%, Max 5.7 W, Ø5.5 mm coaxial plug

Dimensions: 148 × 78 × 78 mm (5.8” × 3.1” × 3.1”)

Weight: 0.31 kg (0.68 lb)

Material: Metal + Plastic

Working Environment: -30℃ to 60℃, Humidity ≤95% RH

Storage Environment: -30℃ to 60℃, Humidity ≤95% RH

Surge Protection: 4 kV

Reset Button: Supported

LED Indicator: 1 (red/blue)
