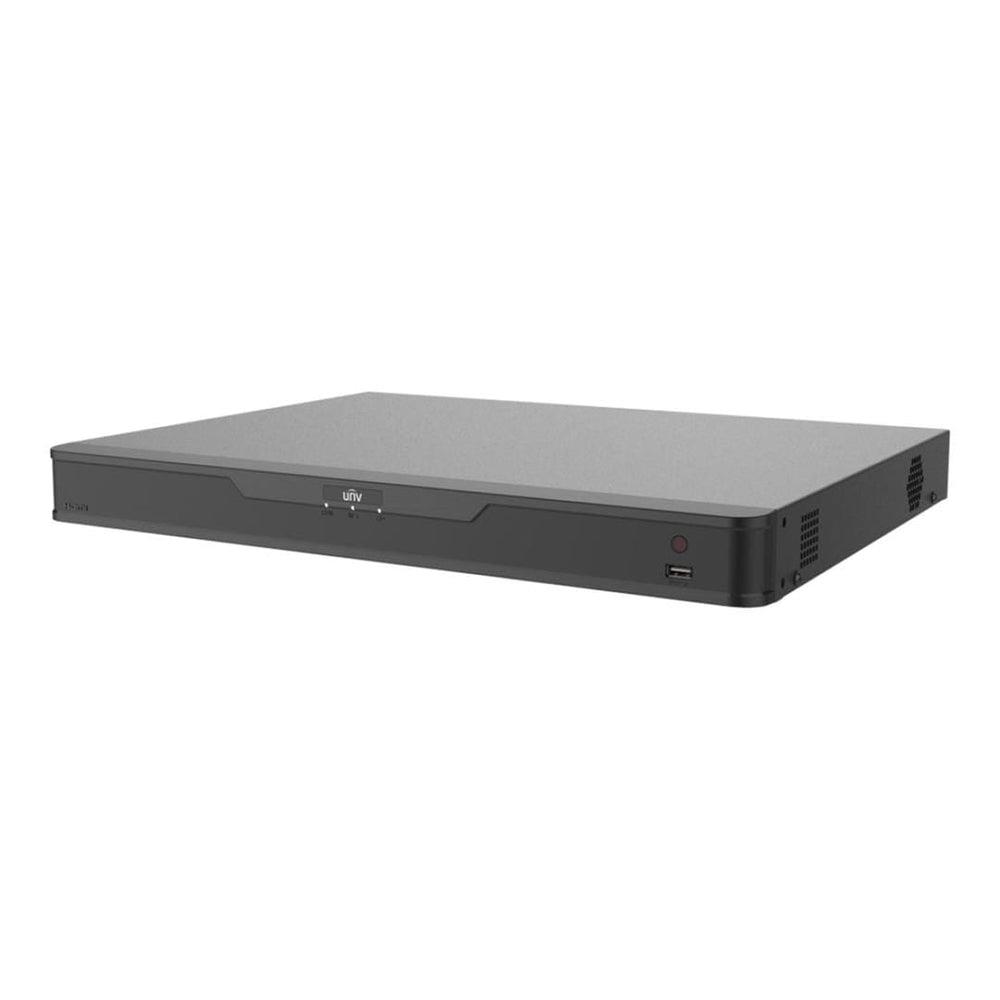

Uniview Easy Series 32-channel 1U Network Video Recorder NVR304-32B-IQ_OPEN (Open Box)

Uniview Easy Series 32-channel 1U Network Video Recorder NVR304-32B-IQ_OPEN (Open Box)

Special Offer Notice: This ‘Open Box’ item is sold ‘voetstoots’ at a substantial discount. While we haven’t verified the contents, we’re passing the savings on to you. Please note, this purchase comes with a 30-day warranty.

The Uniview NVR304-32B-IQ is a 32-channel Easy Series Network Video Recorder designed for medium to large IP surveillance installations requiring high-resolution recording, intelligent video analytics and expandable local storage. Supporting up to 32 IP cameras, 12MP recording resolution and 160Mbps incoming bandwidth, the NVR can accommodate demanding multi-camera surveillance systems. Four SATA interfaces support up to 10TB per drive, while 4K HDMI output, 16-channel synchronous playback, Ultra H.265 compression, intelligent SIP and UMD analytics, ONVIF compatibility and dual Gigabit Ethernet interfaces provide a versatile foundation for professional IP video surveillance.

Key Features

• 32-channel IP video recording: Supports up to 32 network cameras for medium and large surveillance installations.
• Up to 12MP recording: Records high-resolution camera streams at resolutions up to 12 megapixels.
• 160Mbps incoming bandwidth: Provides sufficient network capacity for multiple high-resolution IP camera streams.
• Ultra H.265 compression: Supports Ultra H.265, H.265 and H.264 formats for efficient use of storage and network bandwidth.
• 4-bay storage: Four SATA interfaces support up to 10TB per HDD for up to 40TB of raw installed storage capacity.
• 4K HDMI output: HDMI output supports resolutions up to 3840 × 2160 at 30Hz, alongside simultaneous VGA output.
• 16-channel synchronous playback: Review recordings from up to 16 channels simultaneously on the local interface.
• Intelligent analytics: Supports Smart Intrusion Prevention, Ultra Motion Detection and compatible IPC-based intelligent analytics.
• Smart search: Search recordings using supported motor vehicle, non-motor vehicle and human body criteria, along with people-counting reports and heat maps.
• Dual Gigabit Ethernet: Two 10/100/1000Mbps RJ45 interfaces provide flexible high-speed network connectivity.

32-Channel IP Surveillance

The NVR304-32B-IQ supports up to 32 IP camera inputs, making it suitable for surveillance systems covering offices, warehouses, retail environments, campuses and other multi-camera installations. Compatibility with ONVIF Profile S, Profile G and Profile T cameras, together with RTSP support, provides flexibility when integrating supported third-party IP cameras.

Up to 12MP Recording

High-resolution recording is supported at resolutions up to 12MP, with additional support for 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p and lower resolutions. Ultra H.265, H.265 and H.264 video formats help balance image quality with network bandwidth and storage requirements.

Powerful Decoding Performance

With Smart functions disabled, the NVR304-32B-IQ can decode configurations including up to 2 × 12MP at 30fps, 2 × 4K at 30fps, 4 × 4MP at 30fps, 10 × 1080p at 30fps, 20 × 720p at 30fps or 32 × D1 streams. With Smart functions enabled, supported decoding configurations include up to 2 × 4K at 30fps, 4 × 4MP at 30fps, 8 × 1080p at 30fps, 16 × 720p at 30fps or 32 × D1 streams.

Four SATA HDD Bays

Four SATA interfaces provide scalable local surveillance storage. Each interface supports a hard drive with a capacity of up to 10TB, allowing up to 40TB of raw installed storage when four 10TB drives are fitted. Hard drives are not included and the maximum supported HDD capacity can vary according to environmental temperature.

Intelligent Video Analytics

The NVR supports intelligent analytics from compatible IP cameras, including face detection, vehicle detection, Smart Intrusion Prevention, Ultra Motion Detection, people counting and traffic monitoring. NVR-side processing provides Smart Intrusion Prevention on up to 2 channels and Ultra Motion Detection on up to 4 channels.

Smart Search

Advanced search capabilities help operators locate relevant surveillance footage more efficiently. Supported VCA searches include motor vehicle, non-motor vehicle, human body and general searches, together with people-counting reports and heat-map functionality.

4K HDMI and VGA Output

The recorder provides one HDMI and one VGA video output with simultaneous display support. HDMI resolution reaches up to 3840 × 2160 at 30Hz, while VGA supports resolutions up to 1920 × 1080 at 60Hz. Local live-view layouts support up to 32 camera windows, and up to 16 channels can be played back synchronously.

ANR Recording Reliability

Automatic Network Replenishment technology helps improve surveillance storage reliability during network interruptions. When used with compatible equipment, ANR assists in recovering video associated with temporary network disruptions to help maintain a more complete surveillance record.

Technical Specifications

What’s in the Box:

• 1 × Uniview NVR304-32B-IQ 32-Channel Network Video Recorder
• Power Supply
• Mouse
• Installation Accessories

Build a scalable professional IP surveillance system with the Uniview NVR304-32B-IQ, combining 32-channel recording, up to 12MP resolution, 160Mbps incoming bandwidth, four SATA HDD bays, 4K HDMI output, 16-channel synchronous playback, intelligent analytics and broad ONVIF camera compatibility.
