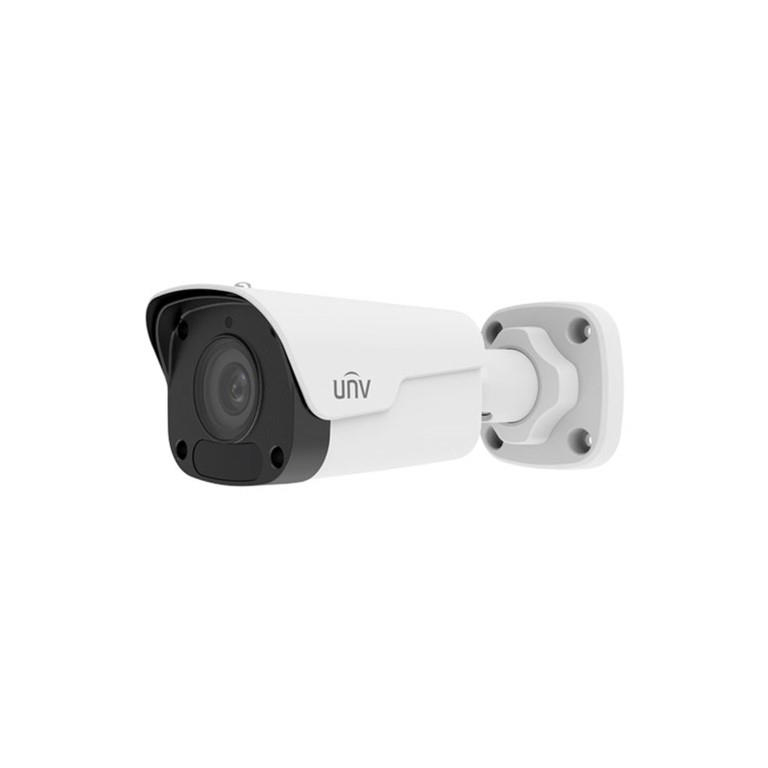

Uniview 2MP 2.8mm HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28KM-G

Uniview 2MP 2.8mm HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28KM-G

Features

• High quality image with 2MP, 1/2.7"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264, MJPEG

• 120dB true WDR technology enables clear image in strong light scene

• Support 9:16 Corridor Mode

• Built-in Mic

• Smart IR, up to 30m (98ft) IR distance

• Supports 128GB Micro SD card

• Support PoE power supply

• 3-Axis

Technical Specification

Camera

Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination:

• Colour: 0.01Lux ( F2.0, AGC ON)

• 0Lux with IR

Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: >52dB
WDR: 120dB

Lens

Lens Type: 2.8mm @2.0, Fixed-focal
Lens Mount: M12
Angle of View (H): 112.9°
Angle of View (V): 59.1°
Angle of View (O): 121.2°

DORI

DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8mm: 42.0m 16.8m 8.4m 4.2m

Illuminator

IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
