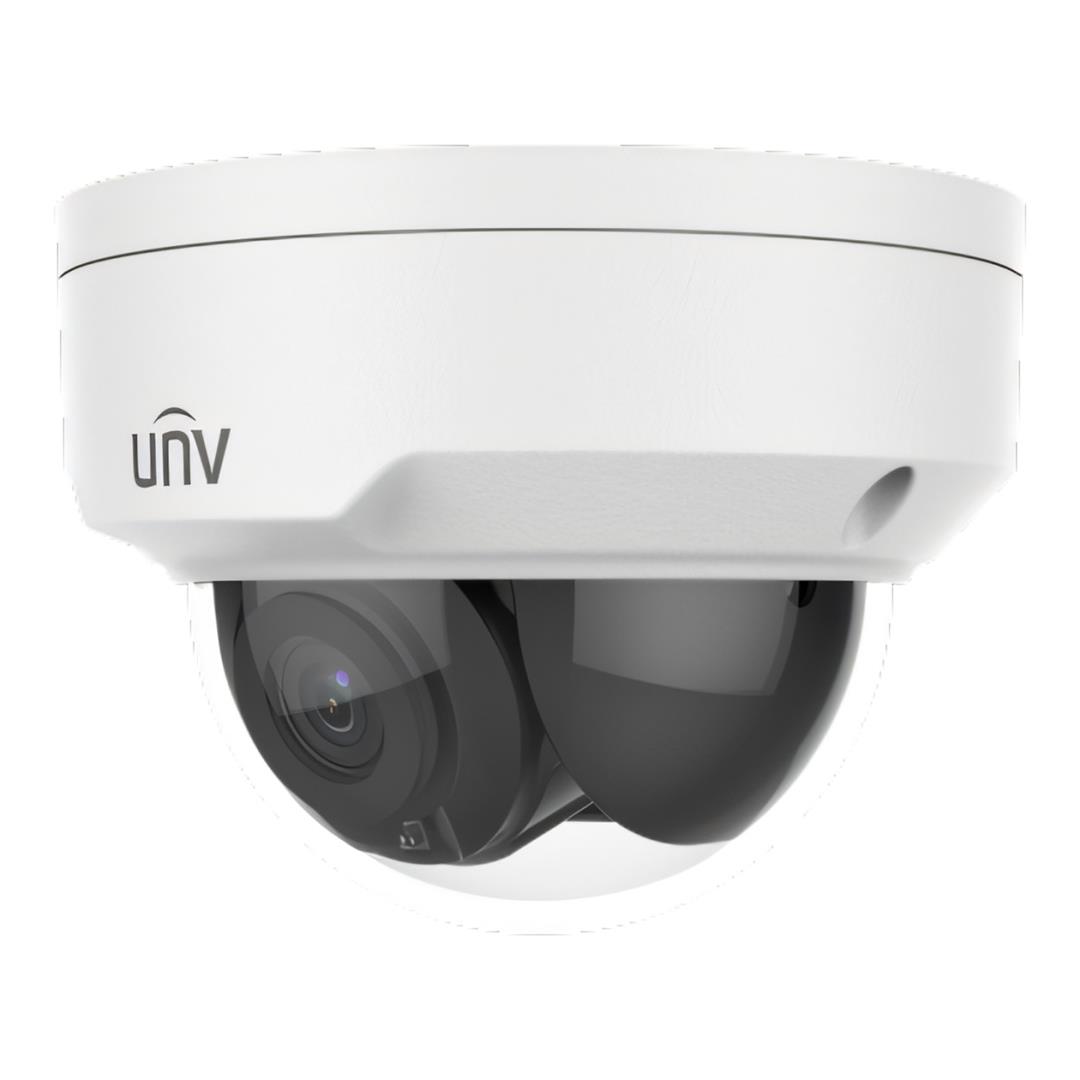

Uniview 2MP 2.8mm Fixed IR Dome Network Camera IPC322LB-DSF28K-G
The Uniview IPC322LB-DSF28K-G is a 2MP fixed dome network camera designed for reliable indoor and outdoor video surveillance. Its 1/2.7-inch progressive-scan CMOS sensor delivers Full HD 1920 × 1080 video, while the wide-angle 2.8mm fixed lens provides broad scene coverage. Smart IR offers night-time visibility at distances of up to 30m, while 120dB true WDR helps maintain image clarity in challenging high-contrast lighting conditions.
Key Features
- 2MP 1/2.7-inch progressive-scan CMOS sensor with Full HD 1080p video.
- 2.8mm F2.0 fixed lens with a wide 112.9° horizontal field of view.
- Smart IR night vision with an illumination distance of up to 30m.
- 120dB true WDR for improved detail in high-contrast scenes.
- Ultra 265, H.265, H.264 and MJPEG video compression.
- Supports microSD edge storage with capacities up to 128GB.
- IP67 weather protection and IK10 vandal-resistant construction.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview |
| Model | IPC322LB-DSF28K-G |
| Product Type | HD IR Fixed Dome Network Camera |
| Resolution | 2MP |
| Image Sensor | 1/2.7-inch 2MP Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Maximum Frame Rate | 30/25fps at 1920 × 1080 |
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC On) / 0 Lux with IR |
| Day / Night | IR-Cut Filter with Automatic Switching (ICR) |
| Shutter | Auto / Manual, 1s to 1/100000s |
| Signal-to-Noise Ratio | >52dB |
| Wide Dynamic Range | 120dB True WDR |
| Lens | 2.8mm Fixed-Focal |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Horizontal Field of View | 112.9° |
| Vertical Field of View | 59.1° |
| Diagonal Field of View | 121.2° |
| DORI – Detect | 42m |
| DORI – Observe | 16.8m |
| DORI – Recognise | 8.4m |
| DORI – Identify | 4.2m |
| Adjustment | Pan: 3°–360° / Tilt: 0°–68° / Rotate: 3°–360° |
| IR Range | Up to 30m |
| IR Wavelength | 850nm |
| Smart IR | Supported |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Bit Rate | 128Kbps–6144Kbps |
| Corridor Mode | 9:16 Supported |
| Digital Noise Reduction | 2D / 3D DNR |
| Region of Interest | Up to 8 Areas |
| Privacy Mask | Up to 4 Areas |
| Motion Detection | Up to 4 Areas |
| Edge Storage | microSD Card up to 128GB |
| Power | 12V DC / PoE |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Camera Adjustment | 3-Axis |
Deploy reliable Full HD surveillance with the Uniview IPC322LB-DSF28K-G, combining a wide-angle 2.8mm lens, 30m Smart IR, 120dB true WDR and robust IP67 and IK10 protection.
