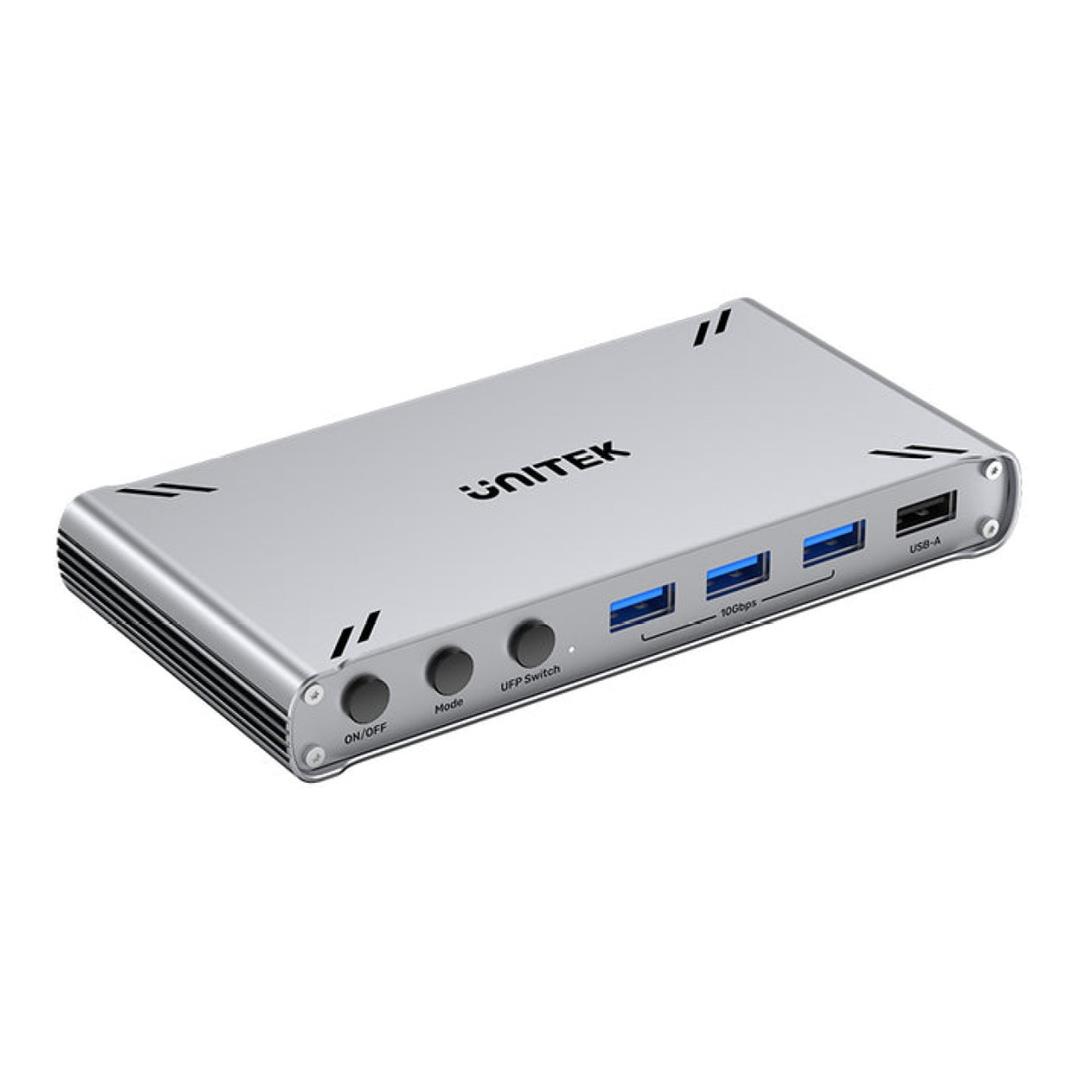

Unitek USB-C 10Gbps 4K HDMI Split-Screen KVM Switch D1118AGY01-US

The Unitek D1118AGY01-US USB-C 10Gbps HDMI Split-Screen KVM Switch provides an efficient way to control two computers using a shared HDMI display and USB peripherals. In addition to conventional source switching, it can display both connected computers simultaneously in split-screen mode at resolutions up to 4K at 30 Hz. Five shared USB-A ports provide connectivity for keyboards, mice, storage and other peripherals, while direct data intercopy functionality enables convenient file transfer between compatible Windows and macOS computers.

Key Features

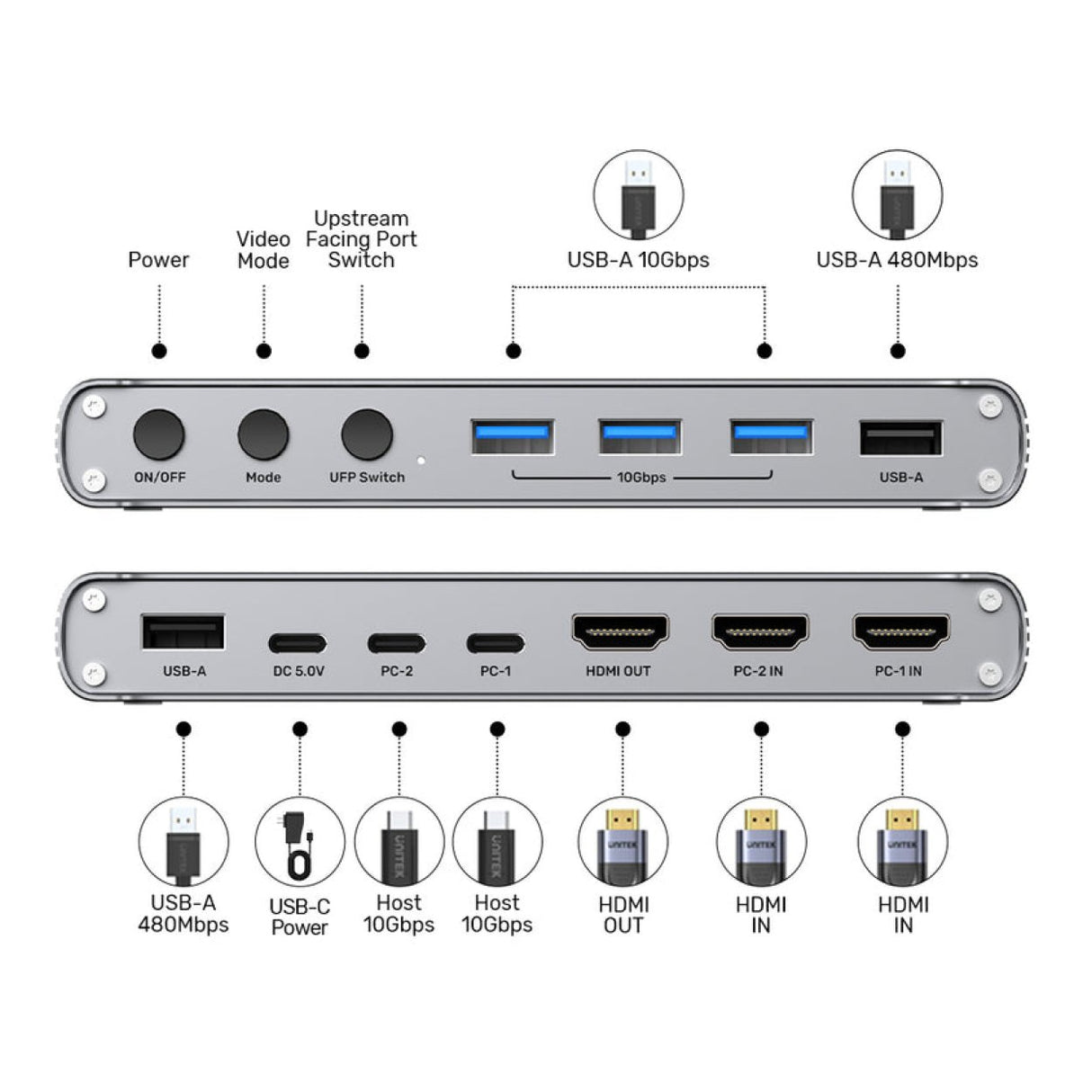

• Controls two host computers through one shared HDMI display and USB peripherals.
• Supports HDMI split-screen and conventional source-switching modes.
• Maximum HDMI output resolution of 4K at 30 Hz.

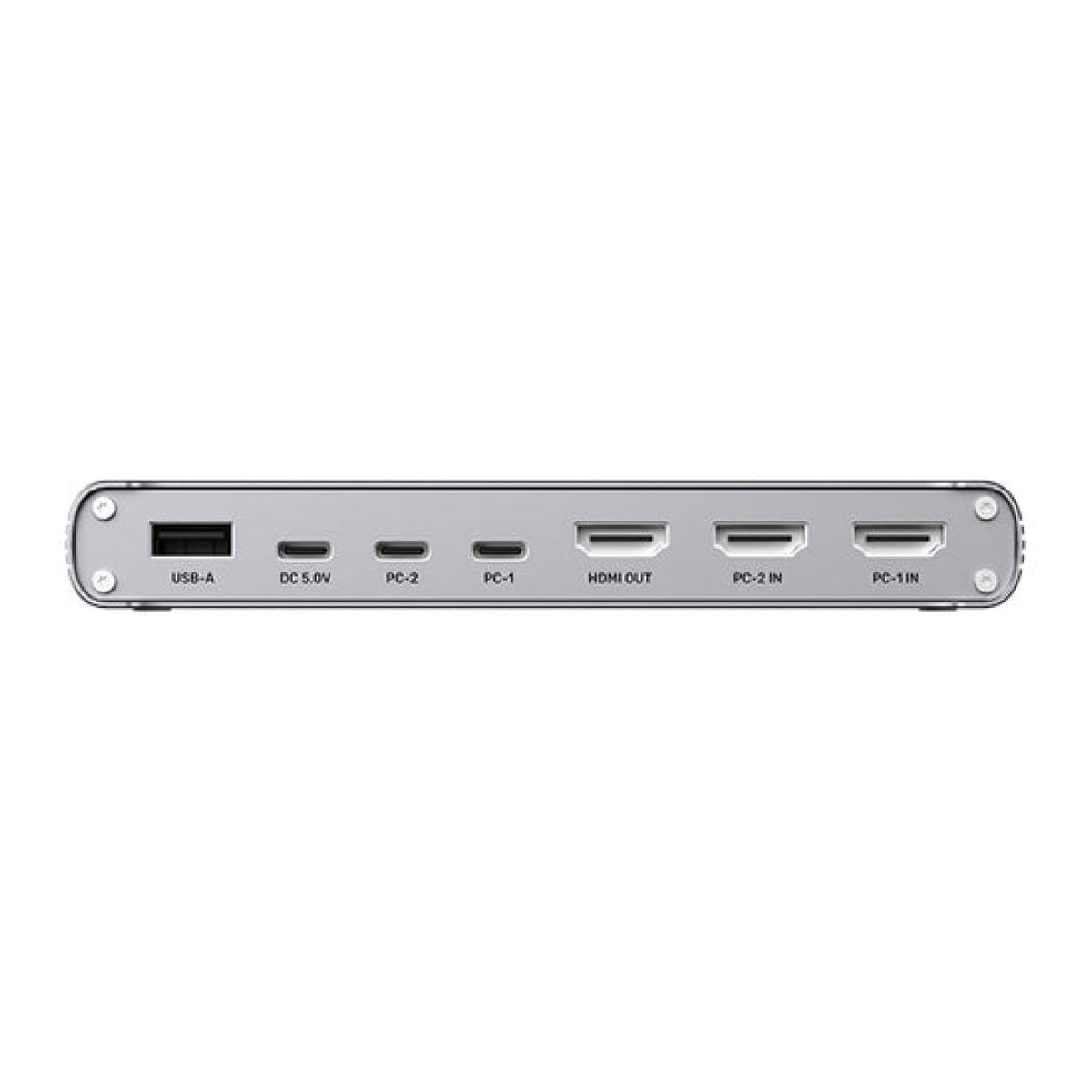

• Two HDMI inputs and two USB-C 10Gbps upstream connections for host computers.

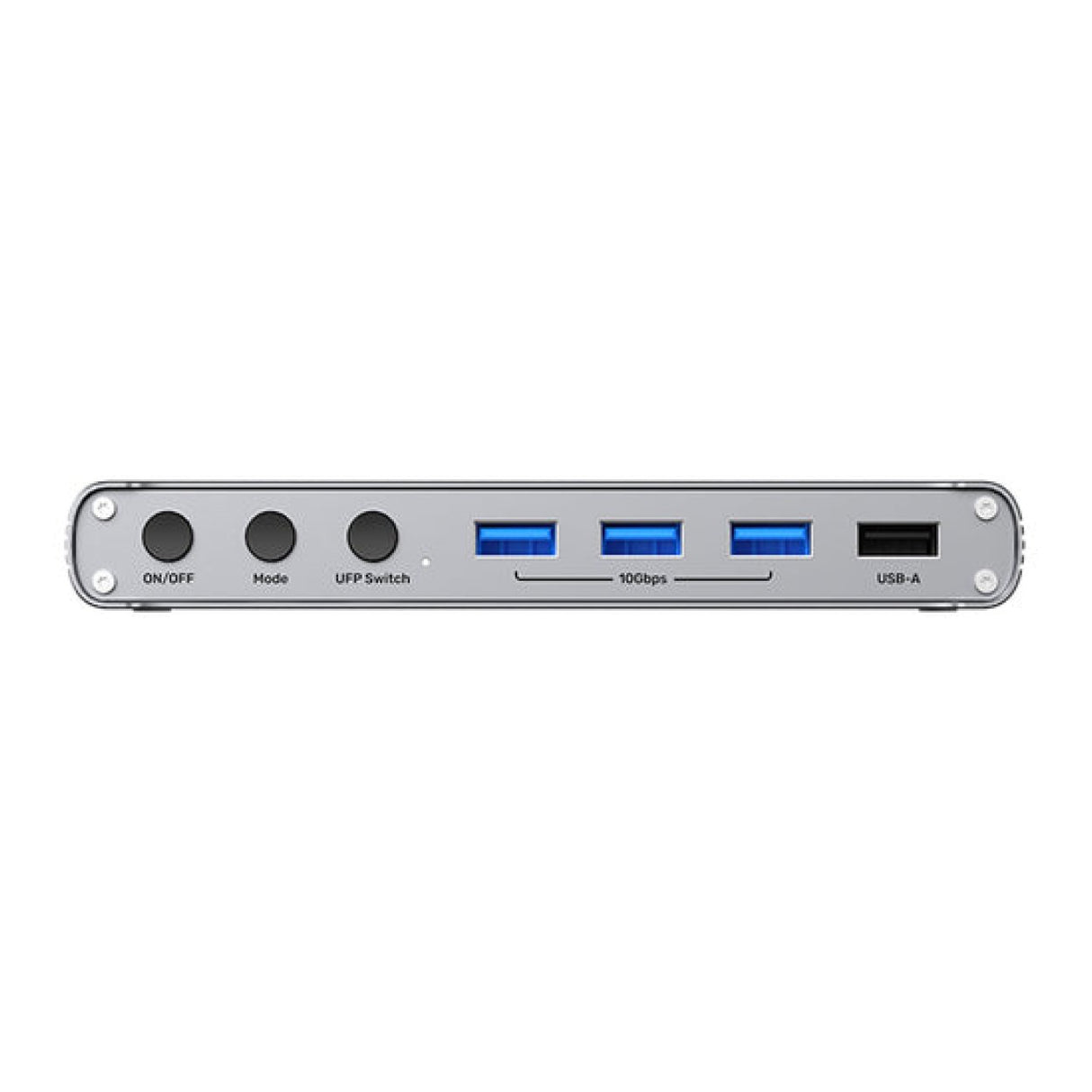

• Three shared USB-A ports support data transfer rates up to 10Gbps.
• Two additional USB-A 480Mbps ports are ideal for keyboards, mice and other compatible peripherals.
• Direct data intercopy enables drag-and-drop file transfer between two compatible host computers.
• UFP Switch button provides convenient KVM switching between connected computers.
• Supports HDCP 1.4.

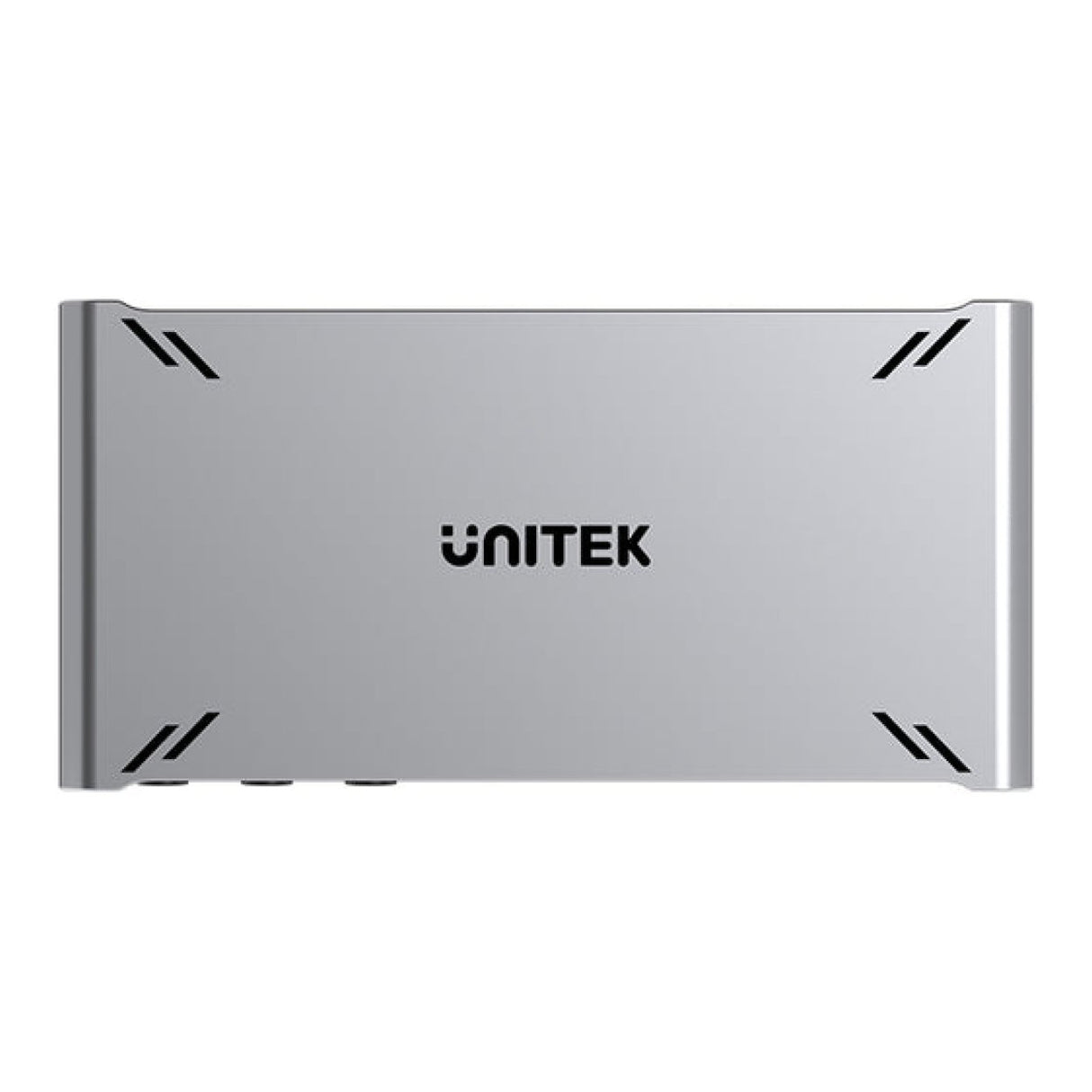

• Durable aluminium-alloy housing with a compact Space Grey finish.

Two Computers, One Workspace

The D1118AGY01-US allows two computers to share a single HDMI monitor together with connected USB peripherals. Instead of maintaining separate keyboards, mice and displays for each system, users can switch control between the two hosts using the integrated UFP Switch button.

4K Split-Screen Display

Advanced HDMI screen-splitting functionality allows video from both connected computers to be displayed simultaneously on one compatible monitor. The KVM can also switch to an individual host for conventional full-screen operation and supports HDMI output resolutions up to 4K at 30 Hz.

Five Shared USB-A Ports

Five downstream USB-A connections can be shared between the connected computers. Three ports provide data transfer rates up to 10Gbps for high-speed storage and other compatible peripherals, while two additional 480Mbps USB-A ports provide convenient connectivity for devices such as keyboards and mice.

Direct Data Intercopy

The D1118A platform supports direct data intercopy between two compatible host computers, allowing files to be transferred using drag-and-drop operation. UNITEK's data-intercopy driver must be installed to use this feature.

Compatibility

• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• macOS 10.13 or later
• Compatible computers with HDMI video output and suitable USB connectivity
• HDMI monitors and displays supporting the required resolution
• Compatible USB keyboards, mice, flash drives, external storage and other USB peripherals

Both PC1 and PC2 should be connected through USB 5Gbps or faster interfaces for optimal performance. Maximum resolution and USB transfer rates depend on the capabilities of the connected computers, display, peripherals and cabling.

What's in the Box

• 1 × Unitek USB-C 10Gbps HDMI Split-Screen KVM Switch
• 2 × 10Gbps USB-A to USB-C Cables - 1 m
• 1 × 5 V / 2 A Power Adapter - US Plug
• 1 × User Manual

This D1118AGY01-US package includes a US-plug power adapter. A suitable plug adapter may be required for use with South African power outlets.

Technical Specifications

Streamline a dual-computer workspace with 4K split-screen viewing, shared USB peripherals and high-speed data connectivity using the Unitek D1118AGY01-US KVM Switch.
