Unitek USB-C 10Gbps 4K HDMI Split-Screen KVM Switch D1118A

Unitek USB-C 10Gbps 4K HDMI Split-Screen KVM Switch D1118A

Control two computers from a single display and shared set of USB peripherals with the Unitek D1118A USB-C 10Gbps HDMI Split-Screen KVM Switch. Supporting up to 4K at 30Hz, high-speed 10Gbps USB connectivity and flexible split-screen modes, it provides a convenient solution for multitasking across two host systems.

Key Features

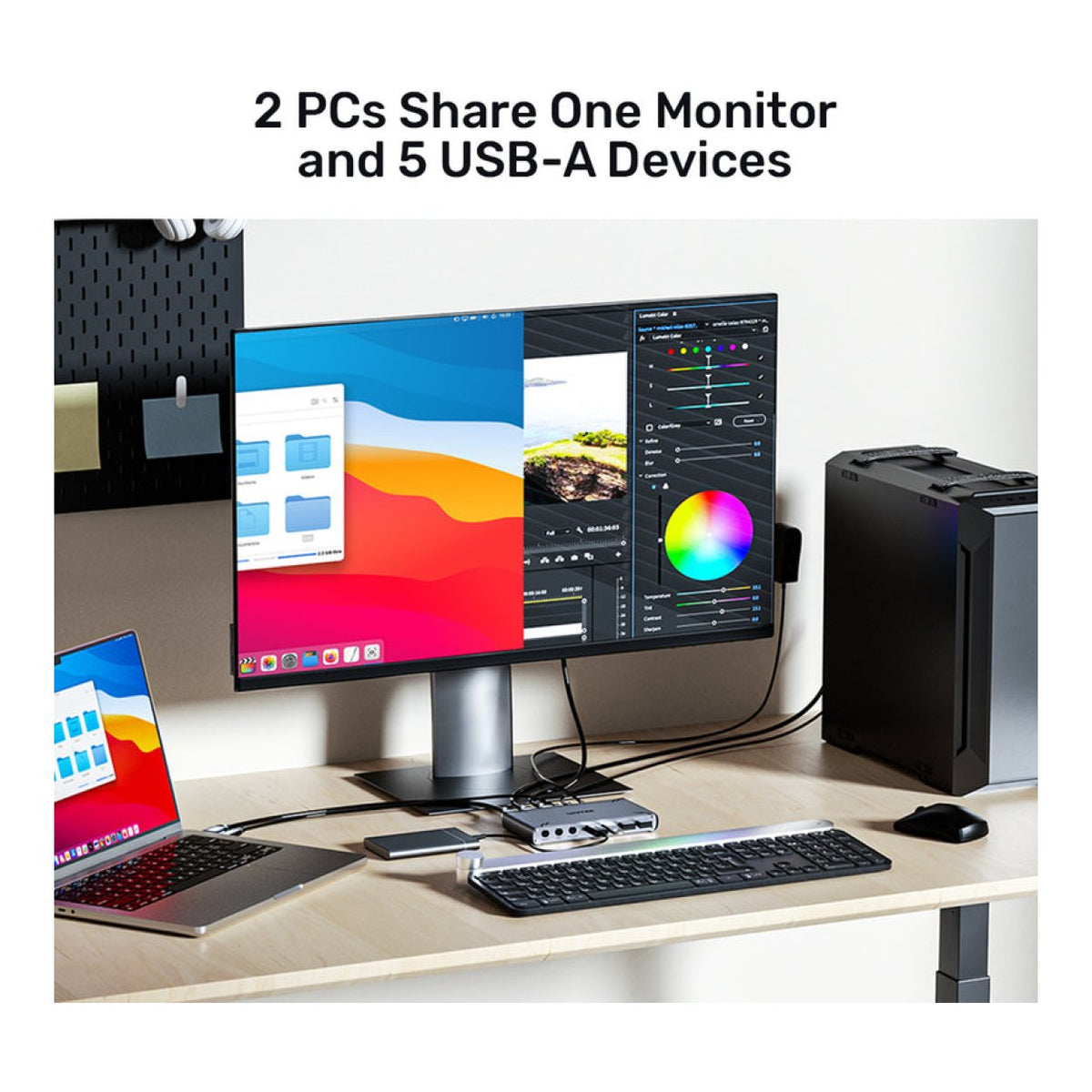

• Two-computer KVM control: Share one HDMI display, keyboard, mouse and other USB peripherals between two host computers.
• 4K video support: Supports HDMI output resolutions up to 4K at 30Hz.
• Split-screen viewing: Display content from both connected computers simultaneously using left/right or top/bottom split-screen modes.
• USB 10Gbps connectivity: Includes three high-speed USB-A ports with transfer rates up to 10Gbps.

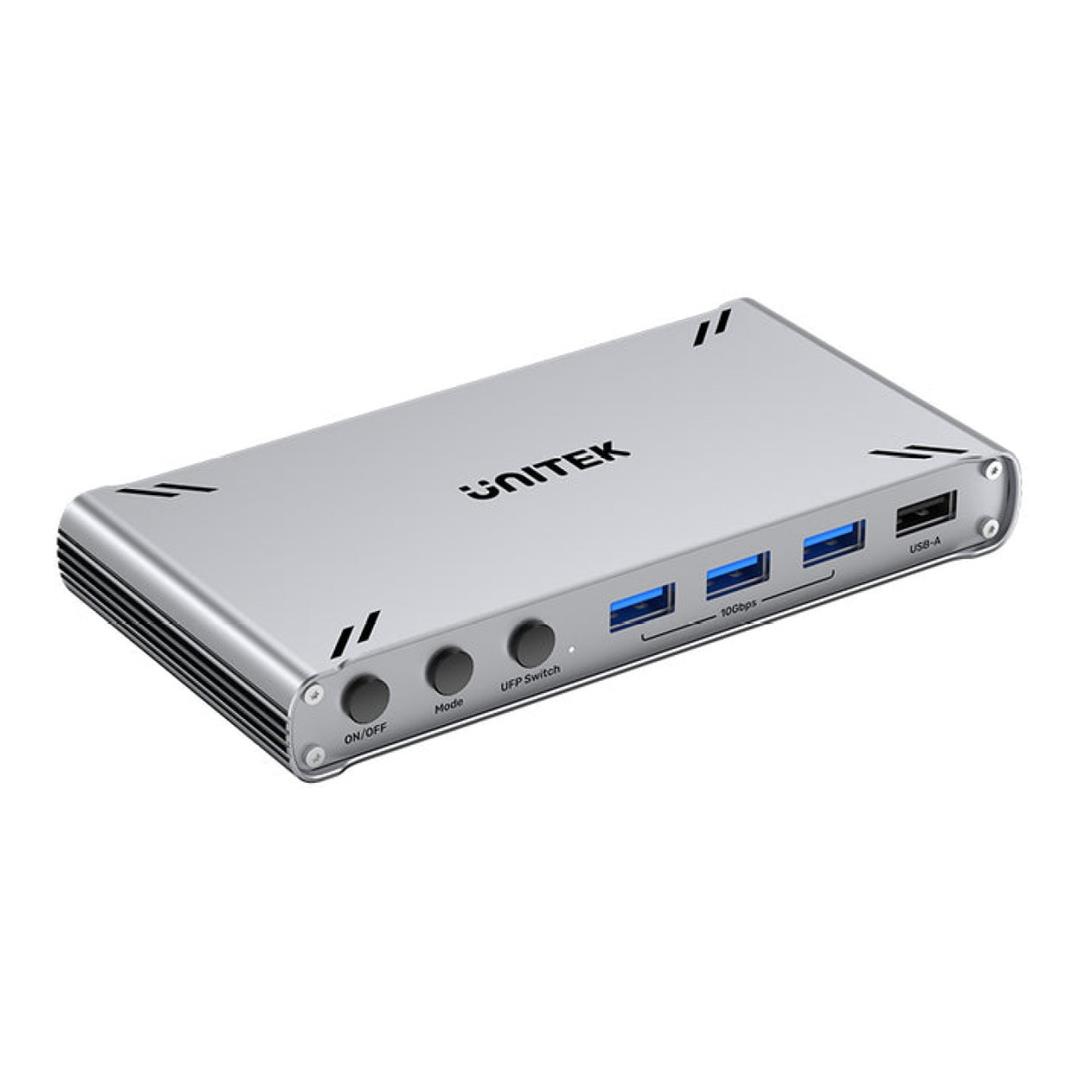

• Five shared USB-A ports: Provides three USB-A 10Gbps ports and two USB-A 480Mbps ports for shared peripherals.
• Data Intercopy: Supports direct drag-and-drop file transfer between the two connected host computers with the required Unitek software.
• One-button KVM switching: UFP switch button allows convenient switching between connected host devices.

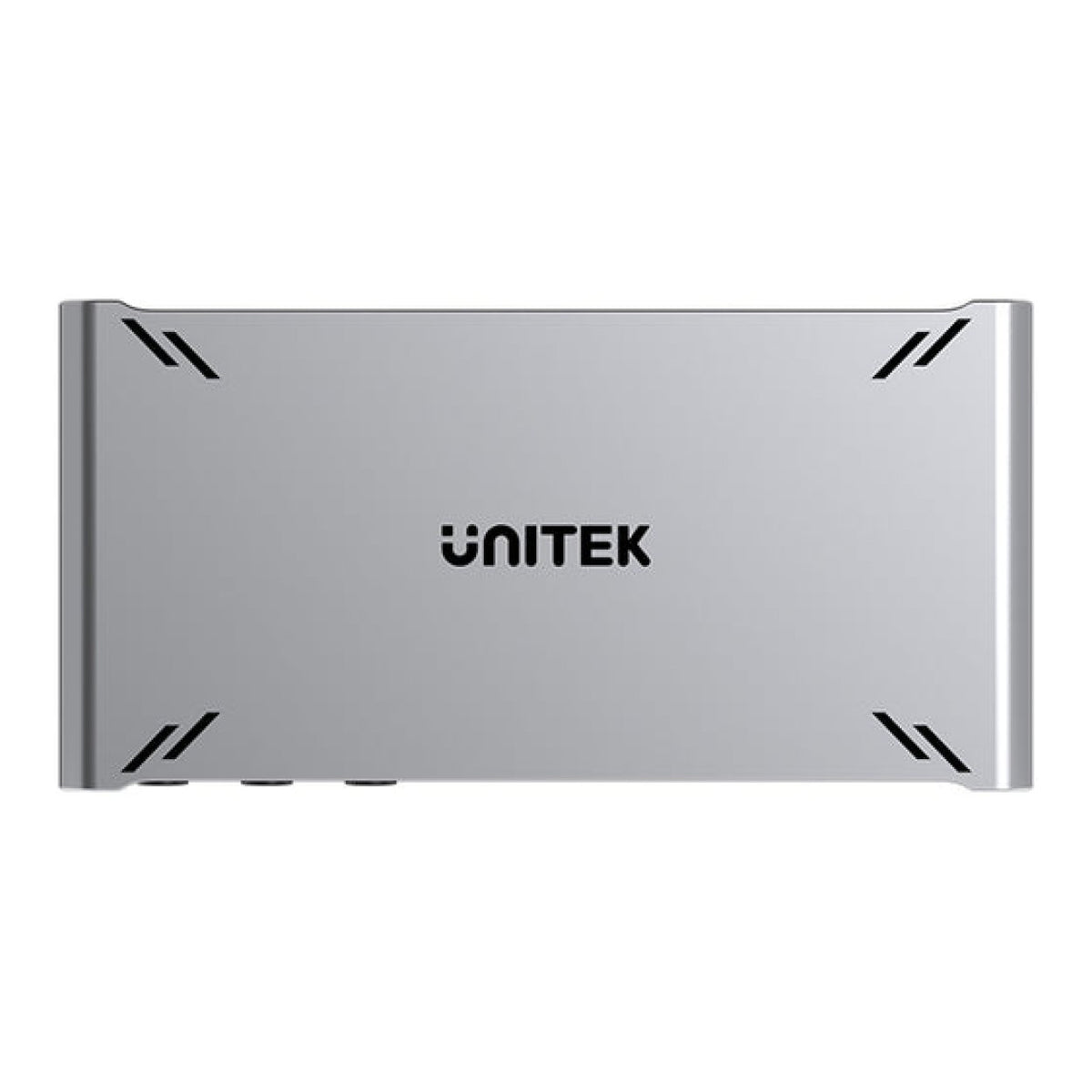

• Aluminium-alloy housing: Durable Space Grey enclosure suited to desktop and professional workstation use.

Flexible Split-Screen Display

The D1118A can display either connected host individually or show both sources simultaneously. Split-screen modes support left-and-right or top-and-bottom layouts, making it useful for comparing content, monitoring multiple systems or working across two computers at once.

Shared USB Peripherals

Five USB-A ports allow compatible keyboards, mice, flash drives, printers, external drives and other USB devices to be shared between the two connected computers. Three ports support transfer speeds up to 10Gbps, while two additional ports support up to 480Mbps.

Data Intercopy

The Data Intercopy function allows files to be transferred directly between the two connected computers using drag-and-drop operation. The appropriate Unitek driver and software must be installed to use this function, and both host USB connections should support USB 5Gbps or faster for optimal performance.

Compatibility

Compatible with computers running Windows 8, Windows 8.1, Windows 10, Windows 11 and macOS 10.13 or later. HDMI-equipped displays are required for video output.

What's in the Box

• 1 x Unitek D1118A USB-C 10Gbps HDMI Split-Screen KVM Switch.
• 2 x 10Gbps USB-A to USB-C Cables - 1m.
• 1 x 5V/2A Power Adapter.
• 1 x User Manual.

HDMI cables, computers, display and USB peripherals are not included unless otherwise supplied separately.

Technical Specifications

Control two computers from one display and shared USB setup with the Unitek D1118A USB-C 10Gbps HDMI Split-Screen KVM Switch from FirstShop.
