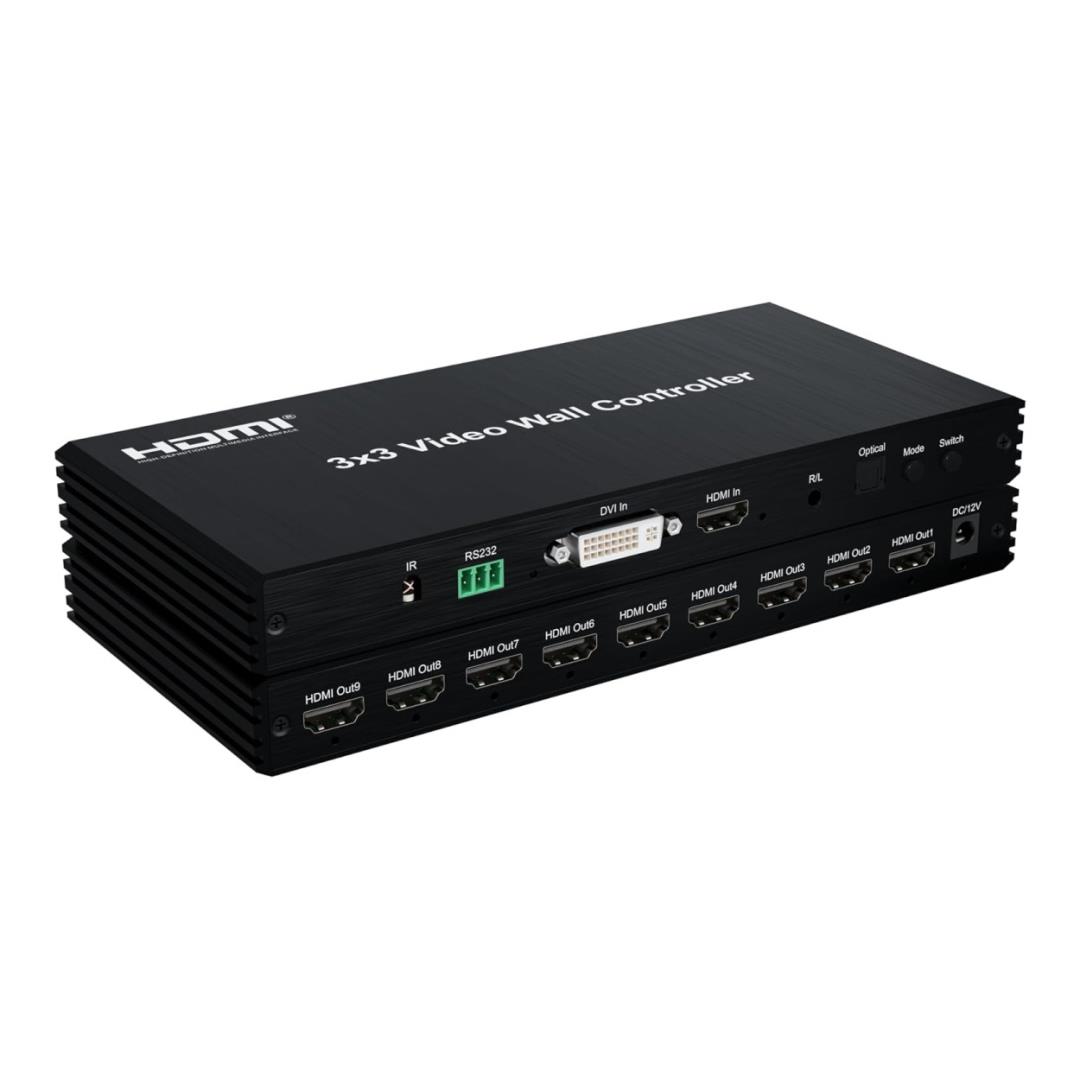

UniQue 3x3 HDMI Video Wall Controller 9 Output 1080p UQ-HVWC3X3

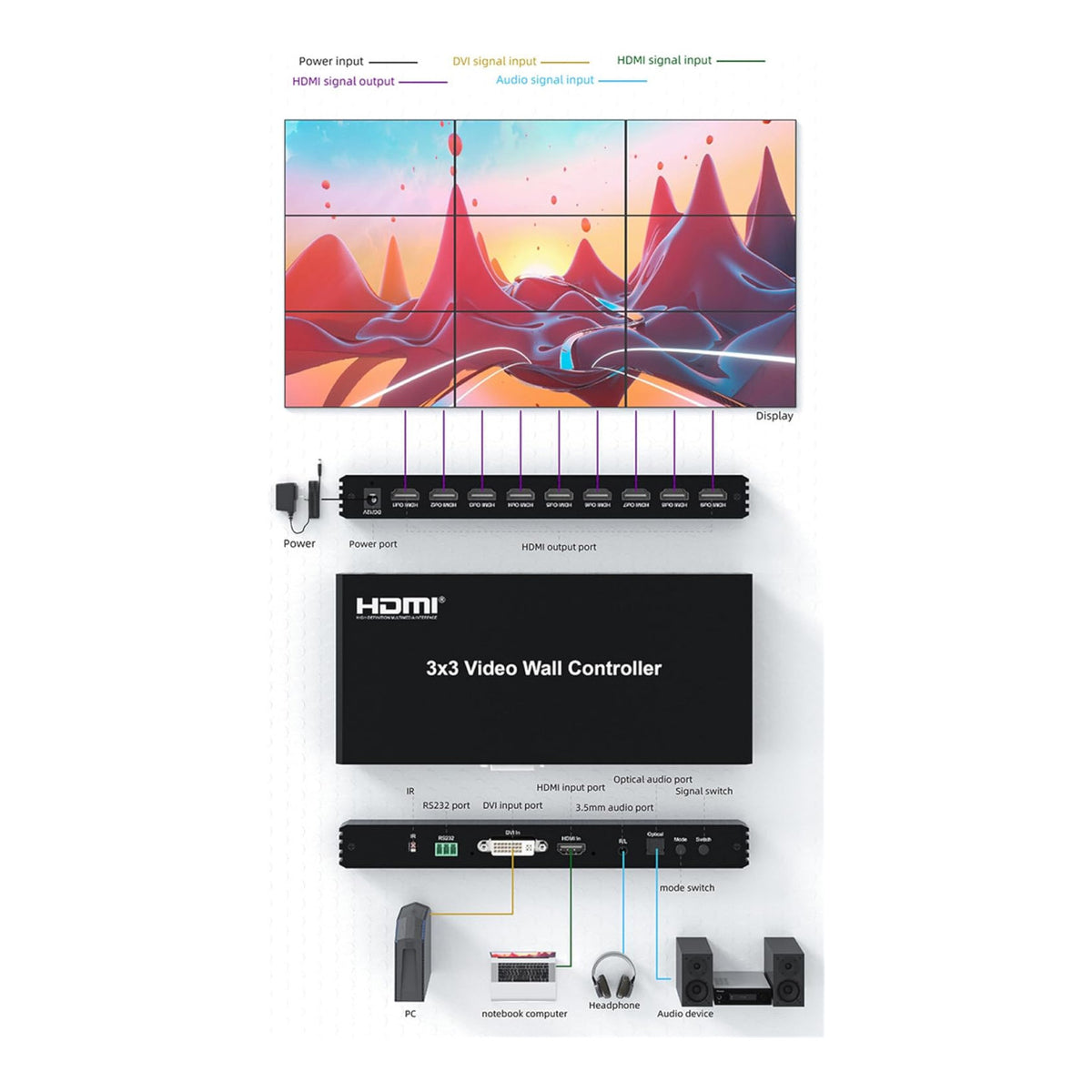

The UniQue UQ-HVWC3X3 is a 3x3 video wall controller designed to distribute a compatible HDMI or DVI video source across up to nine HDMI displays. It supports Full HD 1920 x 1080 output at 60Hz, multiple splicing modes, power-off memory and RS232 or infrared control for commercial and professional display installations.
Key Features
- 3x3 Video Wall Configuration: Supports nine HDMI display outputs.
- HDMI and DVI Input: Supports compatible digital video source equipment.
- 1080p 60Hz Output: Supports Full HD output up to 1920 x 1080 at 60Hz.
- Multiple Splicing Modes: Supports configurable video wall arrangements.
- Power-Off Memory: Retains settings after the controller has been switched off.
- RS232 and IR Control: Enables convenient system configuration and operation.
- Plug and Play: Hardware-based operation simplifies installation.
Applications
- 3x3 digital signage walls
- Retail display environments
- Security and surveillance centres
- Control rooms
- Corporate and presentation installations
Compatibility
Designed for compatible HDMI or DVI input sources and up to nine HDMI displays. Connected displays should support the controller's output resolution and required signal format.
What's in the Box
- 1 x UniQue 3x3 HDMI Video Wall Controller UQ-HVWC3X3
- 1 x Power Adapter
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | UQ-HVWC3X3 |
| Video Wall Layout | 3 x 3 |
| HDMI Outputs | 9 |
| Video Inputs | HDMI / DVI |
| Input Resolutions | 1080p, 720p, 576p, 576i, 480p |
| Maximum Output Resolution | 1920 x 1080 @ 60Hz |
| Video Formats | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:4:0 |
| Audio Format | Stereo |
| Maximum Bandwidth | 4.95Gbit/s |
| Maximum Transfer Rate | 3.96Gbit/s |
| Recommended HDMI Cable Length | Up to 15m using AWG26 standard HDMI cable |
| Control | RS232 / IR |
| Maximum Working Current | 280mA |
| Power Input | AC 100-240V, 50/60Hz |
| Power Output | 12V DC / 1A |
| Operating Temperature | -10°C to +45°C |
Build a nine-display Full HD video wall installation with the UniQue UQ-HVWC3X3 from FirstShop.
