Description
Description

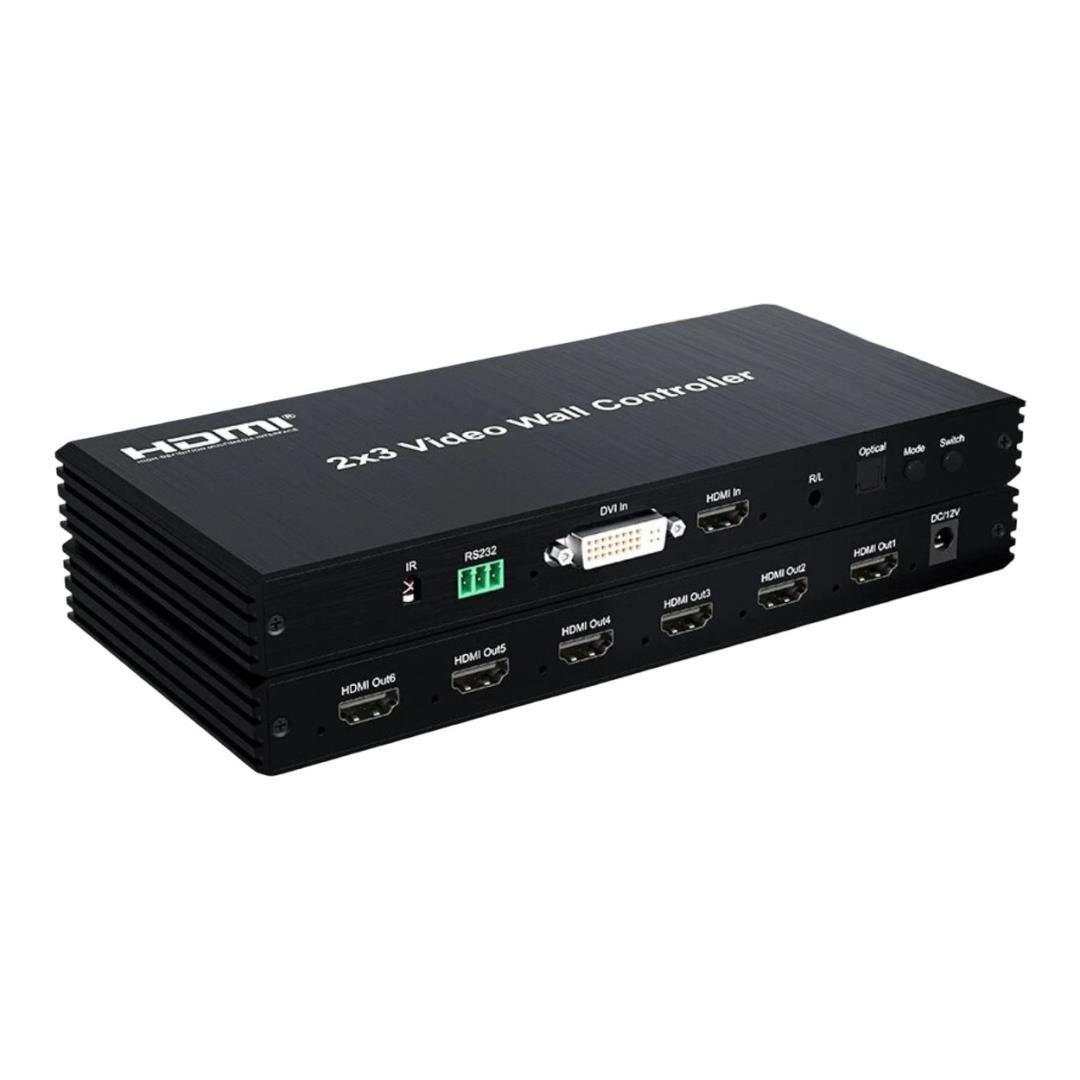

UniQue 2x3 HDMI Video Wall Controller 6 Output 1080p UQ-HVWC2X3
The UniQue UQ-HVWC2X3 is a 2x3 video wall controller designed to distribute and process a compatible HDMI or DVI video source across up to six HDMI displays. Supporting output resolutions up to 1920 x 1080 at 60Hz, multiple splicing modes and RS232 or infrared control, it is suited to commercial displays, monitoring environments and presentation installations.
Key Features
- 2x3 Video Wall Configuration: Supports up to six HDMI display outputs.
- HDMI/DVI Source Support: Accepts compatible HDMI or DVI video input.
- Full HD Output: Supports output resolution up to 1920 x 1080 at 60Hz.
- Multiple Splicing Modes: Allows supported video wall layouts and image arrangements.
- Power-Off Memory: Retains configuration settings after power interruption.
- RS232 and IR Control: Provides flexible system control options.
- Plug-and-Play Hardware: Designed for straightforward video wall deployment.
Applications
- Digital signage video walls
- Security monitoring environments
- Retail display systems
- Control rooms
- Conference and presentation installations
Compatibility
Designed for compatible HDMI or DVI source equipment and up to six HDMI displays. For best results, connected displays should support the controller's output resolution and signal format.
What's in the Box
- 1 x UniQue 2x3 HDMI Video Wall Controller UQ-HVWC2X3
- 1 x Power Adapter
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | UQ-HVWC2X3 |
| Video Wall Layout | 2 x 3 |
| HDMI Outputs | 6 |
| Video Input | HDMI / DVI |
| Input Resolutions | 1080p, 720p, 576p, 576i, 480p |
| Maximum Output Resolution | 1920 x 1080 @ 60Hz |
| Video Formats | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:4:0 |
| Audio Format | Stereo |
| Maximum Bandwidth | 4.95Gbit/s |
| Maximum Transfer Rate | 3.96Gbit/s |
| HDMI Cable Length Support | Up to 15m using AWG26 standard HDMI cable |
| Control | RS232 / IR |
| Maximum Working Current | 280mA |
| Power Adapter Input | AC 100-240V, 50/60Hz |
| Power Output | 12V DC / 1A |
| Operating Temperature | -10°C to +45°C |
Create a six-display Full HD video wall installation with the UniQue UQ-HVWC2X3 from FirstShop.
