Ugreen Maxidok 17-in-1 Thunderbolt 5 Docking Station 85590F

Ugreen Maxidok 17-in-1 Thunderbolt 5 Docking Station 85590F

The UGREEN Maxidok 17-in-1 Thunderbolt 5 Docking Station 85590F provides a central connection point for displays, storage, networking, audio and everyday peripherals. Designed for creative professionals, technical users and advanced office workstations, it combines high-bandwidth Thunderbolt 5 connectivity with laptop charging, integrated NVMe storage expansion and a comprehensive selection of ports.

One Dock for a Complete Workstation

Connect a compatible laptop through the upstream Thunderbolt 5 port to access displays, high-speed data, wired networking, memory cards, audio equipment and USB peripherals. The dock can deliver up to 140W to a compatible PD 3.1 laptop, helping to reduce the number of separate cables and adaptors required on your desk.

Thunderbolt 5 Performance

Thunderbolt 5 provides up to 80Gbps of bidirectional bandwidth, with up to 120Gbps available through Bandwidth Boost in supported workflows. This additional bandwidth helps accommodate high-resolution displays and demanding storage devices, although actual performance depends on the host system and connected equipment.

Flexible High-Resolution Displays

Two downstream Thunderbolt 5 connections and a DisplayPort 2.1 output provide flexible monitor options. Supported configurations include a single display at up to 8K at 60Hz or two displays at up to 6K at 60Hz. Extended triple-display mode is available only when the dock is connected to a compatible Thunderbolt 5 computer.

Integrated NVMe Storage Expansion

An accessible M.2 NVMe PCIe Gen4 x4 slot lets you add a compatible 2230, 2242, 2260 or 2280 SSD with a capacity of up to 8TB. This provides convenient local storage for project files, media libraries and backups without requiring a separate external enclosure. The SSD is not included.

Fast Peripheral and Network Connections

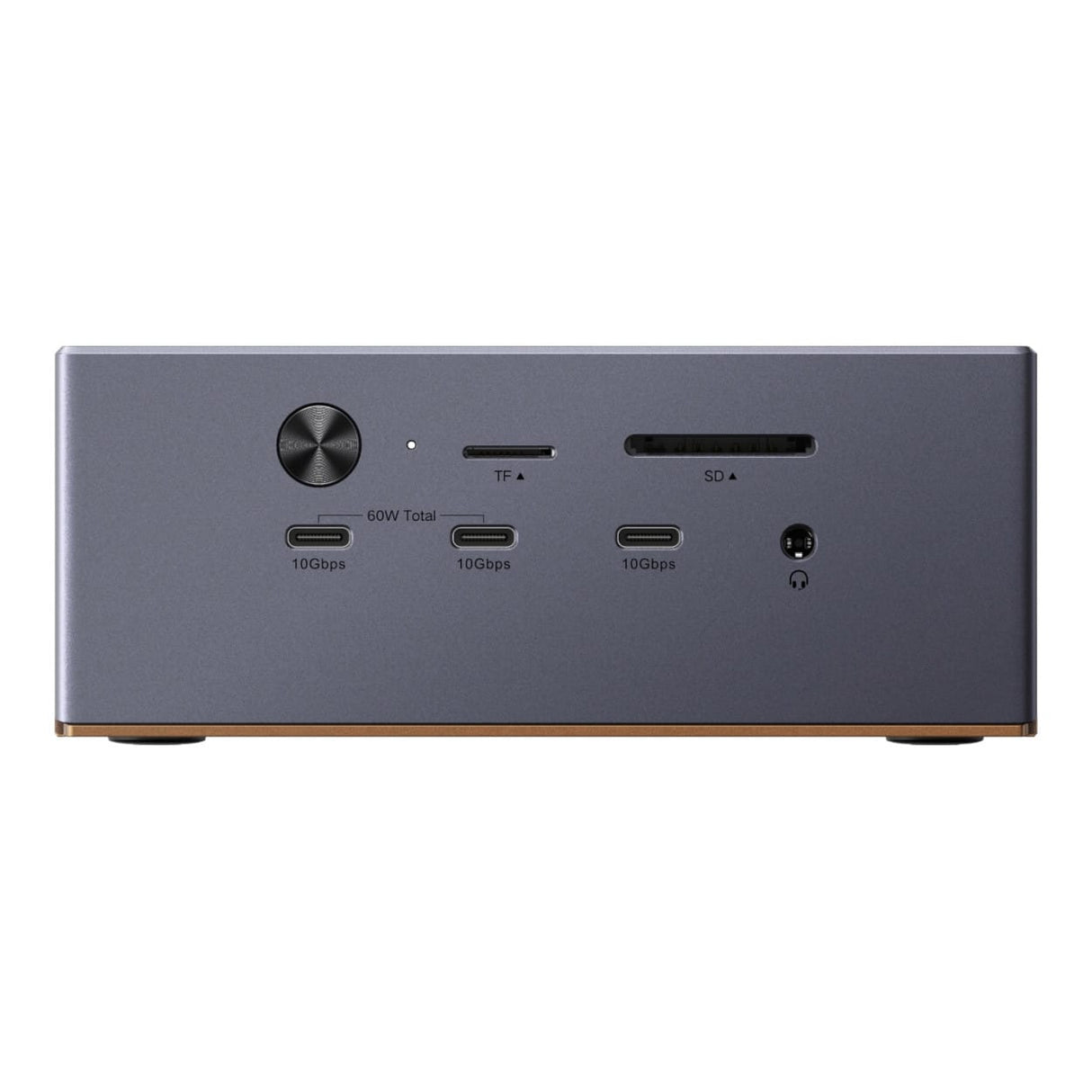

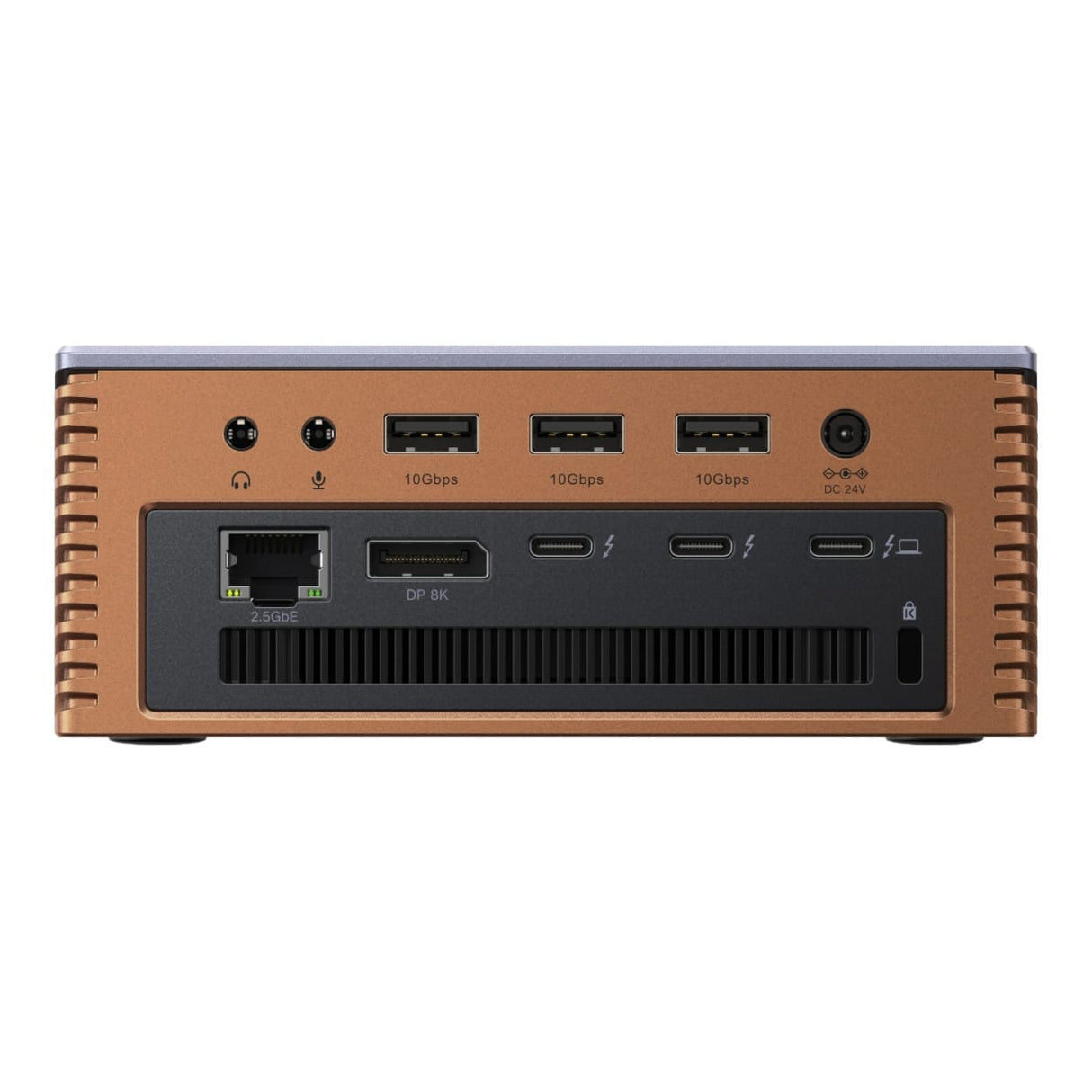

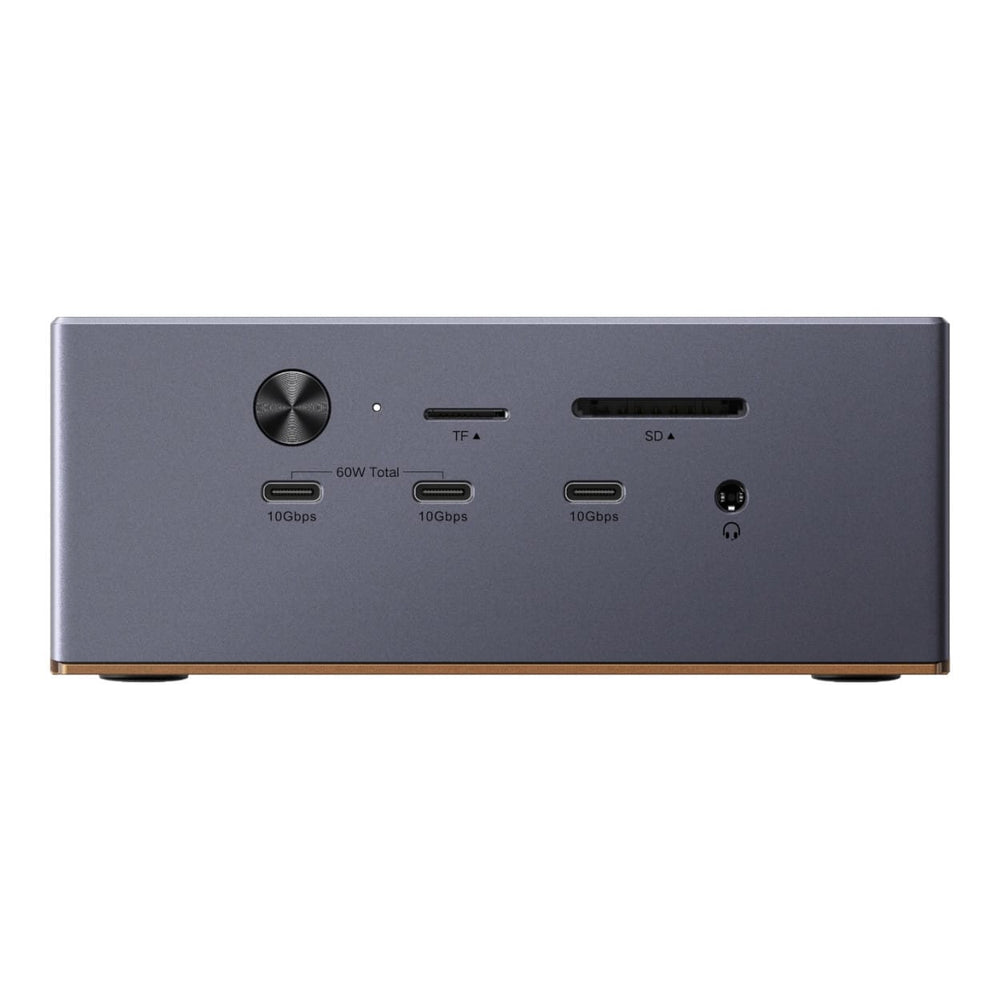

Three 10Gbps USB-A ports and three 10Gbps USB-C ports accommodate external drives and other compatible peripherals. Two of the USB-C ports share up to 60W of charging output, while the two downstream Thunderbolt 5 ports can each provide up to 15W. A 2.5 Gigabit Ethernet port supports stable high-speed wired networking when connected to compatible network equipment.

Media and Audio Connectivity

UHS-II SD and microSD card readers support theoretical transfer speeds of up to 312MB/s, providing convenient access to compatible camera and media cards. Three separate 3.5mm connections provide a combo audio jack, audio input and audio output for headsets, microphones, speakers and other compatible audio equipment.

Key Features:

• Seventeen connections for data, displays, storage, networking, audio and charging.
• Thunderbolt 5 bandwidth of up to 80Gbps bidirectionally or 120Gbps with Bandwidth Boost.
• Supports a single display at up to 8K at 60Hz or dual displays at up to 6K at 60Hz.
• Delivers up to 140W PD 3.1 charging to compatible laptops.
• Built-in M.2 NVMe PCIe Gen4 x4 slot supports SSD capacities up to 8TB.
• Six 10Gbps USB ports for connecting compatible storage devices and peripherals.
• Includes 2.5 Gigabit Ethernet and UHS-II SD and microSD card readers.

Technical Specifications:

Important Compatibility Information

• Display resolution and refresh rate depend on the host computer, operating system, graphics hardware, monitor and cables.
• Up to 140W laptop charging requires a compatible device that supports USB Power Delivery 3.1.
• Monitors without USB-C video input may require a suitable USB-C-to-DisplayPort or USB-C-to-HDMI cable or adaptor.
• The M.2 NVMe SSD, display adaptors and security cable are not included.

Bring your displays, storage, network and peripherals together with a high-capacity desktop dock, and add the UGREEN Maxidok to your cart today.
