Ubiquiti UVC-G6-ENTRY UniFi Door Entry Dual Camera - Black

Ubiquiti UVC-G6-ENTRY UniFi Door Entry Dual Camera - Black

Ubiquiti's UVC-G6-ENTRY is an intelligent door entry system with native UniFi Protect and UniFi Access integration. It is prioritised for full person visibility for accurate face identification and is equipped with a secondary package camera. With PoE input, the unit connects to a UniFi Access Hub and can be unlocked using an NFC card or UniFi Identity Mobile App.

*Note: This device needs to be paired with a UniFi Access Hub.

Technical Specification

Connectivity: BLE 4.1 and NFC

Ethernet Ports: 1x 10/100/1000

Resolution

• Main camera: 5MP, 1920 x 2560 (3:4)
• Package camera: 8MP 3264 x 2448 (4:3)

Sensor

• Main camera: 5MP CMOS
• Package camera: 8MP CMOS

Field of View

• Main camera: H: 100°, V: 135°, D: 180°
• Package camera: H: 66°, V: 51.7°, D: 78°

Max Frame Rate

• Main camera: 30 FPS
• Package camera: 3 FPS

Video Compression: H.264, MJPG

Hardware Button: Reset

Lens: Fixed focal length

Microphone: Two-Way Audio

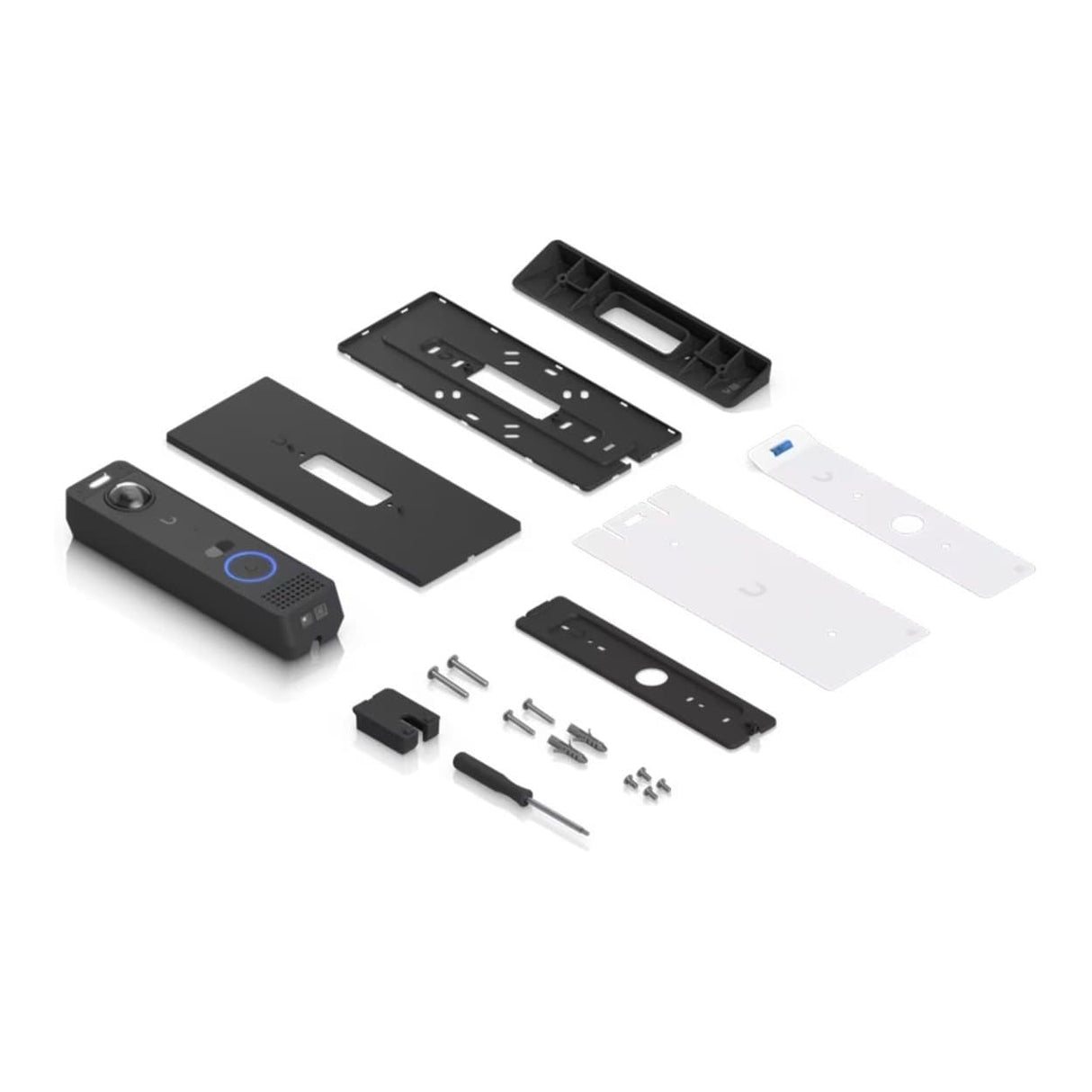

Mounting: Surface Mount (Included)

Night Mode: Built-in IR LED illumination and IR cut filter

IR Night Vision: 5 m (16 ft)

Operating Temperature: -30°C to 50°C

Power Method: PoE+

PoE Input: 802.3at

Power Input: 802.3at

Max Power Consumption: 16W

Weatherproofing: IP55

Tamper Resistance: IK07

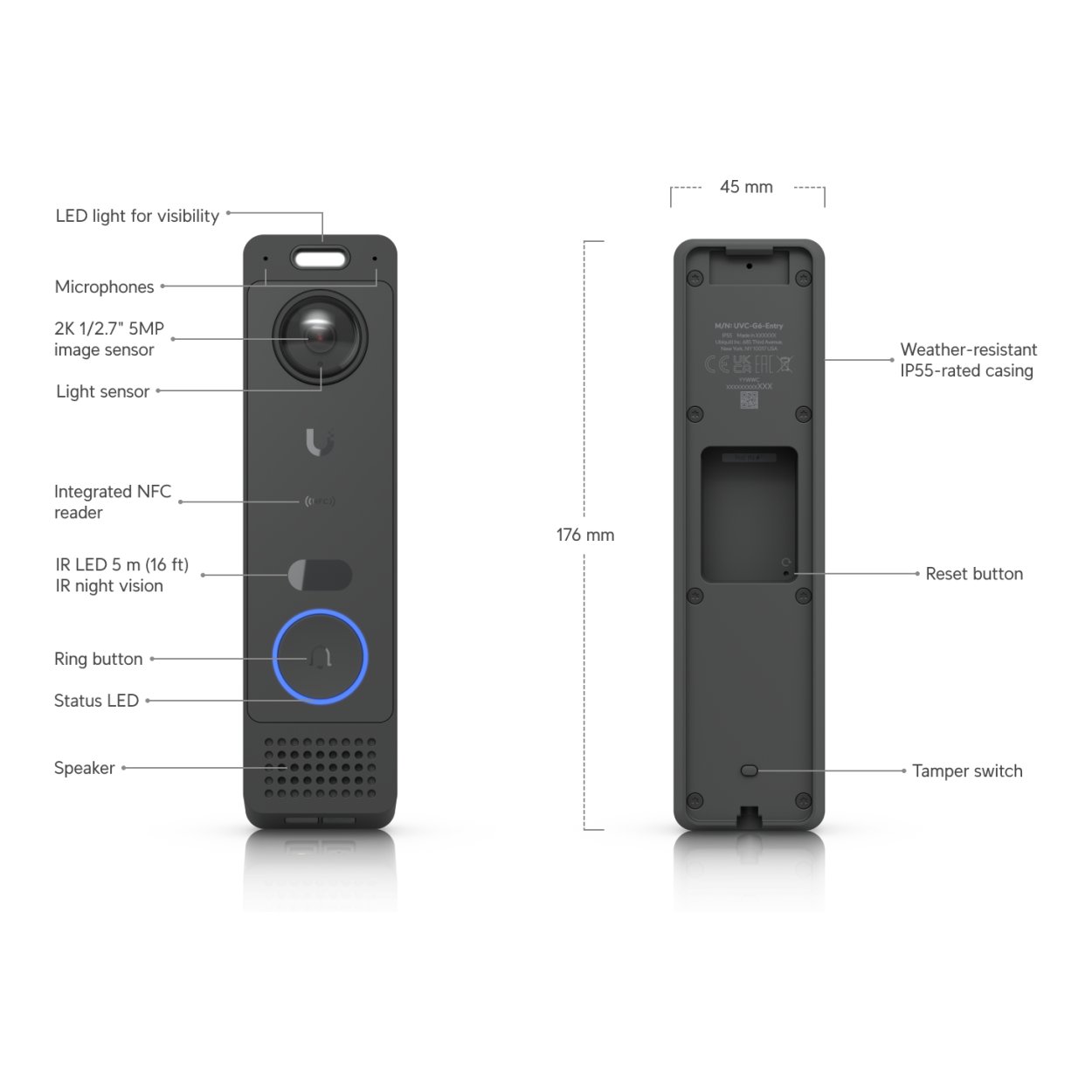

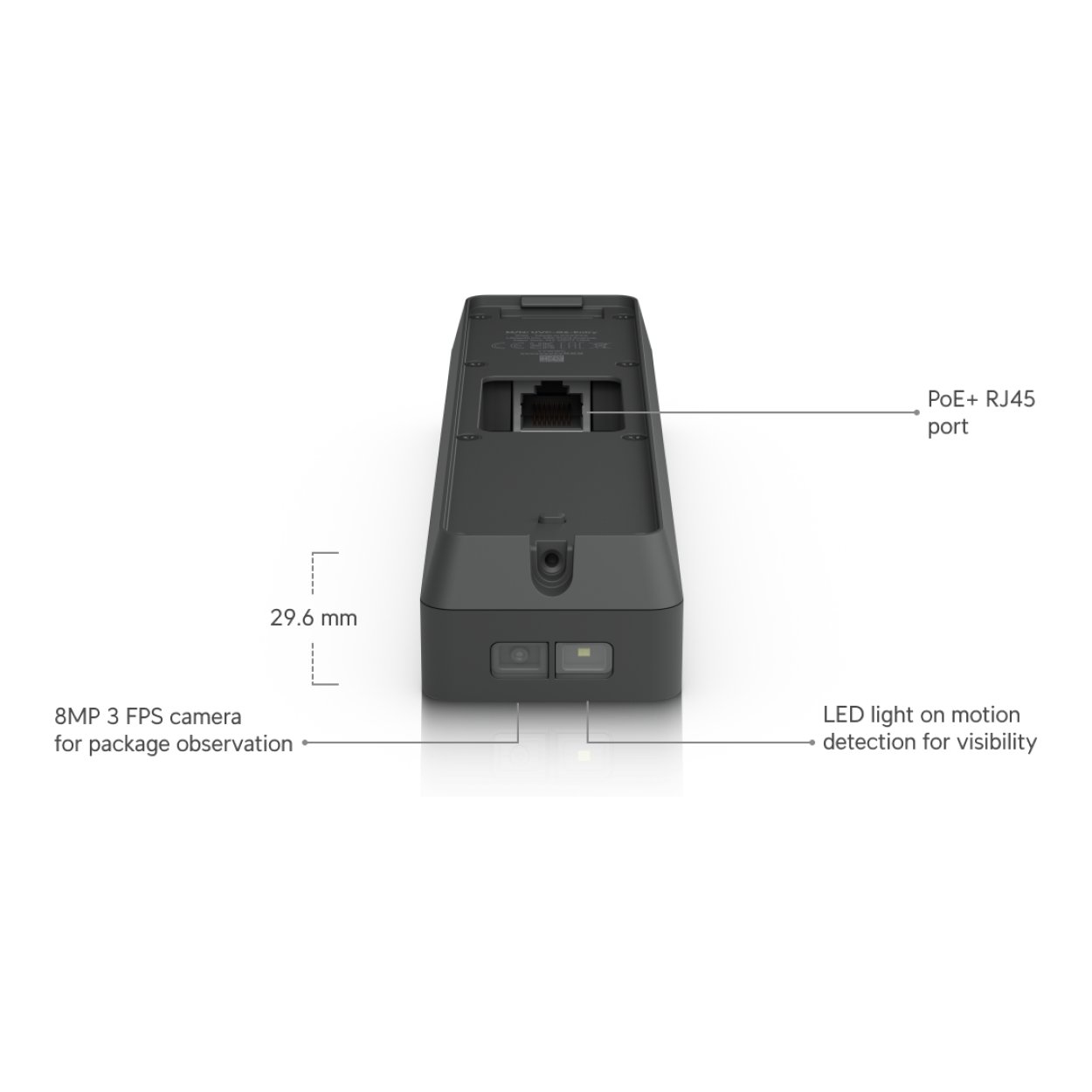

Dimensions: 176 x 45 x 29.6 mm

Weight: 275g
