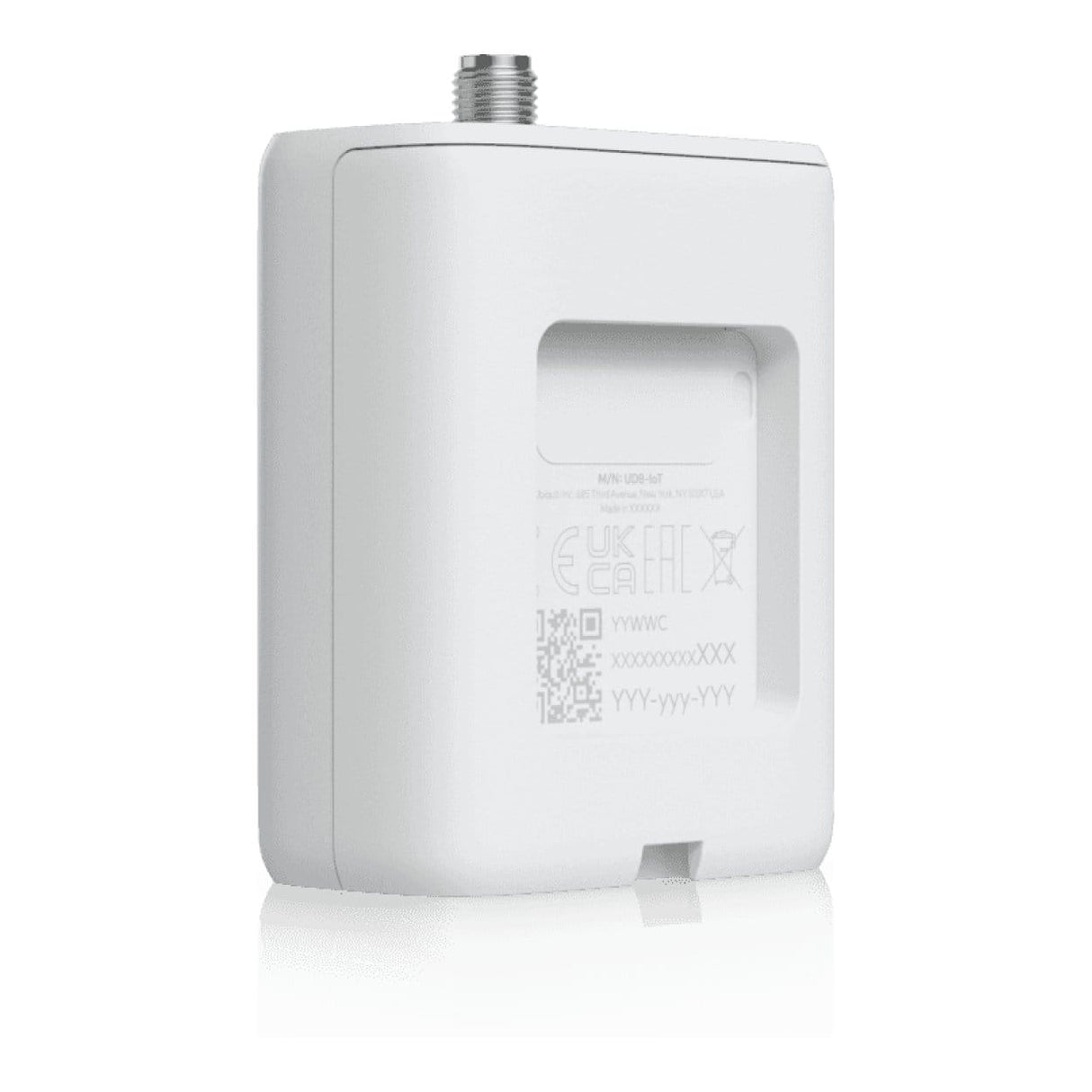

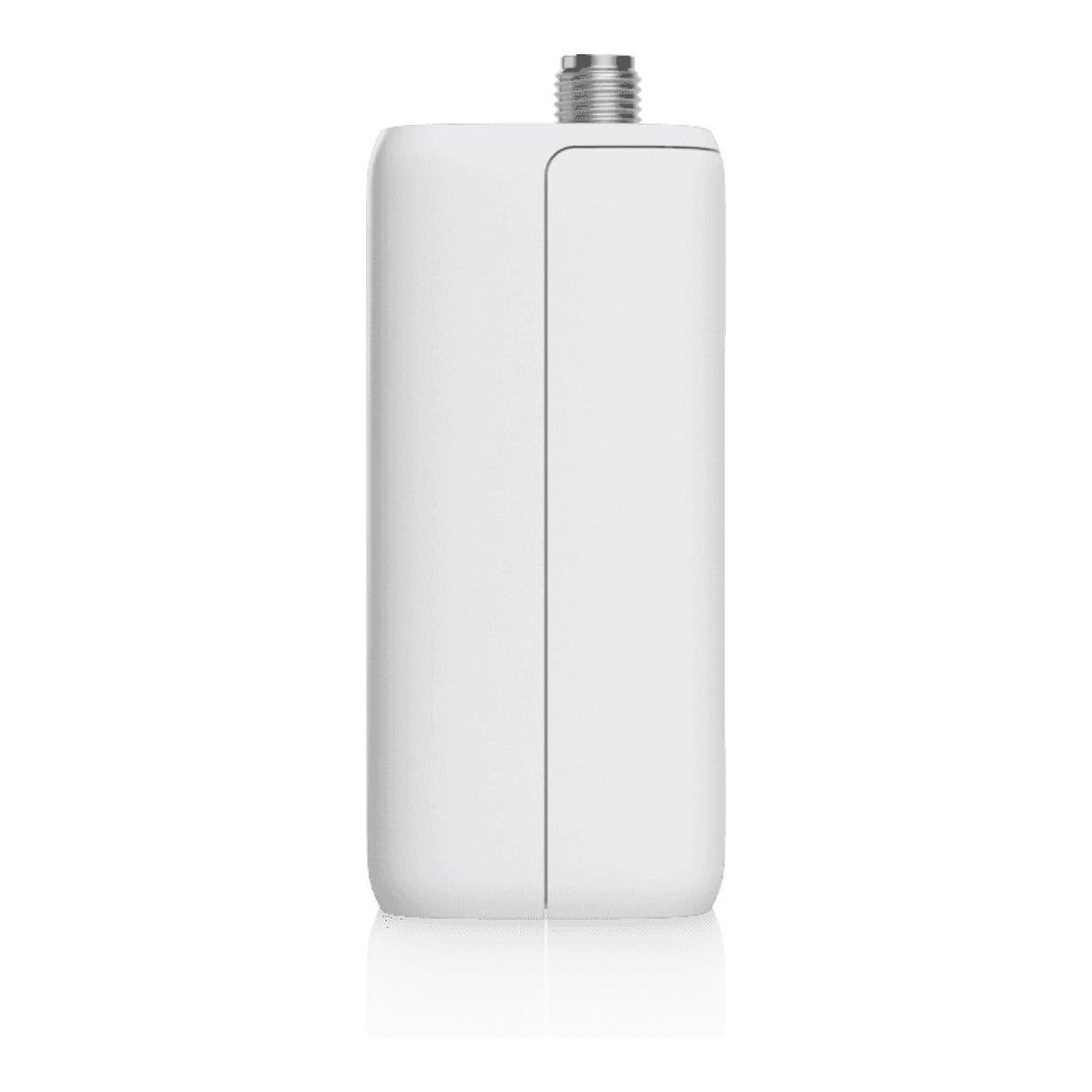

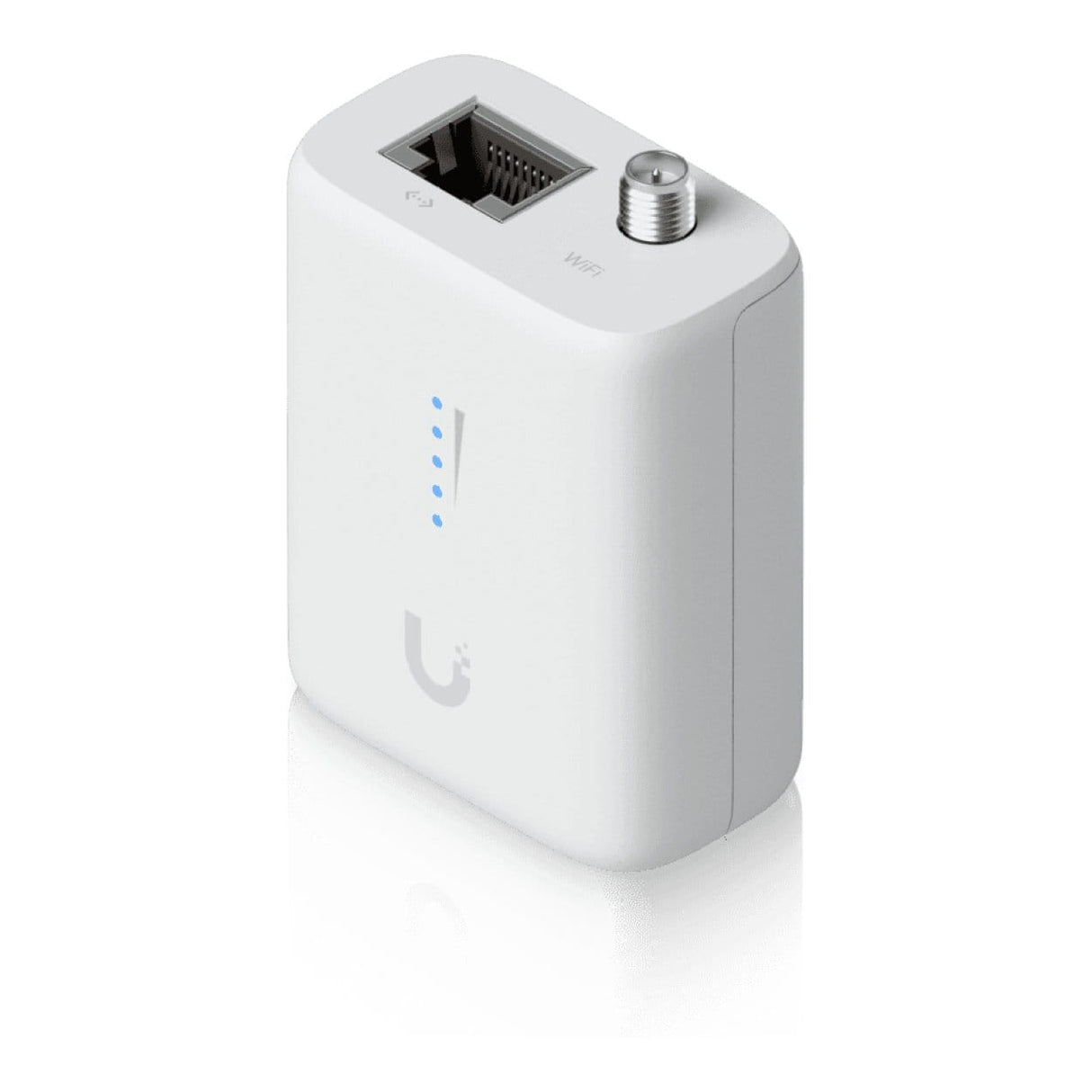

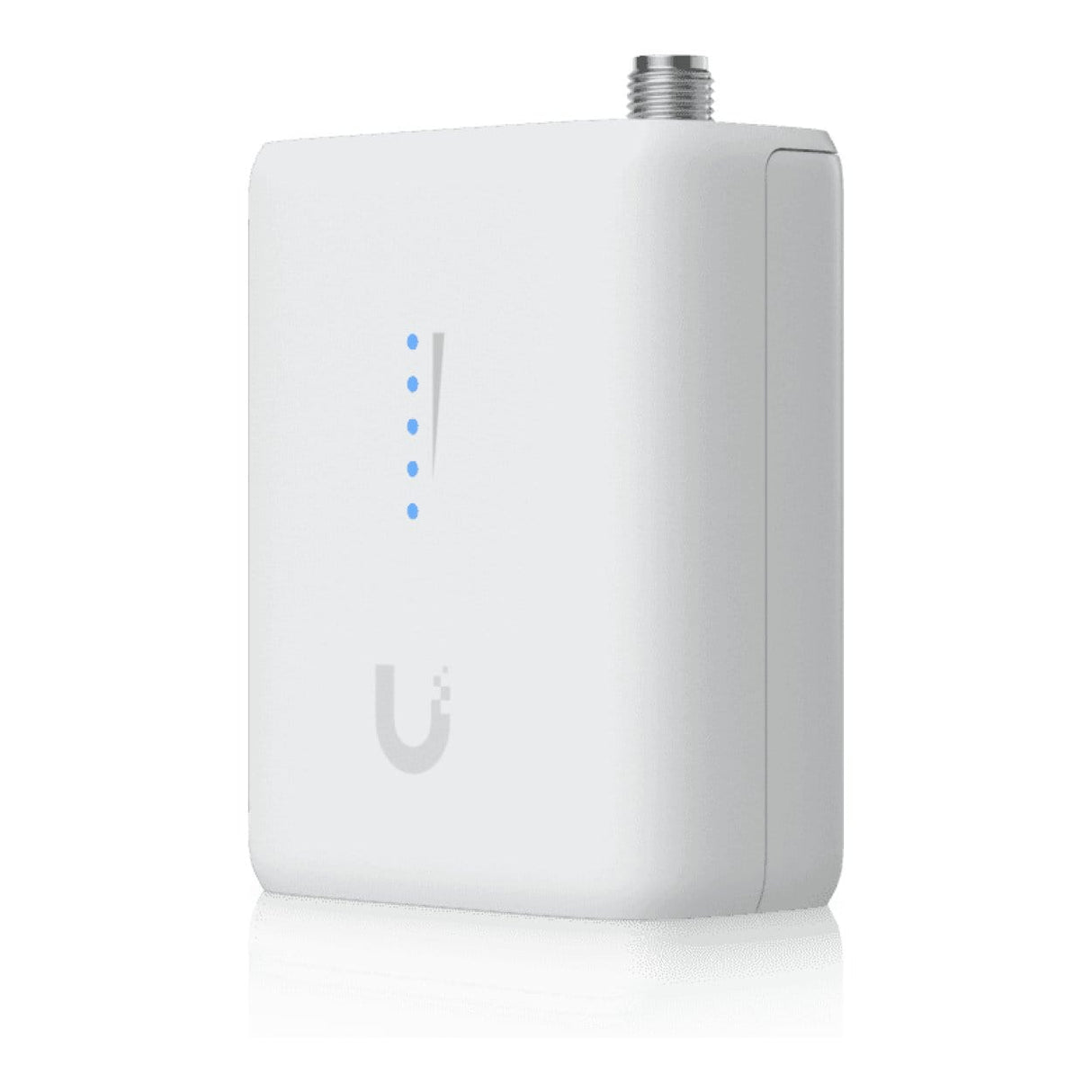

Ubiquiti UniFi WiFi Device Bridge for IoT UDB-IOT

Ubiquiti UniFi WiFi Device Bridge for IoT UDB-IOT

Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.

Technical Specifications:

Dimensions and Weight
Dimensions:

• Device: 63 × 44.5 × 25.5 mm

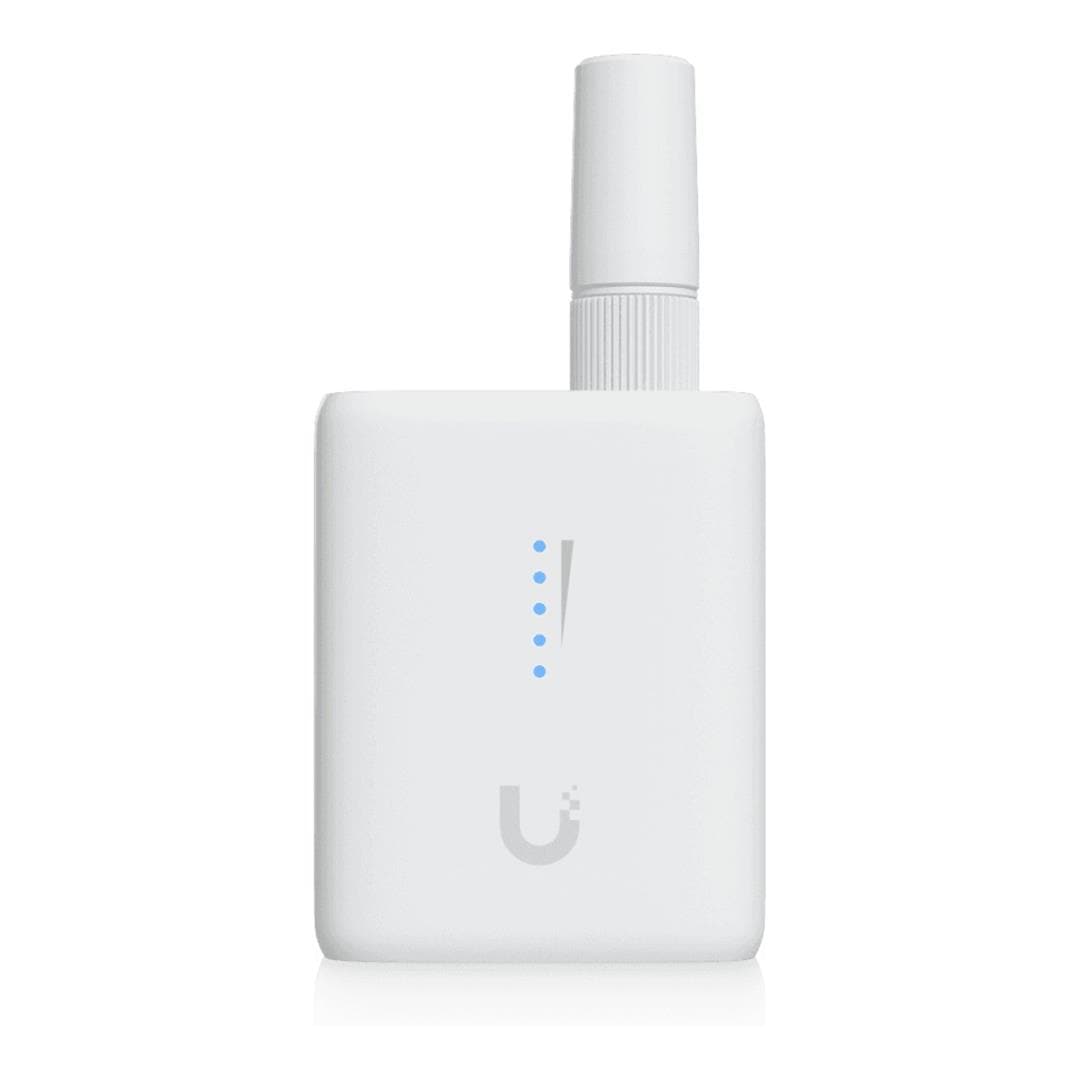

• With External Antenna: 89 × 44.5 × 25.5 mm

Weight:

• Device: 45 g
• With External Antenna: 53 g

Wireless
WiFi Standard: WiFi 4
Spatial Streams: 2
MIMO: 2 × 2 (2.4 GHz)
Max. Data Rate: 300 Mbps (BW40)
Antenna Gain:

• Internal Antenna: 4 dBi
• External Omni Antenna: 3 dBi

Max. TX Power: 20 dBm
Max. Conducted TX Power: 20 dBm (Combined)
Supported Data Rates: 802.11n, 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT20/40)
Wireless Security: WPA2 AES (Always On)
Channel Bandwidth: 20/40 MHz

Power

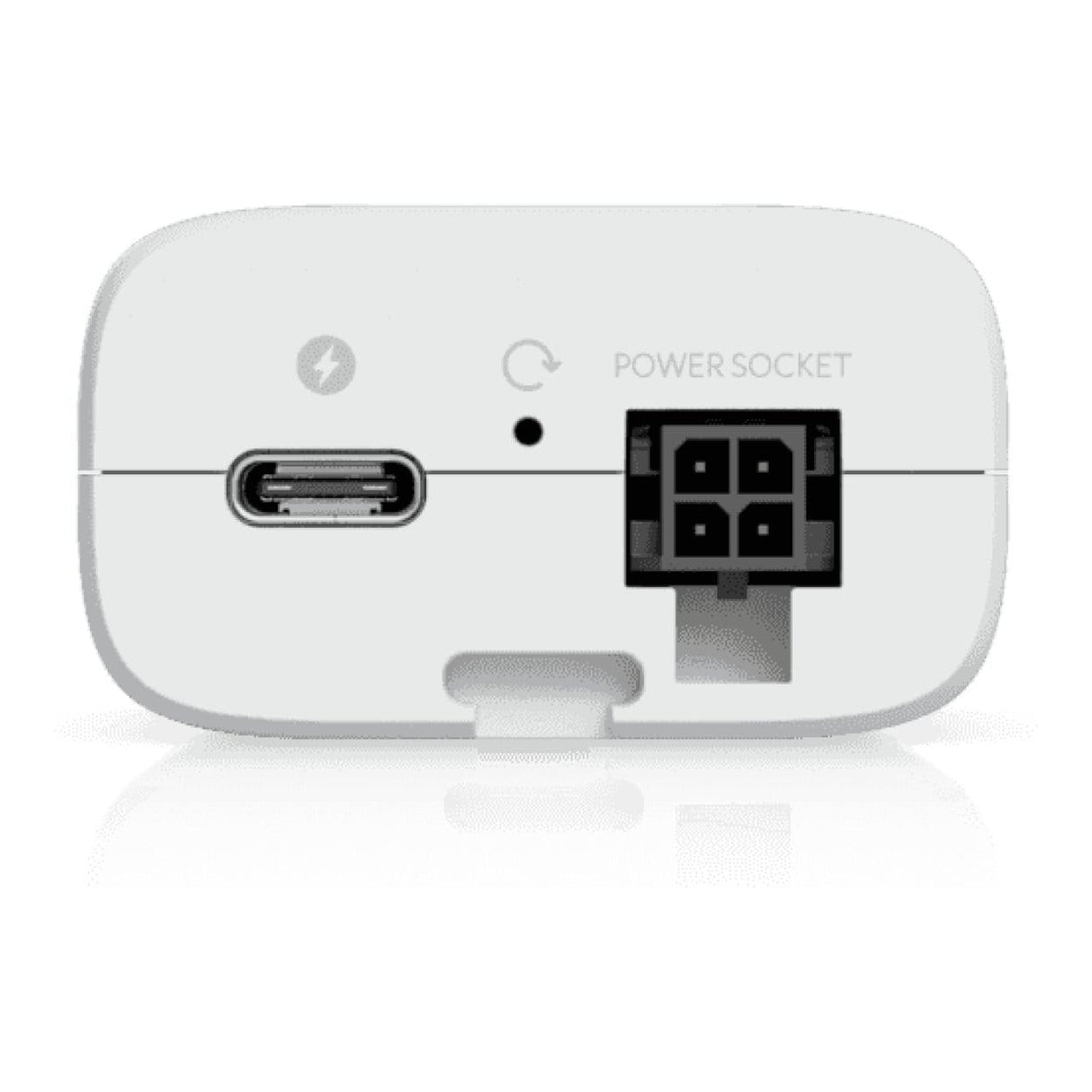

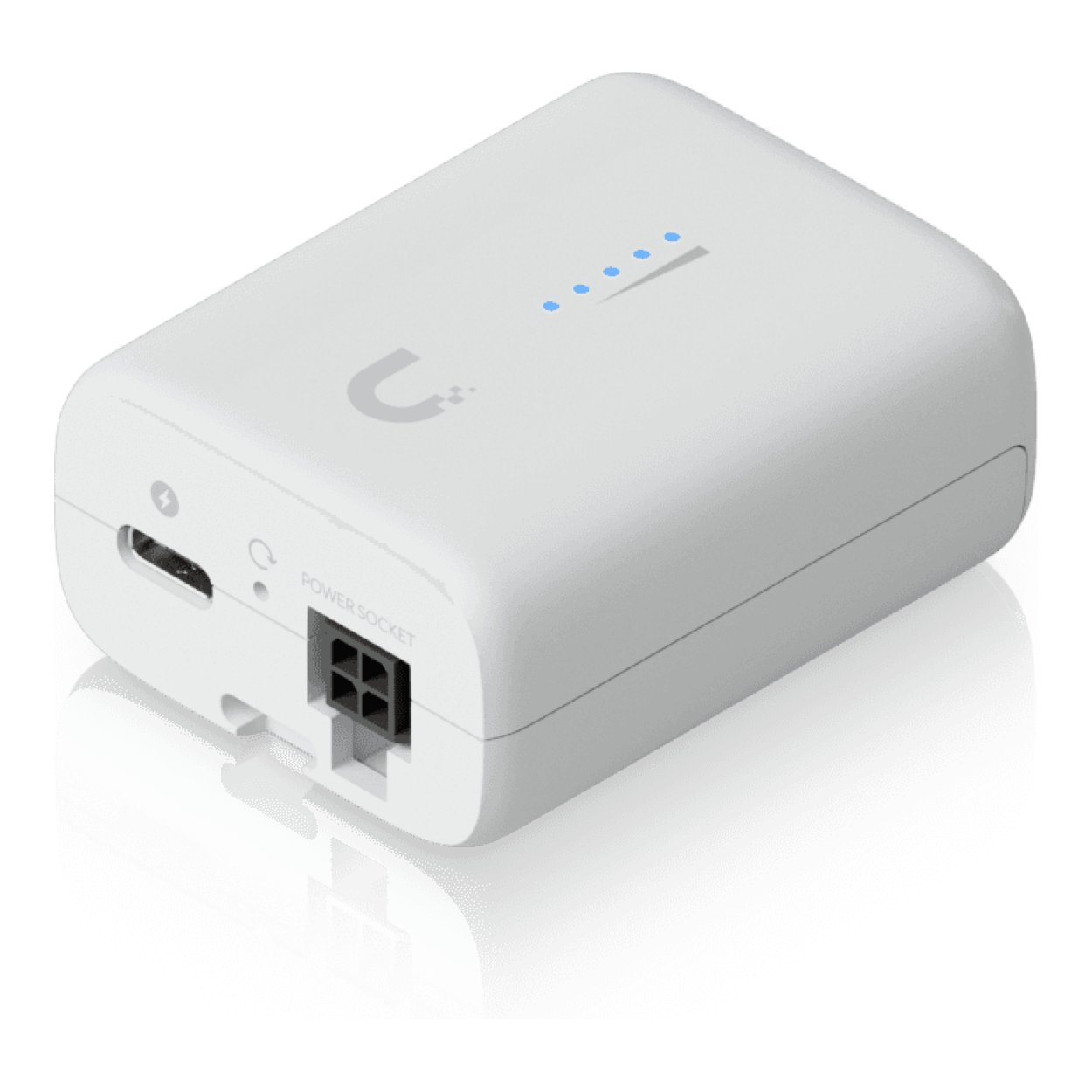

Power Method: USB Type-C (5 V DC, 1 A), 4-pin DC (9–30 V DC)
Supported Voltage Range: USB Type-C: 5 V DC, 4-pin DC Socket: 9–30 V DC
Max. Power Consumption: 2.3 W

Hardware

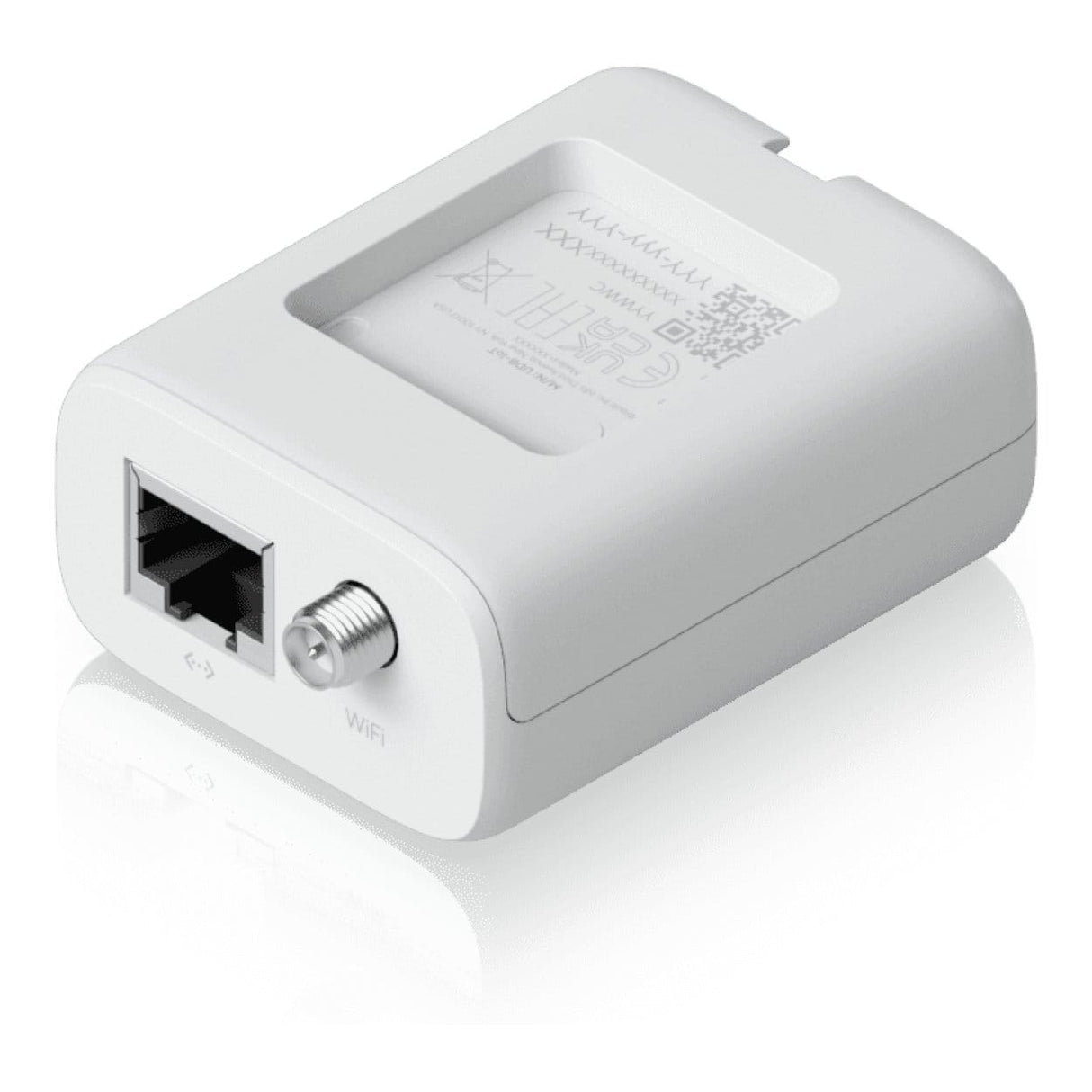

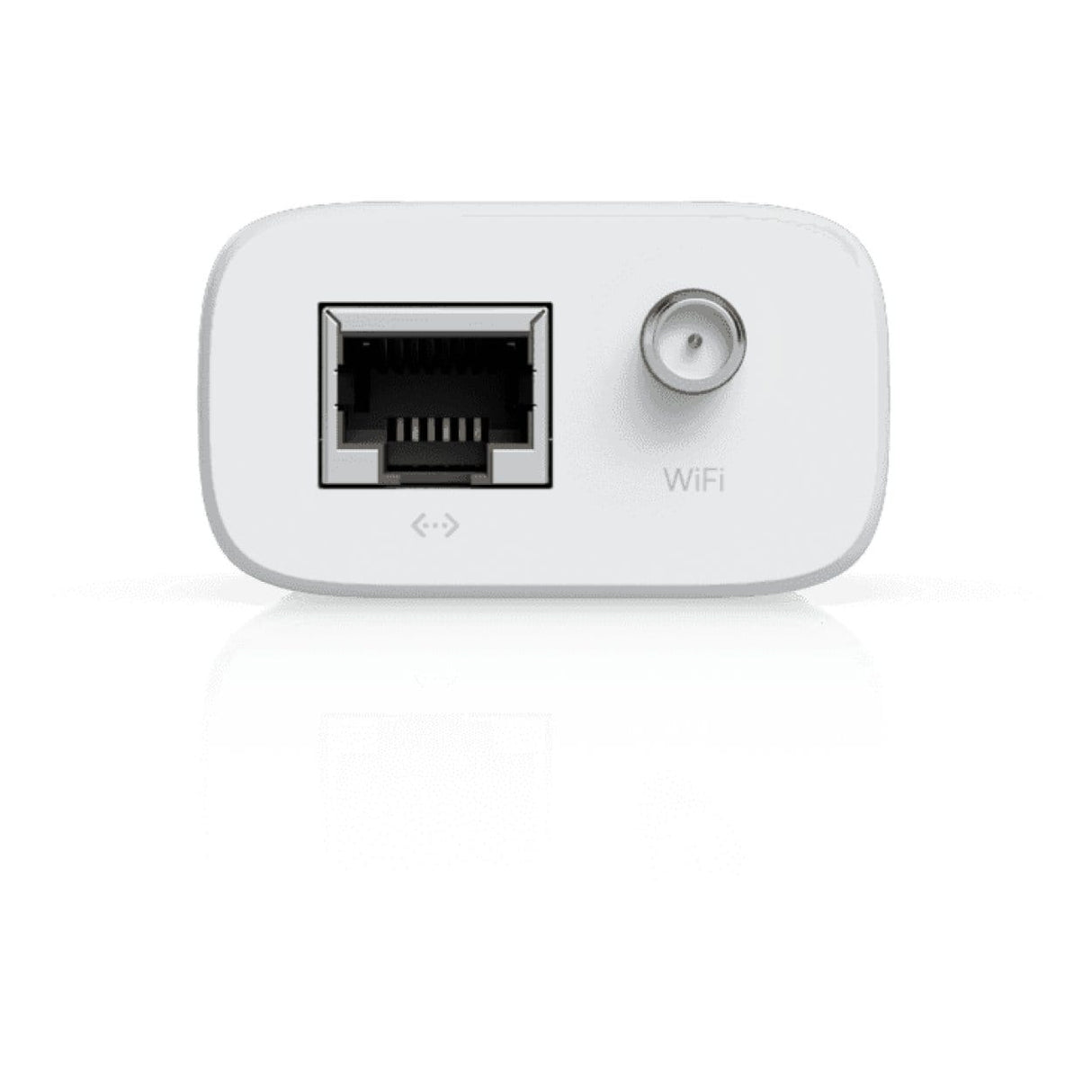

Networking Interface: 1 × 10/100 Mbps RJ45 Port
Antennas:

• 1 × Internal Antenna
• 1 × RP-SMA Connector for External Omni Antenna

Button: 1 × Factory Reset

Installation
Mounting Locations: Wall, DIN Rail
Mounting: Included Mount

Indicators

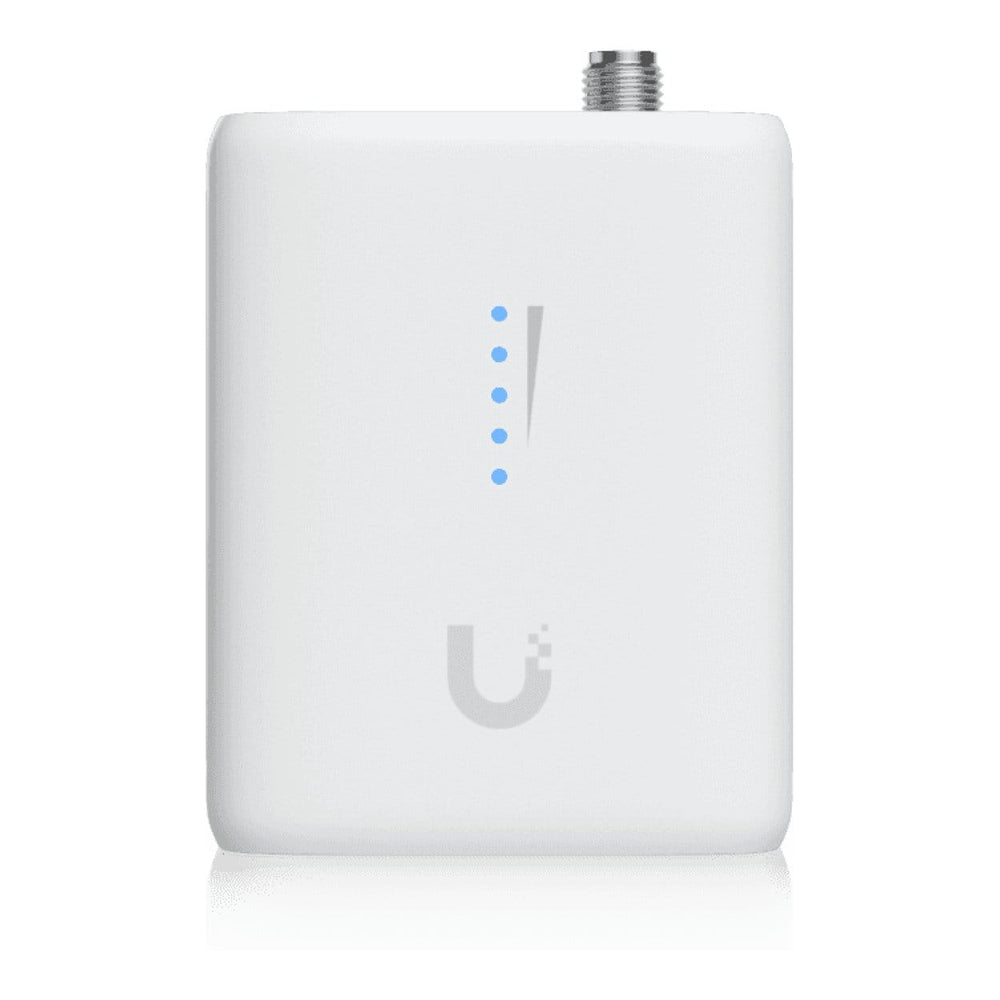

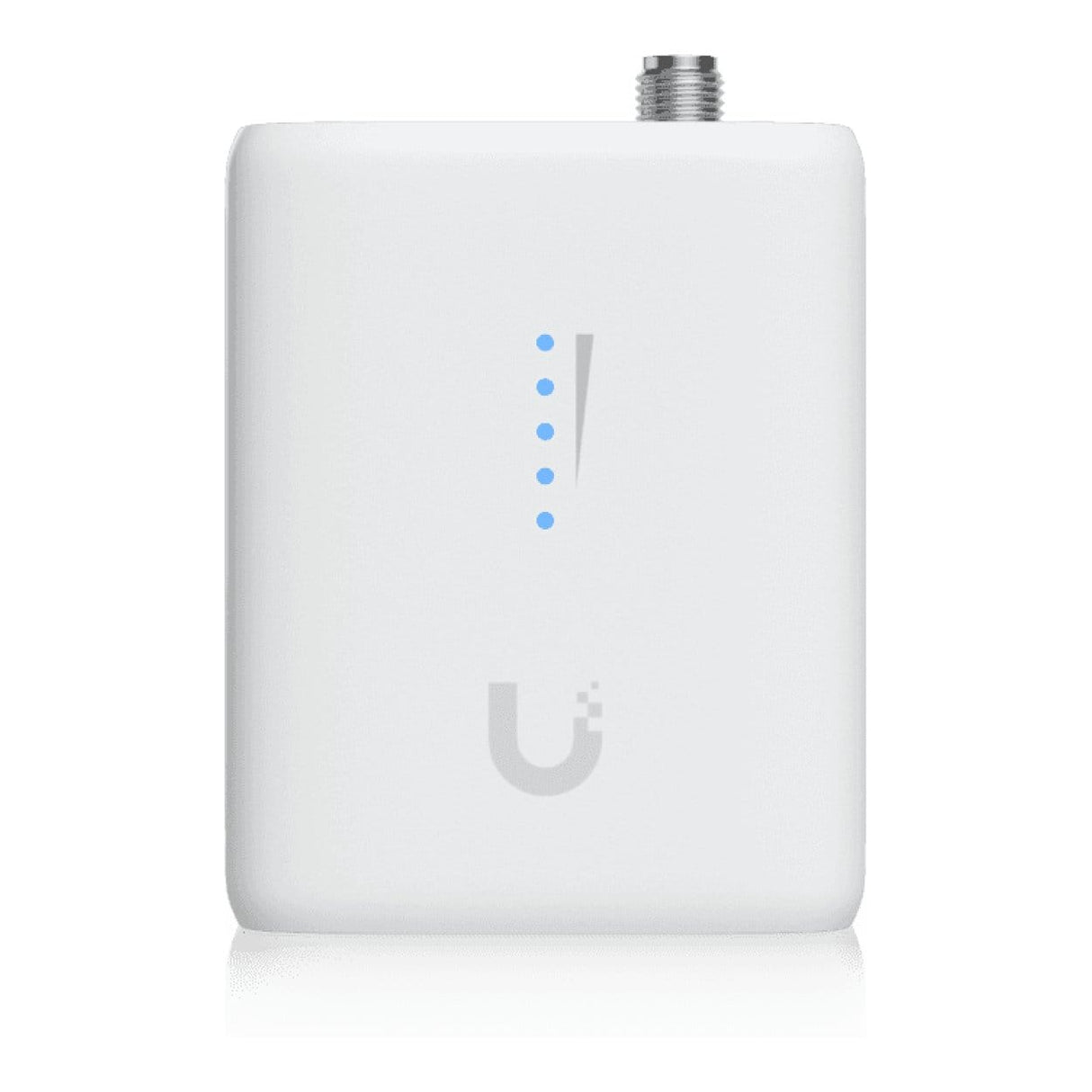

LEDs:

• 4 × Blue Signal LEDs
• 1 × White/Blue Indicator LED

Construction
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate

Environmental
Ambient Operating Temperature: -10°C to 50°C
Ambient Operating Humidity: 5% to 95% RH, Non-Condensing

Compliance and Certifications
NDAA Compliant: Yes
Certifications: CE, FCC, IC
