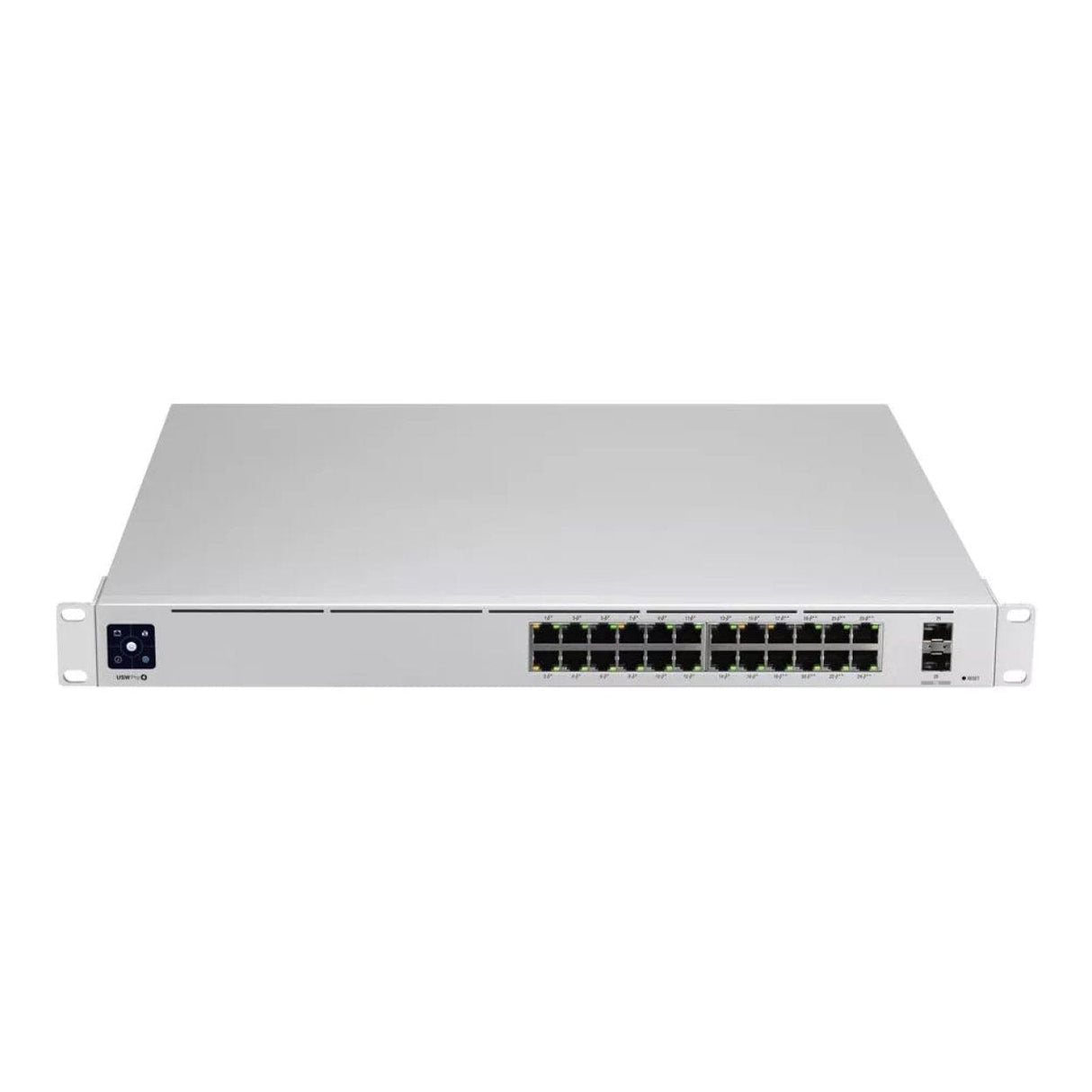

Ubiquiti UniFi USW-Pro-24-POE 24-Port GbE Switch with 400W PoE (Open Box)

Ubiquiti UniFi USW-Pro-24-POE 24-Port GbE Switch with 400W PoE (Open Box)

UniFi Switching

We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling

Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software

UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System

UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure

In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower

One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display

The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Technical Specification

Product: Ubiquiti UniFi Pro 24-Port PoE

Switch type: Managed

LCM Display: 1.3" touchscreen

Switch layer: L2 / L3

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 24

Port Layout

• 1 GbE RJ45: 24 (16 PoE+; 8 PoE++)
• 10G SFP+: 2

Max. PoE Output: Up to PoE++

Total PoE Availability: 400W

Redundancy: DC Power Backup

Switching Capacity: 88 Gbps

Total Non-Blocking Throughput: 44 Gbps

Forwarding Rate: 65 Mpps

Networking standards: IEEE 802.3af,IEEE 802.3at

PoE Ports

• PoE+: 16
• PoE++: 8

Max. PoE Wattage per Port by PSE

• PoE: 15.4W
• PoE+: 32W
• PoE++: 64W

Max. Power Consumption

• 50W (Excluding PoE Output)
• 450W (Including PoE Output)

Power Method

• (1) Universal input, 100—240V AC, 50/60 Hz
• (1) USP RPS DC input

Power Input Method: AC input

Power Supply: AC/DC, internal, 450W

Rack mountable: Yes

Form factor: 1U
