Ubiquiti UniFi Ultra Swiss Army Knife Omni Antenna UACC-UK-ULTRA-OMNI-ANTENNA-AO

Ubiquiti UniFi Ultra Swiss Army Knife Omni Antenna UACC-UK-ULTRA-OMNI-ANTENNA-AO

The Ubiquiti UniFi Swiss Army Knife Omni Antenna UACC-UK-Ultra-Omni-Antenna-AO is a dual-band external antenna set designed to extend the omnidirectional wireless coverage of the Swiss Army Knife Ultra access point. Optimised for 2.4GHz and 5GHz operation, the antennas provide 3dBi and 4dBi gain respectively, helping improve range while maintaining broad omnidirectional coverage. An IPX6 weatherproof design makes the antenna pair suitable for exposed outdoor installations with the compatible UK-Ultra access point.

Key Features

• External omnidirectional antenna set for the Ubiquiti Swiss Army Knife Ultra.
• Dual-band 2.4GHz and 5GHz wireless operation.
• 3dBi antenna gain at 2.4GHz.
• 4dBi antenna gain at 5GHz.
• High-efficiency omnidirectional radiation pattern.
• Optimised for extended-range dual-band coverage.
• RP-SMA antenna connectivity.
• IPX6 weatherproof construction for exposed outdoor installations.
• Compact 154 × 15 × 15mm antenna dimensions.
• Supplied as a pair of antennas.

Extended Omnidirectional Coverage

The Swiss Army Knife Omni Antenna is designed to extend the wireless coverage of the compatible UK-Ultra access point while maintaining an omnidirectional radiation pattern. This allows wireless coverage to be distributed broadly around the access point rather than concentrated in a specific direction.

Dual-Band Wi-Fi Optimisation

The antenna system supports both primary Wi-Fi frequency bands, providing 3dBi gain at 2.4GHz and 4dBi gain at 5GHz. This dual-band design enables the UK-Ultra to provide extended coverage to compatible clients operating across either wireless band.

Designed for Swiss Army Knife Ultra

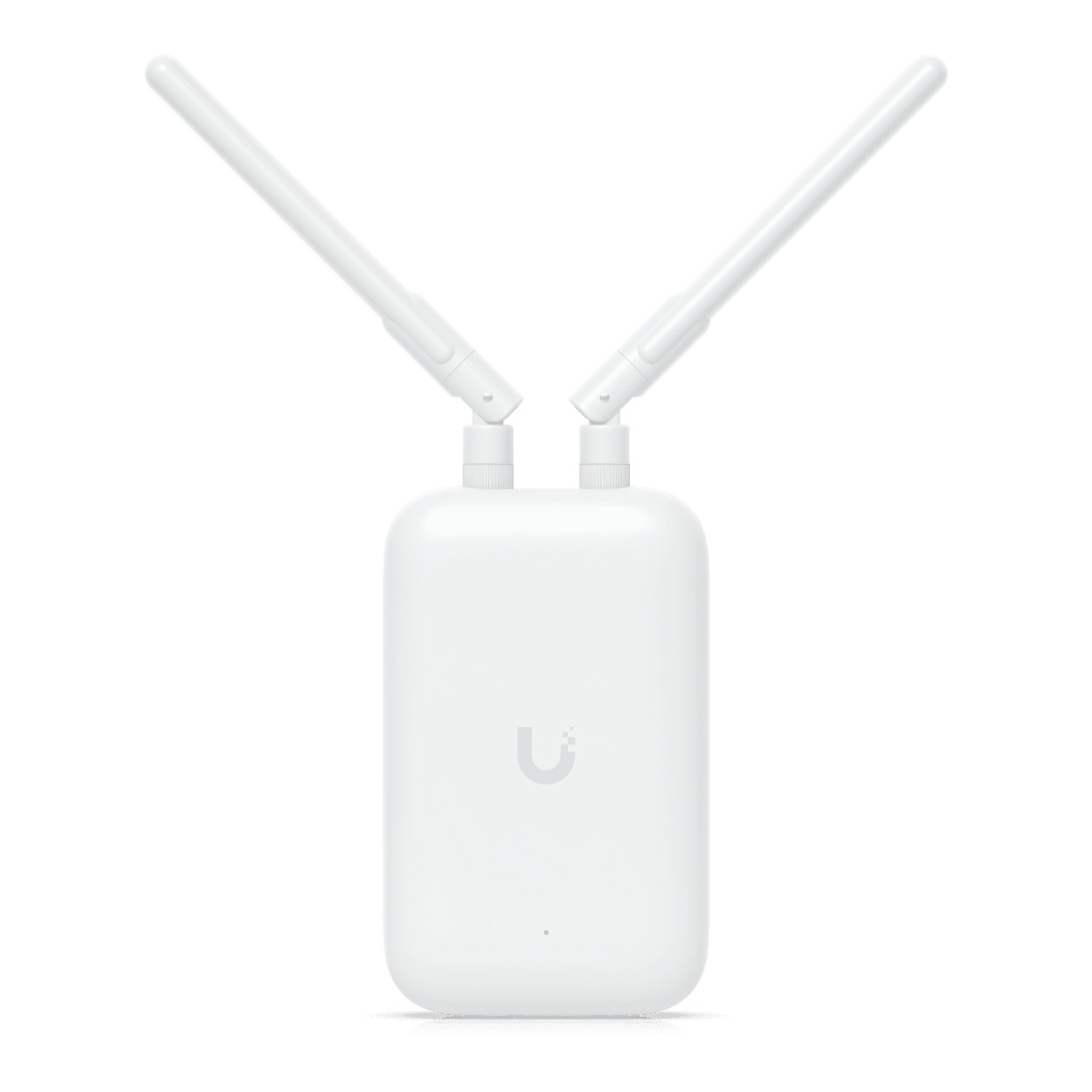

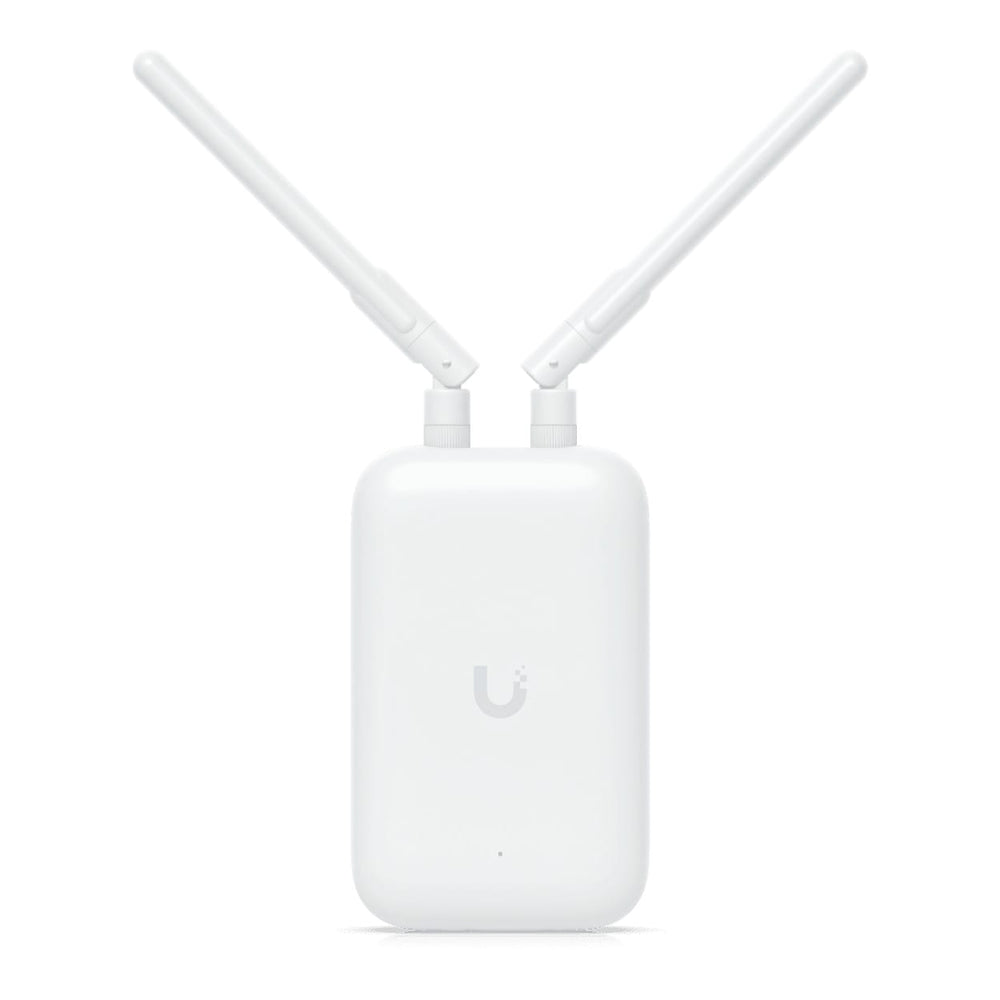

The UACC-UK-Ultra-Omni-Antenna-AO is purpose-built for the Ubiquiti Swiss Army Knife Ultra access point. The external antennas provide an alternative antenna configuration for deployments where broader omnidirectional coverage is preferred.

IPX6 Outdoor Protection

IPX6 weatherproofing allows the antennas to be deployed in exposed outdoor environments with the compatible access point. The enclosure uses a combination of thermoplastic polyester elastomer, polycarbonate, polybutylene terephthalate and polyoxymethylene materials.

Compact External Antenna Design

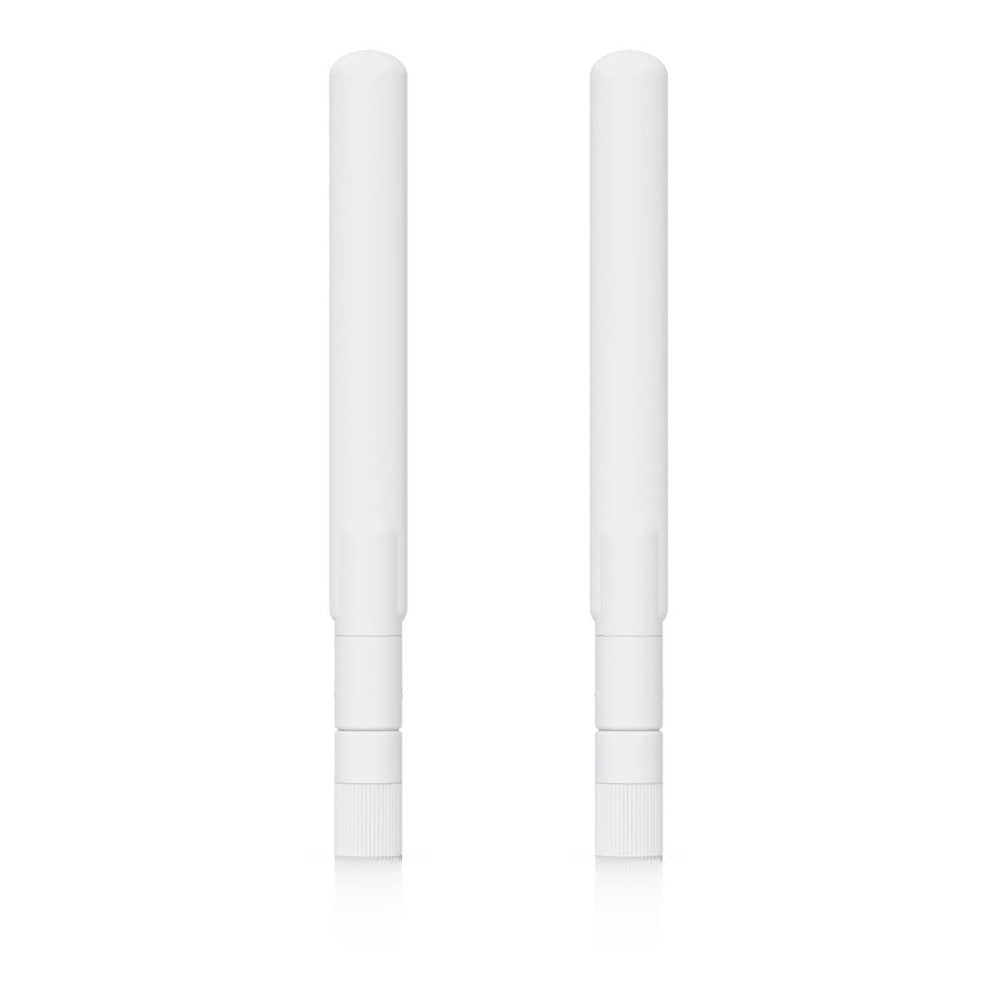

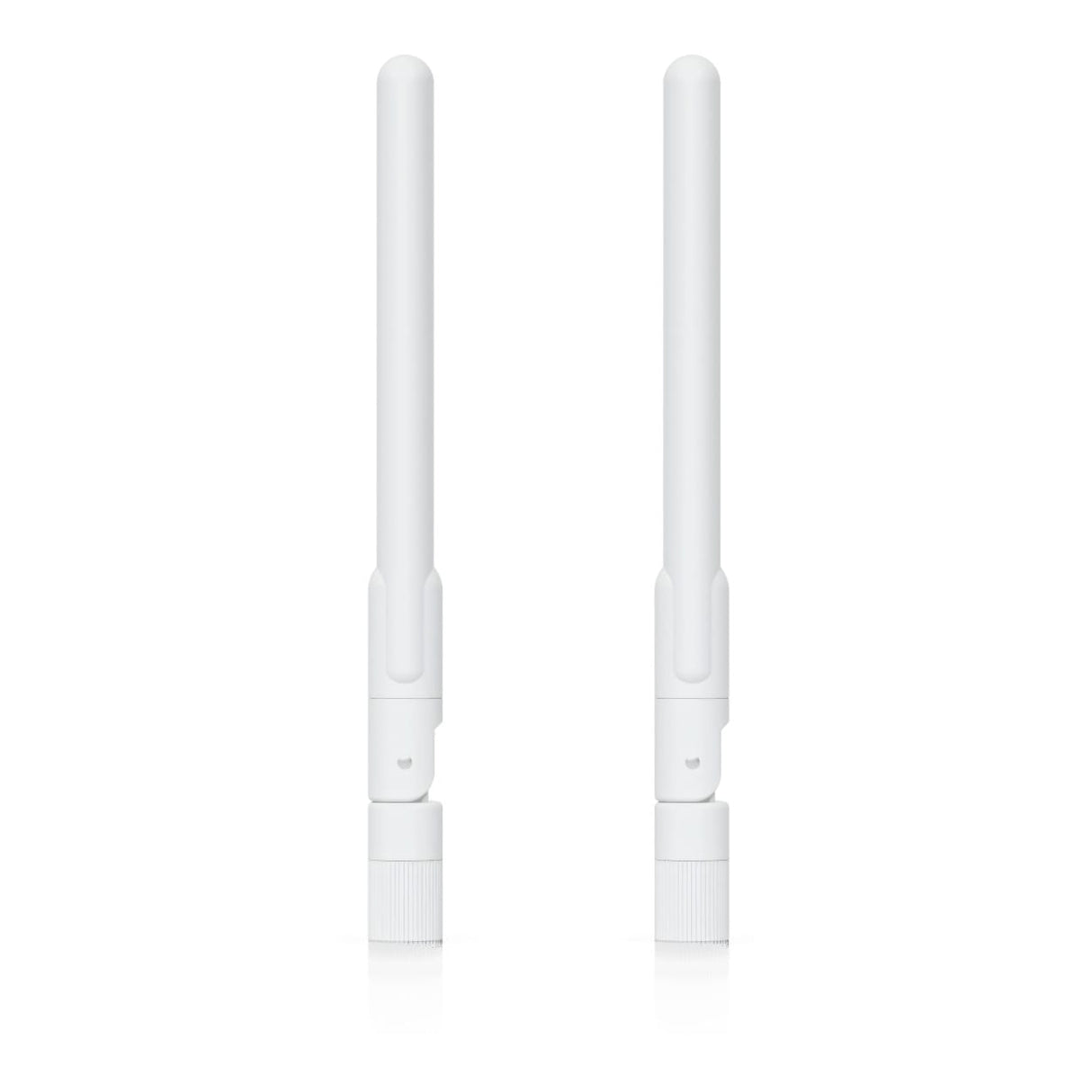

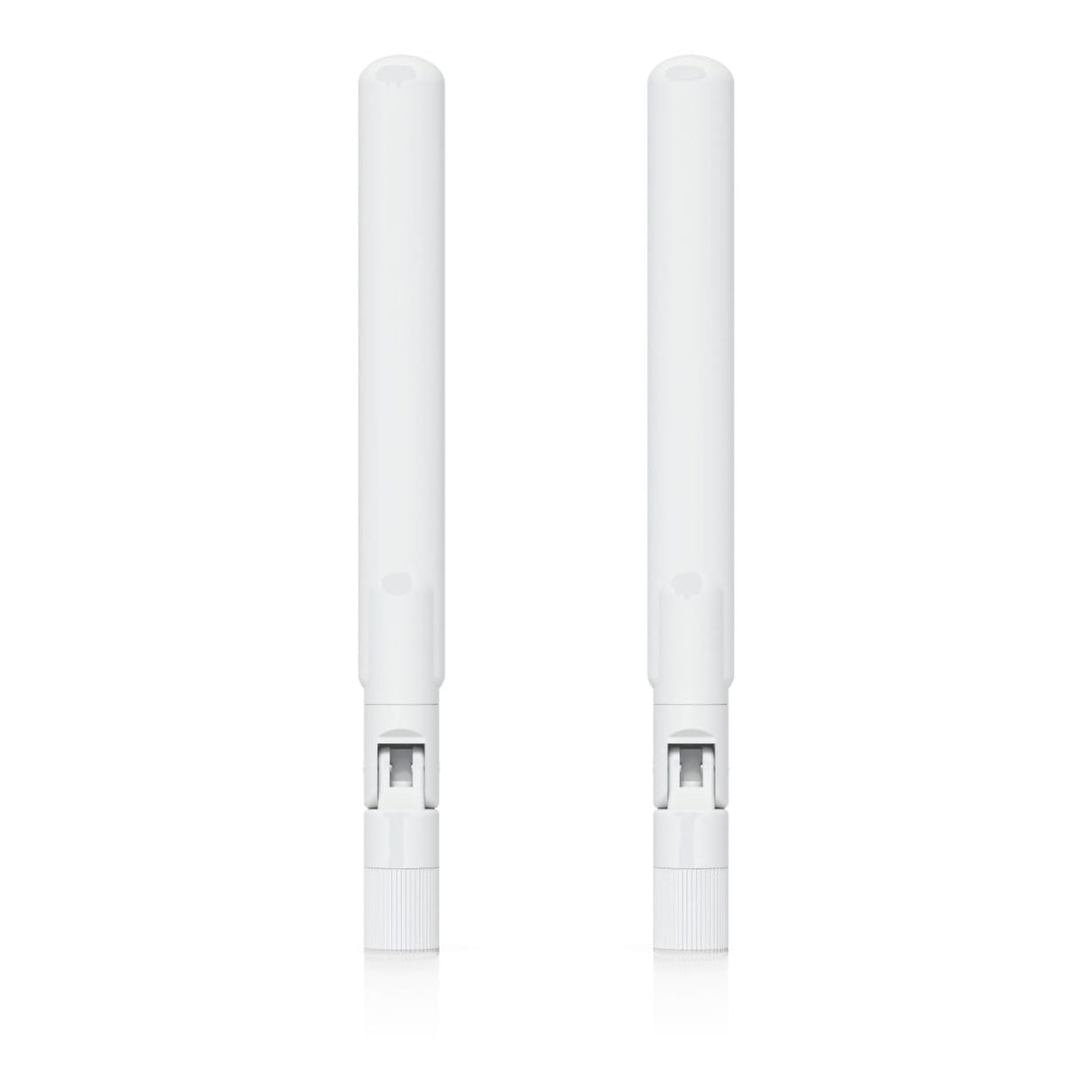

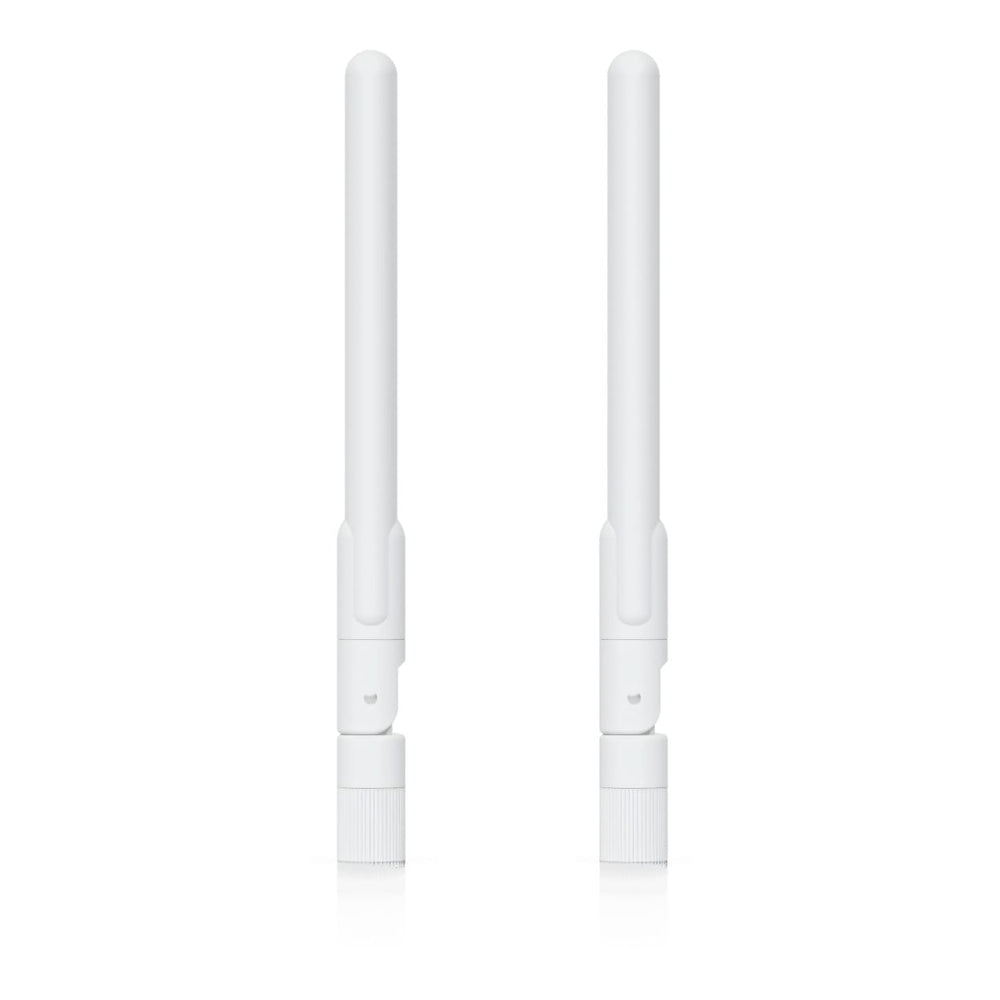

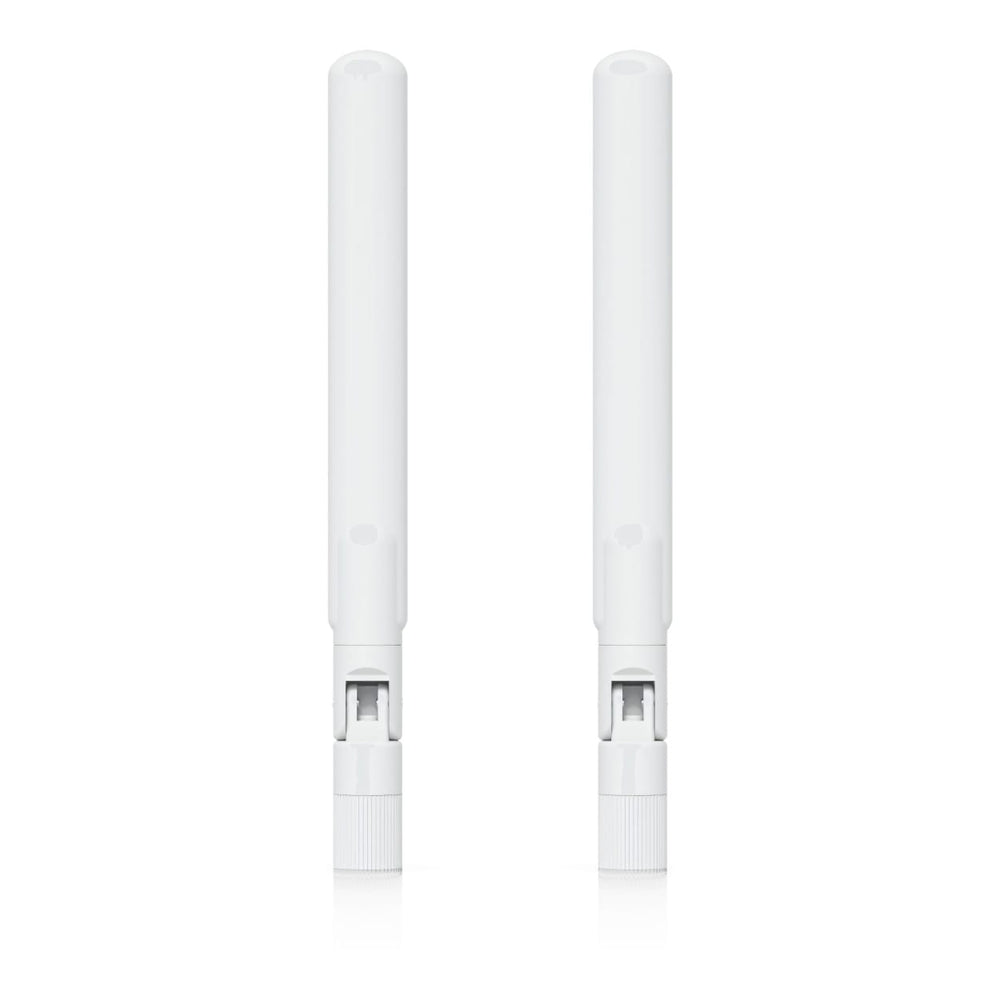

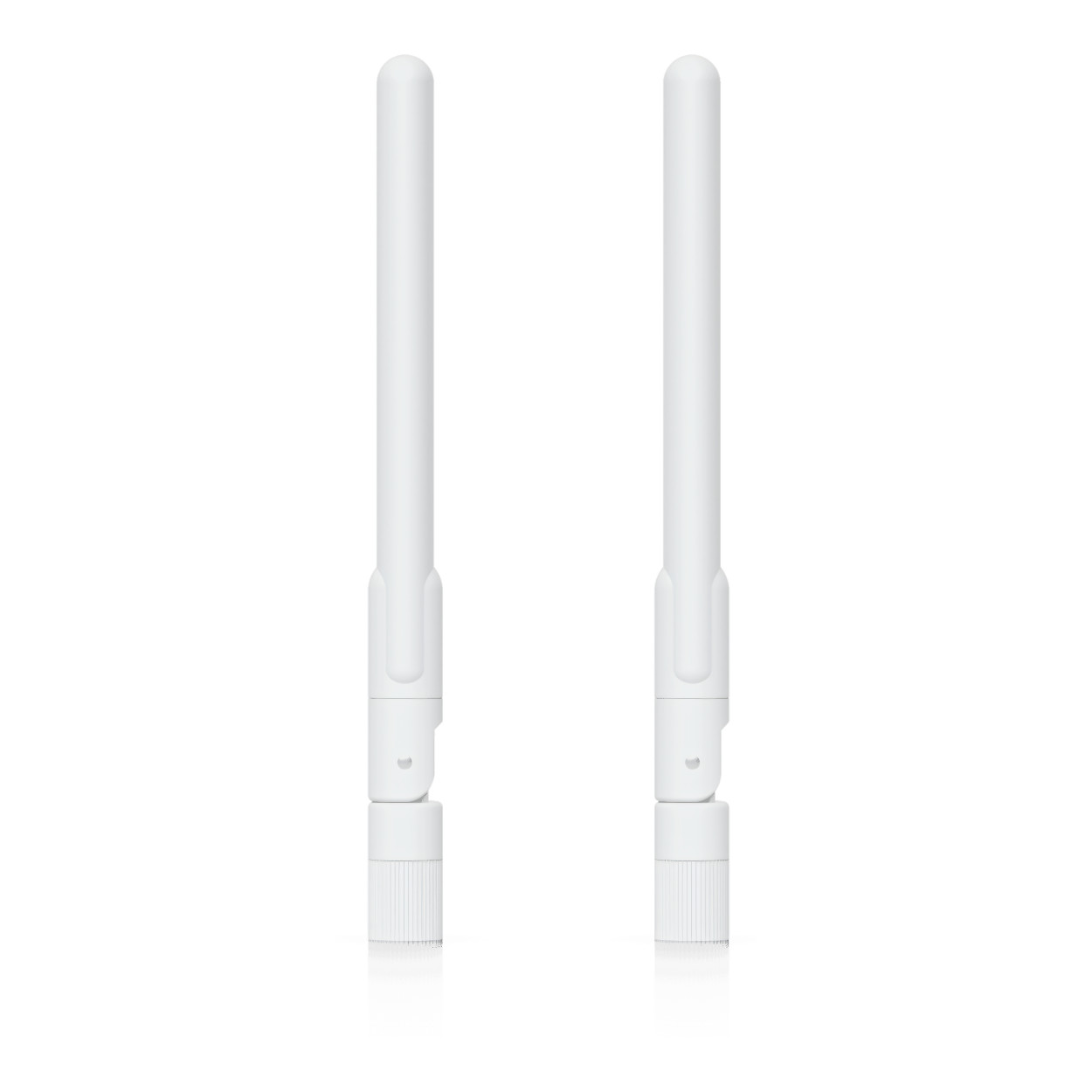

Each antenna measures 154 × 15 × 15mm, providing a slim external antenna profile. The complete antenna pair weighs only 42g, helping minimise additional load on the installed access point.

Technical Specifications

What’s in the Box:

• 2 × Ubiquiti Swiss Army Knife Omni Antennas

The Ubiquiti UACC-UK-Ultra-Omni-Antenna-AO provides a purpose-built external antenna upgrade for the Swiss Army Knife Ultra access point. With 3dBi gain at 2.4GHz, 4dBi gain at 5GHz, an omnidirectional radiation pattern and IPX6 weatherproofing, the antenna pair is designed to extend dual-band Wi-Fi coverage in compatible indoor and outdoor UniFi deployments.
