Ubiquiti UniFi Protect 3U 16 Bay 2SFP+ Enterprise Network Video Recorder ENVR

Ubiquiti UniFi Protect 3U 16 Bay 2SFP+ Enterprise Network Video Recorder ENVR

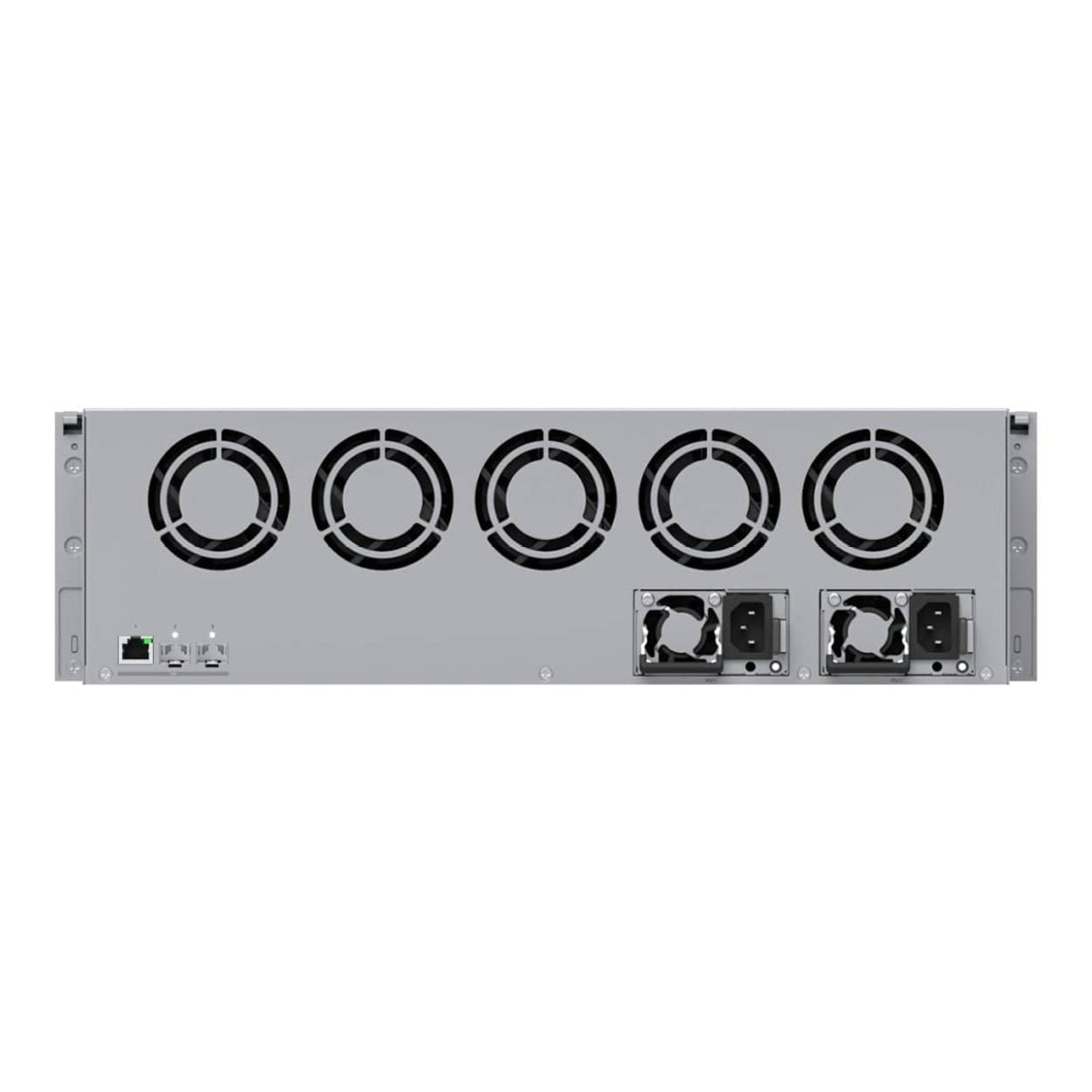

Ubiquiti's ENVR is an Enterprise Network Video Recorder and UniFi OS Console. It runs the pre-installed UniFi Protect Application and makes provision for up to 16 compatible 2.5'' or 3.5'' hard drives. The ENVR also features 2x SFP+, 1x 10 Gbps Ethernet Port and dual hot-swappable power supplies for redundancy.

Features:

• 4K UHD Video Storage for up to 70 Cams
• 2K Video Storage for up to 140 Cams
• 1080p Video Storage for up to 210 Cams

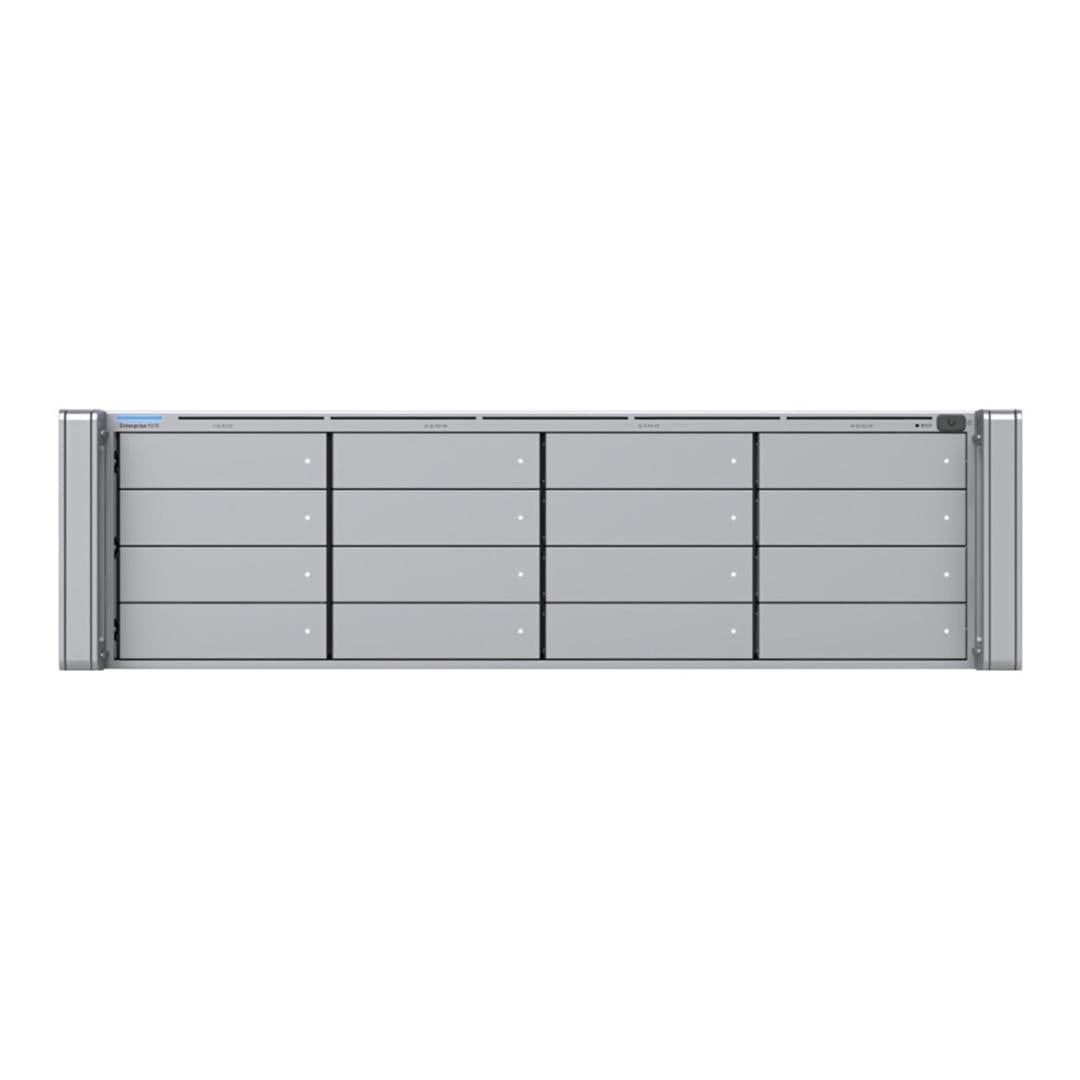

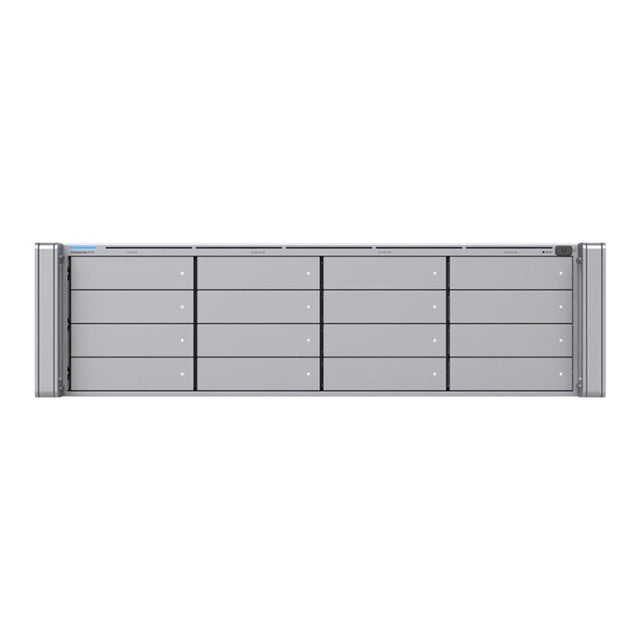

• 16 x 2.5/3.5" Drive Bays
• Each Drive Bay Supports HDDs up to 24TB
• Enterprise-Class Data Protection
• Scalable Storage
• 10 GbE RJ45/10 Gb/s SFP+ Interfaces
• Remote Access from Anywhere

Technical Specifications:

Overview
Dimensions: 481.4 × 480 × 132 mm (19 × 18.9 × 5.2 in)
UniFi Application Suite: Protect, Access
Managed Cameras: 210 HD, 140 2K, 70 4K
Managed Access Hubs: 300
Storage Capacity: 16 × 3.5" drive bays
Data Protection: Yes
Vantage Point: Yes
Networking Interface: 2 × 10G SFP+ ports, 1 × 10 GbE RJ45 port
Power Redundancy: Yes
Form Factor: Rack Mount (3U)
Door Access Support: Yes

Hardware
Hard Drive Capacity: 16 × 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives: 310 W
Max. Power Consumption: 410 W
Power Method: 2 × AC input, 100–240 V, 7 A Max., 50/60 Hz (Redundant, Hot-Swappable)
Power Supply: Hot-swappable 550 W CRPS
Processor: 8-core ARM® at 2.5 GHz
Memory: 32 GB

Management
Ethernet: Yes

Display
Bezel (Optional): Yes

Weight
Without Rails: 16.6 kg (36.6 lb)
With Rails: 19.5 kg (43.0 lb)

Enclosure & Mount
Enclosure Material: SGCC steel
Mount Material: Aluminum
Slide Rails: 482.6 mm (19") four-post racks, post depths ranging from 650 to 1,000 mm (25.6–39.4 in)

Operating Environment
Ambient Operating Temperature: -5 to 40 °C (23 to 104 °F)
Ambient Operating Humidity: 5%–95% non-condensing

Compliance & Certification
NDAA Compliant: Yes
Certifications: CE, FCC, IC

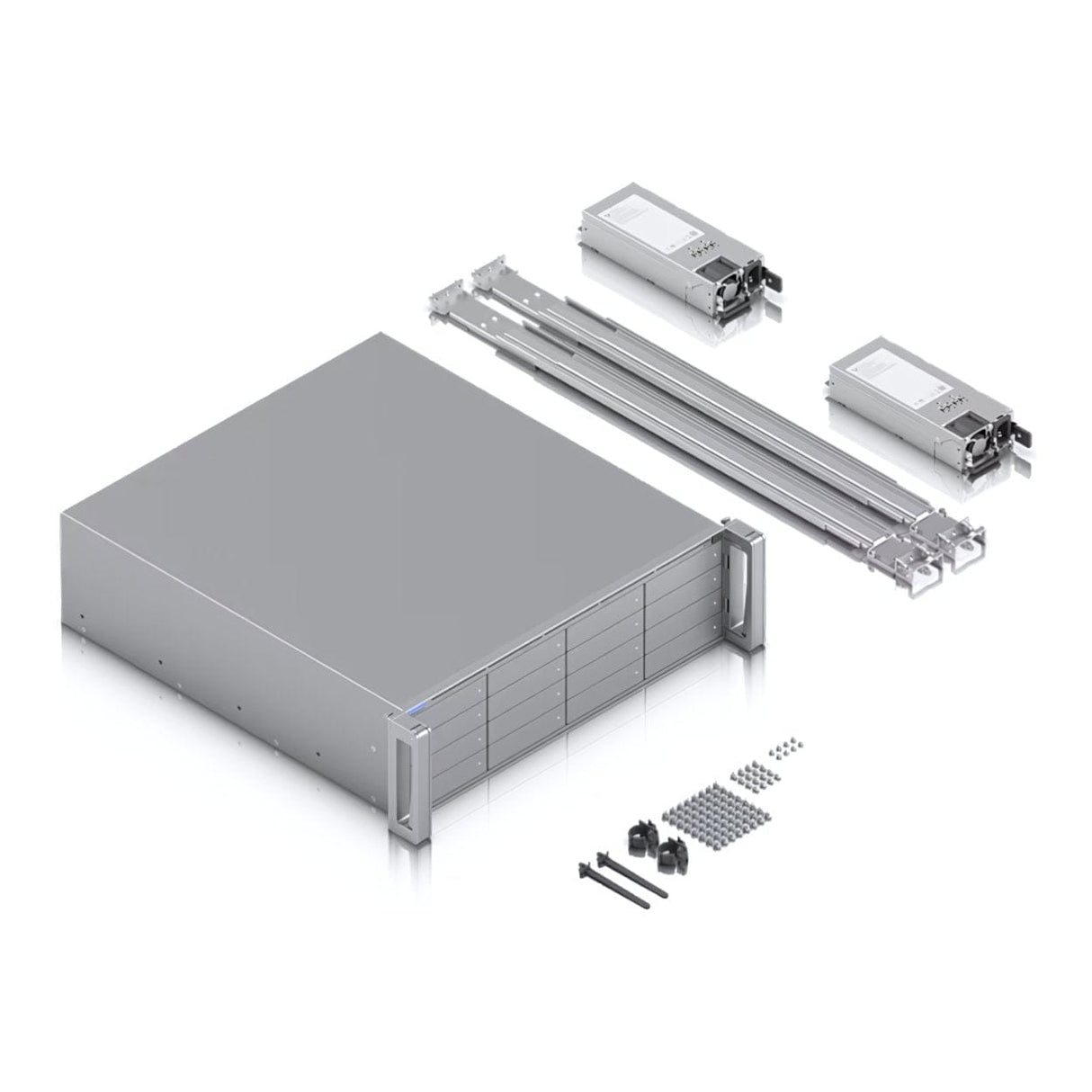

What’s in the Box:

• UniFi Device
• Hot-Swappable Power Supply Units
• Mounting Rails
• Quick Start Guide
• Screws & Anchors
