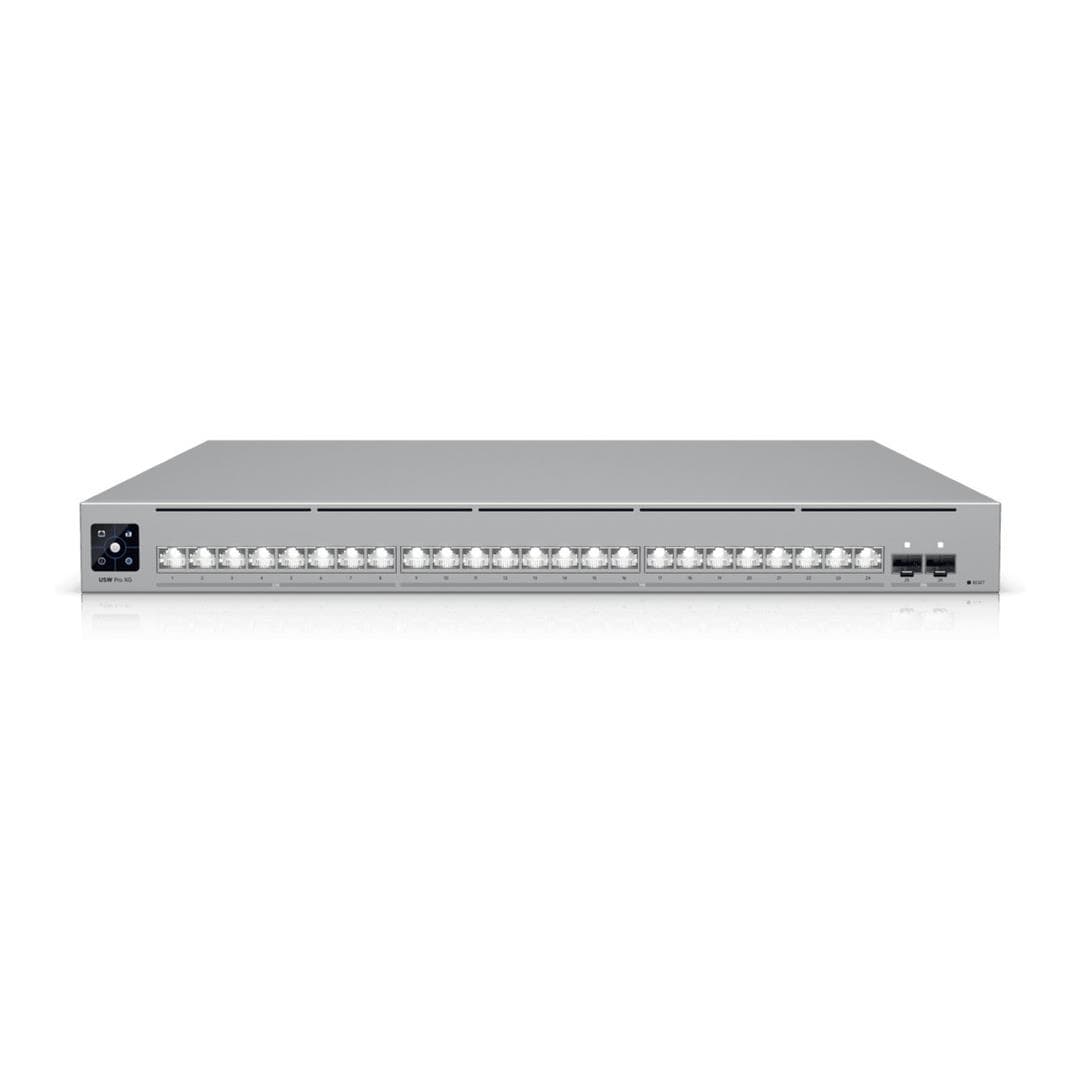

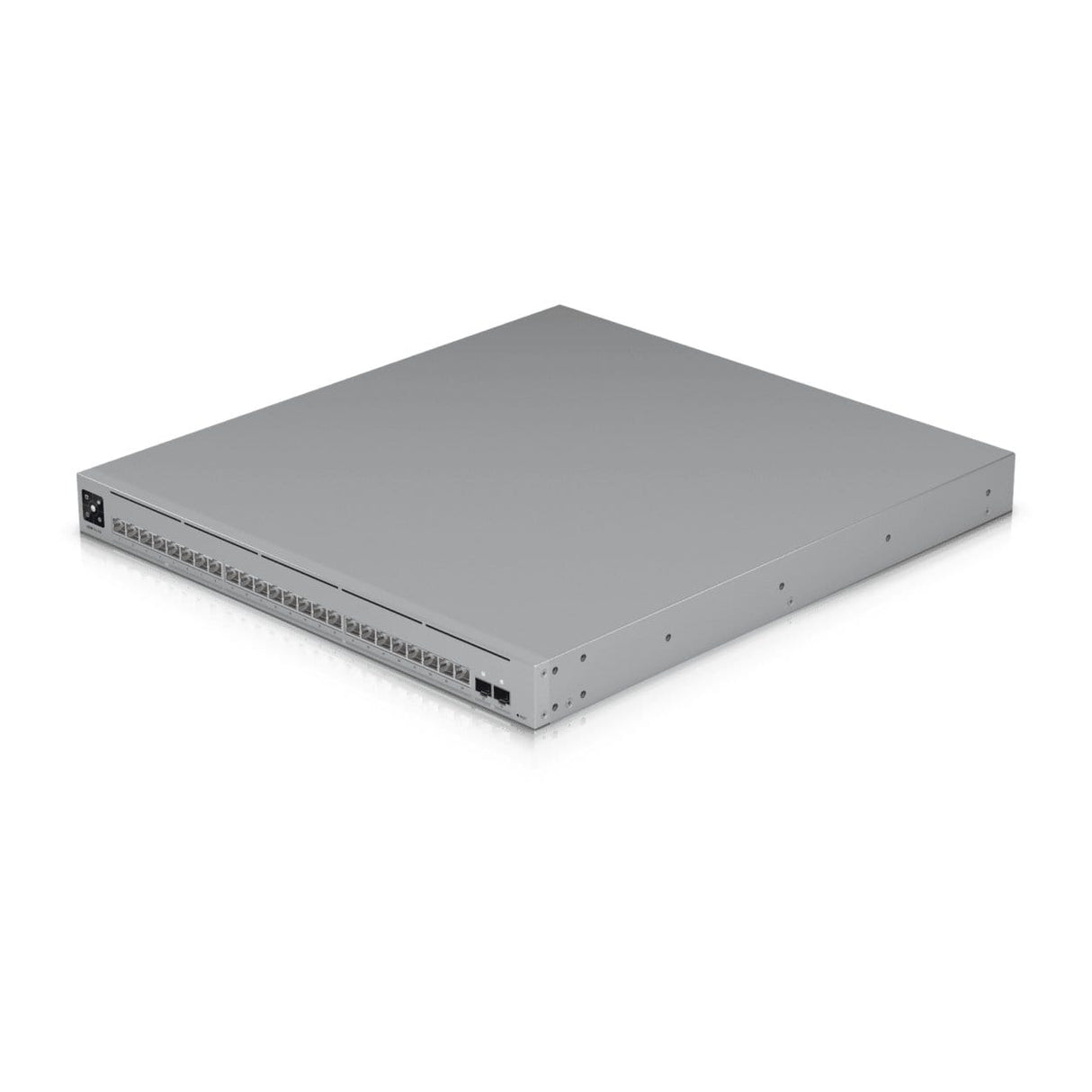

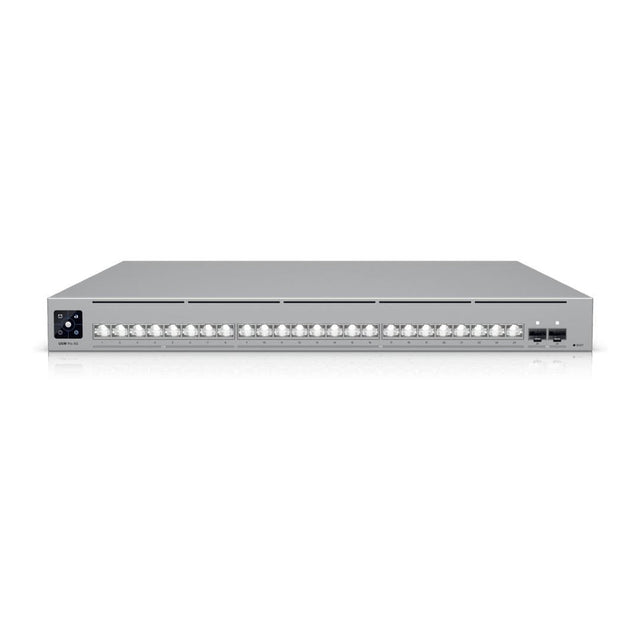

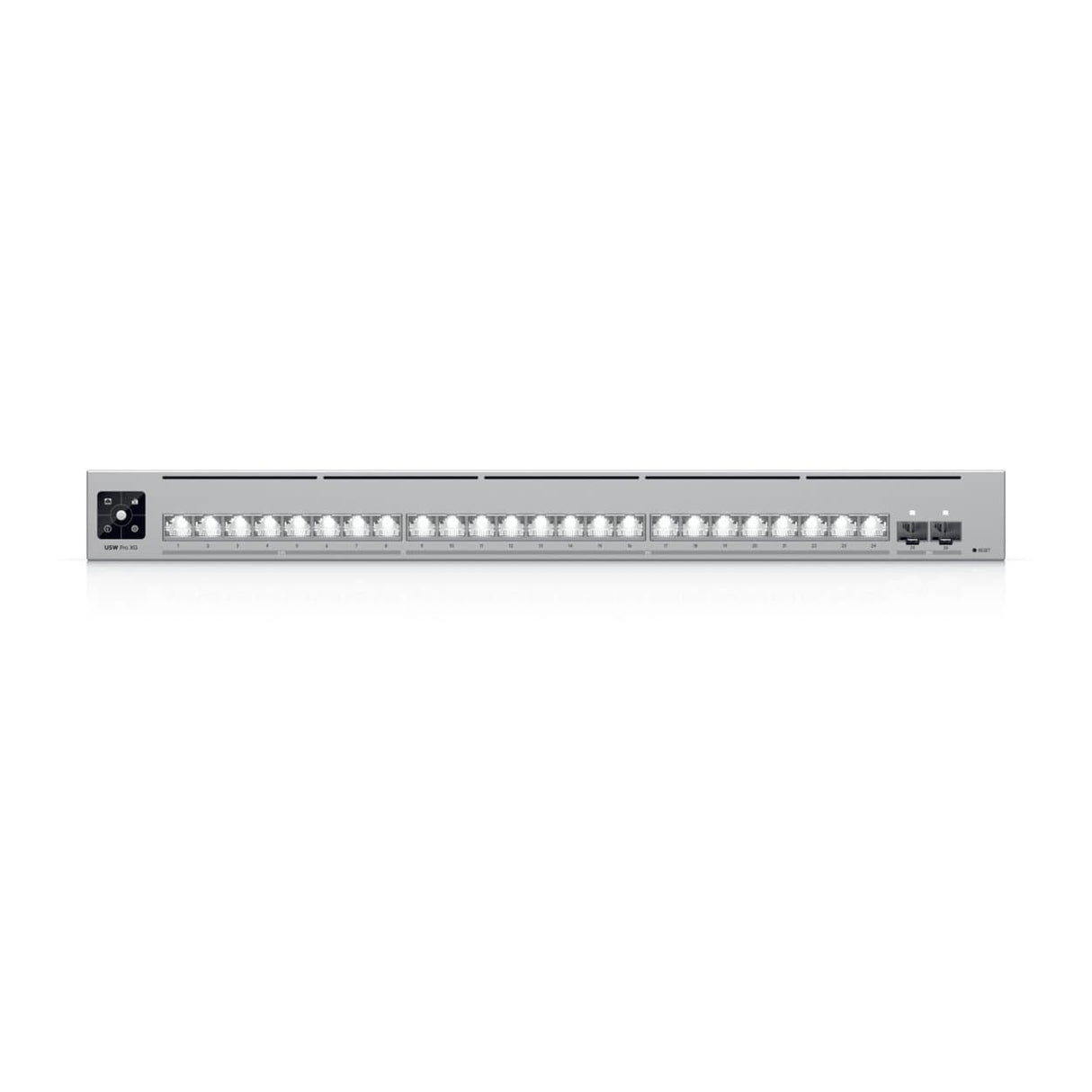

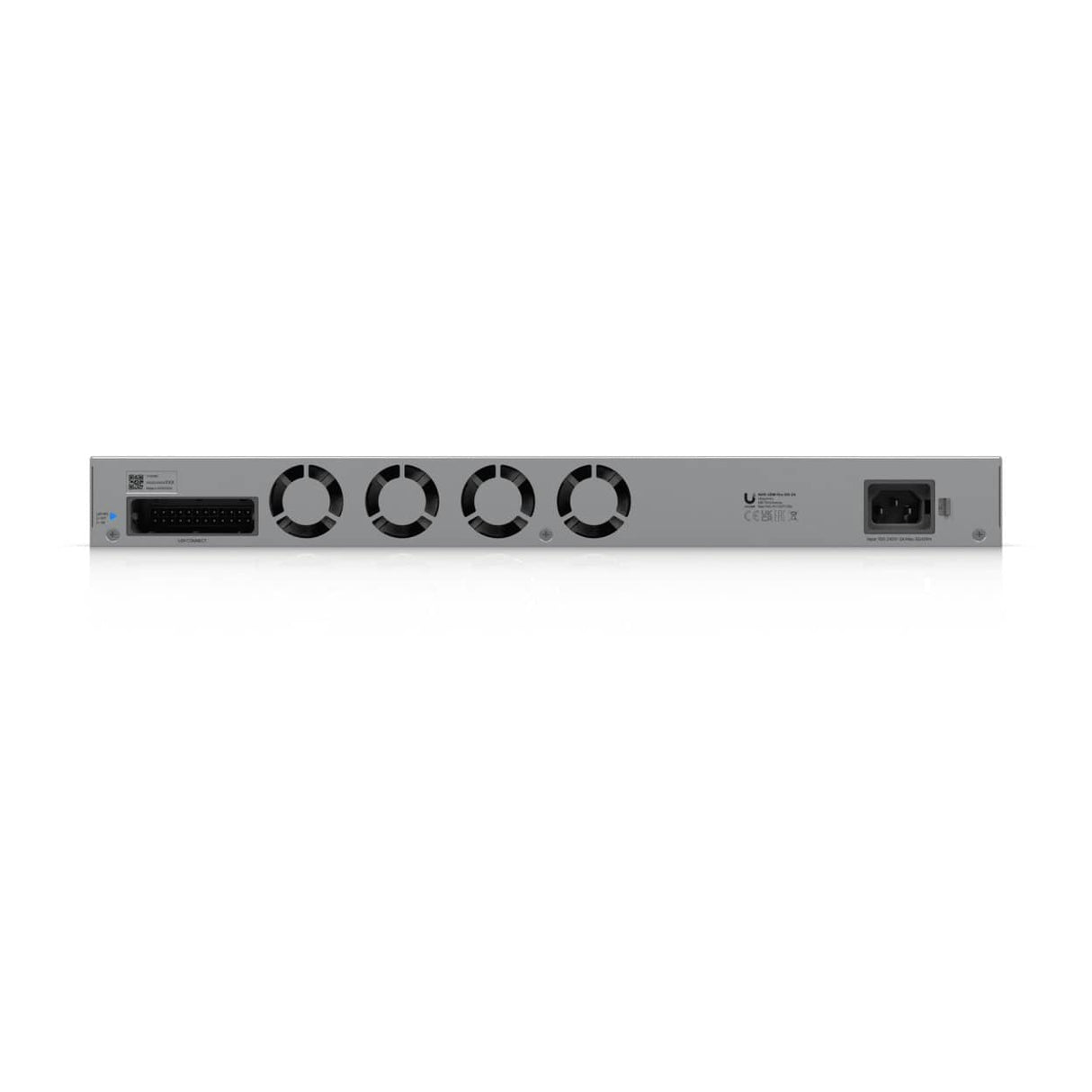

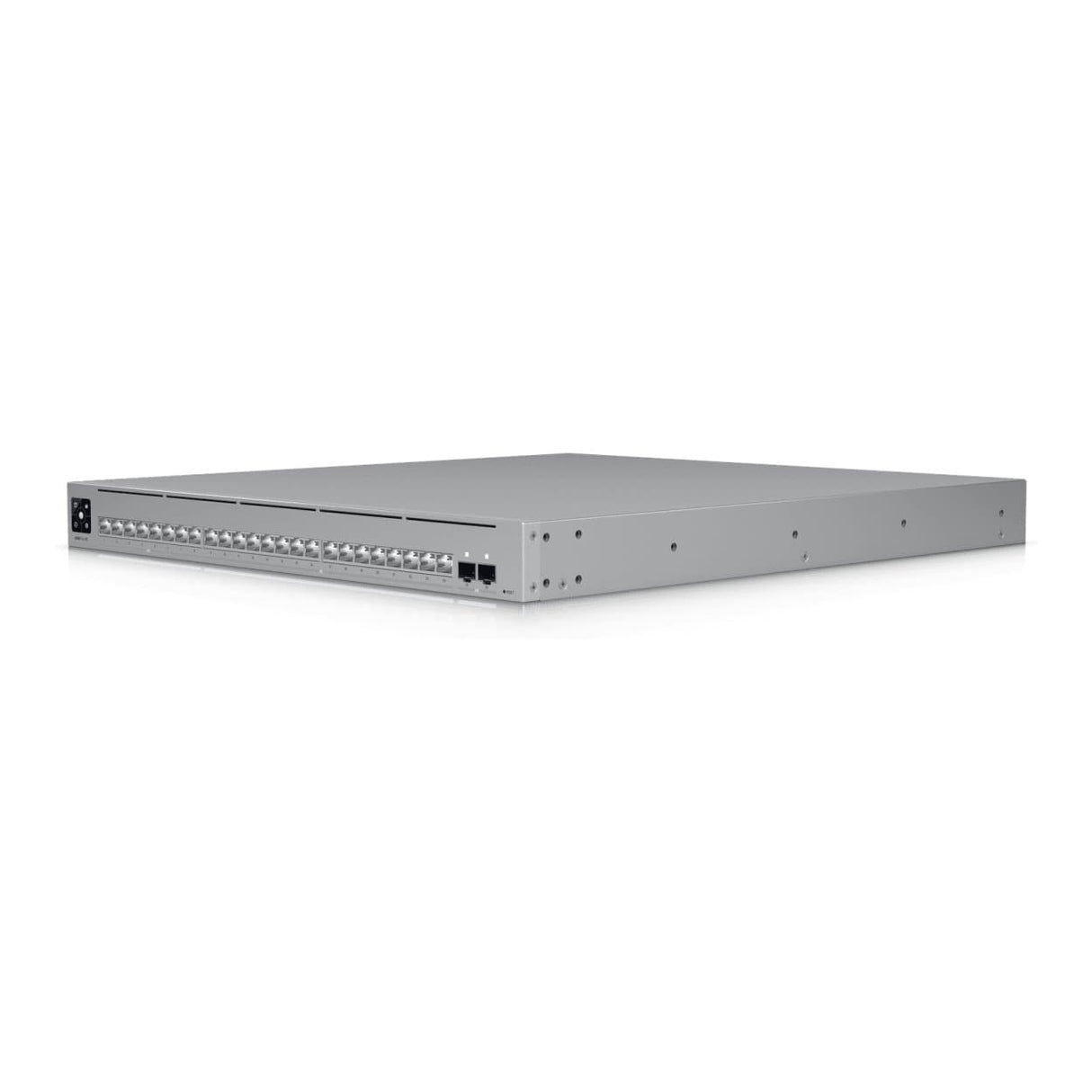

Ubiquiti Unifi Pro XG 24 24-port 2.5G 10G Managed Network Switch USW-PRO-XG-24

Ubiquiti Unifi Pro XG 24 24-port 2.5G 10G Managed Network Switch USW-PRO-XG-24

Technical Specifications:

General

Form Factor
Rack Mount (1U)

Dimensions
442 × 480 × 44 mm (17.4 × 18.9 × 1.7")

Enclosure Material
SGCC Steel

Mount Material
SGCC Steel

Weight

• Without Mounting Brackets: 7.2 kg (15.9 lb)
• With Mounting Brackets: 7.3 kg (16.1 lb)

Supported Rack Depth

• 482.6 mm (19") Four-Post Racks
• Post Depths Ranging From 600 To 1,066 mm (23.6" To 42")

LCM Display
1.3" Touchscreen

Etherlighting™
Supported

NDAA Compliant
Yes

Ports And Interfaces

2.5 GbE RJ45 Ports
8 × (2.5G / 1G / 100M / 10M)

10 GbE RJ45 Ports
16 × (10G / 5G / 2.5G / 1G / 100M / 10M)

25G SFP28 Ports
2 × (25G / 10G / 1G)

Performance

Switching Capacity
460 Gbps

Total Non-Blocking Throughput
230 Gbps

Forwarding Rate
342 Mpps

Supported VLANs
1,000

MAC Address Table Size
32,000

IPv4 Static Routes
512

Packet Buffer Size
8 MB

Access Lists

• IPv4: 256
• MAC: 256

Layer 3 Features

• DHCP Server (Local Networks)
• DHCP Relay
• Inter-VLAN Routing (Local Networks)
• Static Routing (Local Networks)

Layer 2 Features

• LACP Port Aggregation
• STP And RSTP
• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs And Device Isolation
• DHCP Snooping And Guarding
• Egress Rate Limiting
• Flow Control
• Storm Control
• Multicast And Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs And Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• LLDP-MED
• Voice VLAN
• Loop Protection
• Virtual Network Override

Power

Maximum Power Consumption
150 W

Power Method

• Universal Input: 100–240 V AC, 50/60 Hz
• USP RPS DC Input

Power Input Method
AC Input

Power Supply
Internal AC/DC, 200 W

Supported Voltage Range
100–240 V AC

Redundancy
DC Power Backup Supported

Management

Management Interface
Ethernet

Application Requirements
UniFi Network Version 9.0.114 And Later

Protection And Environmental

ESD Protection
Air: ±30 kV
Contact: ±20 kV

Ambient Operating Temperature
-5 °C To 40 °C (23 °F To 104 °F)

Ambient Operating Humidity
10% To 90% Non-Condensing

LED Indicators

Etherlighting™ Indicators

• Ethernet: Supported
• SFP28: Supported

RPS LED
Supported

Certifications

Compliance Standards

• CE
• FCC
• IC
• Anatel: 06464-25-08356
