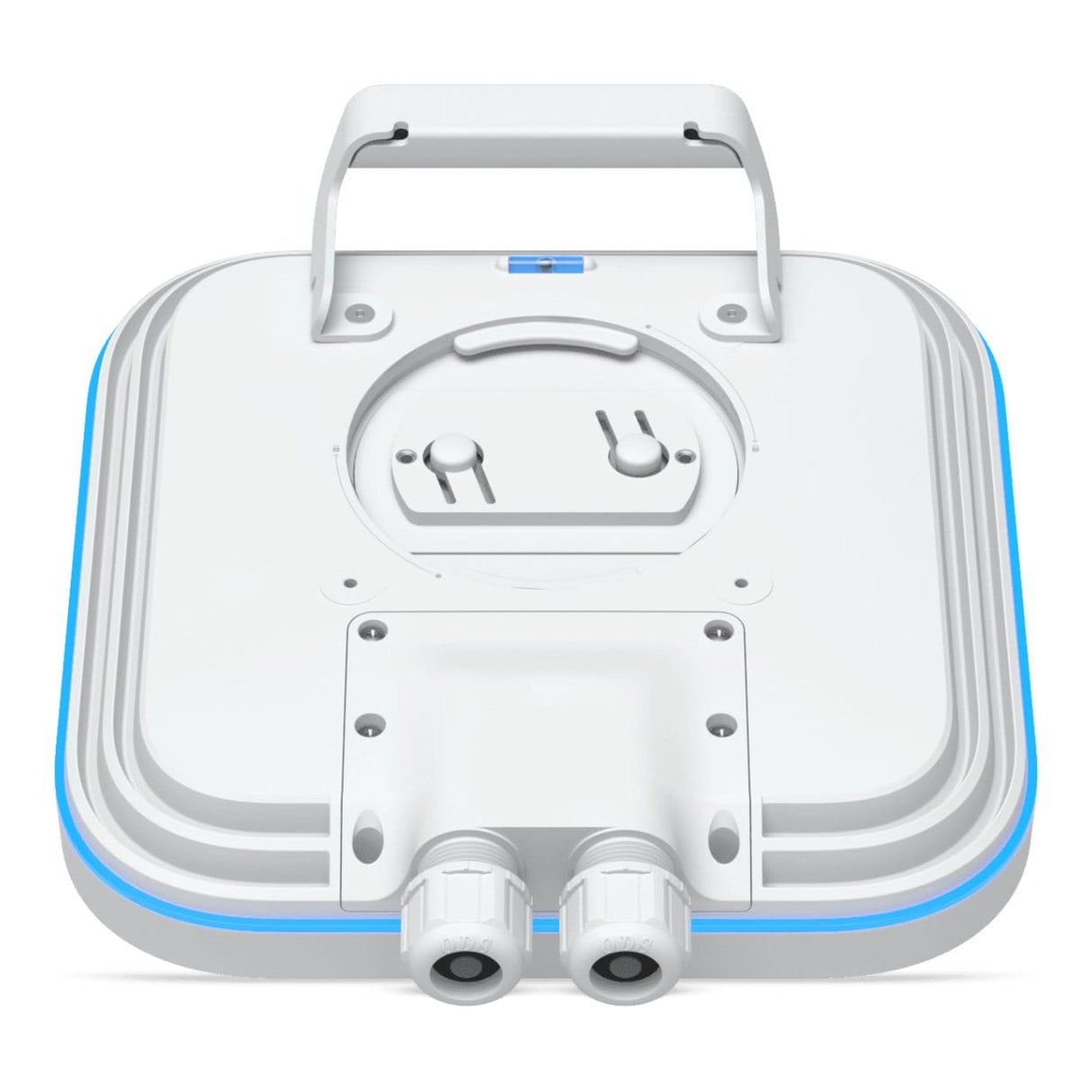

Ubiquiti UniFi Enterprise Wi-Fi 7 Campus IP67 Tri-Band Wireless Access Point E7-Campus

Ubiquiti UniFi Enterprise Wi-Fi 7 Campus IP67 Tri-Band Wireless Access Point E7-Campus

Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.

Technical Specifications:

Physical Characteristics
Dimensions:

• Device: 250 × 250 × 45.5 mm
• Articulating Mount: Ø104 × 149.4 mm

Weight:

• Device: 2.2 kg
• With Articulating Mount: 3.1 kg

Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 1000+
Weatherproofing: IPX6, IP67 with Waterproof Door Kit Included
Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter: 25–63.5 mm (1–2.5")

Wireless
WiFi Standard: WiFi 7
Spatial Streams: 10

MIMO:

• 6 GHz: 4 × 4 (DL/UL MU-MIMO)
• 5 GHz: 4 × 4 (DL/UL MU-MIMO)
• 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)

Max. Data Rate:

• 6 GHz: 11.5 Gbps (BW320)
• 5 GHz: 8.6 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)

Antenna Gain:

• 6 GHz: Directional Internal, 12 dBi, 90° × 50°
• 5 GHz: Directional Internal, 12 dBi, 100° × 55°
• 2.4 GHz: Directional Internal, 9 dBi, 90° × 80°

Max. TX Power:

• 6 GHz: 30 dBm (36 dBm EIRP)
• 5 GHz: 30 dBm
• 2.4 GHz: 23 dBm

Max. BSSIDs: 8 Per Radio

Supported Data Rates:

• 802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13, NSS1/2/3/4, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11, NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9, NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT20/40)

Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz, Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz, 5925 - 7125 MHz

Features
Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Zero-Wait DFS: Yes
Advanced Radio Management: Yes
Real-Time Spectral Analysis: Yes
Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal:

• Custom Branding Landing Page: Yes
• Voucher Authentication: Yes
• Payment-Based Authentication: Yes
• External Portal Server Support: Yes
• Password Authentication: Yes
• Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-Assigned VLAN: Yes

Hardware
Uplink: 10 GbE, 1 GbE
Networking Interface:

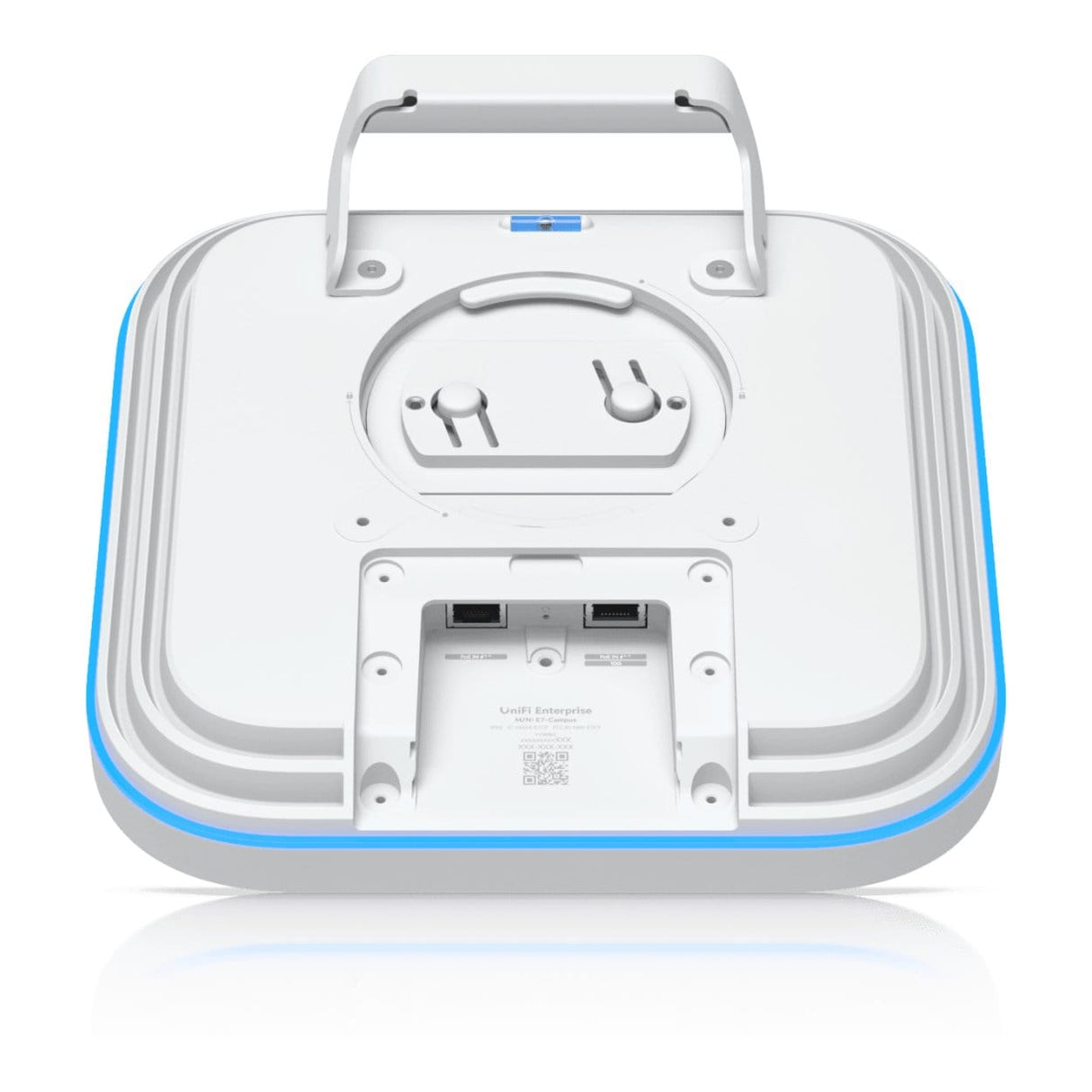

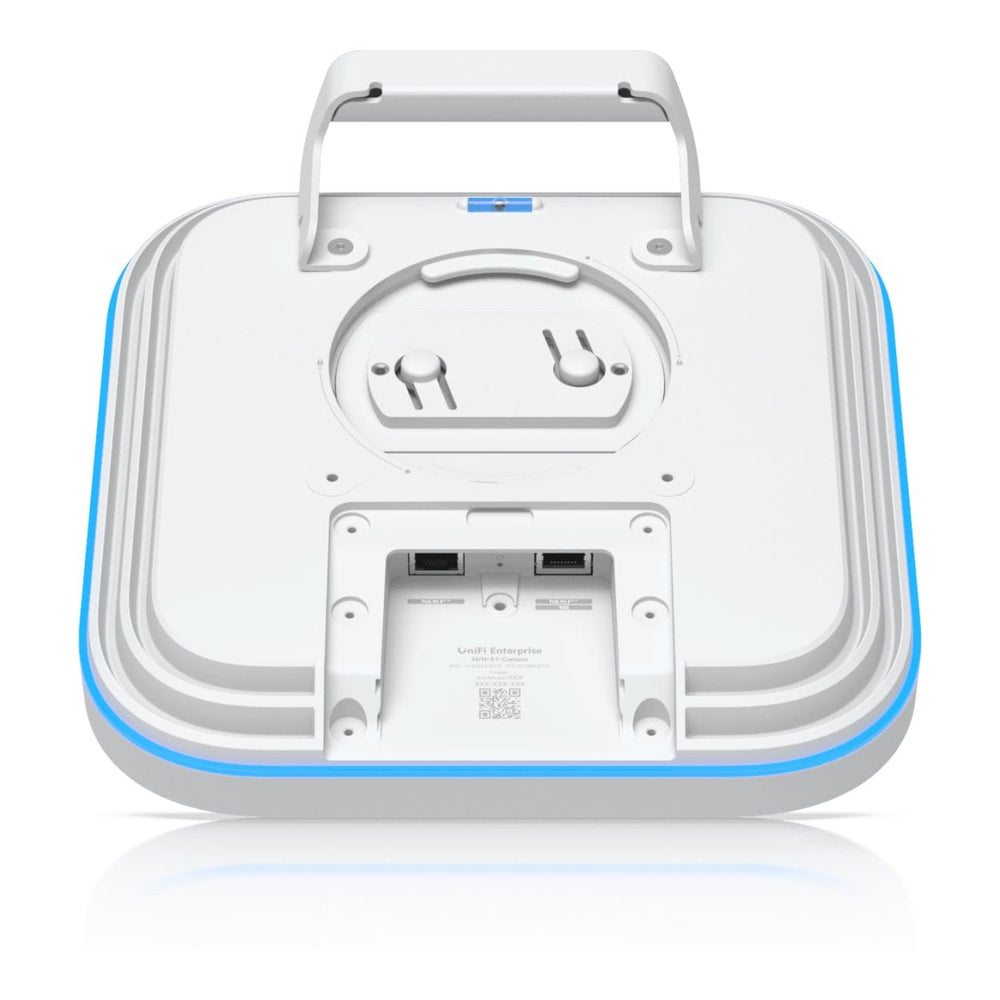

• 1 × 10 GbE RJ45 Port
• 1 × GbE RJ45 Port

PRISM™ RF Filtering: Yes
Antennas: 1 × Internal Antenna with Directional Patterns

Antenna Beamwidth:

• 6 GHz: 90° × 50°
• 5 GHz: 100° × 55°
• 2.4 GHz: 90° × 80°

Management: Ethernet
LEDs: System (R/G/B)

Power
Power Method: PoE++
Supported Voltage Range: 42.5–57 V DC
Max. Power Consumption: 44 W

Construction
Enclosure Material: UV-Stabilized Polycarbonate, Aluminum Alloy
Mount Material: Stainless Steel, Aluminum Alloy

Environmental
Ambient Operating Temperature: -30°C to 60°C
Ambient Operating Humidity: 5% to 95% RH, Non-Condensing

Software
Application Requirements: UniFi Network Version 9.0.114 and Later
Mobile App:

• iOS™ Version 10.20.0 and Later
• Android™ Version 10.21.3 and Later

Compliance and Certifications
NDAA Compliant: Yes
Certifications: FCC, IC

What's in the Box:

• Device
• Articulating Mount

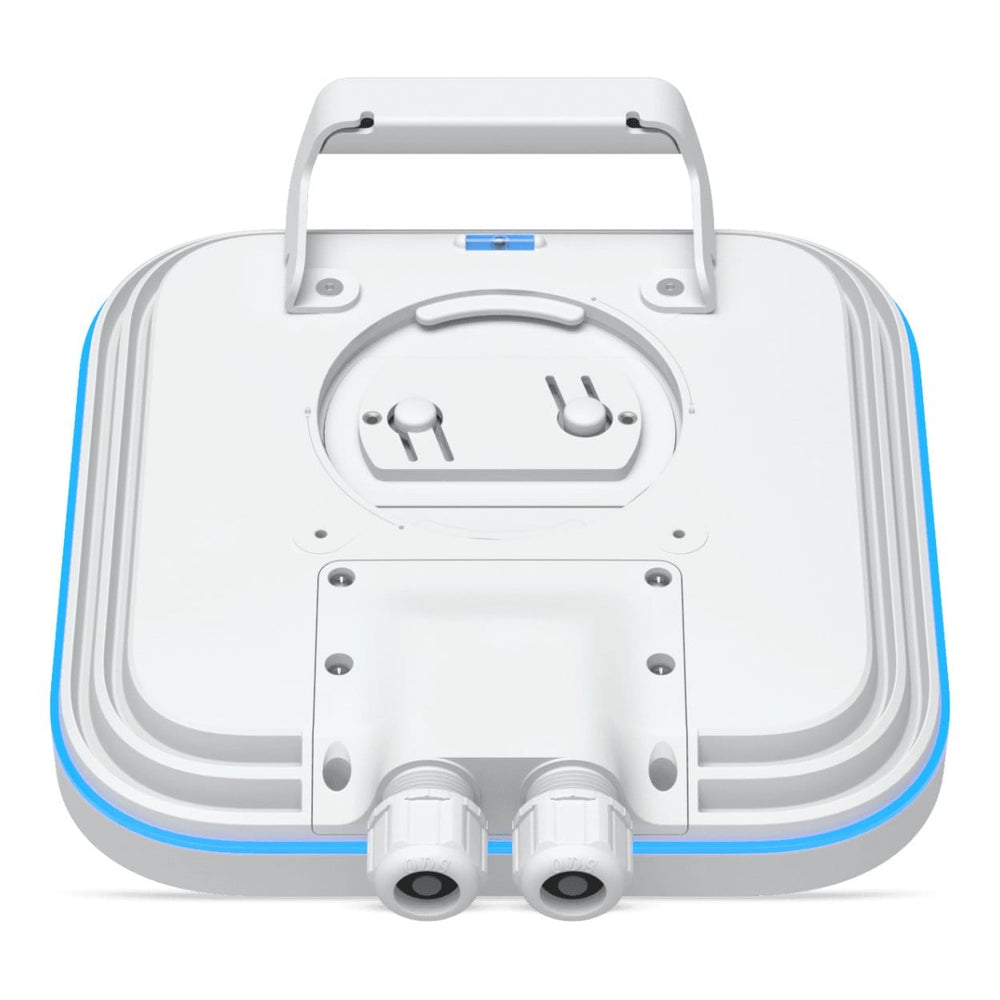

• Waterproof Door Kit
• Mounting Hardware for Wall and Pole Installation
