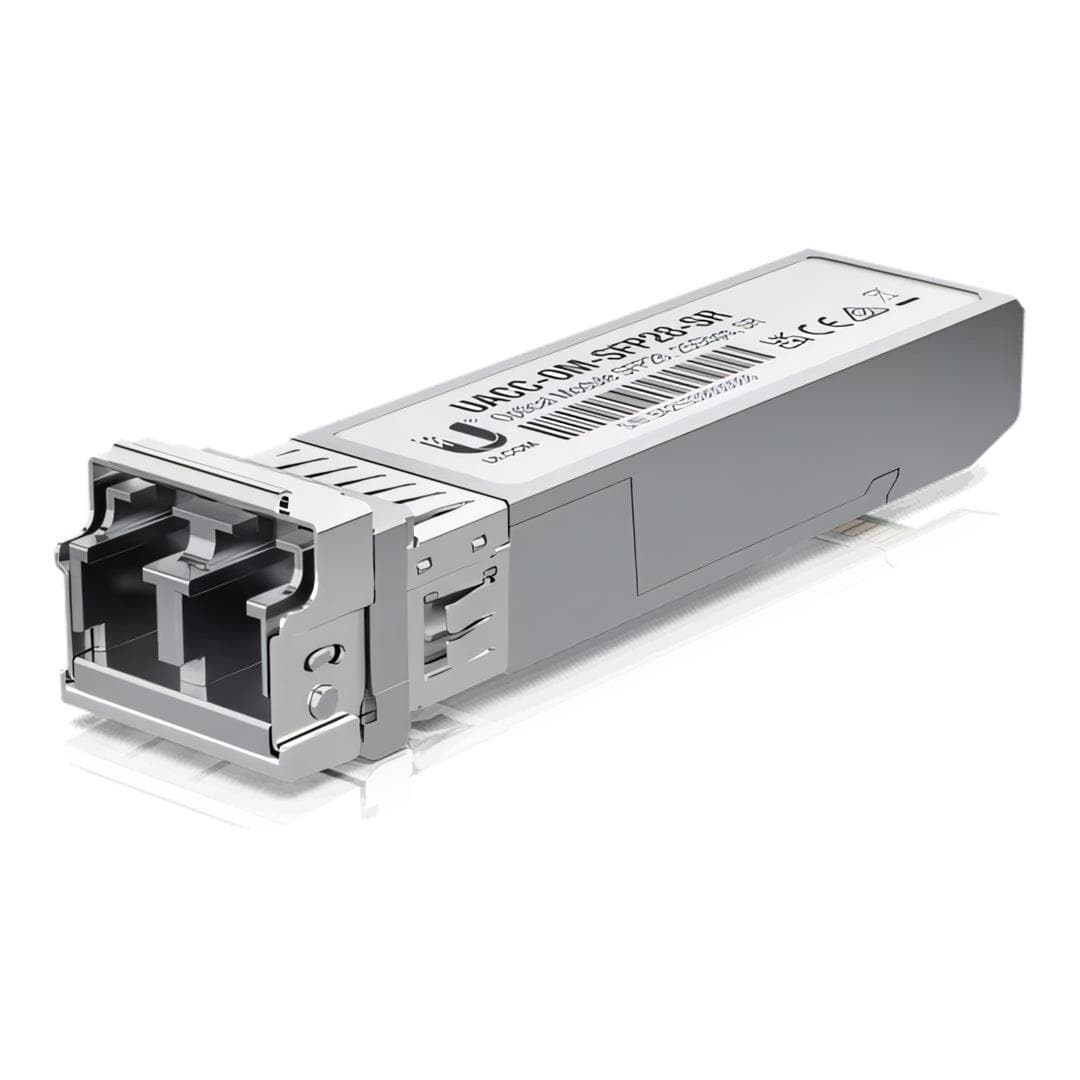

Ubiquiti UniFi 25G Multi-Mode Optical Transceiver Module UACC-OM-SFP28-SR

Ubiquiti UniFi 25G Multi-Mode Optical Transceiver Module UACC-OM-SFP28-SR

The Ubiquiti UACC-OM-SFP28-SR is a 25G multimode optical transceiver module designed for short-range high-speed fibre connections. Featuring an SFP28 form factor, duplex LC UPC connector and 850nm optical wavelength, it supports 1Gbps, 10Gbps and 25Gbps data rates. The module provides fibre connectivity at distances of up to 100 metres using OM4 multimode fibre or 70 metres using OM3, making it suitable for high-speed switch uplinks, aggregation links and other compatible network infrastructure.

Key Features

• SFP28 multimode optical transceiver module.
• Maximum data rate of 25Gbps.
• Supports 1Gbps, 10Gbps and 25Gbps data rates.
• Compatible with SFP28, SFP+ and SFP interfaces.
• Duplex LC UPC fibre connector.
• 850nm transmit and receive wavelength.
• Supports OM4 multimode fibre links up to 100m (328ft).
• Supports OM3 multimode fibre links up to 70m (229ft).
• Low maximum power consumption of 0.8W.
• Operating temperature range from 0°C to 70°C.

25Gbps Fibre Connectivity

The UACC-OM-SFP28-SR provides optical connectivity at data rates up to 25Gbps. Its SFP28 form factor makes it suitable for compatible high-bandwidth network switches and other equipment where short-range fibre connectivity is required.

1G, 10G and 25G Support

Ubiquiti specifies support for 1Gbps, 10Gbps and 25Gbps data rates. The current manufacturer product page also identifies the module as compatible with SFP, SFP+ and SFP28 interfaces, providing flexibility across supported network equipment.

Multimode Fibre with Duplex LC UPC

The transceiver uses multimode optical fibre and a duplex LC UPC connector. Both transmit and receive wavelengths operate at 850nm, providing a standard short-range optical configuration for compatible multimode fibre infrastructure.

Up to 100m Transmission Distance

When connected using OM4 multimode fibre, the module supports cable distances of up to 100 metres (328 feet). OM3 multimode fibre supports distances of up to 70 metres (229 feet). Actual compatibility should be confirmed against the connected network equipment and fibre infrastructure.

Low-Power Optical Module

Maximum power consumption is rated at just 0.8W, helping minimise additional power and thermal requirements when installed in compatible network hardware.

Technical Specifications

What’s in the Box:

• Ubiquiti UACC-OM-SFP28-SR 25G Multi-Mode Optical Module

The Ubiquiti UACC-OM-SFP28-SR provides high-speed multimode fibre connectivity in a compact SFP28 transceiver. With support for 1Gbps, 10Gbps and 25Gbps operation, an 850nm optical wavelength and distances up to 100 metres over OM4 fibre, it provides a versatile optical connection for compatible Ubiquiti and other supported networking equipment.
