Ubiquiti U7-Pro-XG-Wall UniFi Wi-Fi 7 Tri-Band In-Wall Access Point

Ubiquiti U7-Pro-XG-Wall UniFi Wi-Fi 7 Tri-Band In-Wall Access Point

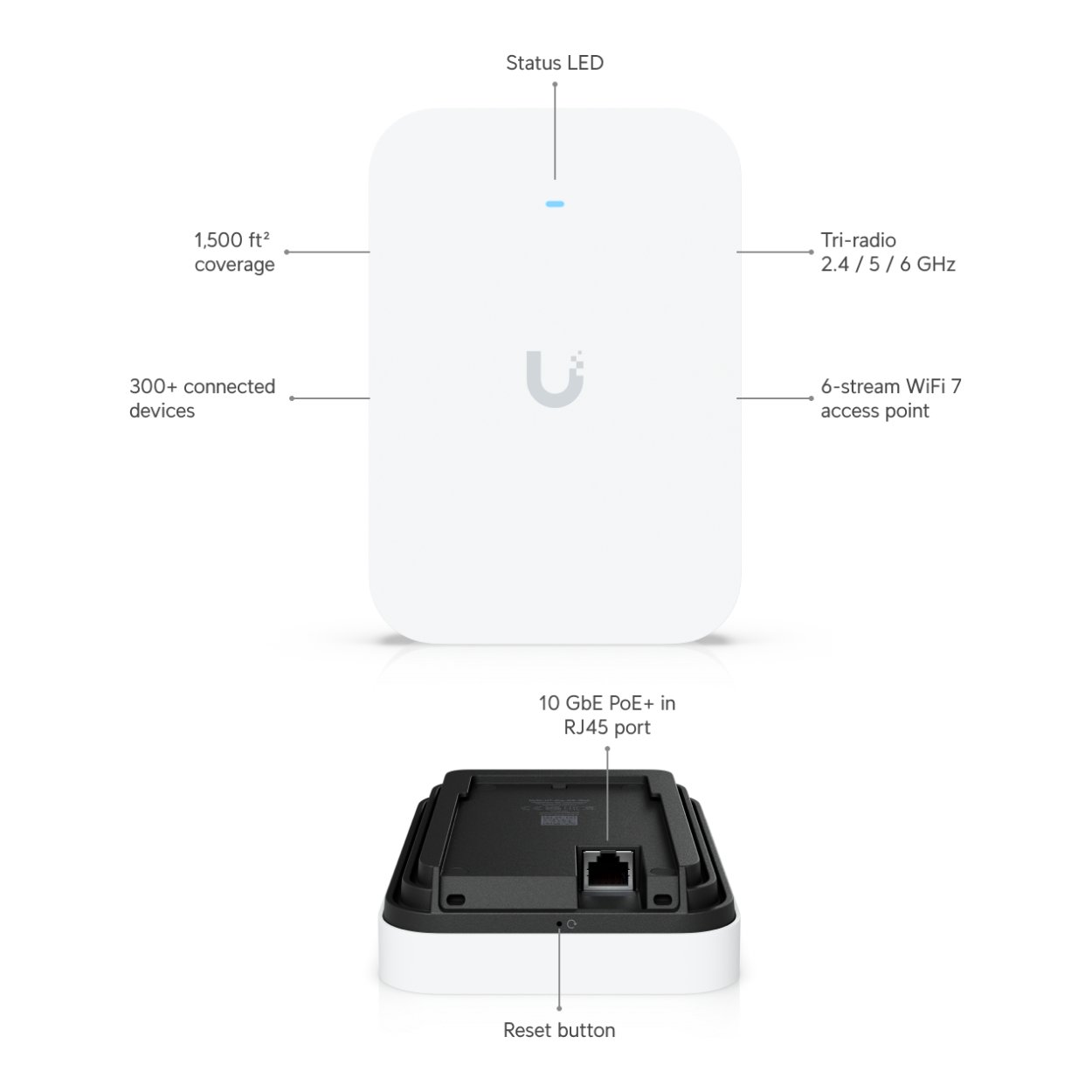

Ubiquiti's U7-PRO-XG-IW is a Tri-Band WiFi 7, wall-mounted AP with 6 spatial streams and 1x 10Gbps port. It delivers an aggregate data rate of up to 5.8Gbps on 6GHz (2x2 MU-MIMO) 4.3Gbps on 5GHz (2x2 MU-MIMO) and 688Mbps on its 2.4GHz (2x2 MU-MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

Technical Specification

Wi-Fi Standard: Wi-Fi 7

Spatial Streams: 6

Coverage Area: 140 m² (1,500 ft²)

Max. Client Count: 300+

Antenna Gain

• 2.4GHz: 4dBi
• 5GHz: 6dBi
• 6GHz: 6dBi

MIMO

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Data Rate

• 2.4GHz: 688Mbps
• 5GHz: 4.3Gbps
• 6GHz: 5.8Gbps

Ethernet Ports: 1x 100/1000/2500/10000

Hardware Button: Reset

Max. Power Consumption: 22W

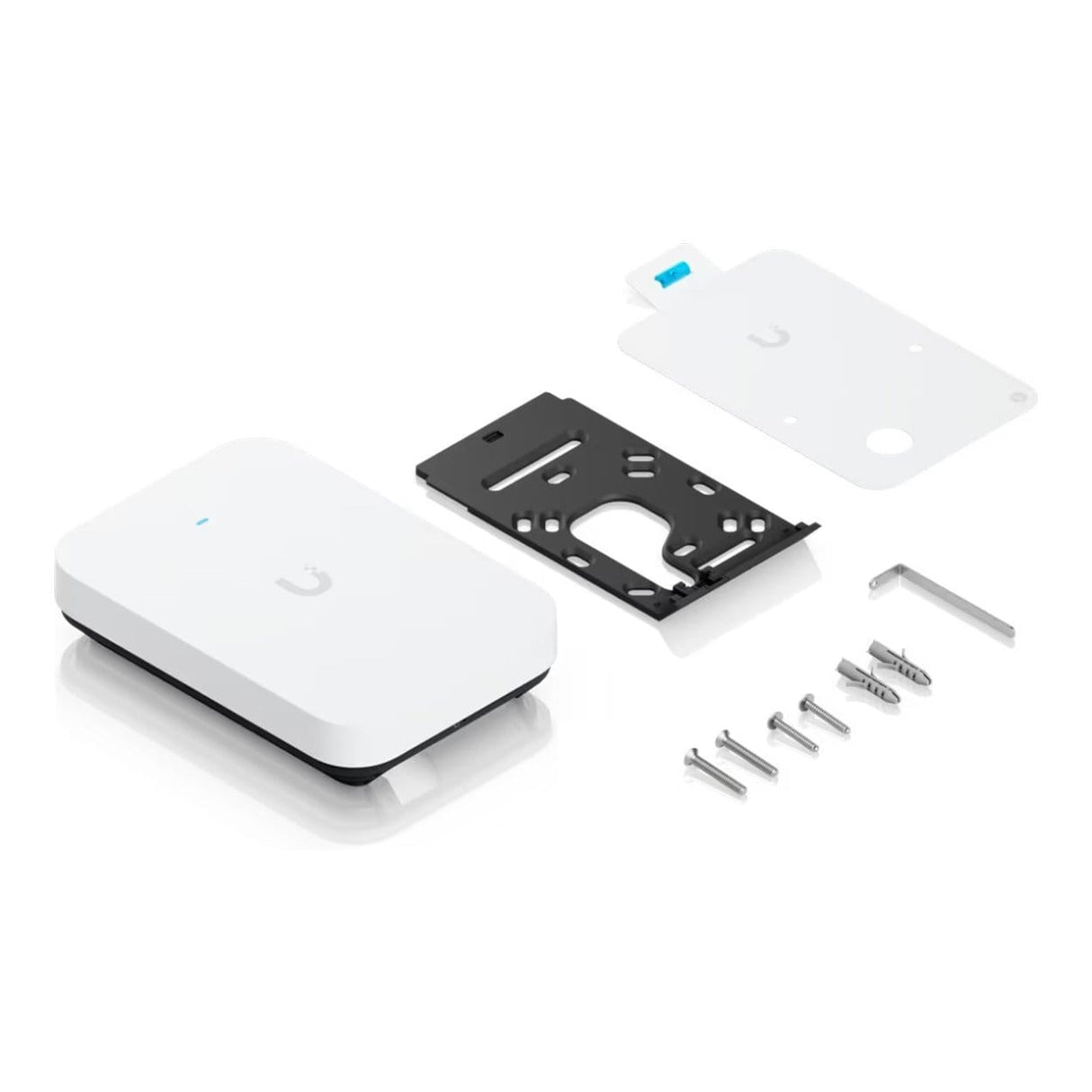

Mounting: Wall-Mount

Management: Ethernet

Operating System: UniFi

Operating Temperature: -30°C to 40°C

Power Method: PoE+

PoE Input: 802.3af/at

PoE Output: None

Power Input: 802.3at

Supported Voltage Range: 42.5 to 57V

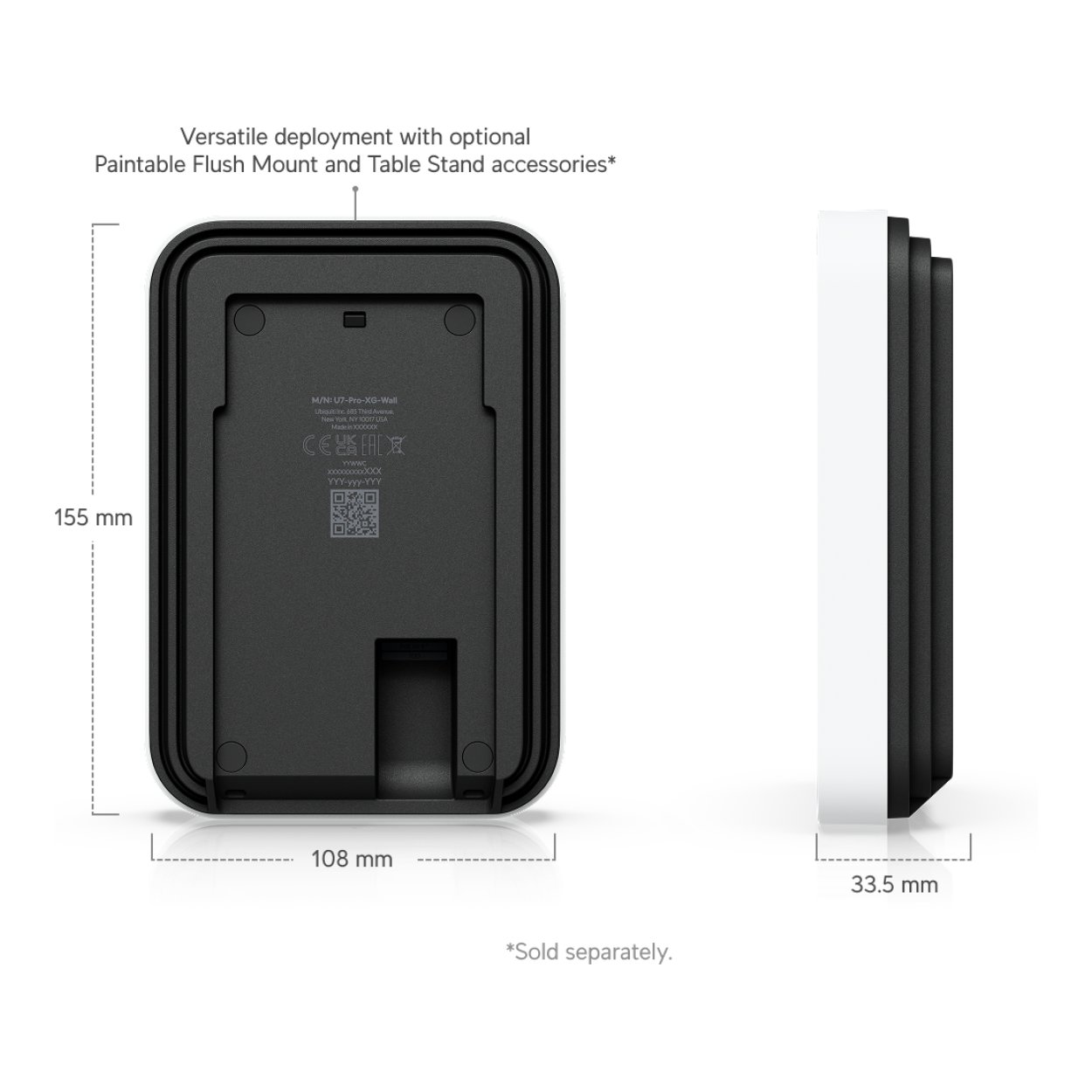

Dimensions: 155 x 108 x 33.5 mm

Weight: 505 g
