Ubiquiti Enterprise Audio/Video Fiber 22-port SFP+ 10G Managed Switch EAV-Fiber
The Ubiquiti UniFi Enterprise Audio/Video Fiber (EAV-Fiber) is a high-performance 1U managed switch engineered for professional IP-based audio and video networks. It combines 20 SFP+ interfaces with two 100G QSFP28 interfaces, delivering an 800Gbps switching capacity and 400Gbps of non-blocking throughput. Advanced PTP timing, professional AV profiles, redundant hot-swappable power supplies and fans, and Etherlighting technology make it suitable for demanding broadcast, production and enterprise AV infrastructure.
Key Features

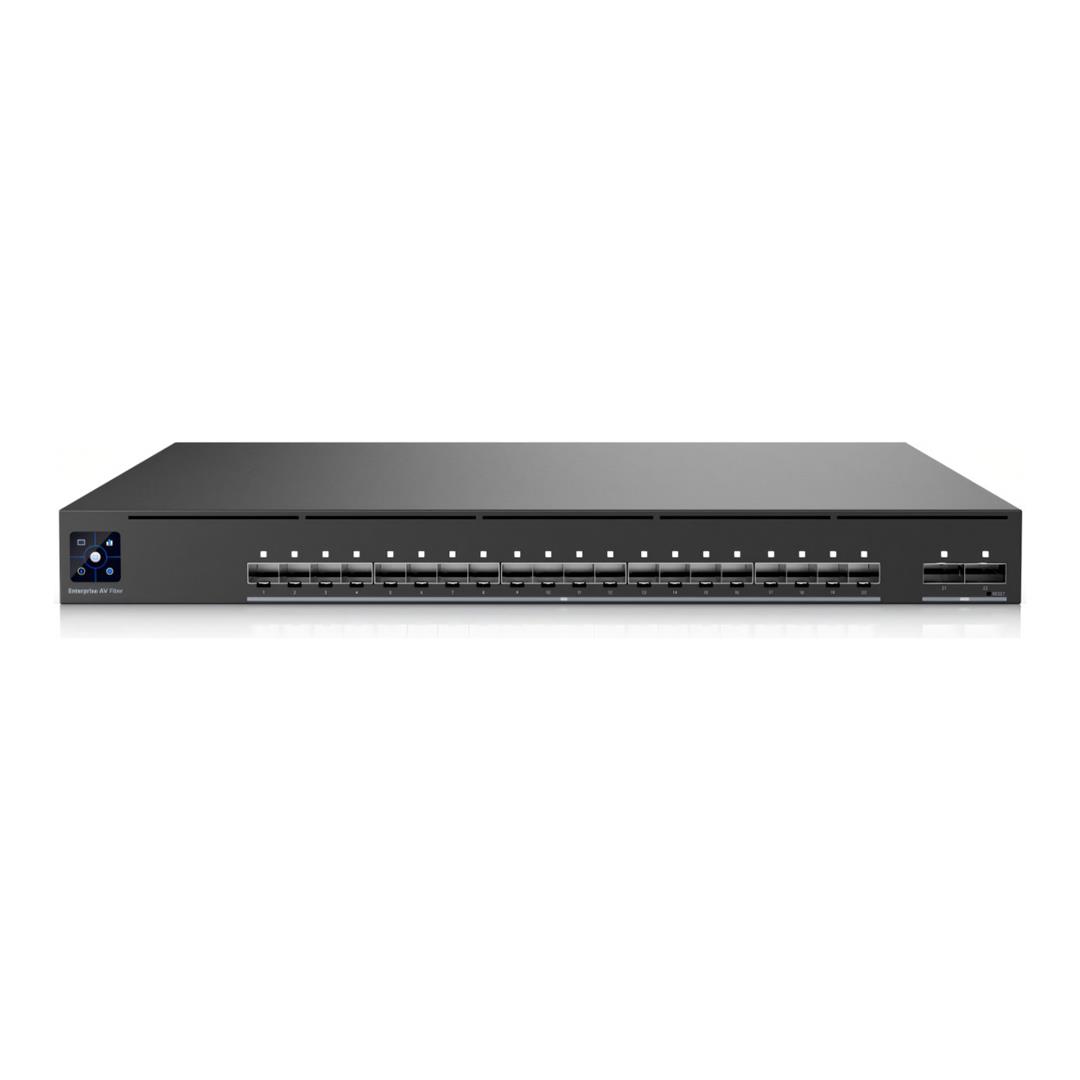

- 20 × 10G SFP+ interfaces supporting 10G and 1G connections.
- 2 × 100G QSFP28 interfaces supporting 100G and 40G connections.
- 800Gbps switching capacity with 400Gbps non-blocking throughput.
- IEEE 1588-2008 PTPv2 with hardware timestamping for precise media synchronisation.
- Supports professional AV technologies including SMPTE ST 2110, SDVoE and AES67.

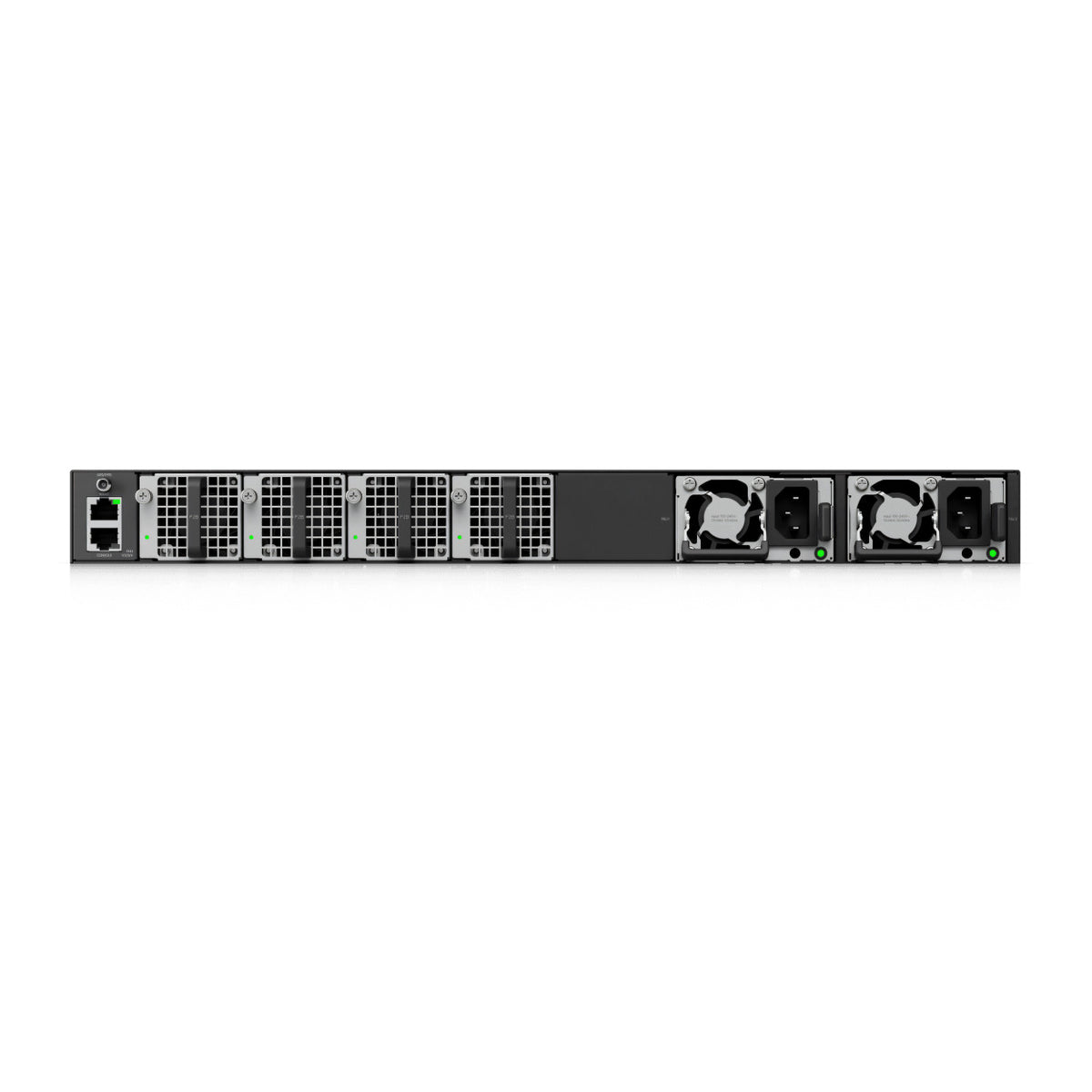

- Dual hot-swappable power supplies and four hot-swappable fans for redundancy.

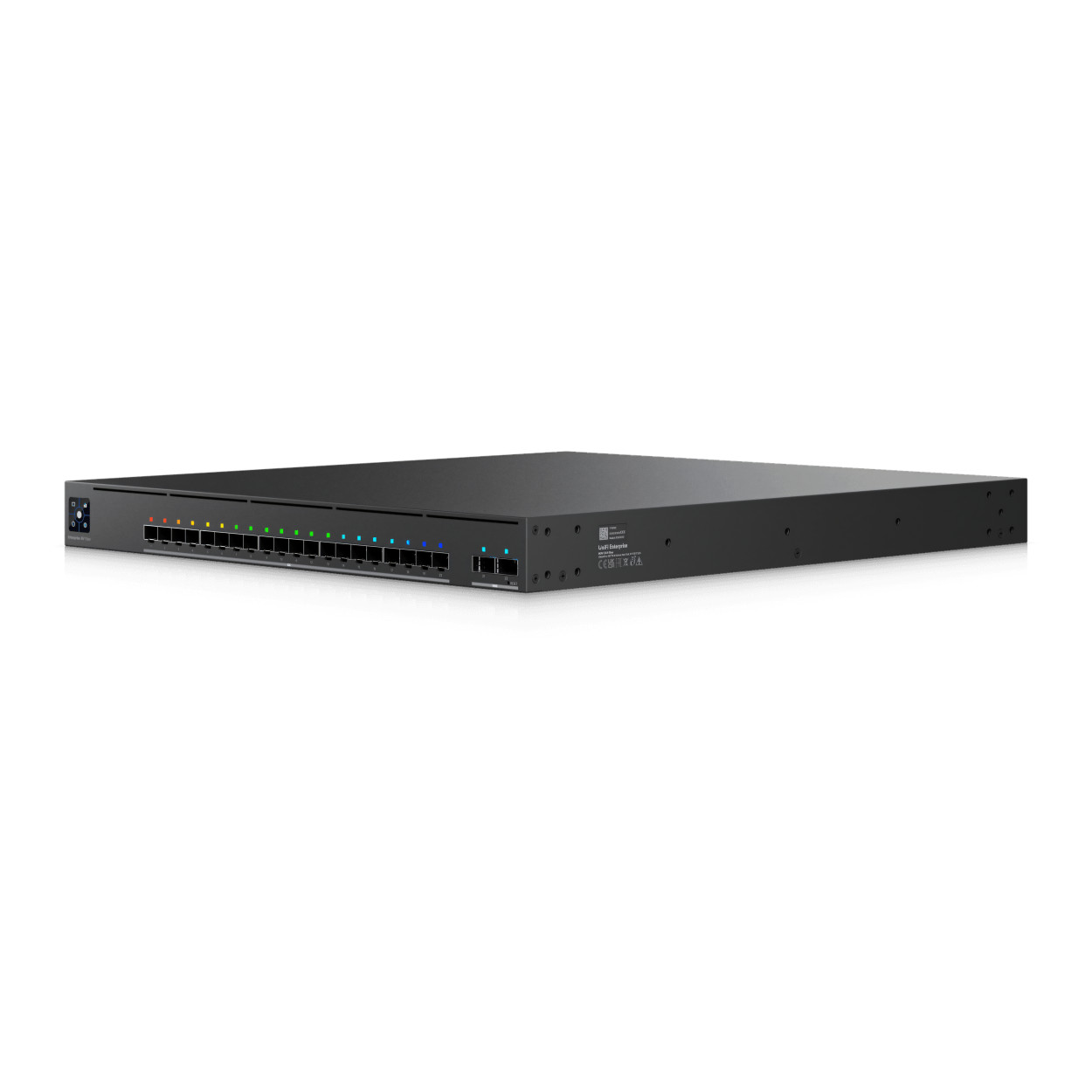

- 1U full-depth rackmount design with Etherlighting and a 1.3-inch touchscreen.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Line | UniFi |
| Model | EAV-Fiber |
| Product Name | Enterprise Audio/Video Fiber |
| Product Type | Enterprise Audio/Video Managed Switch |
| Form Factor | 1U Full-Depth Rackmount |
| 1GbE RJ45 Ports | 1 × 10/100/1000Mbps |
| 10G SFP+ Ports | 20 × SFP+ (10G / 1G) |
| 100G QSFP28 Ports | 2 × QSFP28 (100G / 40G) |
| Console | 1 × Serial Console |
| SMA Interface | 1 × SMA |
| Switching Capacity | 800Gbps |
| Total Non-Blocking Throughput | 400Gbps |
| Forwarding Rate | 595Mpps |
| Packet Buffer | 8MB |
| MAC Address Table | 32,000 |
| Supported VLANs | 1,000 |
| IPv4 Static Routes | 512 |
| Layer 3 | Supported |
| Layer 3 Features | DHCP Server / DHCP Relay / Inter-VLAN Routing / Static Routing |
| Precision Time Protocol | IEEE 1588-2008 PTPv2 |
| PTP Hardware Timestamping | Supported on Ethernet and QSFP28 Ports |
| PTP Clock Roles | Grandmaster / Boundary Clock / Transparent Clock |
| PTP Profiles | IEEE1588 / SMPTE 2059-2 / AES67 / AES-R16 |
| Professional AV Support | SMPTE ST 2110 / SDVoE / AES67 |
| Pro AV Profiles | Play / Dante / Q-SYS / NDI / SDVoE / Shure / AES67 / Crestron |
| Layer 2 Features | LACP / STP / RSTP / QoS / IGMP Snooping / Advanced IGMP / 802.1X / Flow Control / Storm Control / Port Isolation / Port Mirroring / Jumbo Frames / LLDP-MED / Voice VLAN / Loop Protection |
| Etherlighting | Supported on SFP+ and QSFP28 Interfaces |
| Display | 1.3-inch Touchscreen LCM |
| Power Supplies | 2 × Hot-Swappable 150W AC/DC Power Modules |
| Power Input | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 150W |
| Cooling | 4 × Hot-Swappable Fan Modules |
| Enclosure Material | SGCC Steel |
| Dimensions | 442.4 × 480 × 43.7mm |
| Weight | 8.95kg Without Mounting Brackets / 9.05kg With Mounting Brackets |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10% to 90% Non-Condensing |
| ESD Protection | Air: ±12kV / Contact: ±8kV |
| Rack Requirements | 19-inch Four-Post Rack; Supported Post Depth 650–1,000mm |
| NDAA Compliant | Yes |
| Certifications | CE / FCC / IC |
Build high-bandwidth professional AV networks with the Ubiquiti EAV-Fiber, combining 10G and 100G fibre connectivity with precise PTP synchronisation, AV-focused network profiles and redundant enterprise hardware.
