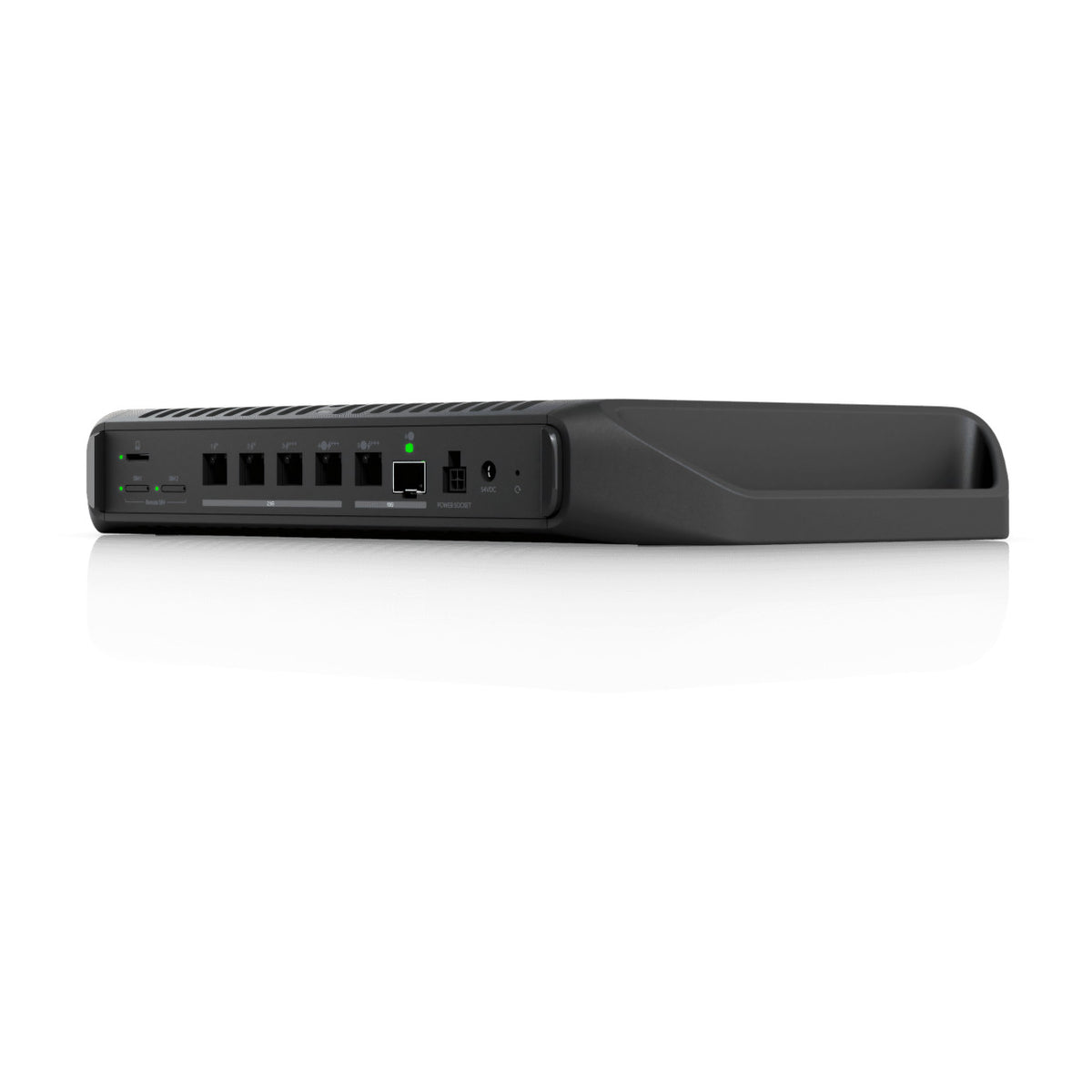

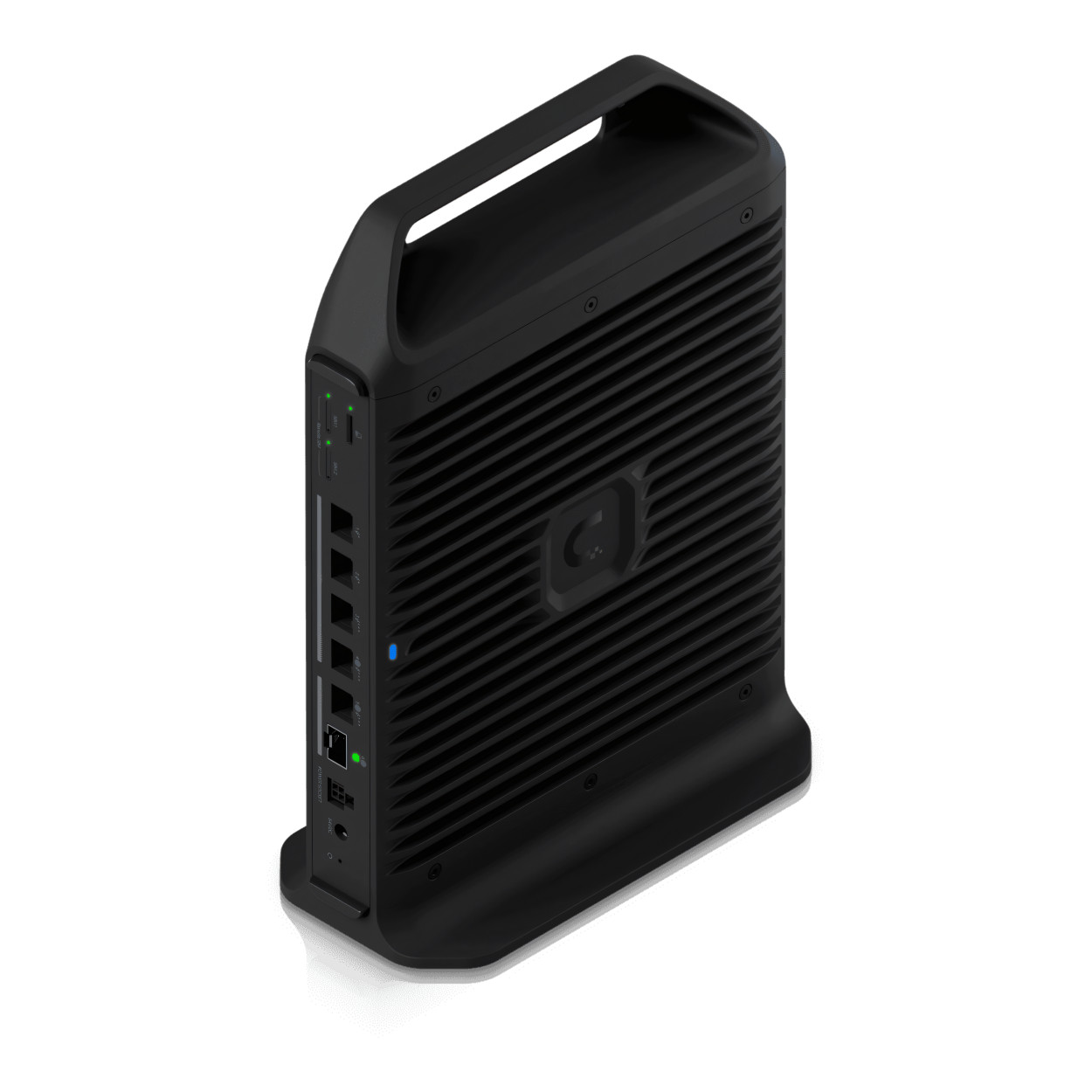

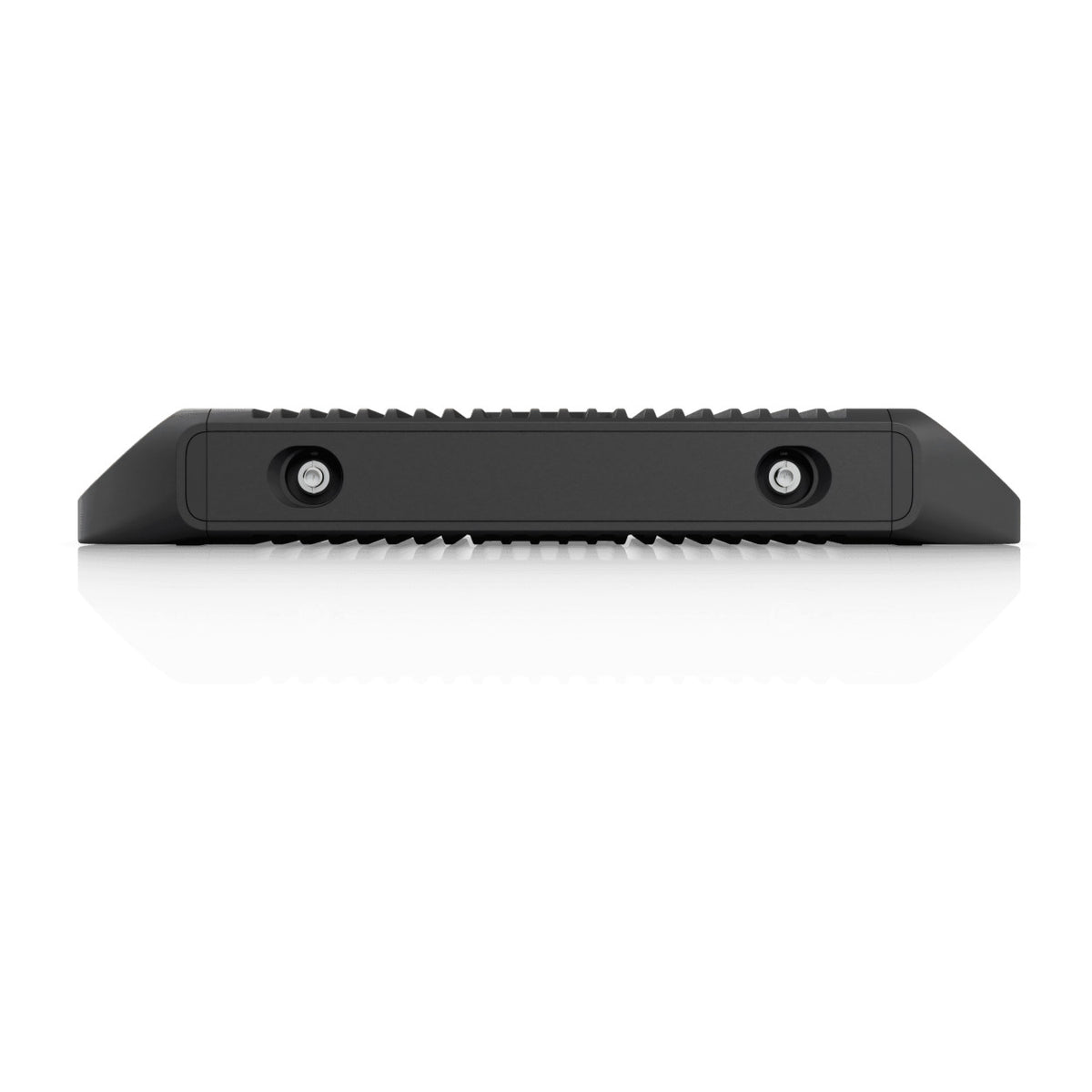

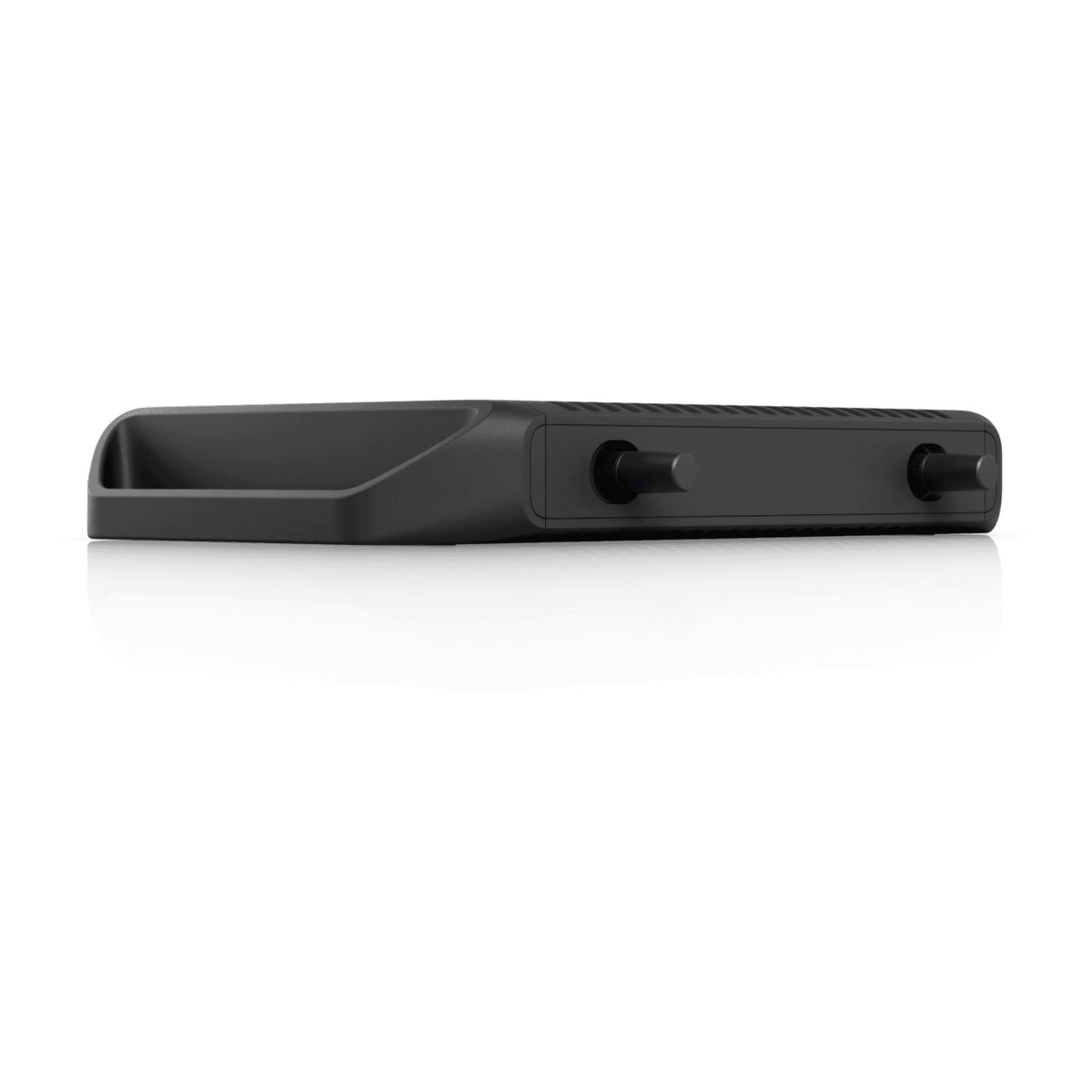

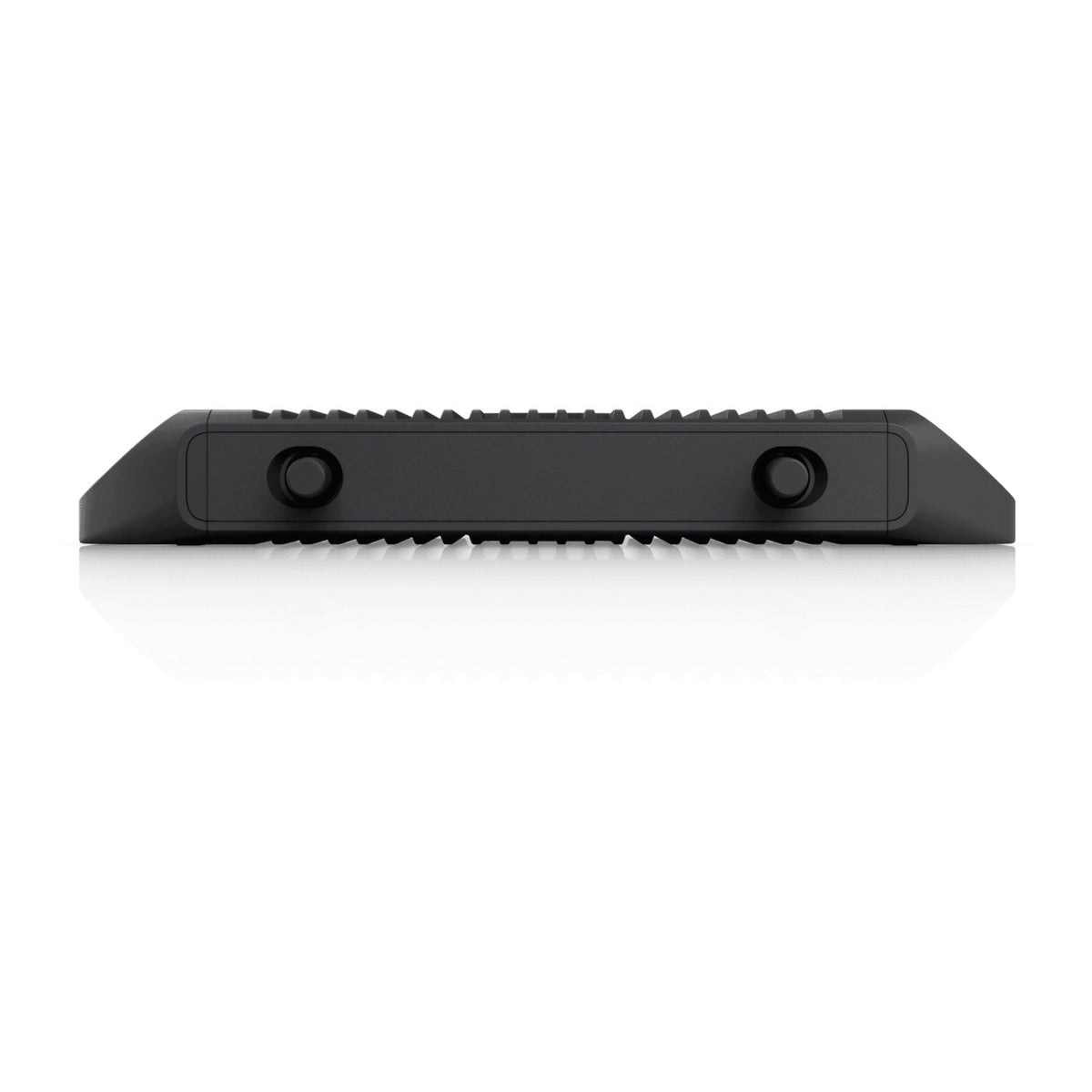

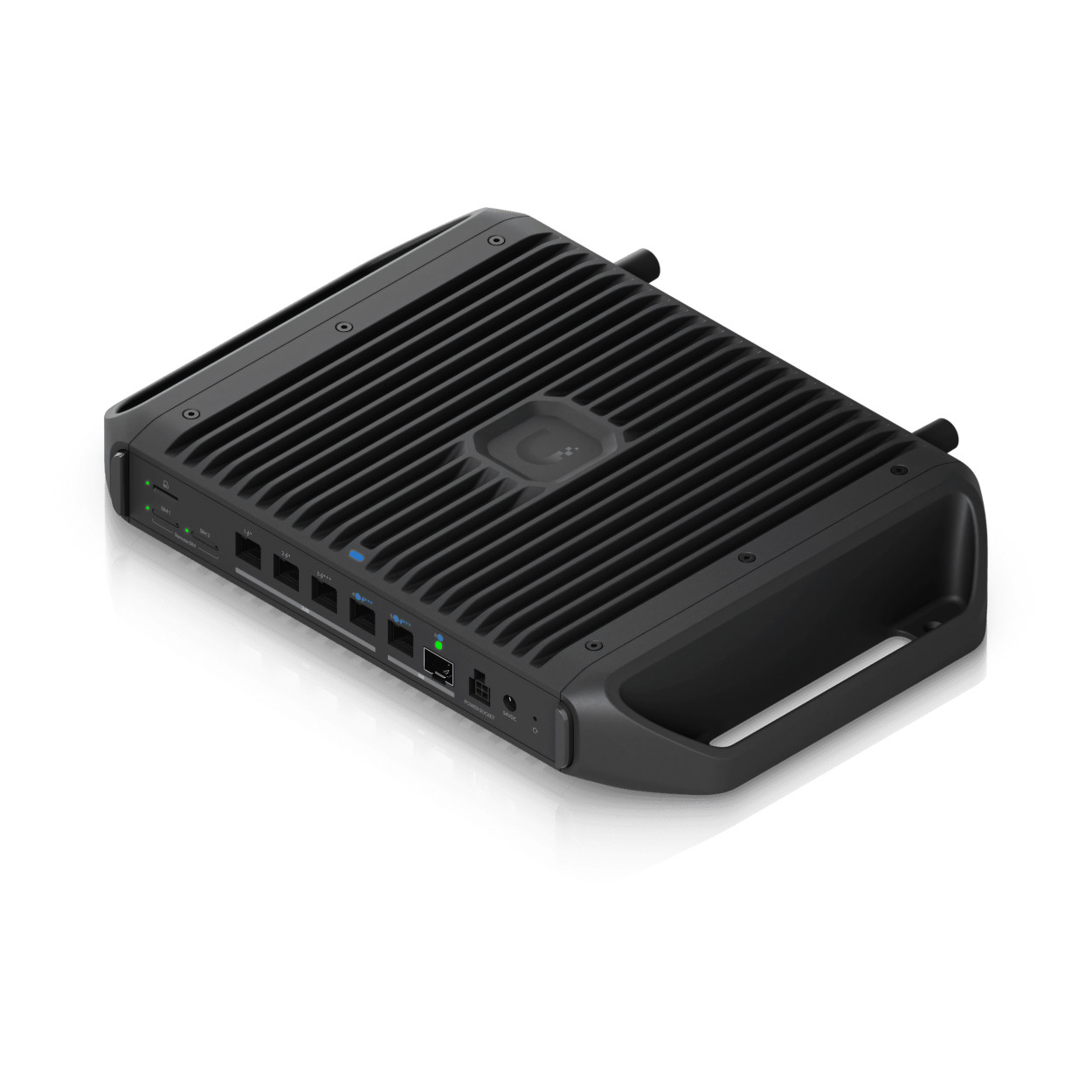

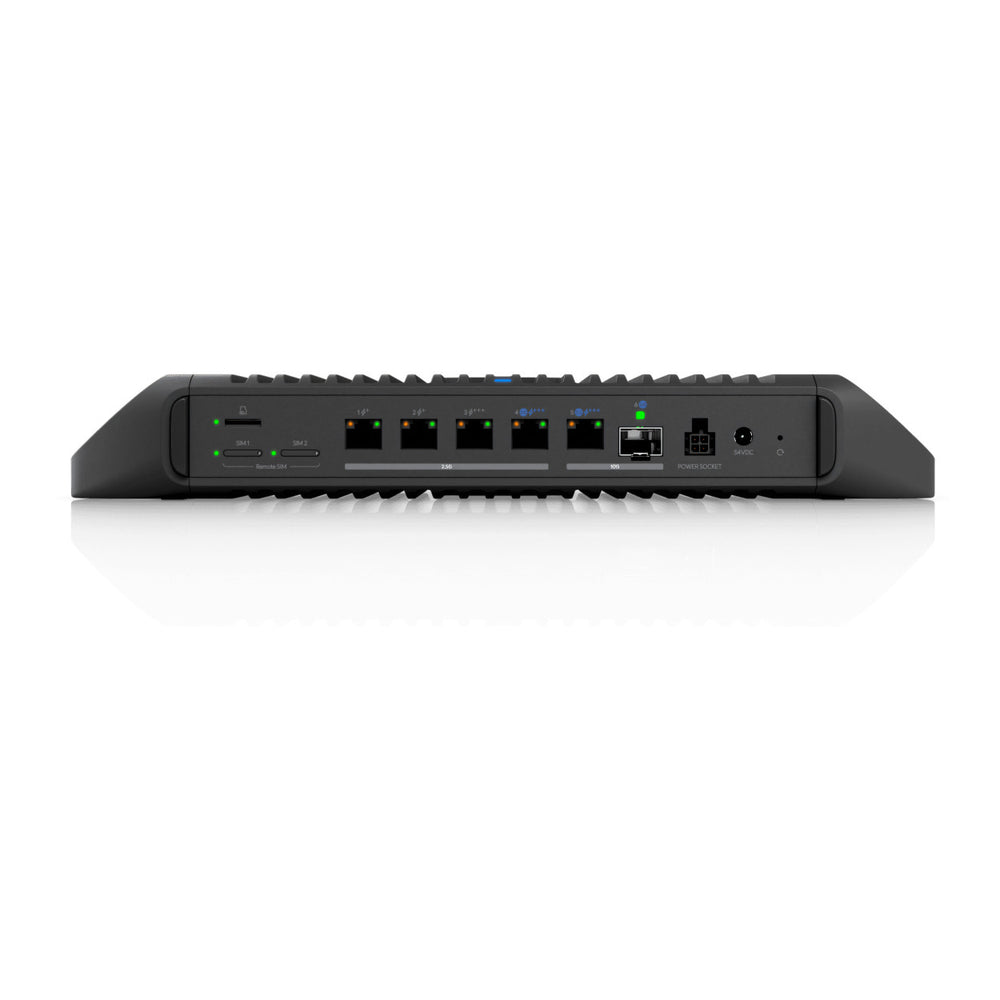

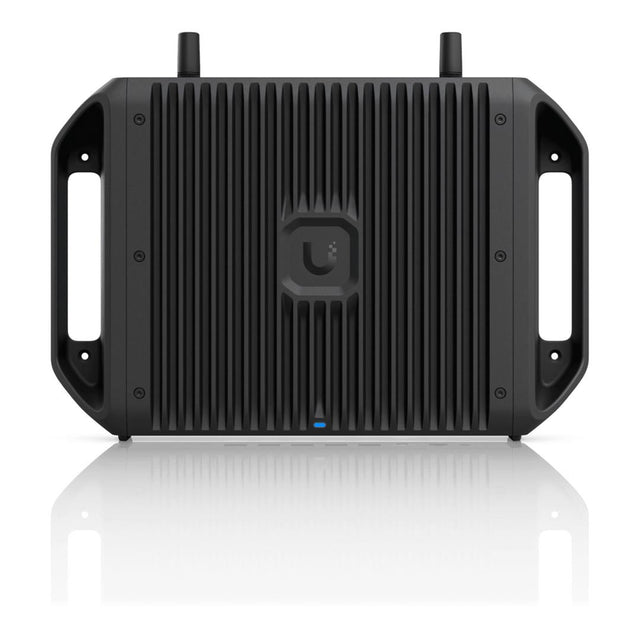

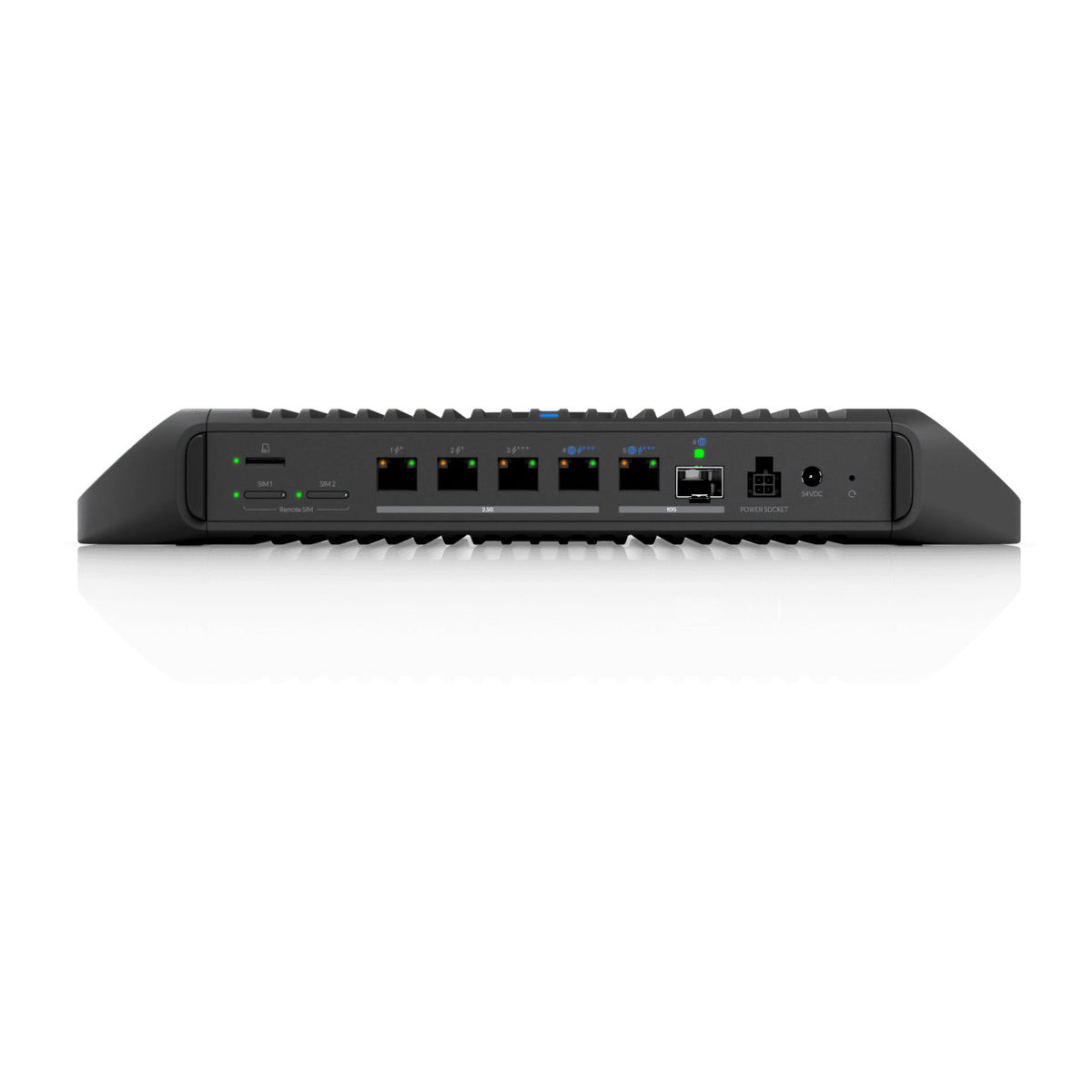

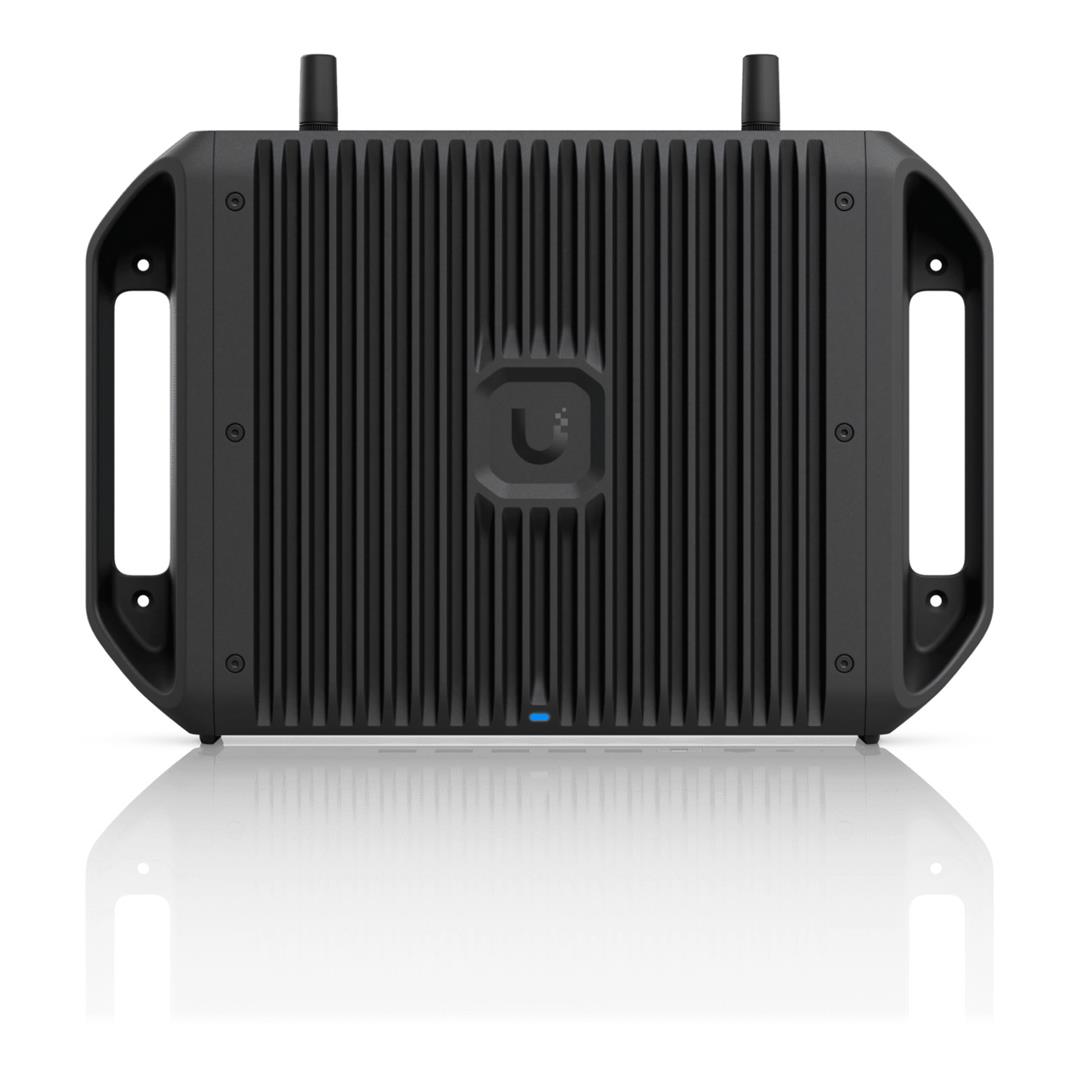

Ubiquiti Cloud Industrial Gateway UCG-Industrial
The Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial) is a ruggedised, fanless 10GbE Cloud Gateway built for demanding UniFi deployments. Combining high-performance routing, integrated Wi-Fi 7, high-power PoE, multi-WAN capabilities and local microSD storage, it provides a versatile platform for managing networking, security cameras, access control, communications and other UniFi applications from a single system.
Key Features
- 5Gbps IDS/IPS routing throughput for high-performance network security.
- Supports 50+ managed UniFi devices and 500+ simultaneously connected users.
- Integrated 10GbE, 10G SFP+ and 2.5GbE connectivity with up to five WAN ports.
- 270W PoE budget with support for high-power PoE+++ devices.
- Integrated dual-radio Wi-Fi 7 with 2.4GHz and 5GHz connectivity.
- Pre-installed 128GB microSD card provides local NVR storage.
- Runs the full UniFi application suite including Network, Protect, Access, Talk and Connect.
- Ruggedised fanless design supports operation from -30°C to 50°C.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Family | UniFi |
| Product Name | Cloud Gateway Industrial |
| Manufacturer Part Number | UCG-Industrial |
| Product Type | Industrial UniFi Cloud Gateway |
| UniFi Applications | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 50+ |
| Simultaneously Connected Users | 500+ |
| Managed Cameras | Up to 15 HD, 8 2K or 5 4K Cameras |
| Managed Access Hubs | Up to 50 |
| IDS/IPS Throughput | 5 Gbps |
| Maximum WAN Ports | 5 |
| Default WAN Ports | 1 x 10G SFP+, 1 x 10GbE RJ45, 1 x 2.5GbE RJ45 |
| 2.5GbE RJ45 Ports | 4 x 2.5G/1G/100M RJ45 (2 x PoE+++, 2 x PoE+) |
| 10GbE RJ45 Ports | 1 x 10G/5G/2.5G/1G/100M RJ45 with PoE+++ |
| SFP+ Ports | 1 x 10G/1G SFP+ |
| PoE Budget | 270W with DC Input; 75W with ATX Power |
| Maximum PoE+ Output | 30W per Port |
| Maximum PoE+++ Output | 90W per Port |
| PoE Voltage Range | 50–57V |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 6 / Wi-Fi 7) |
| Wi-Fi Bands | 2.4GHz and 5GHz |
| 5GHz Wi-Fi Throughput | Up to 4.3 Gbps |
| 2.4GHz Wi-Fi Throughput | Up to 688 Mbps |
| MIMO | 2 x 2 DL/UL MU-MIMO on 2.4GHz and 5GHz |
| Coverage Area | Up to 115 m² |
| Processor | Quad-Core ARM Cortex-A73 at 2.2GHz |
| System Memory | 3GB |
| NVR Storage | Pre-Installed 128GB microSD Card |
| Storage Expansion | microSD Card Slot |
| Firewall | Stateful, Application-Aware Layer 7 and Zone-Based Firewall |
| Intrusion Detection / Prevention | IDS / IPS |
| Traffic Identification | Deep Packet Inspection (DPI) |
| Multi-WAN | Load Balancing Supported |
| Dynamic Routing | OSPF |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | Identity Endpoint One-Click VPN, Teleport, WireGuard, OpenVPN, L2TP |
| Power Method | DC Input or 48V ATX Power |
| Power Supply | 54V DC, 350W Adapter Included |
| Supported AC Input | 100–240V AC |
| Maximum Device Power Consumption | 28W, Excluding PoE Output |
| Cooling | Fanless |

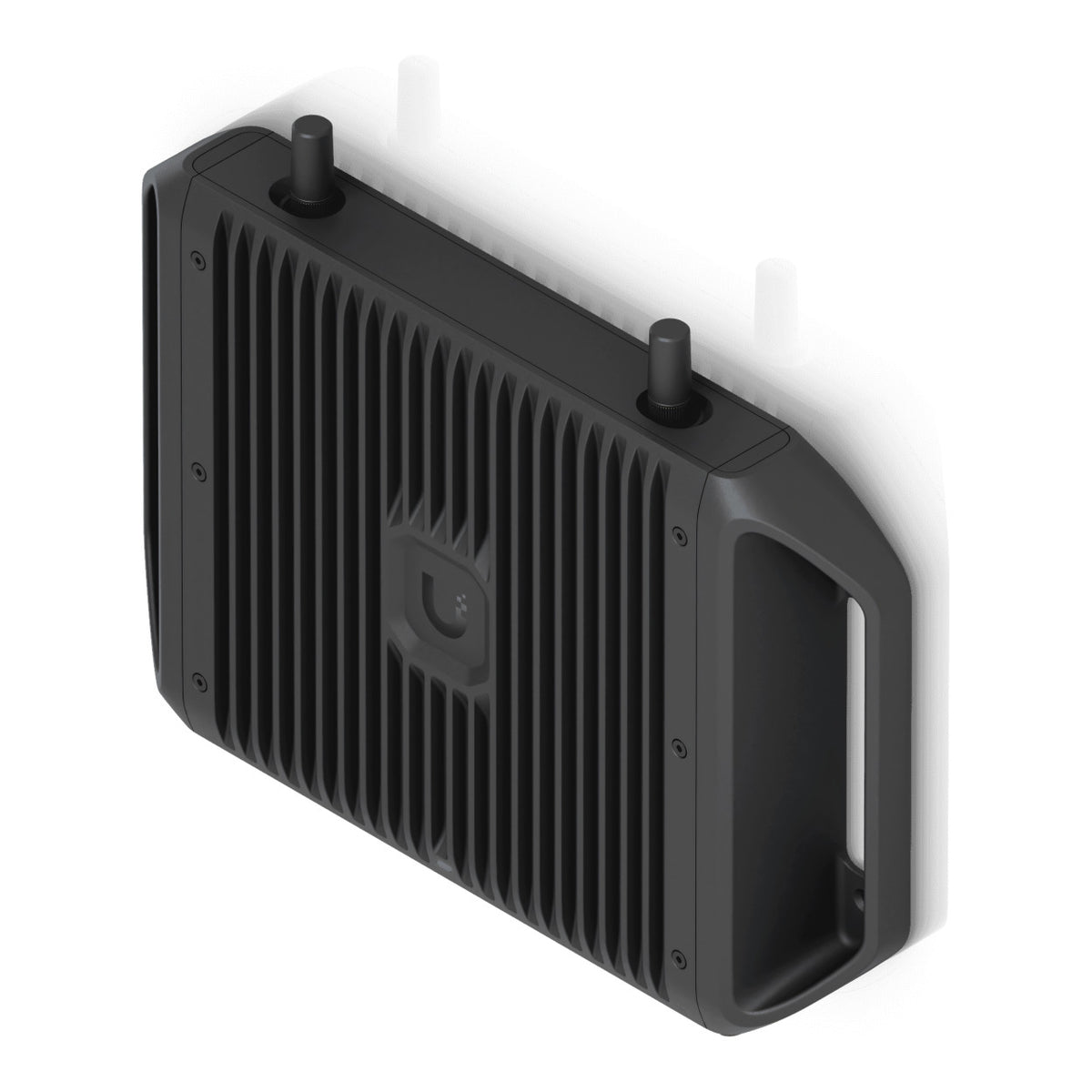

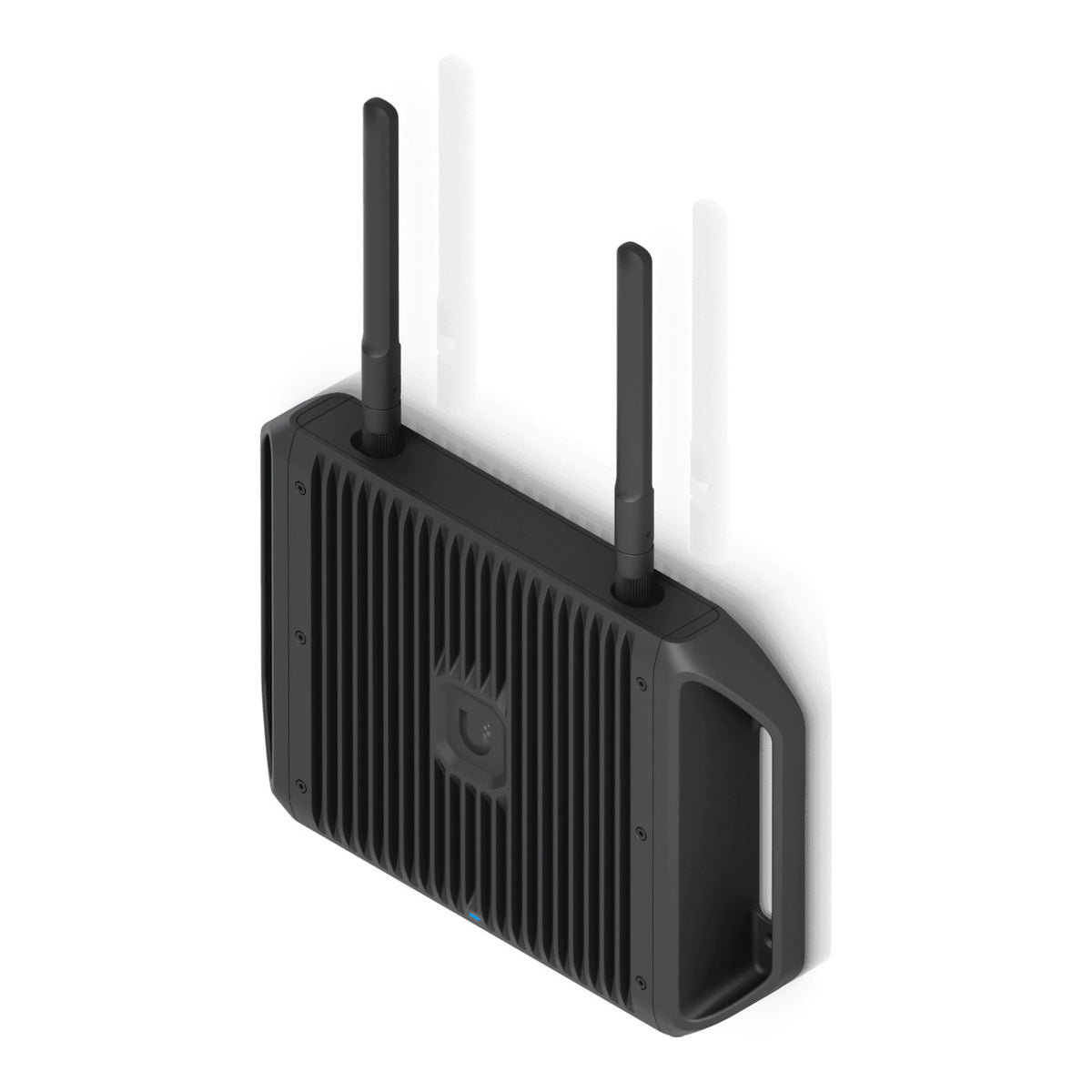

| Installation | Wall Mount, Compact Desktop with Included Table Stand, or Rack Mount with Optional Accessory |
| Dimensions | 307.9 x 203.5 x 43.7 mm |
| Device Weight | 2.4 kg |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | 5%–95% RH, Non-Condensing |
| ESD/EMP Protection | Air: ±8kV; Contact: ±4kV |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Deploy the Ubiquiti UCG-Industrial for a powerful all-in-one UniFi platform combining multi-gigabit routing, Wi-Fi 7, high-density PoE and full UniFi application support in a rugged fanless design.
