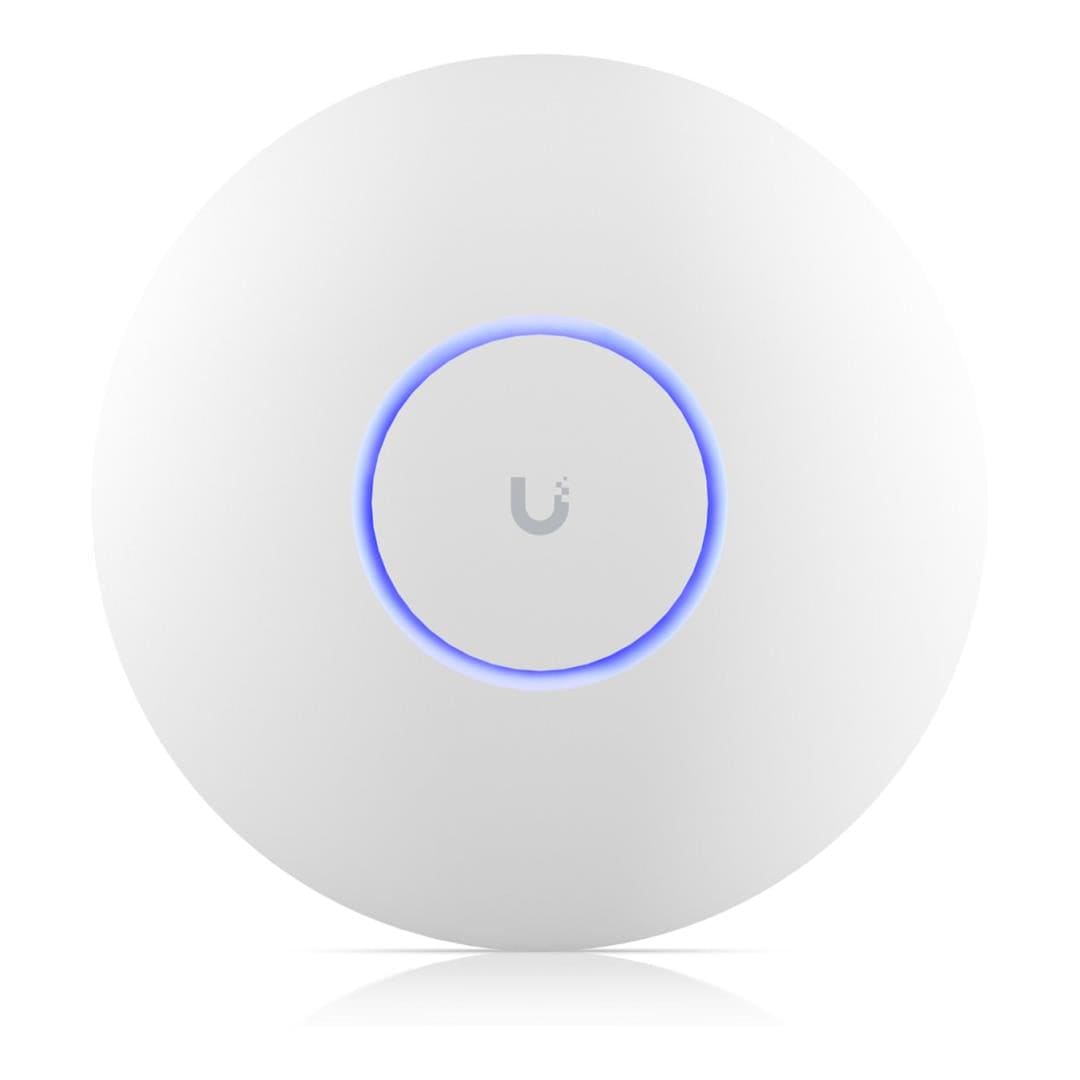

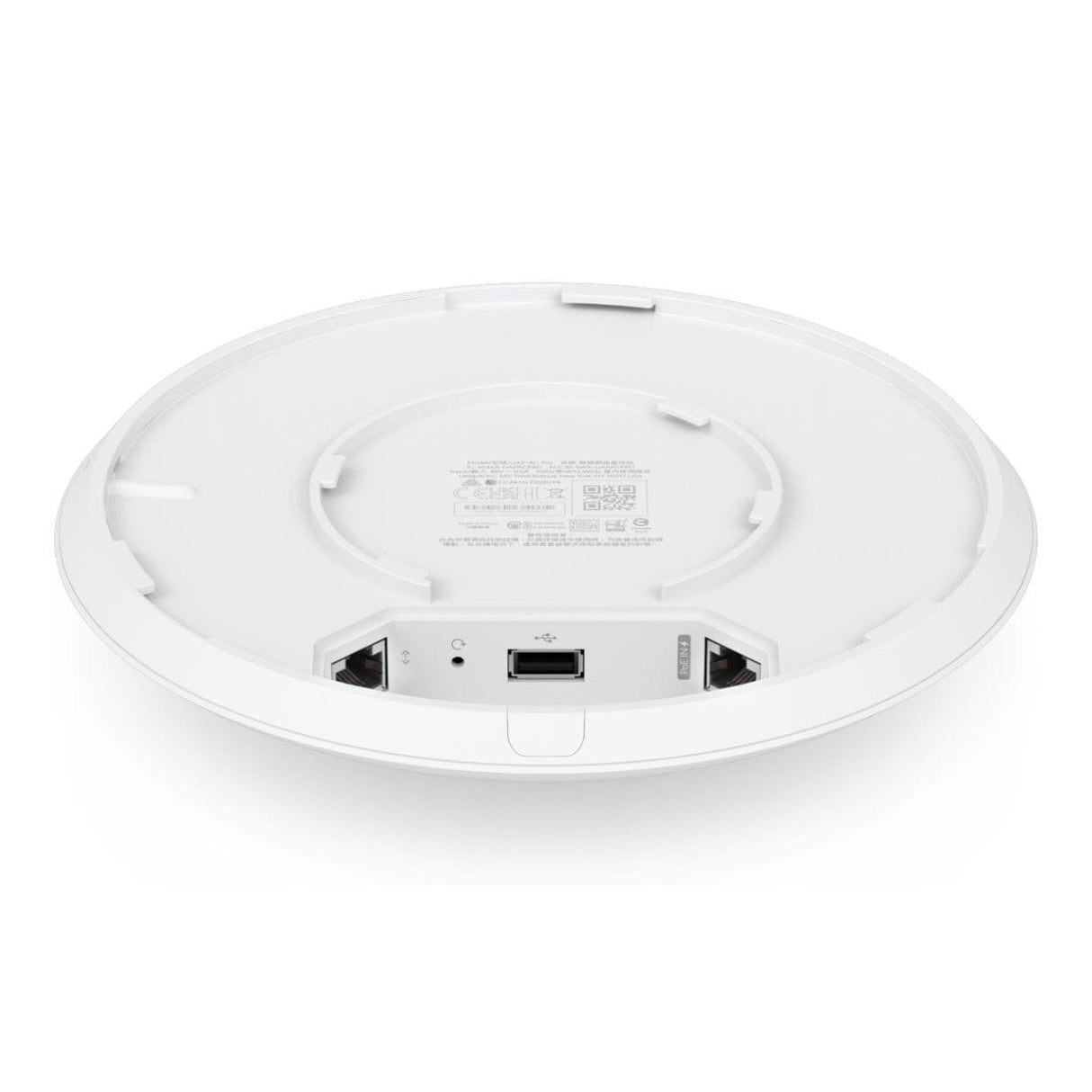

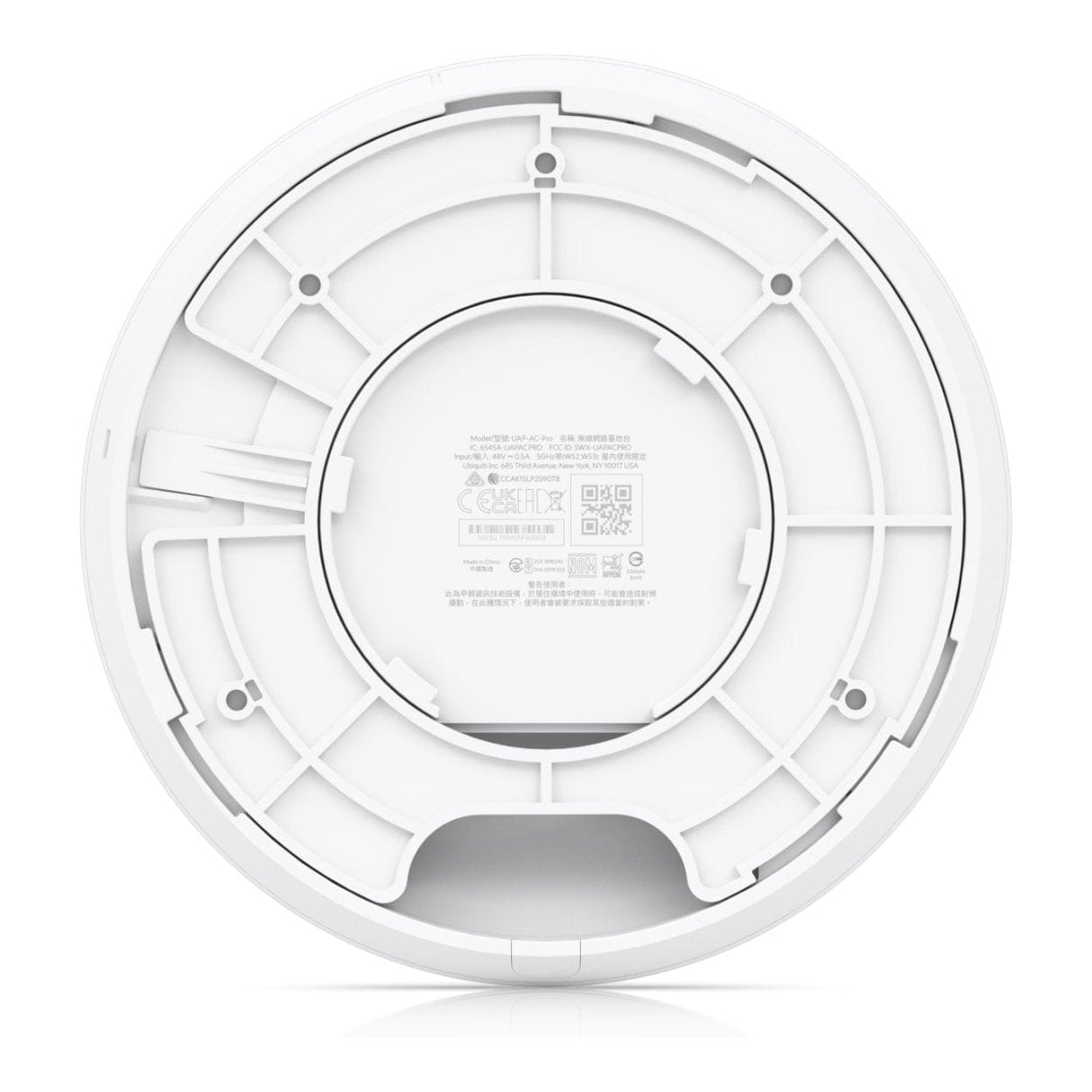

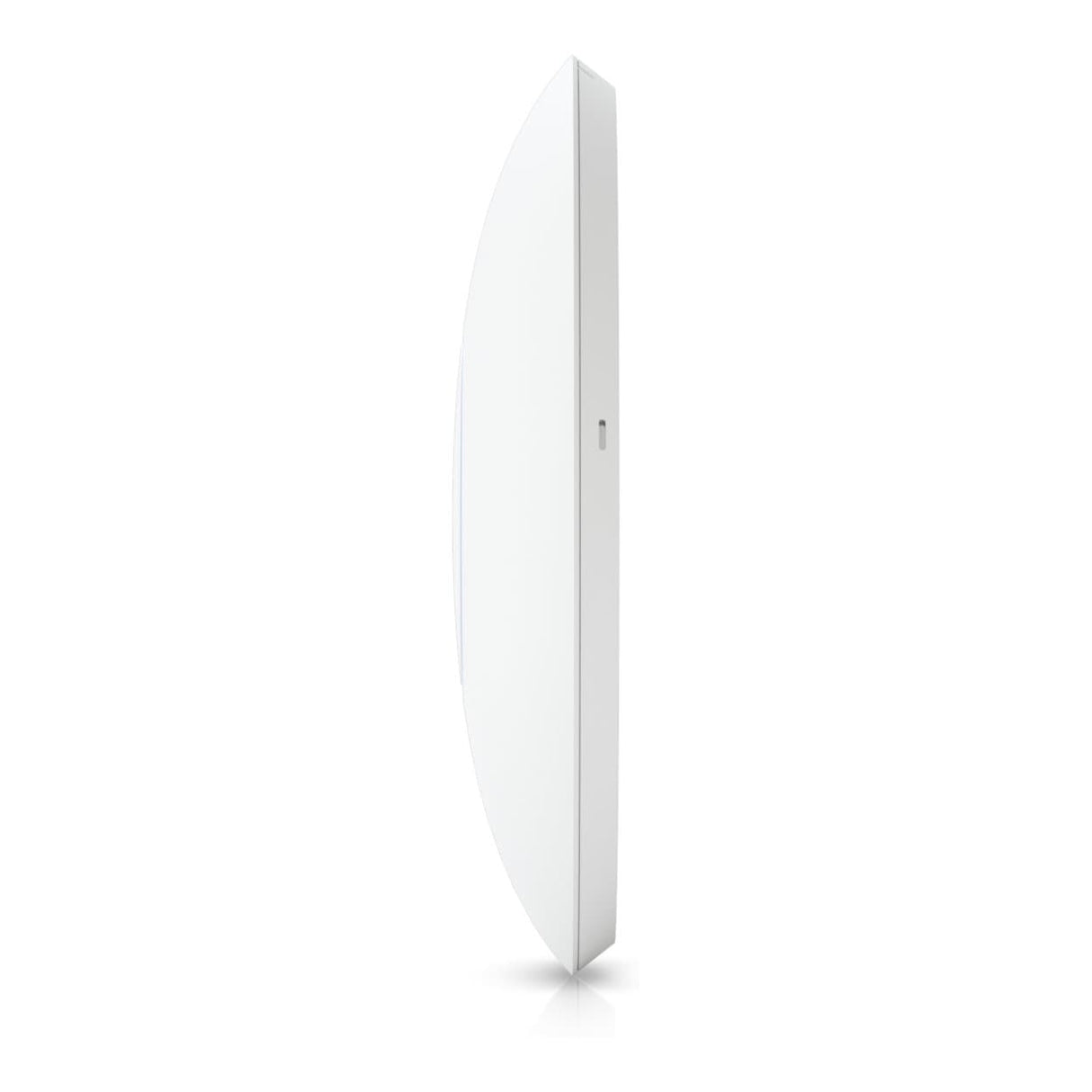

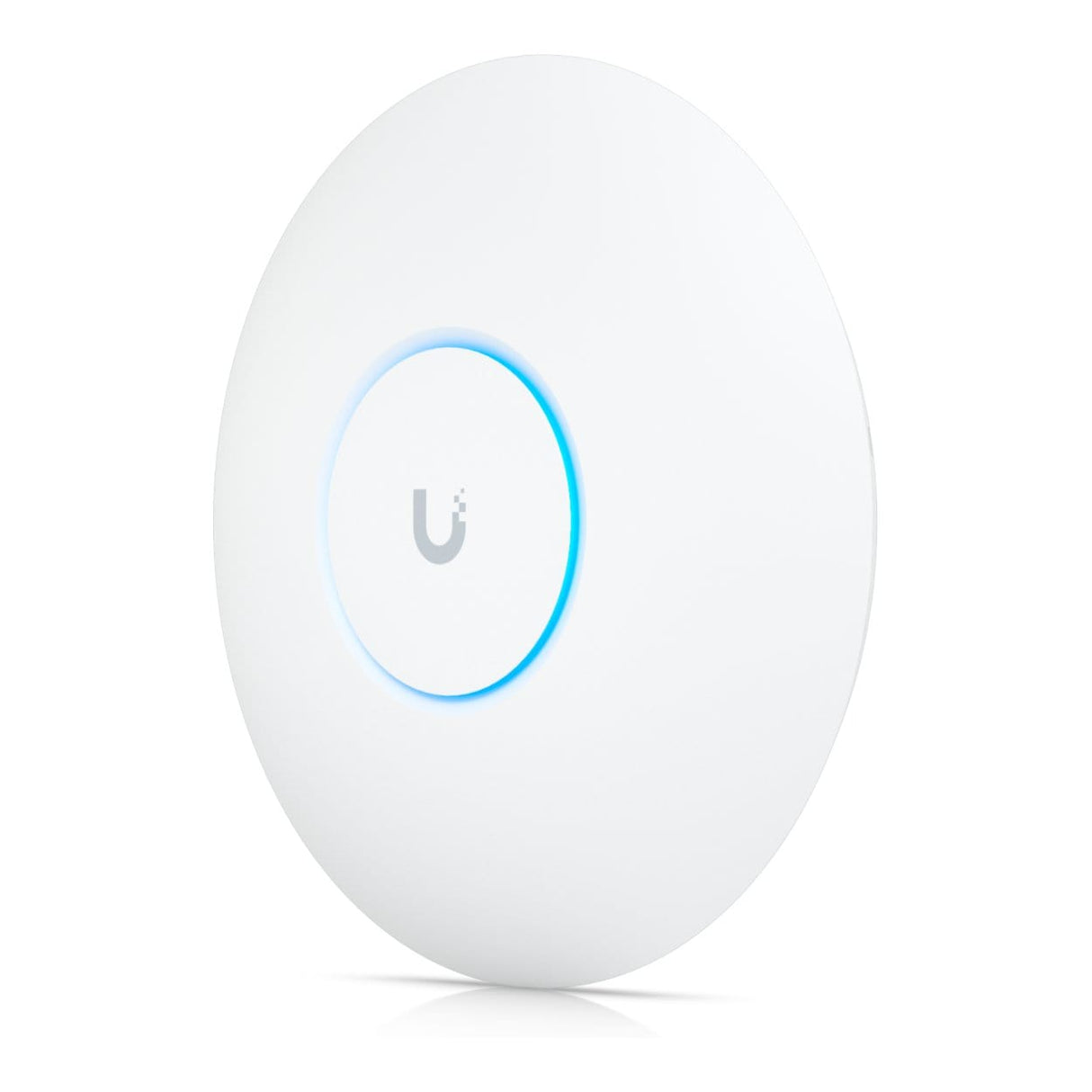

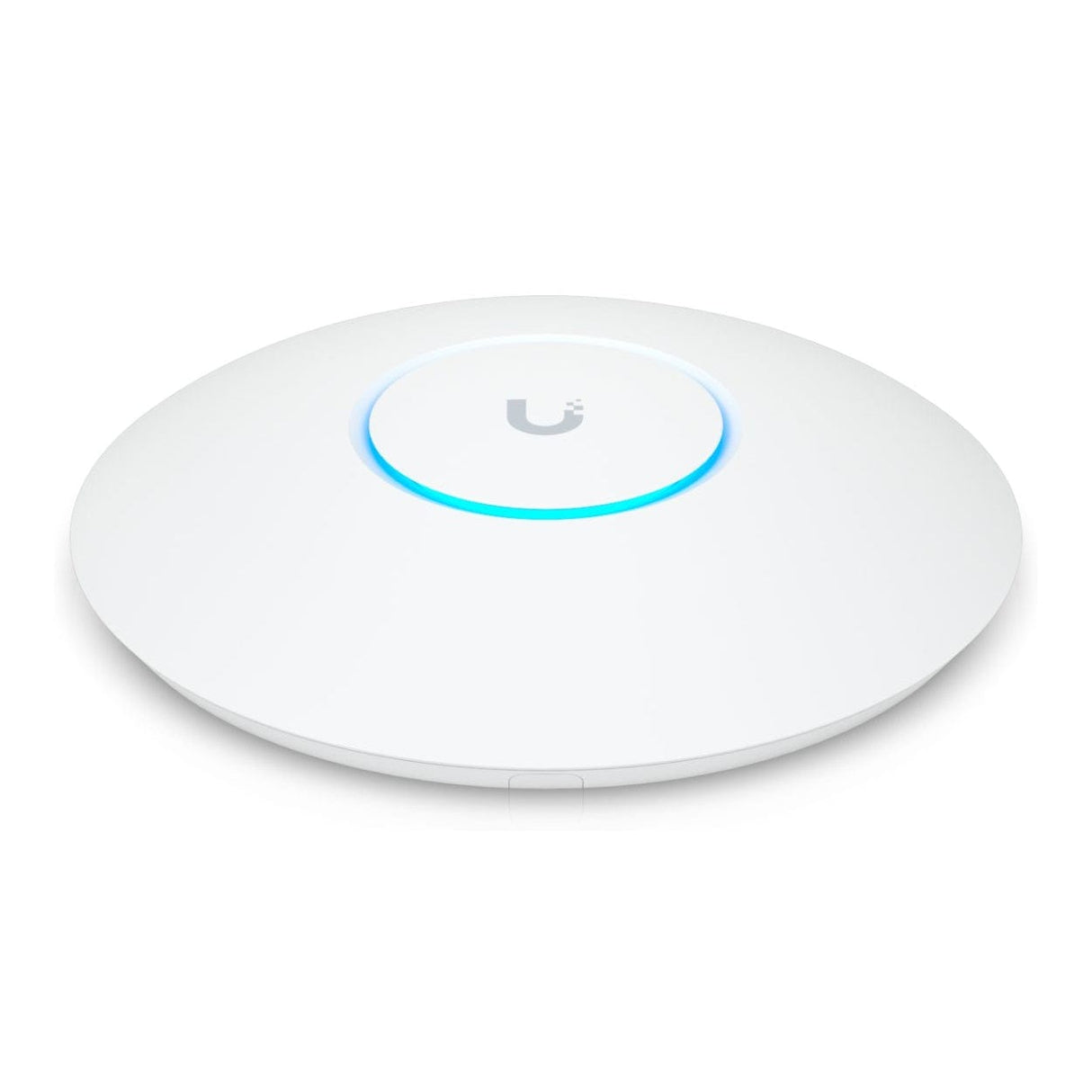

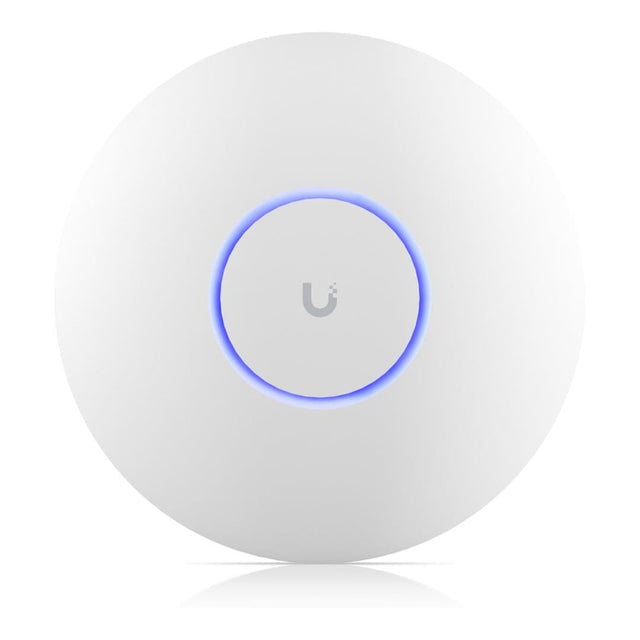

Ubiquiti AC Pro Wi-Fi 5 PoE Ceiling-mounted Access Point with Power Adapter UAP-AC-PRO-A

Ubiquiti AC Pro Wi-Fi 5 PoE Ceiling-mounted Access Point with Power Adapter UAP-AC-PRO-A

Ceiling-mounted WiFi 5 AP with 6 spatial streams designed for large offices.

Features

• WiFi 5
• 6 spatial streams
• 140 m² (1,500 ft²) coverage
• 250+ connected devices
• Powered using PoE*
• GbE uplink

Scalable Enterprise Wi-Fi Management

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual-Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save money and save time

Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Powerful Hardware

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller Software

Configure and manage your APs with the easy-to-learn user interface.

Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single unified management system.

Technical Specification

Networking interface: 2x GbE RJ45 ports

WiFi standards: 802.11 a/b/g/n/ac

Management interface: Ethernet

Power method

• PoE
• Passive PoE, 48V

Power supply

• UniFi PoE switch
• 48V, 0.5A PoE adapter with Power cord (Included)

Supported voltage range: 44—57V DC

Max. power consumption: 9W

Max. TX power

• 2.4 GHz: 22 dBm
• 5 GHz: 22 dBm

MIMO

• 2.4 GHz: 3 x 3 (DL MU-MIMO)
• 5 GHz: 3 x 3 (DL MU-MIMO)

Max. data rate

• 2.4 GHz: 450 Mbps (BW40)
• 5 GHz: 1.3 Gbps (BW80)

Antenna gain

• 2.4 GHz: 3 dBi
• 5 GHz: 3 dBi

Button: Factory reset

Mounting: Wall, ceiling (Included)

Concurrent clients: 250+
