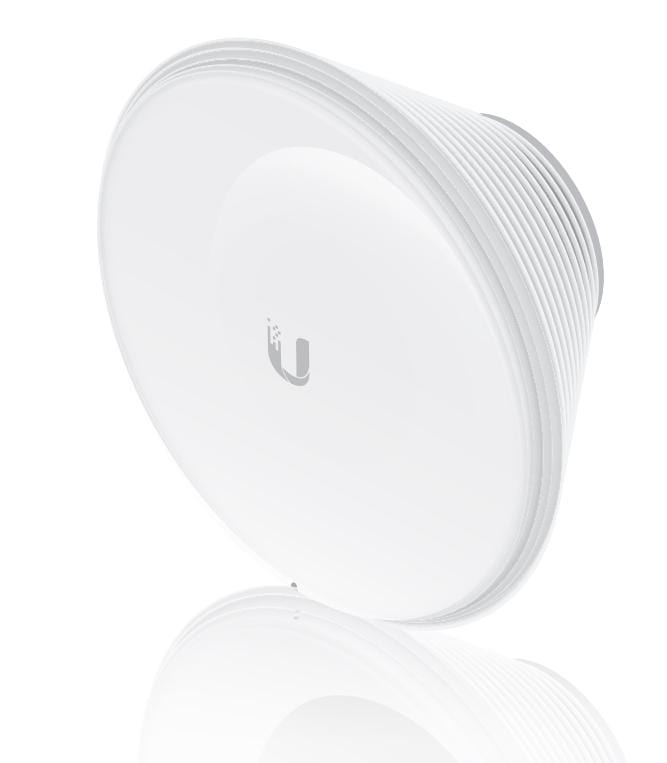

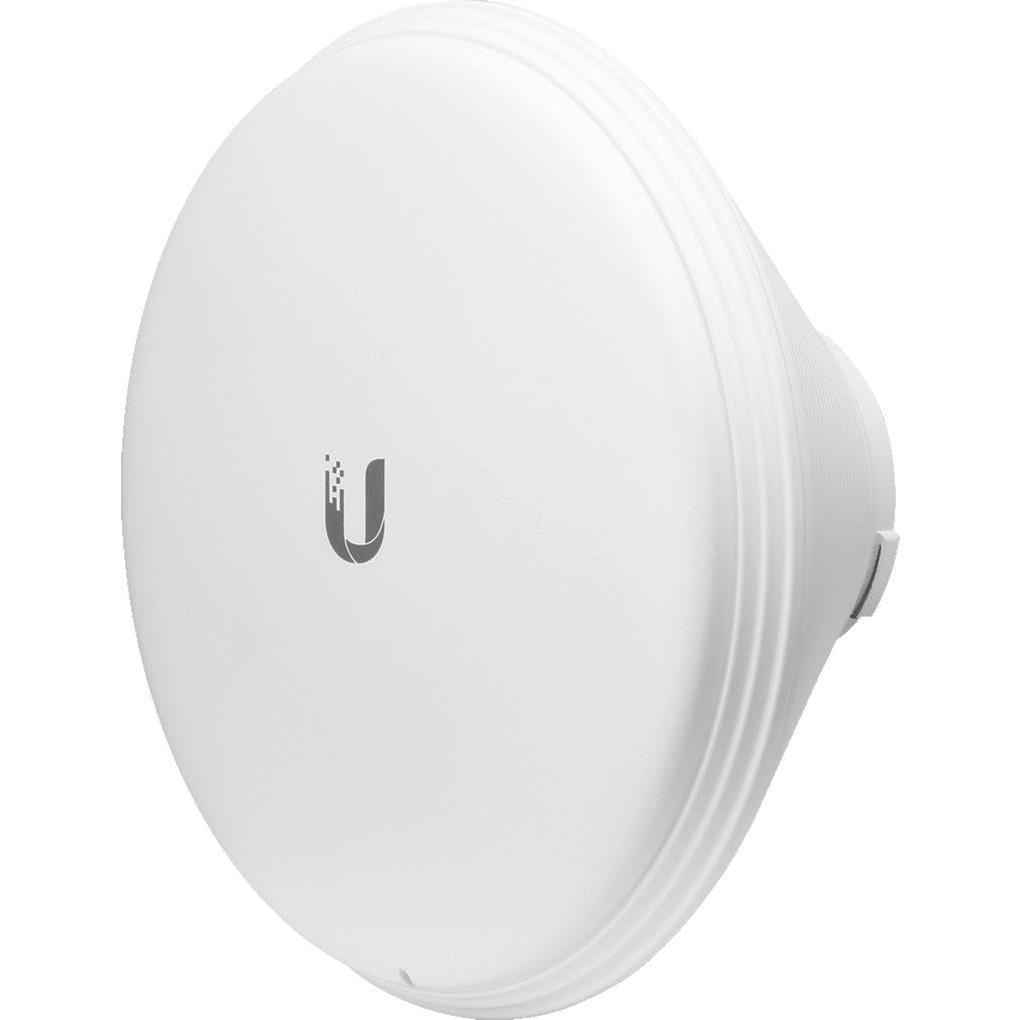

Ubiquiti 15.5 DBi Network Horn Antenna HORN-5-45

SKU: HORN-5-45

Price:
R 1,560

Includes VAT Shipping calculated at checkout

Stock:
Sold out

Description

Ubiquiti 15.5 DBi Network Horn Antenn

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Symmetrical horn antenna
30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Specifications:

  • Ubiquiti Networks HORN-5-45
  • Antenna gain level (max): 15.5 dBi
  • Frequency band: 5.15 - 5.85 GHz
  • Horizontal beam width: 45°
  • Antenna type: Horn antenna
  • Polarization: Dual polarization
  • Voltage Standing Wave Ratio (VSWR): 1.7:1
  • Height: 96 mm
  • Diameter: 17.5 cm
  • Weight: 1.34 kg
