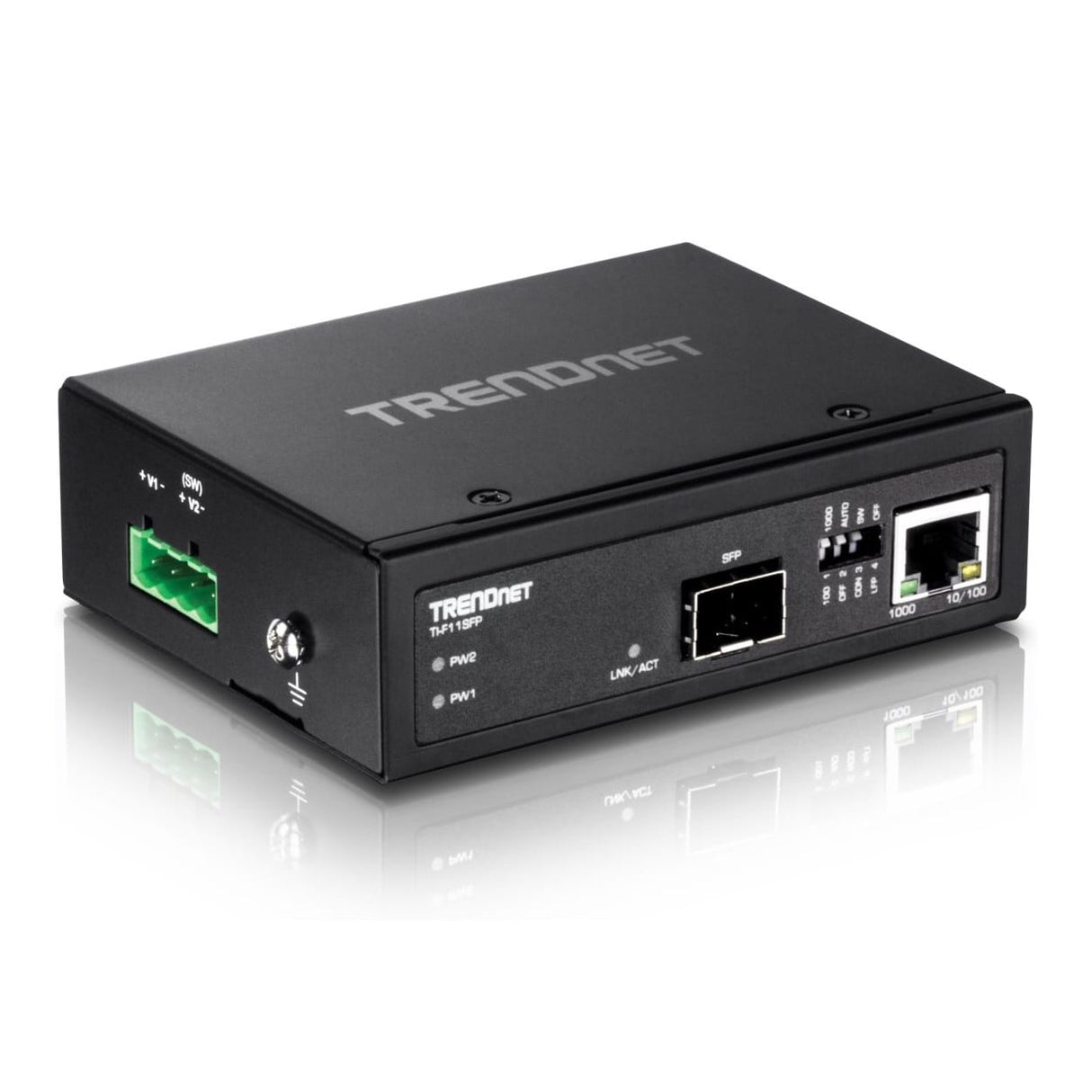

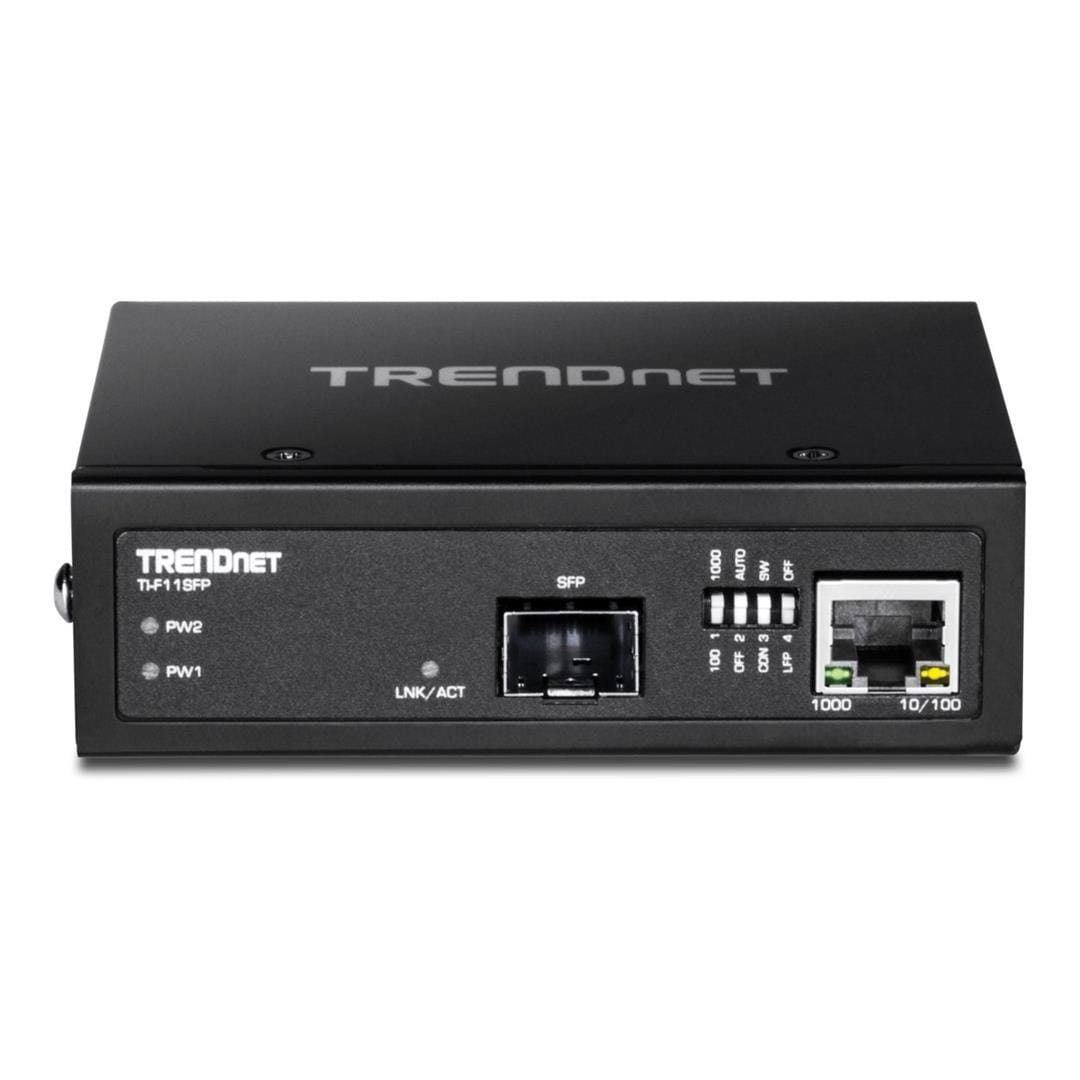

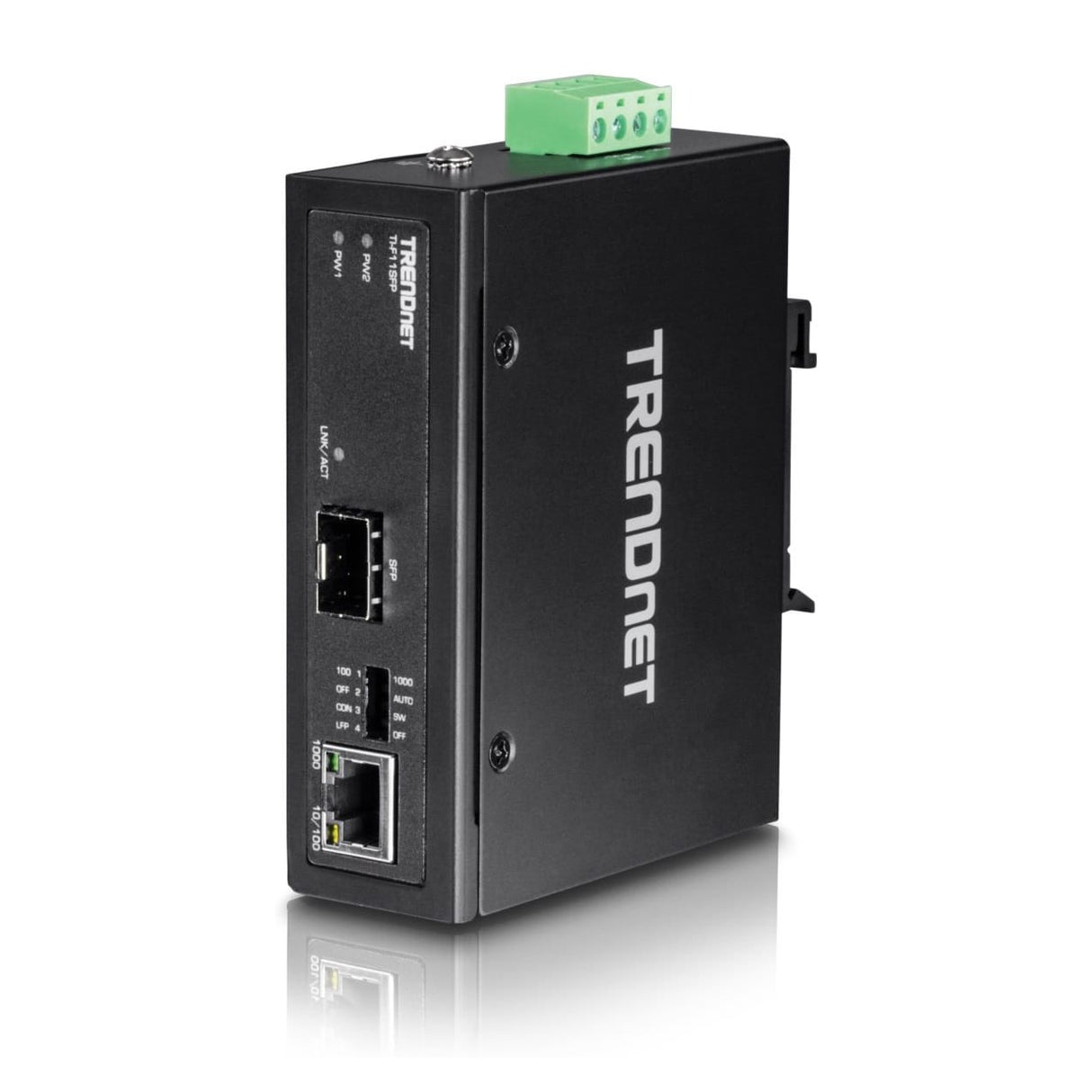

Trendnet TI-F11SFP Hardened Industrial 100/1000 Base-T to SFP Media Converter
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Trendnet TI-F11SFP Hardened Industrial 100/1000 Base-T to SFP Media Converter
Key Features
- Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter
- SFP port accommodates Multi or Single Mode fiber
- Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Powers supply sold separately (model TI-M6024)
TRENDnet's TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.
Network Ports
Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget
Dip Switches
- Dip Switch 1: 100 or 1,000 Mbps throughput speeds
- Dip Switch 2: Enable/disable port Auto-Negotiation
- Dip Switch 3: Converter or Switch mode
- Dip Switch 4: Enable/disable Link Fault PassThrough (LFP) support
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
2 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Specifications
| Specification | Details |
|---|---|
| Brand | TRENDnet |
| Model | TI-F11SFP |
| Version | v1.0R |
| Product Type | Hardened Industrial 100/1000 Base-T to SFP Media Converter |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Device Interface | 1 x Gigabit port, 1 x Gigabit SFP slot, 4-pin removable terminal block, LED indicators, DIP switch, DIN-rail mount, wall mount, grounding point |
| Data Transfer Rate | Ethernet: 10 Mbps half duplex / 20 Mbps full duplex; Fast Ethernet: 100 Mbps half duplex / 200 Mbps full duplex; Gigabit: 2000 Mbps full duplex |
| Performance | Data RAM buffer: 1024 KB; Jumbo frame: 9 KB |
| Special Features | Hardened components rated for extreme temperatures, dual redundant power inputs, auto-negotiation, auto store-and-forward architecture, automatic address learning and address ageing, ESD 8 KV and surge 6 KV protection |
| Power Input | 12 - 56 V DC or 18 - 36 V AC |
| Compatible Power Supply | TI-M6024, sold separately |
| Power Consumption | Max. 3 Watts |
| Terminal Block | Redundant power inputs, 4 pin; wire range: 0.34 mm2 to 2.5 mm2; solid wire: 12-24/14-22 AWG; stranded wire: 12-24/14-22 AWG; torque: 5 lb-in / 0.5 Nm / 0.56 Nm; wire strip length: 7-8 mm |
| DIP Switch | 1: Set SFP speed to 100 Mbps or 1000 Mbps; 2: Enable or disable auto-negotiation on SFP port; 3: Set to switch or pass-through mode; 4: Turns LFP (Link Fault Pass Through) on or off |
| MTBF | 510,304 hours |
| Housing | IP30 metal case with DIN-rail mount, wall mount, grounding point, 8 KV ESD protection, and 6 KV surge protection |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.) |
| Weight | 152 g (5.4 oz.) |
| Certifications | CE, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Warranty | 3 year limited |

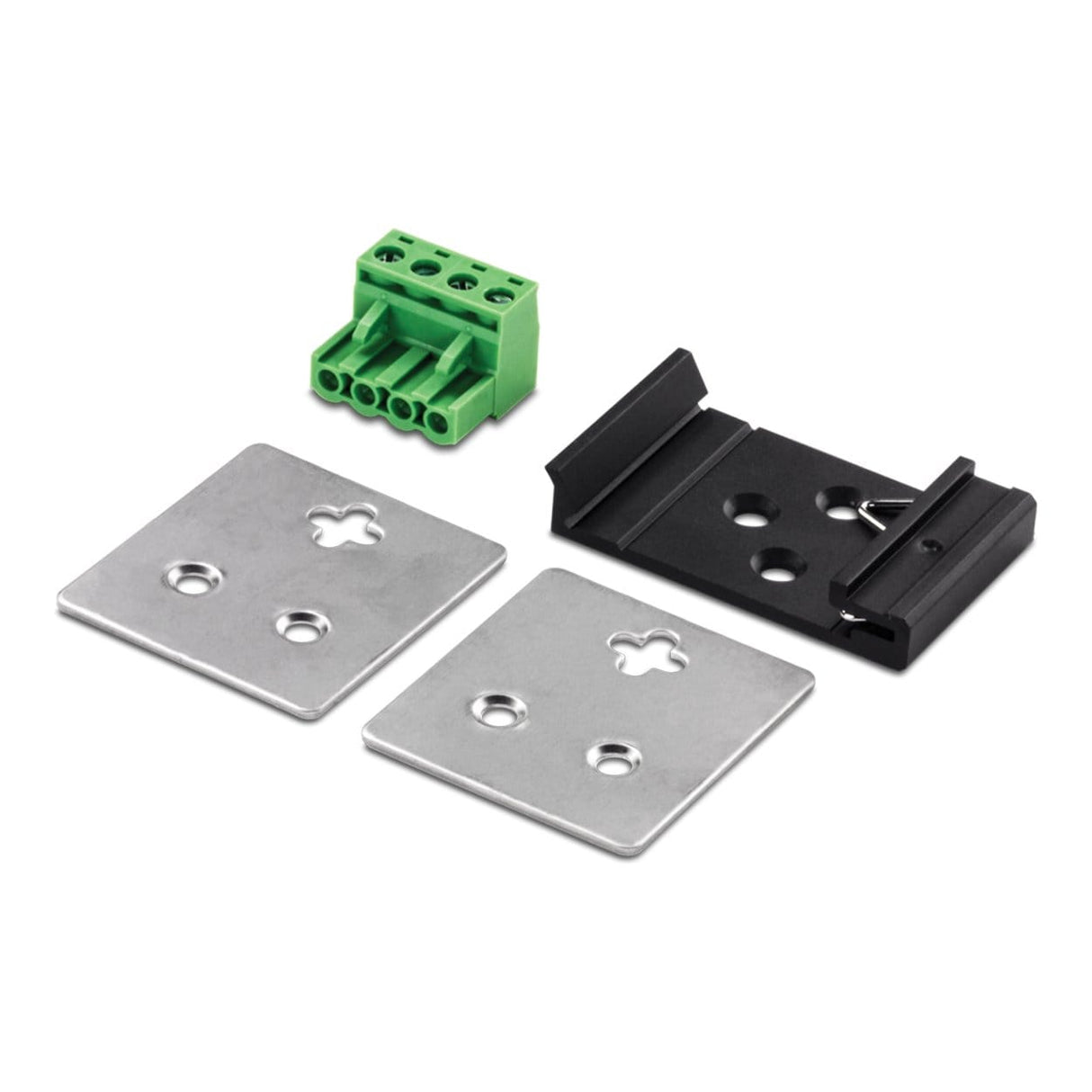

| Package Contents | TI-F11SFP, Quick Installation Guide, removable terminal block, DIN-rail / wall mount kit |
