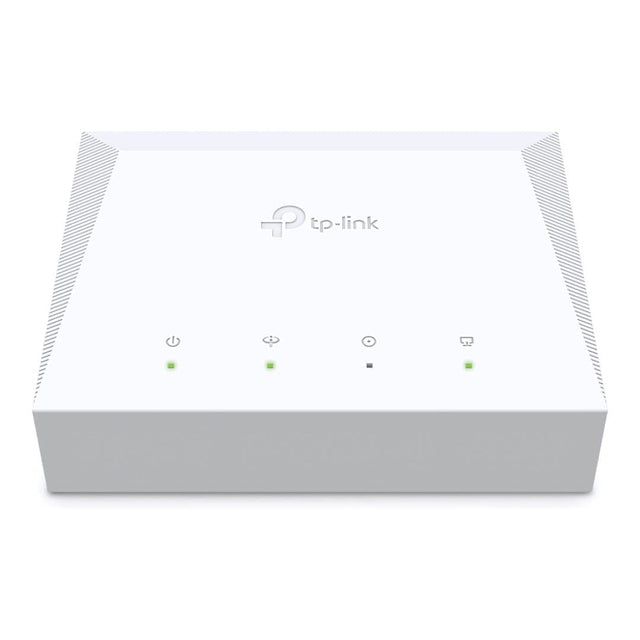

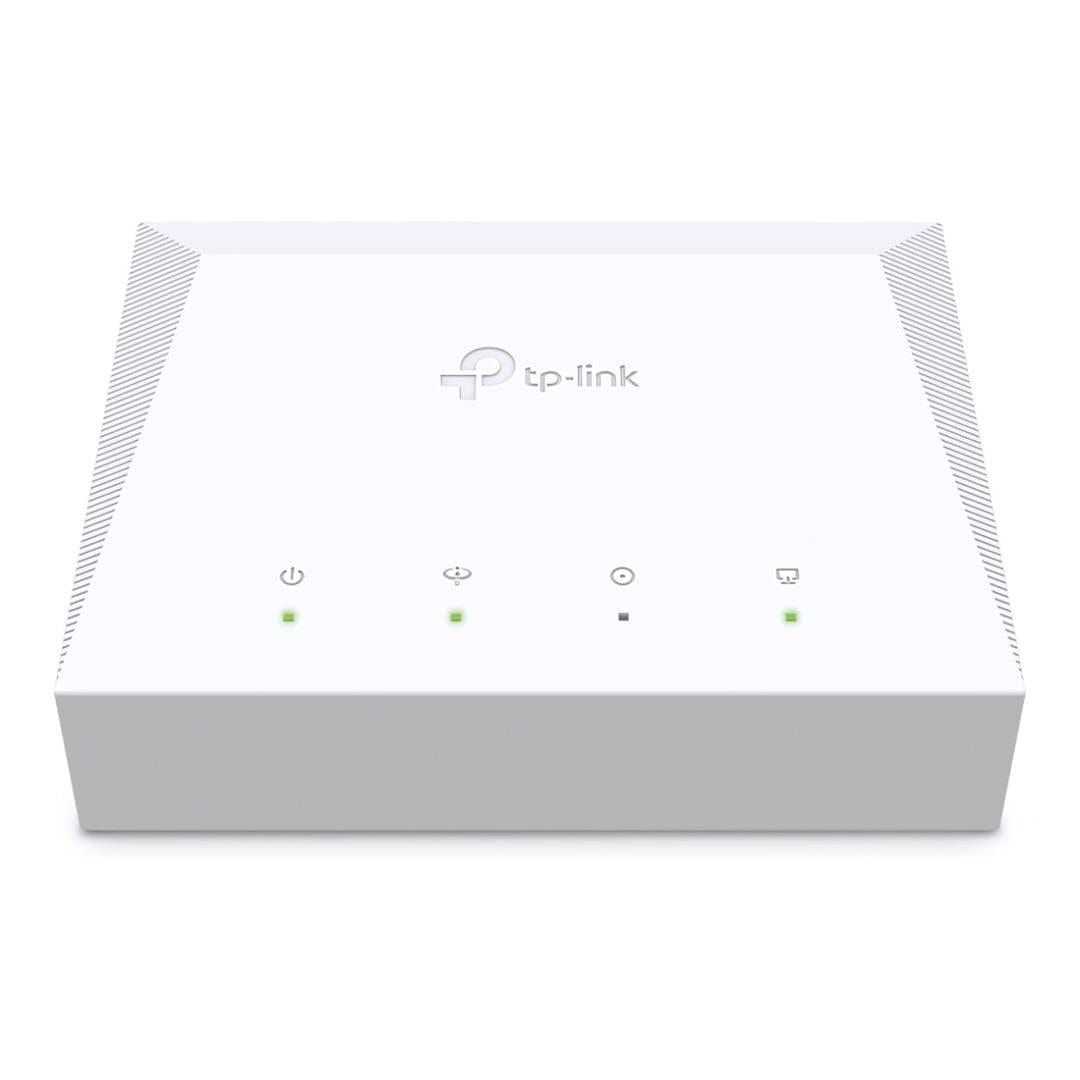

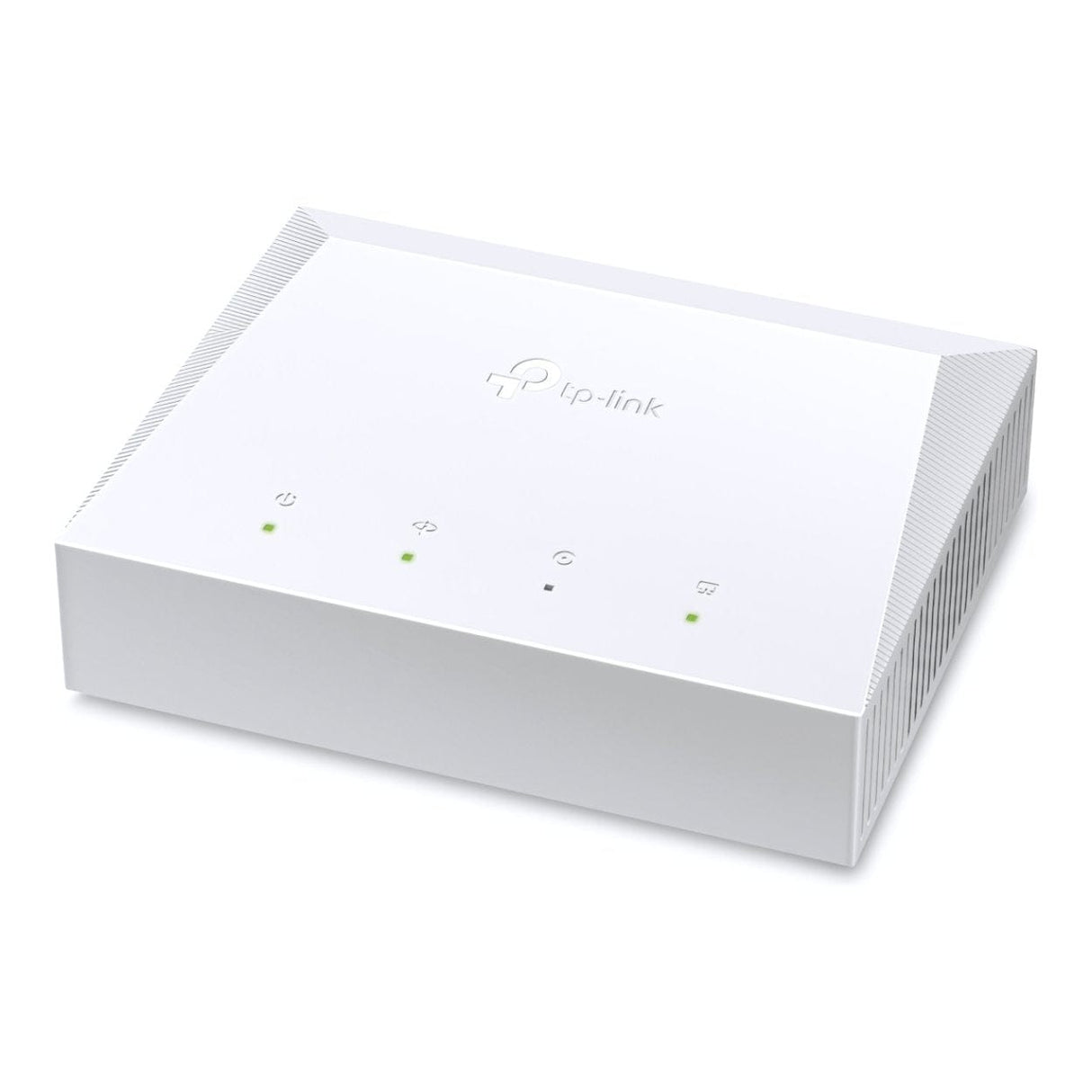

TP-Link XZ000-G6 1-port Gigabit XPON Terminal

TP-Link XZ000-G6 1-port Gigabit XPON Terminal

Empower Your Digital Life

1-Port Gigabit XPON Terminal

Features:

• Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds.*
• XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
• Ease of Use: Quick and hassle-free installation with easy setup.
• Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

Gig+ Fiber Access
Crafted with GPON + EPON dual-mode capability, XZ000-G6 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility with automatic detection and switch.

Gigabit Wired Connectivity
XZ000-G6 features a gigabit Ethernet LAN port that utilizes XPON technology, delivering transmission speeds of up to 1 Gbps for high-speed internet access and a flawless streaming experience—ideal for FTTH (Fiber to the Home) applications.

Centralized Remote Management
Service providers can remotely configure and manage devices using the OMCI (ONU Management Control Interface) protocol, streamlining operations and delivering a smoother service experience for home users.

Backed by a Comprehensive FTTH
(Fiber-to-the-Home) Solution
Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

Technical Specifications:

Hardware Features
External Power Supply: 9 V DC / 0.6 A

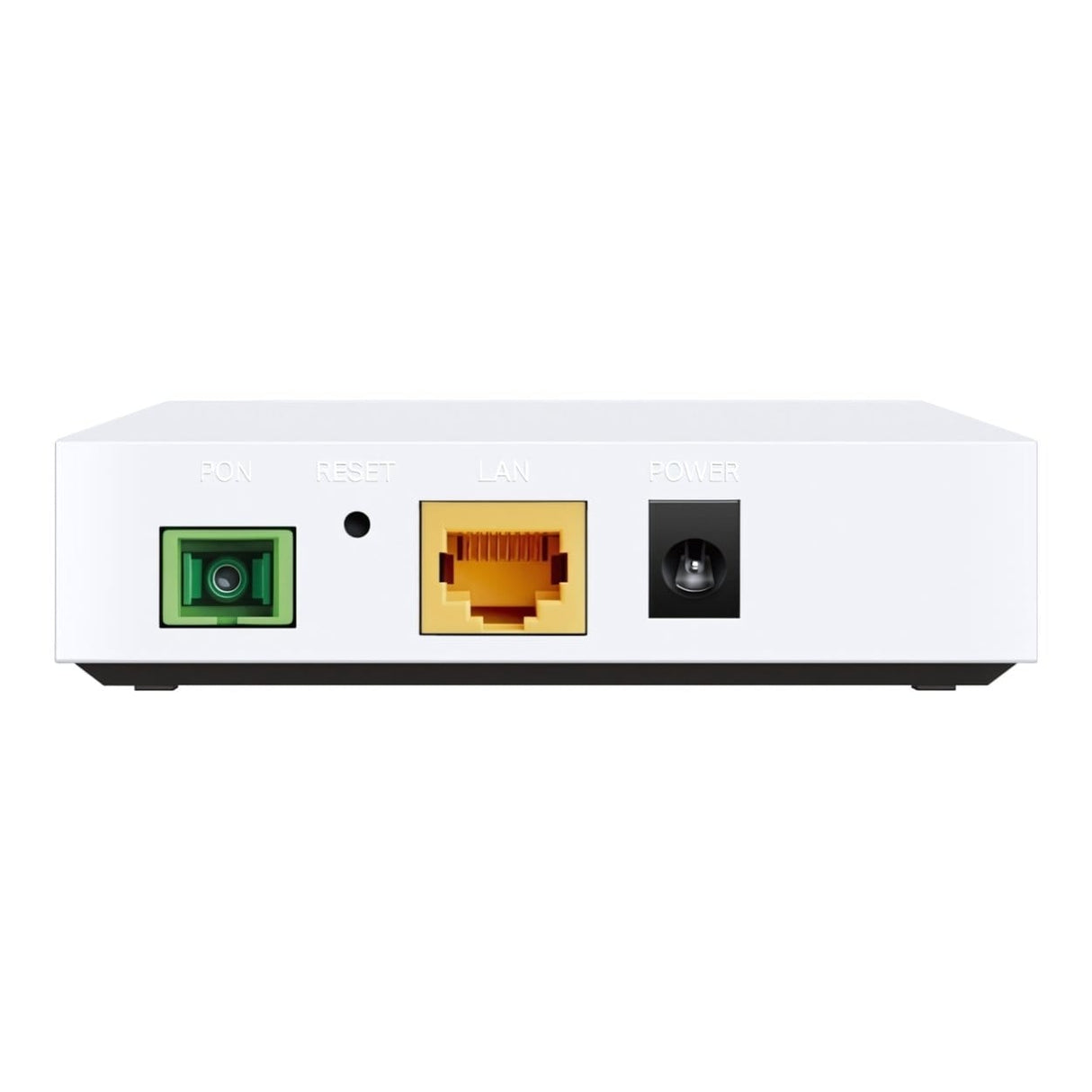

Interface: 1× PON Port
1× GbE LAN Port
Button: Reset Button
Dimensions (W x D x H): 3.7 × 3.0 × 1.2 in (95.0 × 75.0 × 29.3 mm)
IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data Rates: Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*
Optical Module: Class B+
Transmitter: DFB Laser
Receiver: Super-TIA
Distance: 0–20 km Max
GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Wavelength: Upstream: 1310 nm
Downstream: 1490 nm

Software Features
Management Features: Local management: WebGUI, Telnet
Remote management: OMCI
Security: AES Encryption, Packet Filtering Based on VLAN
Advanced Features: Upstream and Downstream FEC
Dynamic Bandwidth Allocation (DBA) support NSR/SR
Up to 16 T-CONTs and 256 GEM Ports
Optical power detection
Dying Gasp
Terminal silent mechanism
VLAN: 802.1Q tag VLAN, VLAN transparent mode / VLAN translation mode / VLAN trunk mode, authentication based on SN and password, VLAN auto-detect
IGMP: IGMP v1 / v2 / v3

Others
Environment: Operating Temperature: 0 ℃–40 ℃ (32 ℉–104 ℉)
Storage Temperature: -40 ℃–60 ℃ (-40 ℉–140 ℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Certifications: CE, RoHS

What’s in the Box:

• XPON Terminal XZ000-G6
• Power Adapter
• Quick Installation Guide
