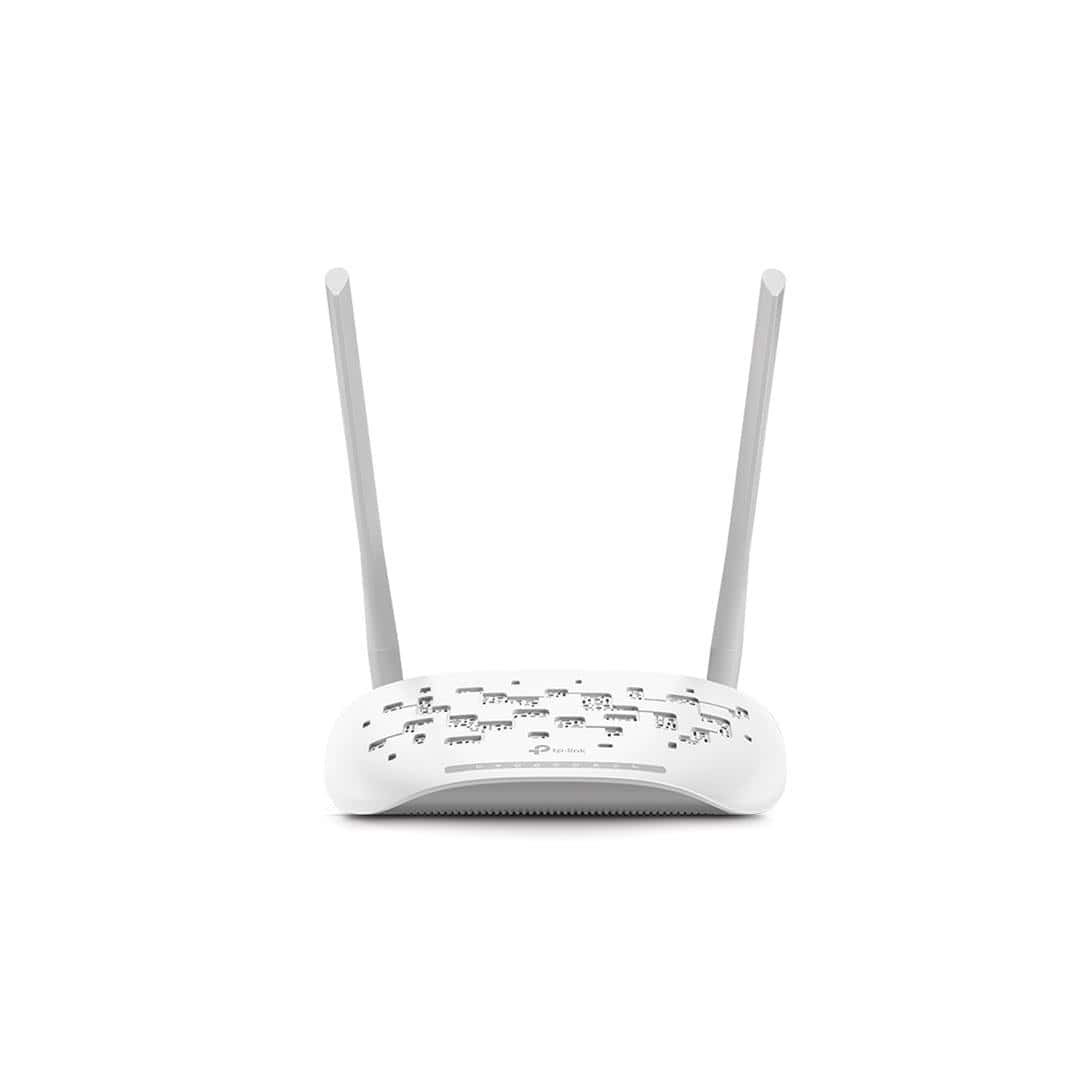

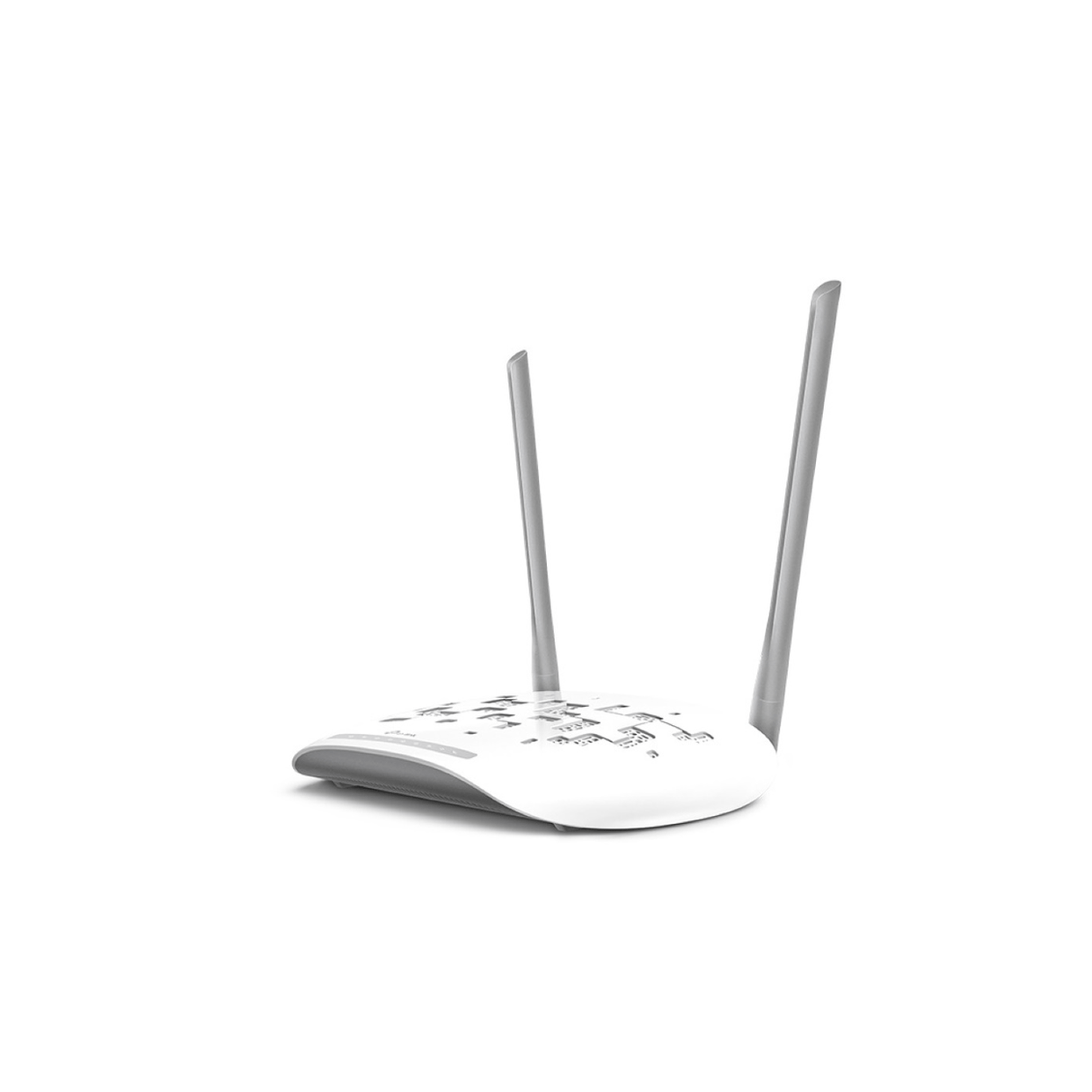

TP-Link XN020-G3v 300Mbps Wireless N Gigabit VoIP GPON Router

TP-Link XN020-G3v 300Mbps Wireless N Gigabit VoIP GPON Router

Features

• A GPON modem with wireless AP and 2-port Switch
• Compliant with the ITU-T G.984/G.988 GPON standards, XN020-G3 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.
• TR-069 protocol enables an operator to remotely configure and manage end-user devices.

Bring Home Fiber-to-the-Home

TP-Link’s N300 Wireless GPON router is a Gigabit Passive Optical Network (GPON) terminal, the ideal Fiber-to-the-Home (FTTH) solution. Enjoy a high-speed internet connection via the GPON port or wireless speeds of 300Mbps. XN020-G3V is the perfect terminal and future-oriented service, with full capabilities for FTTH deployment.

High-Speed GPON Service

Compliant with the ITU-T G.984 GPON standards, XN020-G3v supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1,000Mbps LAN port and a 10/100Mbps LAN port, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.

All-in-One Device

With a GPON modem, 300Mbps wireless AP and 2-port Switch, 1-port FXS, the XN020-G3v is everything your home or office needs to be fully connected.

VoIP Calls

Equipped with a GPON modem, 300Mbps wireless AP and 2-port Switch, and 1-port FXS to cully connect your home or office.

Easy Remote Management

TR-069 protocol enables an operator to remotely configure and manage end-user devices.

Technical Specification

Product: TP-Link XN020-G3v 300Mbps Wireless N Gigabit VoIP GPON Router

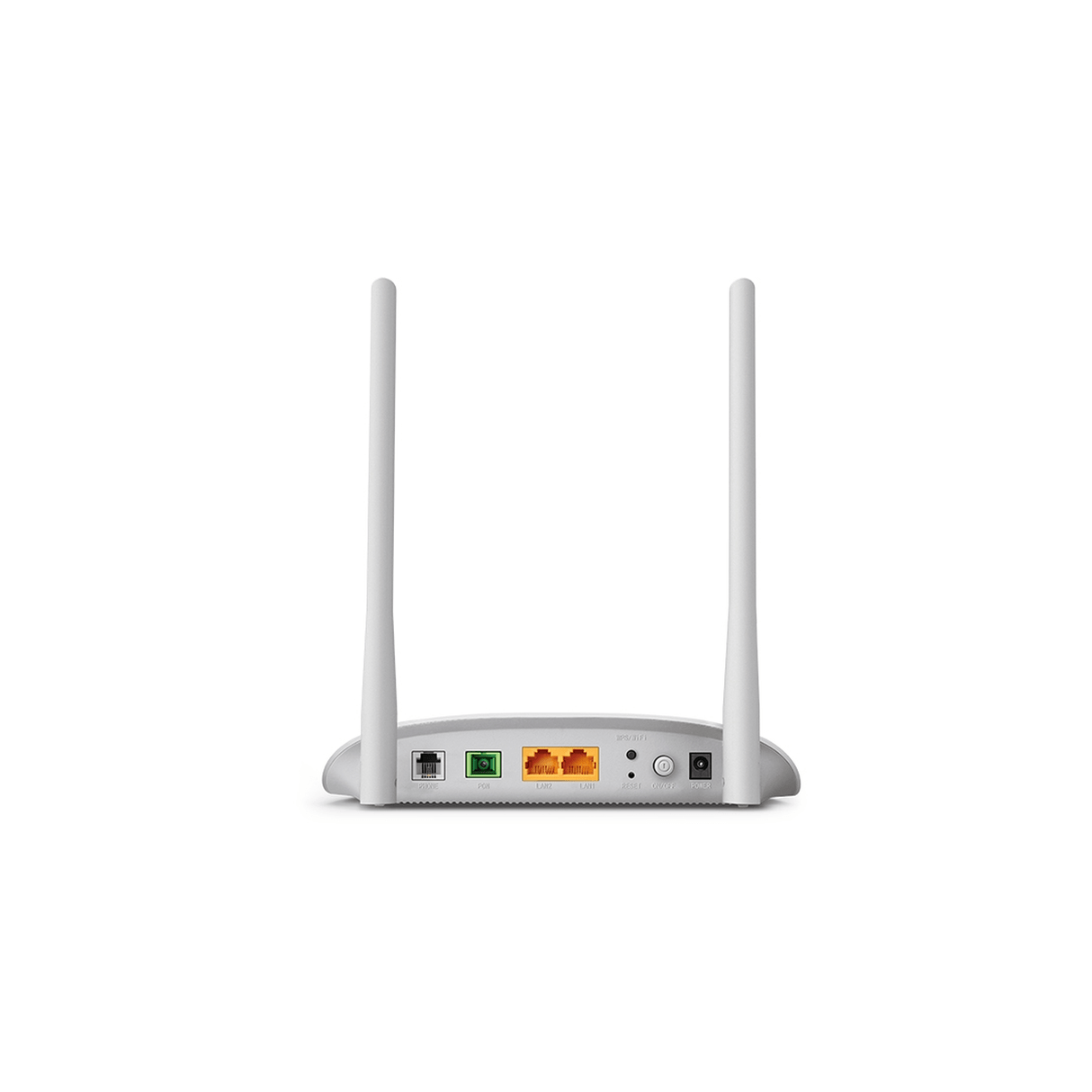

Interface

• 1x SC/APC port
• 1x 10/100/1000Mbps LAN Port
• 1x 10/100Mbps LAN Port
• 1x FXS Port

Wireless Standards: IEEE 802.11g, 802.11b,802.11n

IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab

Frequency: 2.4GHz

Signal Rate: 300Mbps at 2.4GHz

Antenna Gain: 2X2, 2.4G 5dBi

GPON Standards: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4

Optical Module: Class C+

Optical Wavelength: Transmit at 1310nm Receive at 1490nm

Bandwidth: Downstream up to 2.488Gbps Upstream up to 1.244Gbps Max

Receiver: APD-TIA

Transmitter: DFB Laser

Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics

Package Contents

• 300Mbps Wireless N Gigabit VoIP GPON Router XN020-G3v
• RJ11 Phone Cable
• RJ45 Ethernet Cable
• Quick Installation Guide
• Power Adapter
