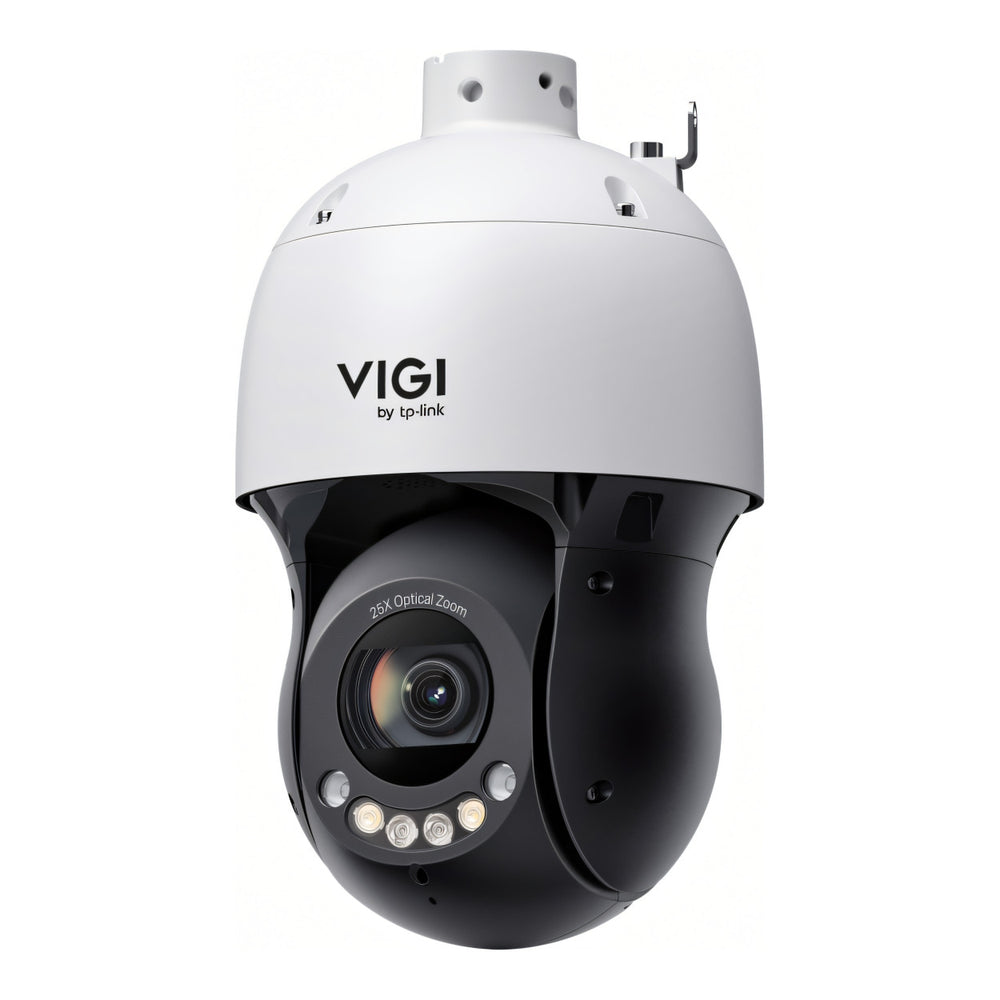

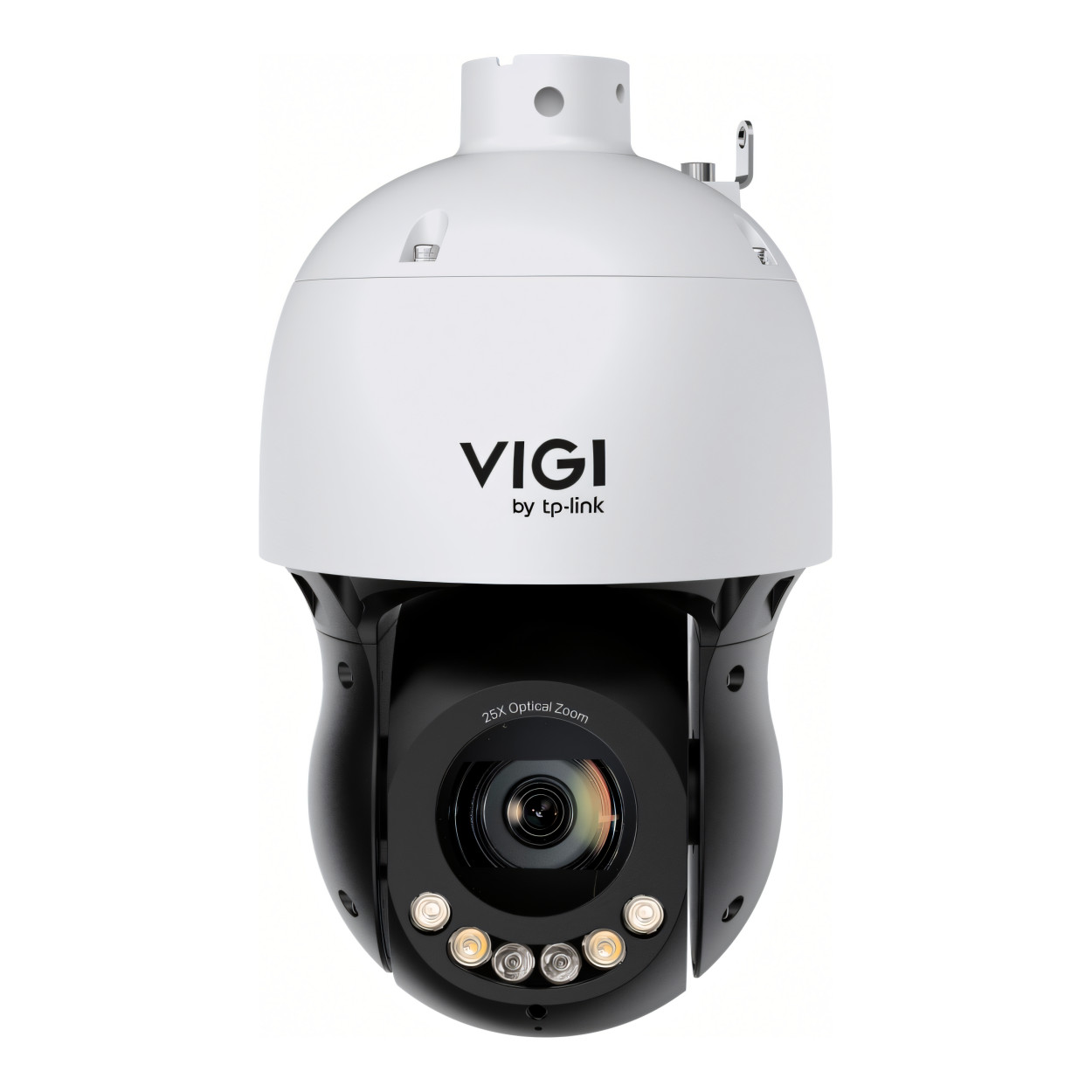

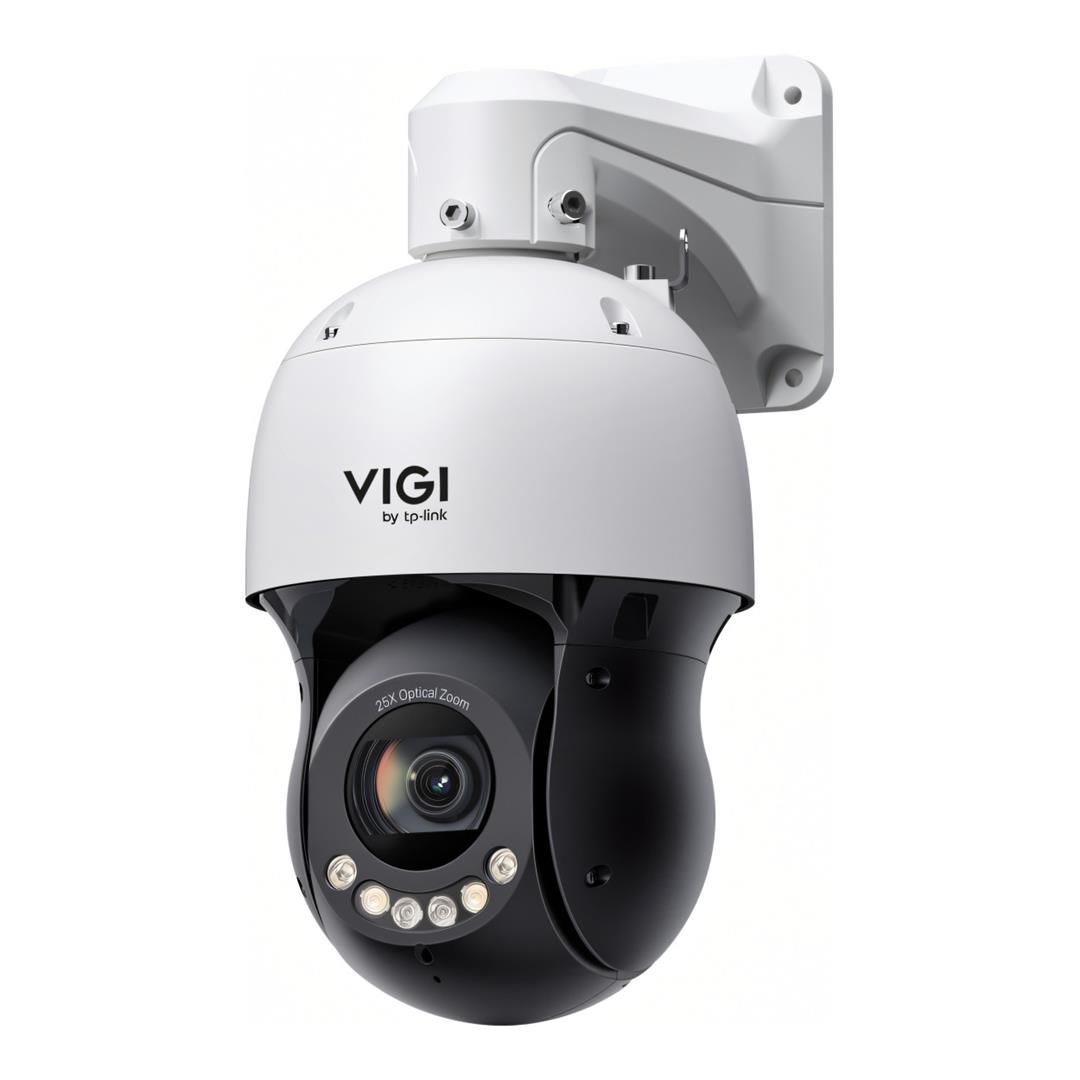

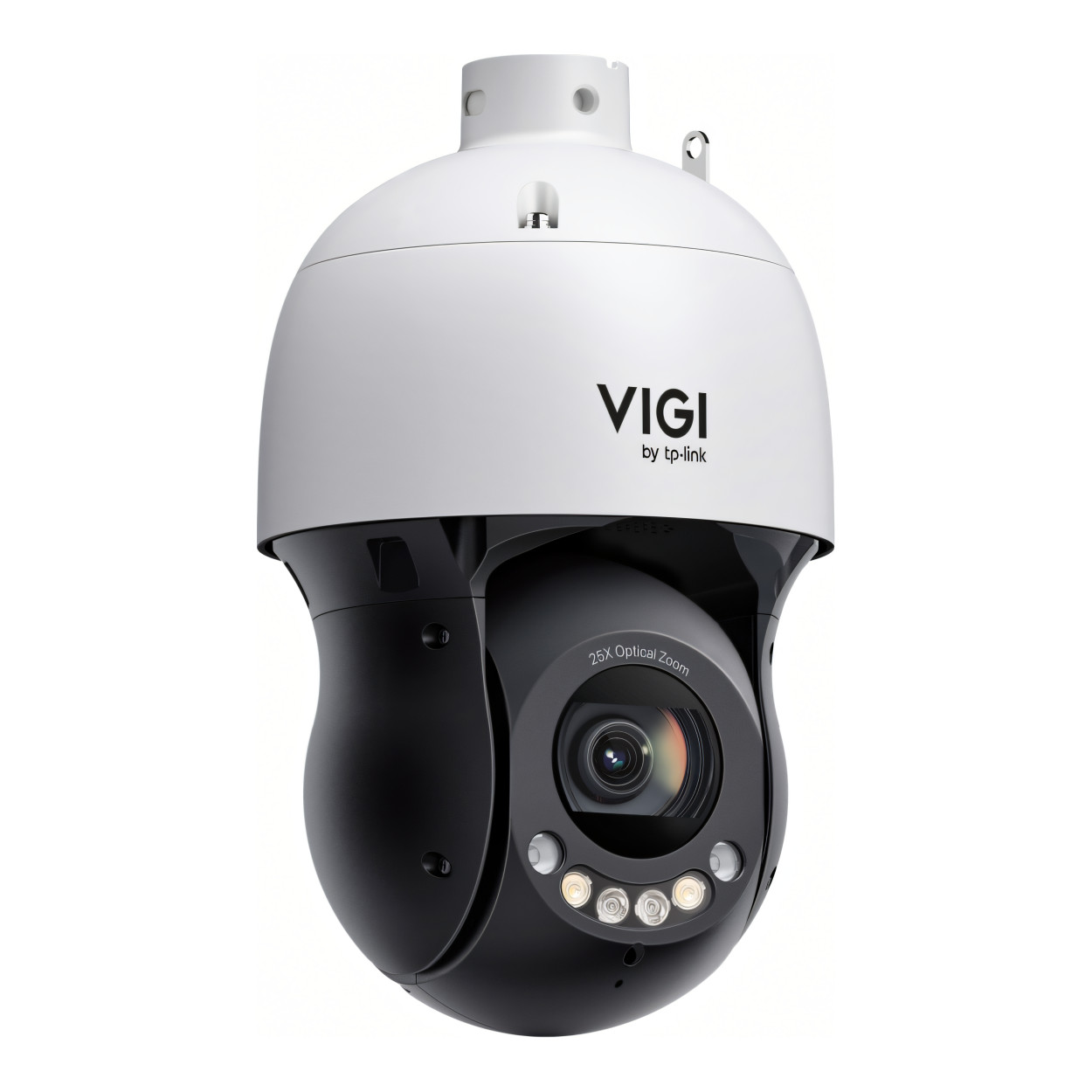

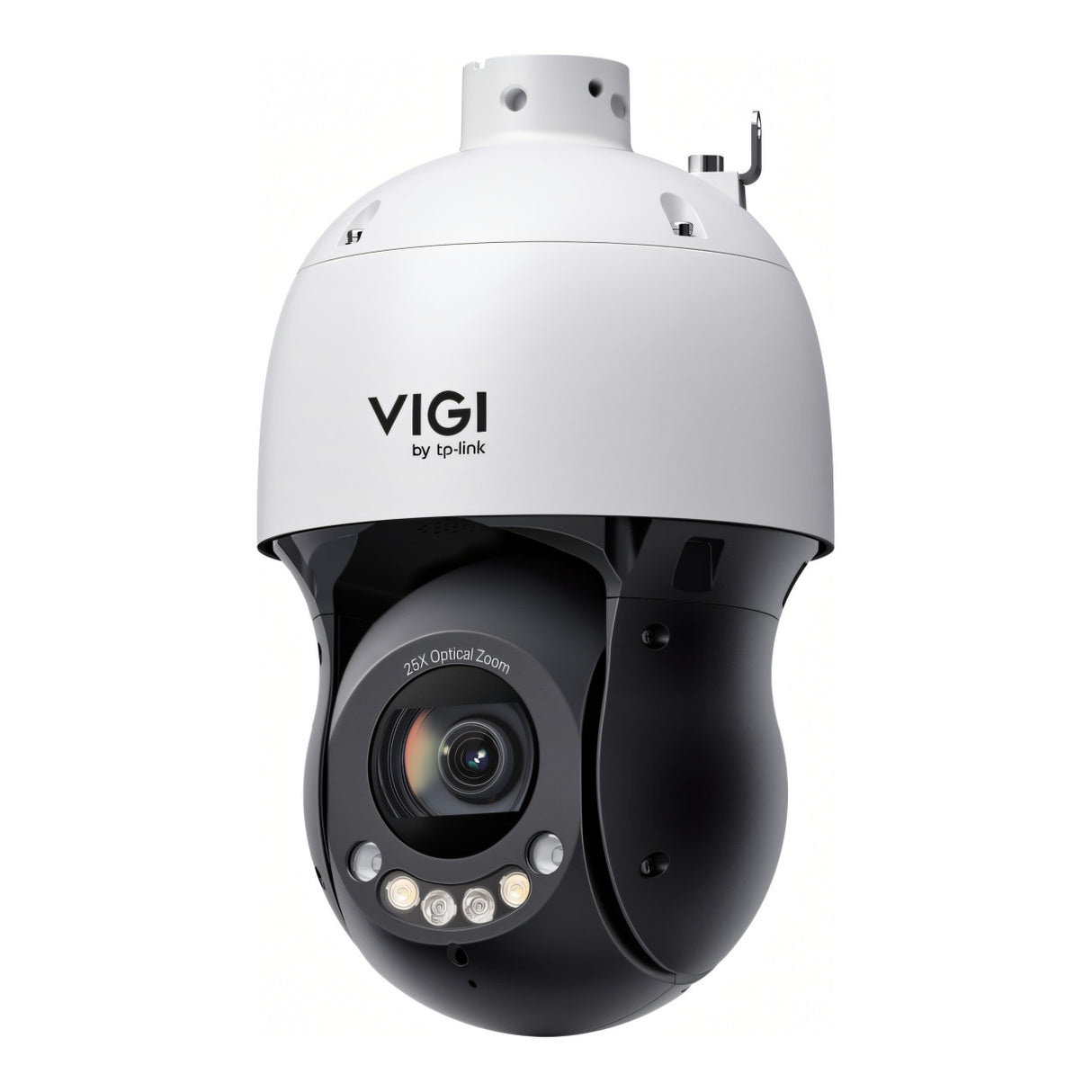

TP-Link VIGI 5-inch 4MP 5.2-130mm 25X Full-Color Network Speed Dome Camera InSight PTZ5425

TP-Link VIGI 5-inch 4MP 5.2-130mm 25X Full-Color Network Speed Dome Camera InSight PTZ5425

The VIGI InSight PTZ5425 is a professional 5-inch 4MP Full-Color Network Speed Dome Camera designed for large-scale outdoor surveillance where wide-area coverage and long-distance detail are essential. Its 4MP imaging system combines a 5.2–130mm motorized varifocal lens with 25× optical zoom, 16× digital zoom and high-speed 360° PTZ movement. Intelligent auto tracking, human and vehicle classification, people and vehicle attribute analytics and smart detection provide advanced monitoring capabilities, while up to 100m IR illumination, 50m white-light illumination, red and blue warning lights and a built-in siren support effective round-the-clock security.

Key Features

• 4MP high-resolution imaging: Captures surveillance footage at up to 2688 × 1520 resolution for detailed monitoring.
• 25× optical zoom: The 5.2–130mm motorized varifocal lens provides powerful long-distance observation without relying solely on digital enlargement.
• 16× digital zoom: Provides additional digital enlargement when closer inspection of captured scenes is required.
• 360° PTZ coverage: Continuous 360° pan movement and -20° to 90° tilt provide comprehensive wide-area monitoring.
• High-speed positioning: Preset pan speeds reach up to 240° per second for rapid movement between surveillance points.
• Intelligent auto tracking: Automatically follows detected human, vehicle and supported event targets for more effective unattended monitoring.
• AI-powered analytics: Supports human and vehicle classification together with people and vehicle attribute analytics.
• Long-range night monitoring: Provides infrared illumination up to 100m and white-light illumination up to 50m.
• Active deterrence: Red and blue flashing lights and an integrated siren can provide immediate visual and audible warnings.
• Rugged outdoor protection: IP66 weather resistance, IK08 vandal resistance and 6kV lightning protection support demanding outdoor installations.

4MP High-Resolution Surveillance

The InSight PTZ5425 uses a 1/2.9-inch Progressive Scan CMOS sensor to capture video at up to 2688 × 1520 resolution. Minimum illumination reaches 0.005 lux, while integrated IR and white-light illumination enable operation at 0 lux when additional lighting is active.

25× Optical Zoom

A 5.2–130mm motorized varifocal lens provides 25× optical zoom, allowing the camera to move rapidly between wide-area monitoring and detailed long-distance observation. The lens provides a horizontal field of view ranging from approximately 57.06° at wide angle to 2.30° at maximum telephoto, while 16× digital zoom provides additional enlargement when required.

High-Speed 360° PTZ Coverage

The camera provides continuous 360° pan coverage with a tilt range from -20° to 90° and Auto Flip functionality. Pan movement can be configured from 0° to 160° per second, with preset positioning reaching up to 240° per second. Tilt movement reaches up to 120° per second during configurable operation and 200° per second when moving to presets.

Intelligent Auto Tracking

Intelligent auto tracking allows the PTZ5425 to automatically follow supported human, vehicle and event targets. Combined with intelligent patrol functionality and 300 configurable presets, the camera can provide extensive unattended surveillance across large environments such as parking areas, campuses, communities and farms.

AI Human and Vehicle Analytics

VIGI AI detection technology enables the camera to distinguish humans and vehicles from other moving objects, helping improve event notification accuracy. People and vehicle attribute analytics can also assist with searching and filtering recorded targets according to supported attributes when used with compatible VIGI software.

100m IR and 50m Full-Color Illumination

Integrated illumination consists of two IR LEDs and two integrated infrared-white LEDs. Infrared illumination reaches up to 100 metres for long-range night monitoring, while white-light illumination reaches up to 50 metres and enables colour detail to be captured in low-light environments.

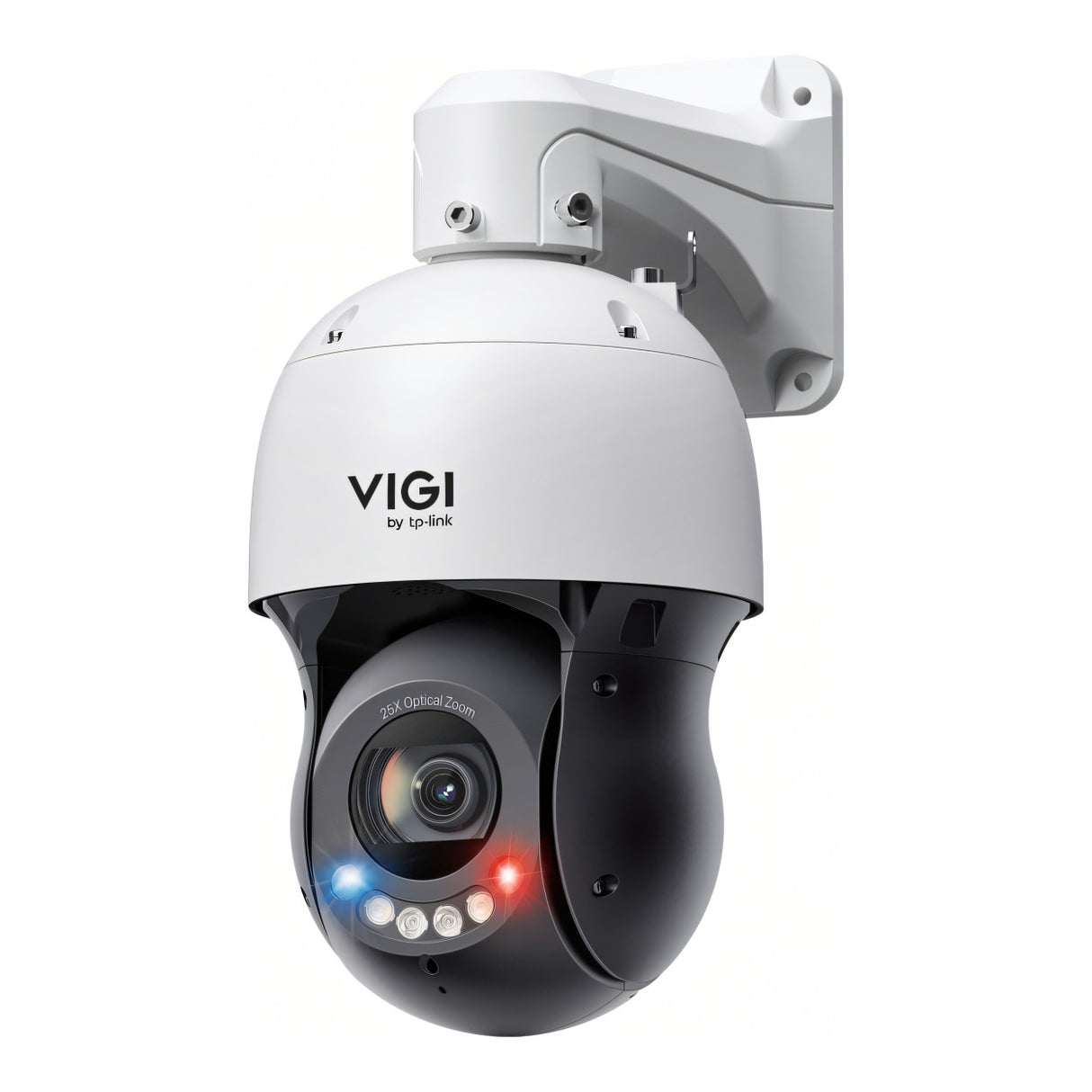

Active Visual and Audible Deterrence

Integrated red and blue flashing lights and a siren provide active deterrence when supported security events are detected. A built-in microphone and speaker provide integrated audio capability, while dedicated audio input, audio output and alarm interfaces allow compatible external equipment to be incorporated into the surveillance system.

Technical Specifications

What’s in the Box:

• 1 × VIGI InSight PTZ5425 4MP 25X Full-Color Network Speed Dome Camera
• 1 × Installation Guide
• Waterproof Cable Attachments
• Mounting Accessories

Monitor large outdoor environments with the VIGI InSight PTZ5425, combining 4MP imaging, 25× optical zoom, high-speed 360° PTZ coverage, intelligent auto tracking, AI-powered human and vehicle analytics, 100m infrared illumination, active deterrence and rugged IP66 and IK08 protection.
