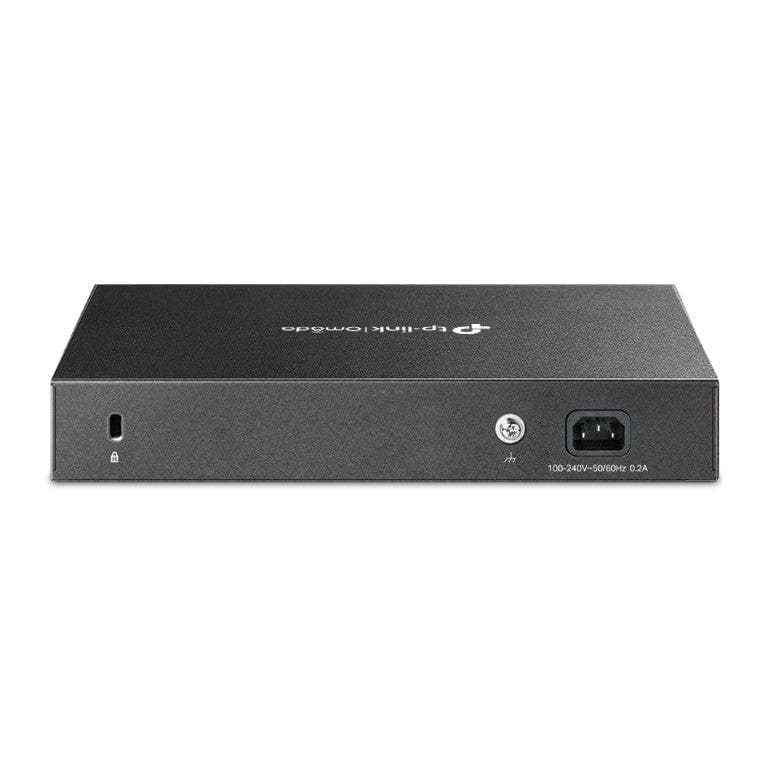

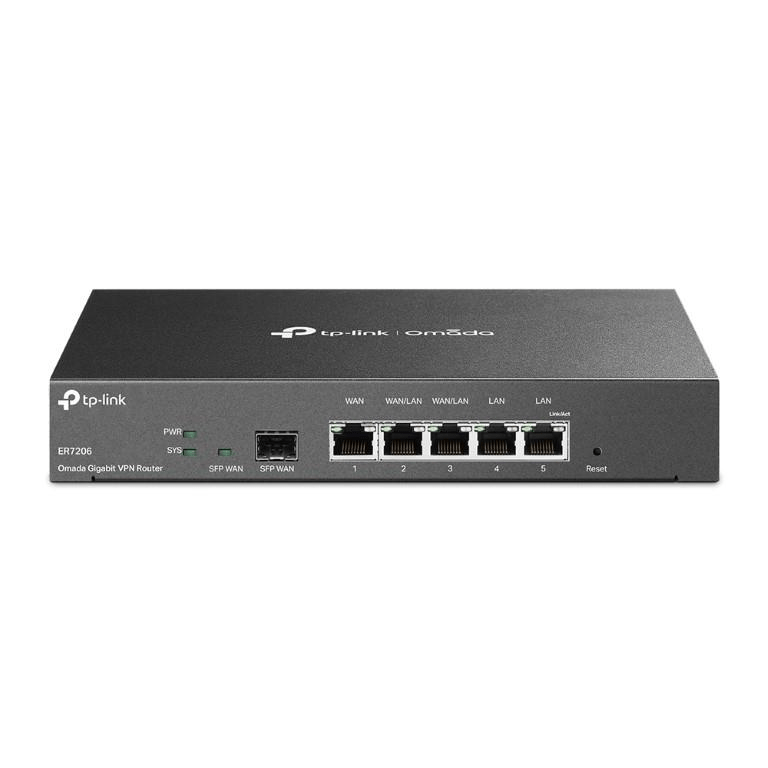

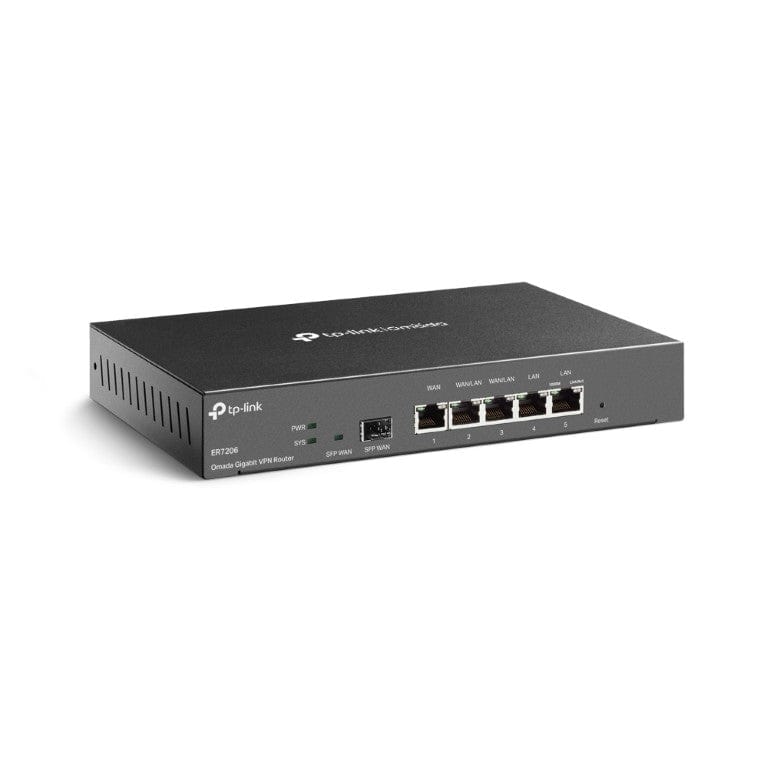

TP-Link SafeStream Gigabit Multi-WAN VPN Router TL-ER7206

TP-Link SafeStream Gigabit Multi-WAN VPN Router

Omada SDN—The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Highly Secure VPN

ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications:

• TP-Link SafeStream Gigabit Multi-WAN VPN Router
• Networking standards: IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
• Ethernet interface type: Gigabit Ethernet
• Cabling technology: 10/100/1000Base-T(X)
• Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
• Security algorithms: 3DES,128-bit AES,192-bit AES,256-bit AES,DES,IPSEC,MD5,SHA-1,SNMP,SNMPv2,SNMPv3
• Firewall security: SPI
• Flash memory: 132 MB
• Internal memory: 512 MB
• Internal memory type: DRAM
• Product colour: Black
• LED indicators: Activity, Link, Power, System, WAN
