TP-Link Omada TL-MC1400 14-slot Rackmount Chassis

TP-Link Omada TL-MC1400 14-slot Rackmount Chassis

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.

* For TP-LINK Media Converters, TL-MC1400 supports MCXXX ver:2.0 and above, not ver:1.0.”

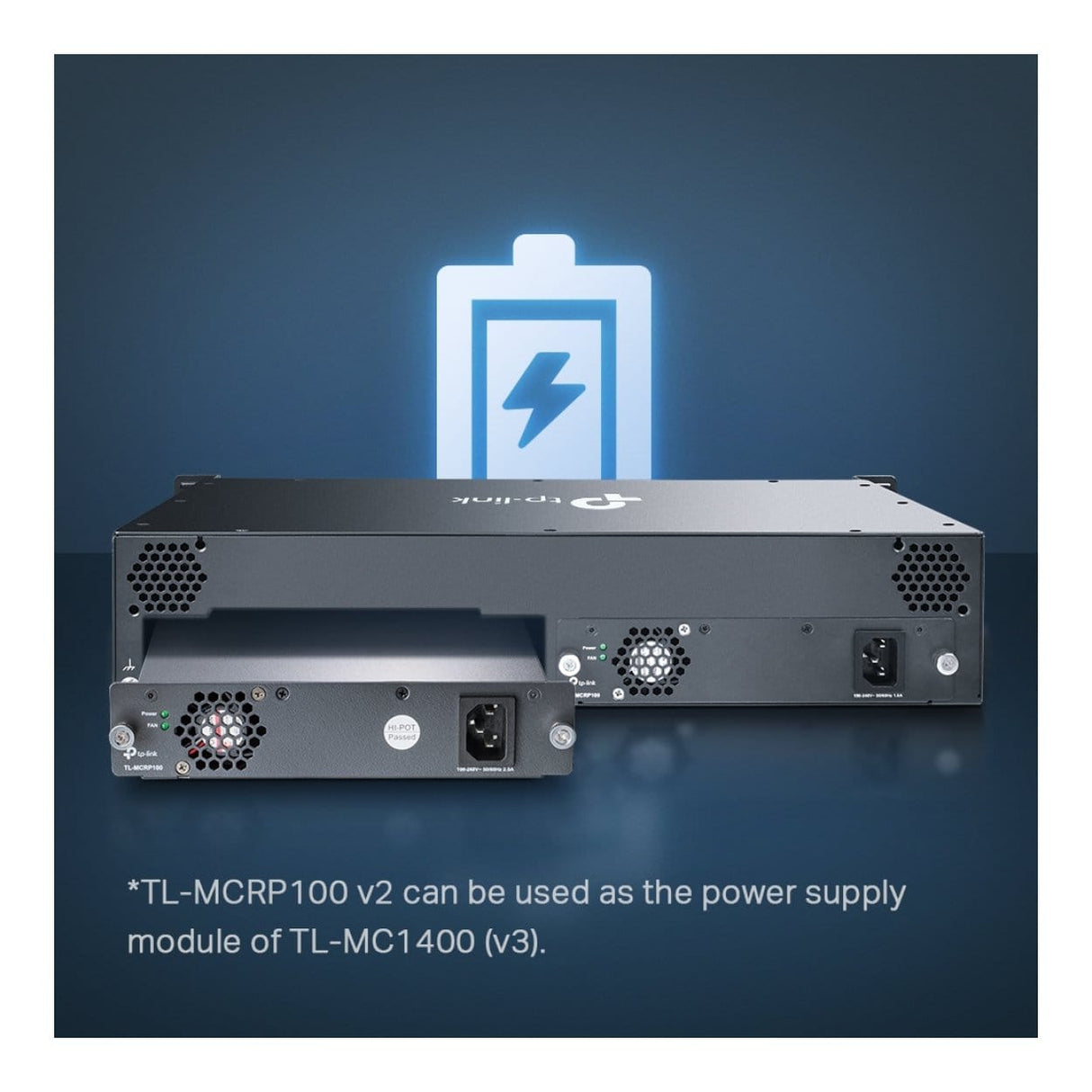

 ** TL-MCRP100 v2 can be used as the power supply module of TL-MC1400 v3.0, while TL-MCRP100 v1 can be used as the power supply module of TL-MC1400 v1/v2

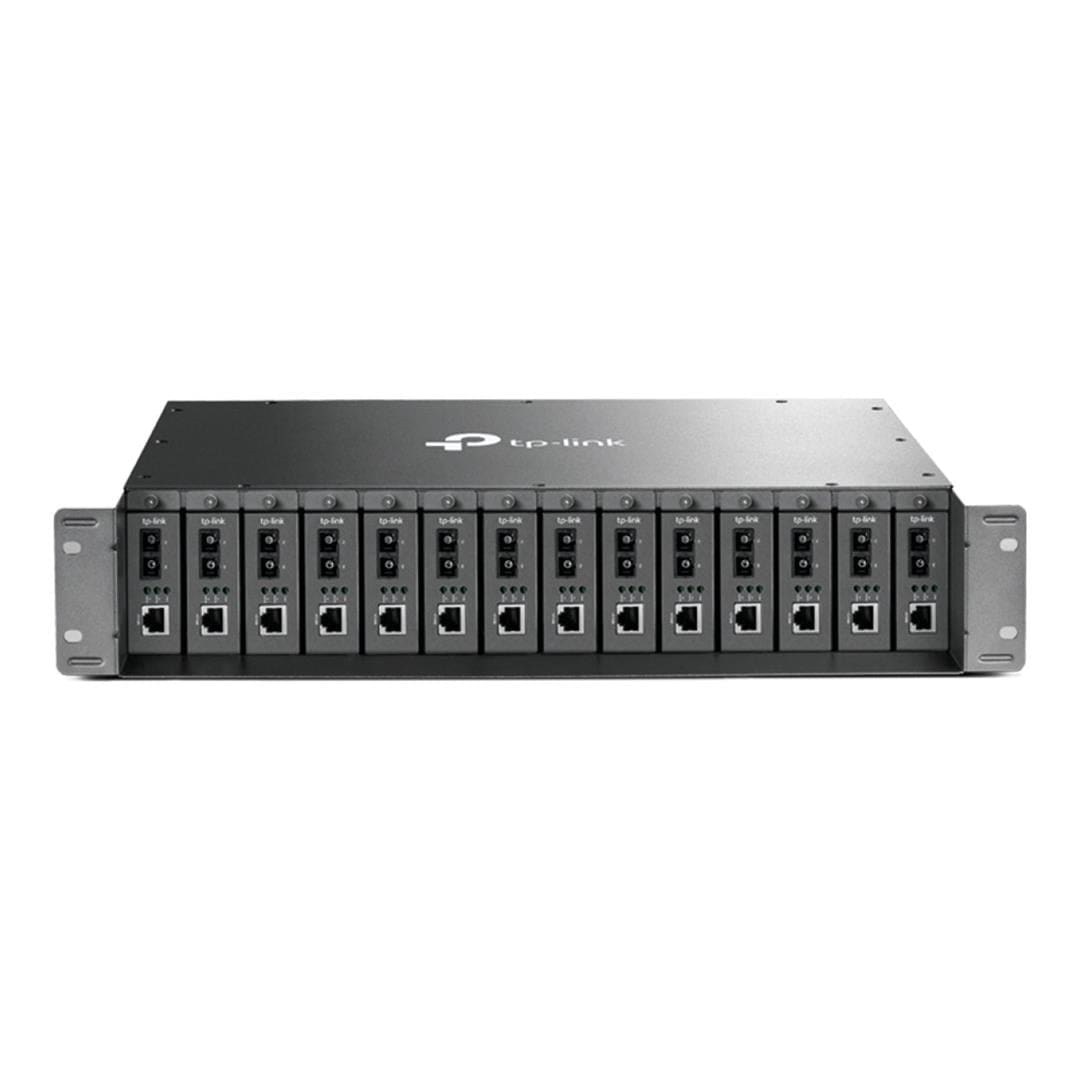

• 14 bays to house up to 14 media converters
• Optional redundant power supply to ensure non-stop reliable operation

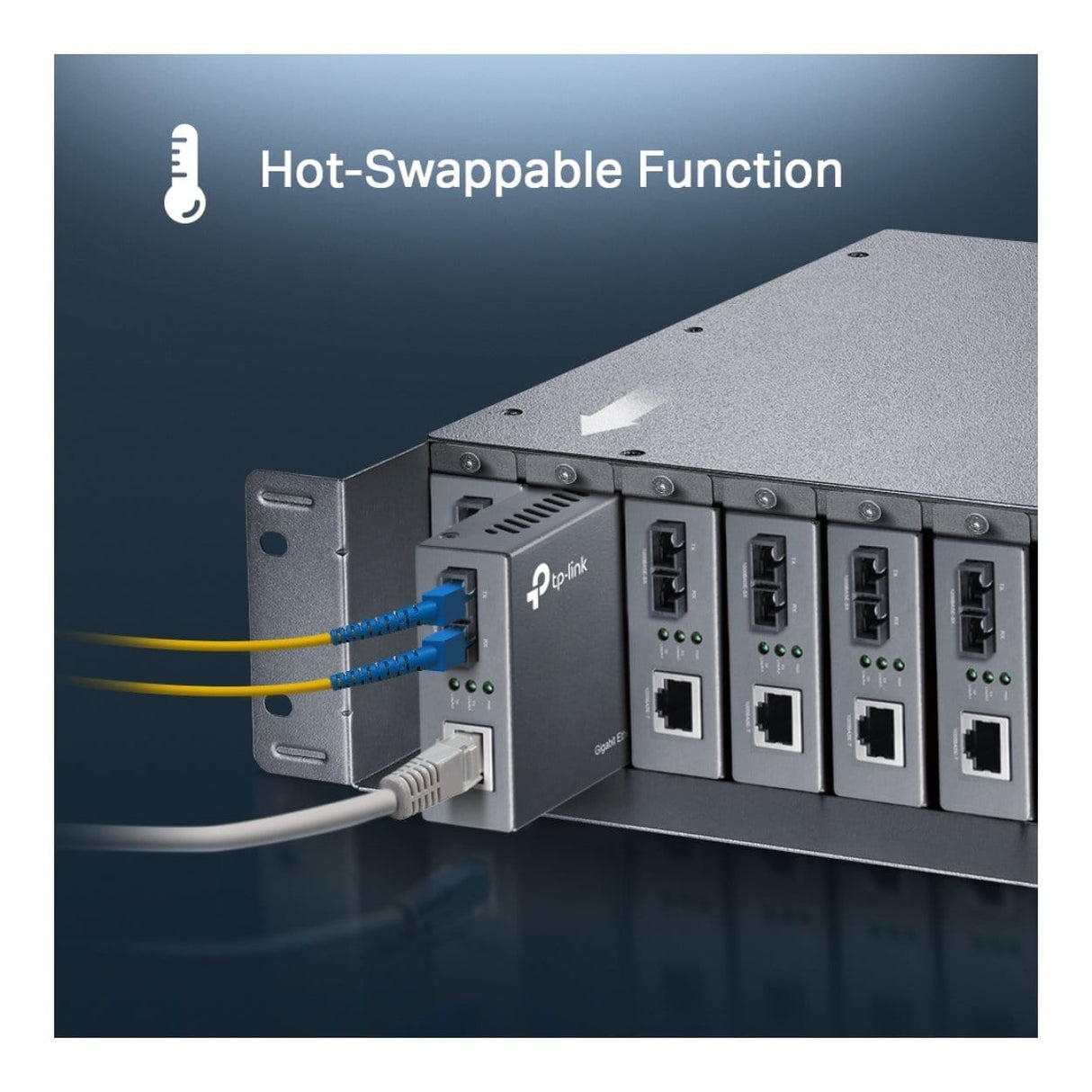

• Hot-Swappable; easy & quick replacement of converter
• Mounted two cooling fans for better ventilation

Technical Specifications

Fan Quantity: 2

AC Power Supply: 100-240VAC, 50/60Hz

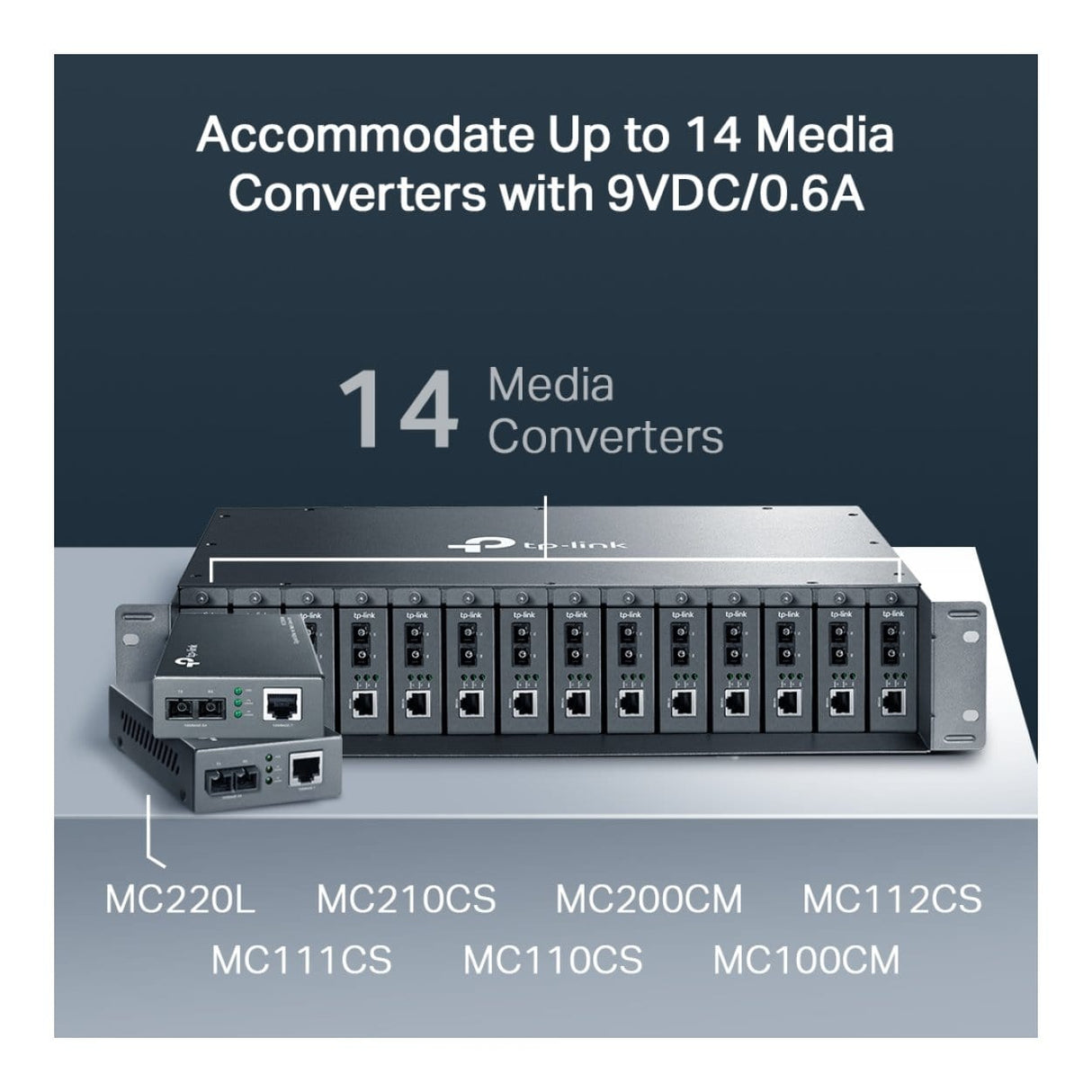

Power Output: 14× 9VDC / 0.6A

Dimensions ( W x D x H ): 482×309×86mm, Standard 19-Inch, 2U height
