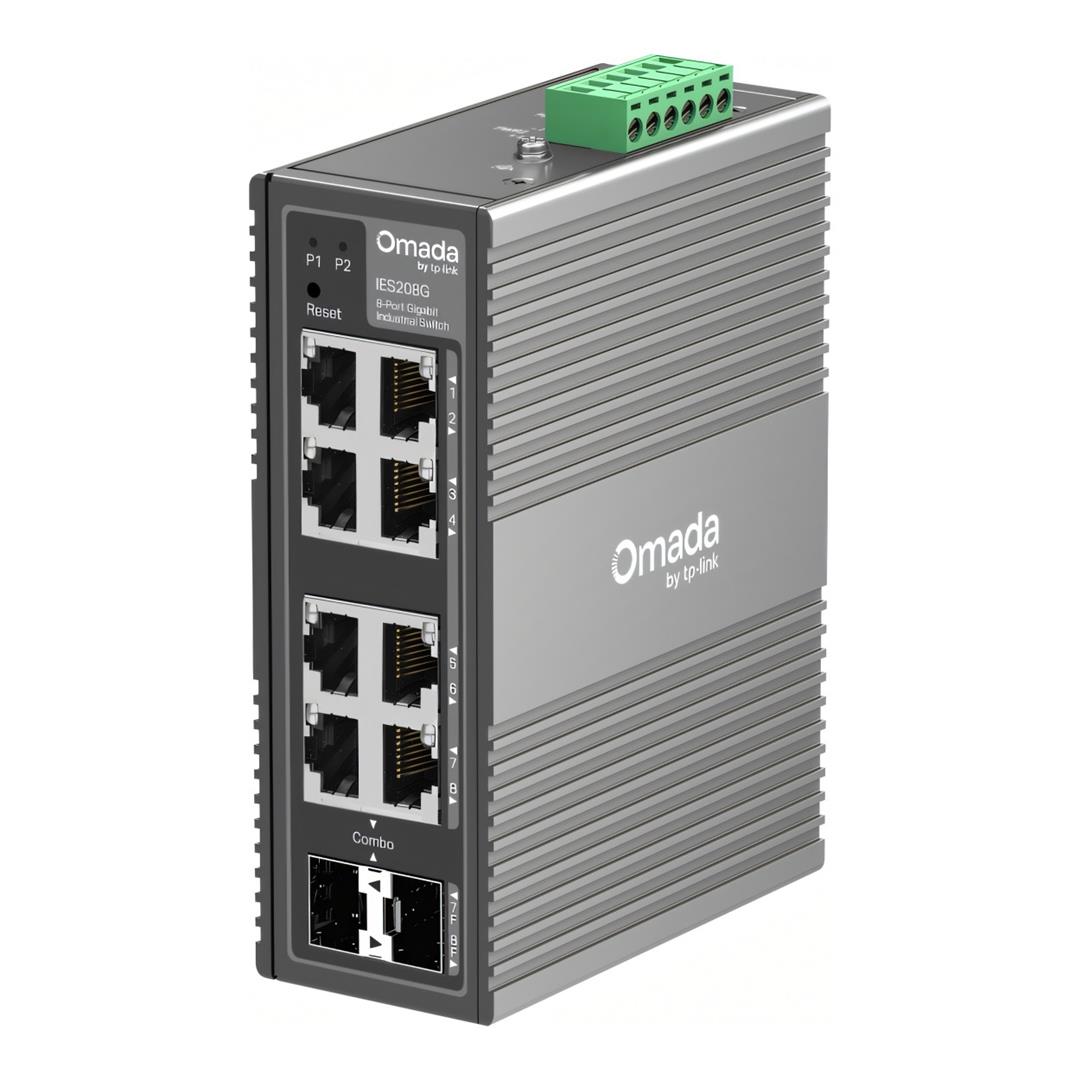

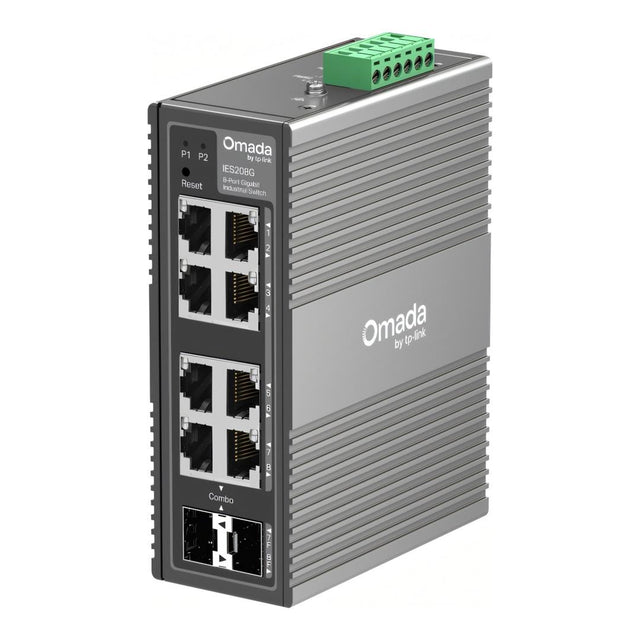

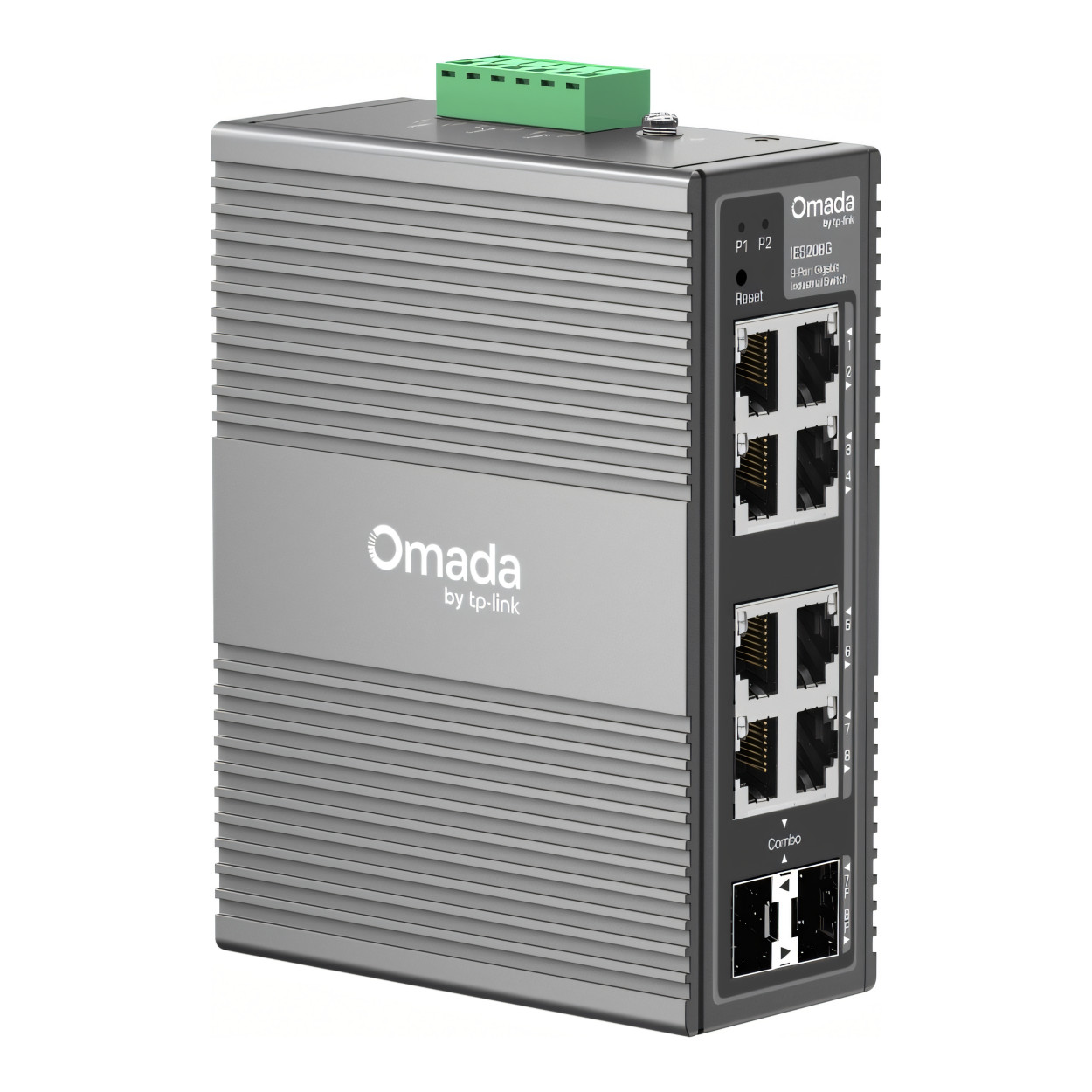

TP-Link Omada IES208G 8-port Gigabit Industrial Easy Managed Switch
The Omada IES208G is an 8-port Gigabit industrial easy managed switch designed for reliable network connectivity in factories, surveillance systems, energy installations, smart buildings and other demanding environments. Its rugged IP40 aluminium enclosure, wide operating temperature range and redundant DC power inputs help maintain dependable operation where standard office switches may not be suitable.
Key Features

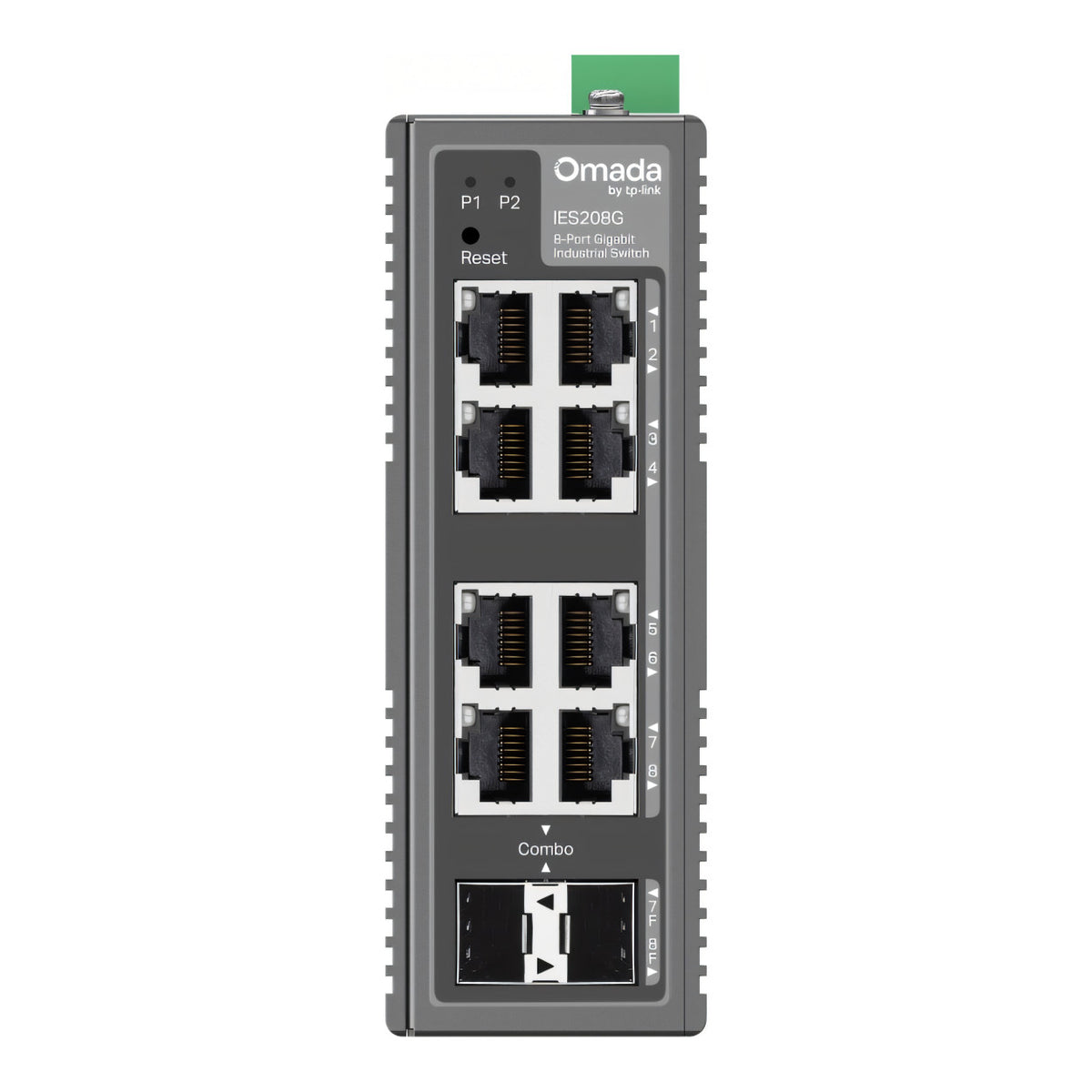

- Eight Gigabit interfaces comprising six RJ45 ports and two RJ45/SFP combo slots.
- Industrial-grade design supports operation from -40°C to 75°C.
- Dual 9.6–60V DC redundant power inputs help maintain operation if one power source fails.
- IP40 aluminium enclosure with fanless cooling for reliable industrial deployment.
- 6kV lightning protection on Ethernet ports helps protect against electrical surges.
- Supports VLAN, QoS, STP/RSTP, Link Aggregation and IGMP Snooping.
- Omada centralised management enables remote configuration and monitoring.
- DIN-rail and wall-mount installation options provide flexible deployment.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Omada by TP-Link |
| Model | IES208G |
| Product Type | Industrial Easy Managed Gigabit Ethernet Switch |
| Total Gigabit Interfaces | 8 |
| RJ45 Ports | 6 x 10/100/1000 Mbps RJ45 |
| Combo Ports | 2 x Gigabit RJ45/SFP Combo Slots |
| Auto-Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | Up to 15 KB |
| Transmission Method | Store-and-Forward |
| VLAN Support | MTU VLAN, Port-Based VLAN, IEEE 802.1Q VLAN |
| VLAN Capacity | Up to 32 VLAN Groups, 4K VLAN IDs |
| Spanning Tree | STP (802.1D), RSTP (802.1W) |
| Link Aggregation | Static Link Aggregation; Up to 2 Groups and 4 Ports per Group |
| Multicast | IGMP Snooping v1/v2/v3 with Fast Leave |
| Quality of Service | 802.1p/DSCP Priority, 8 Priority Queues, WRR and Bandwidth Control |
| Management | Web GUI, Omada Software Controller, Omada Hardware Controller and Omada Cloud-Based Controller |
| Cloud Management | Supported |
| Zero-Touch Provisioning | Supported with Compatible Omada Cloud-Based Controller |
| Diagnostic Features | Cable Diagnostics, Port Statistics and Digital Diagnostic Monitoring (DDM) |
| Cooling | Fanless |

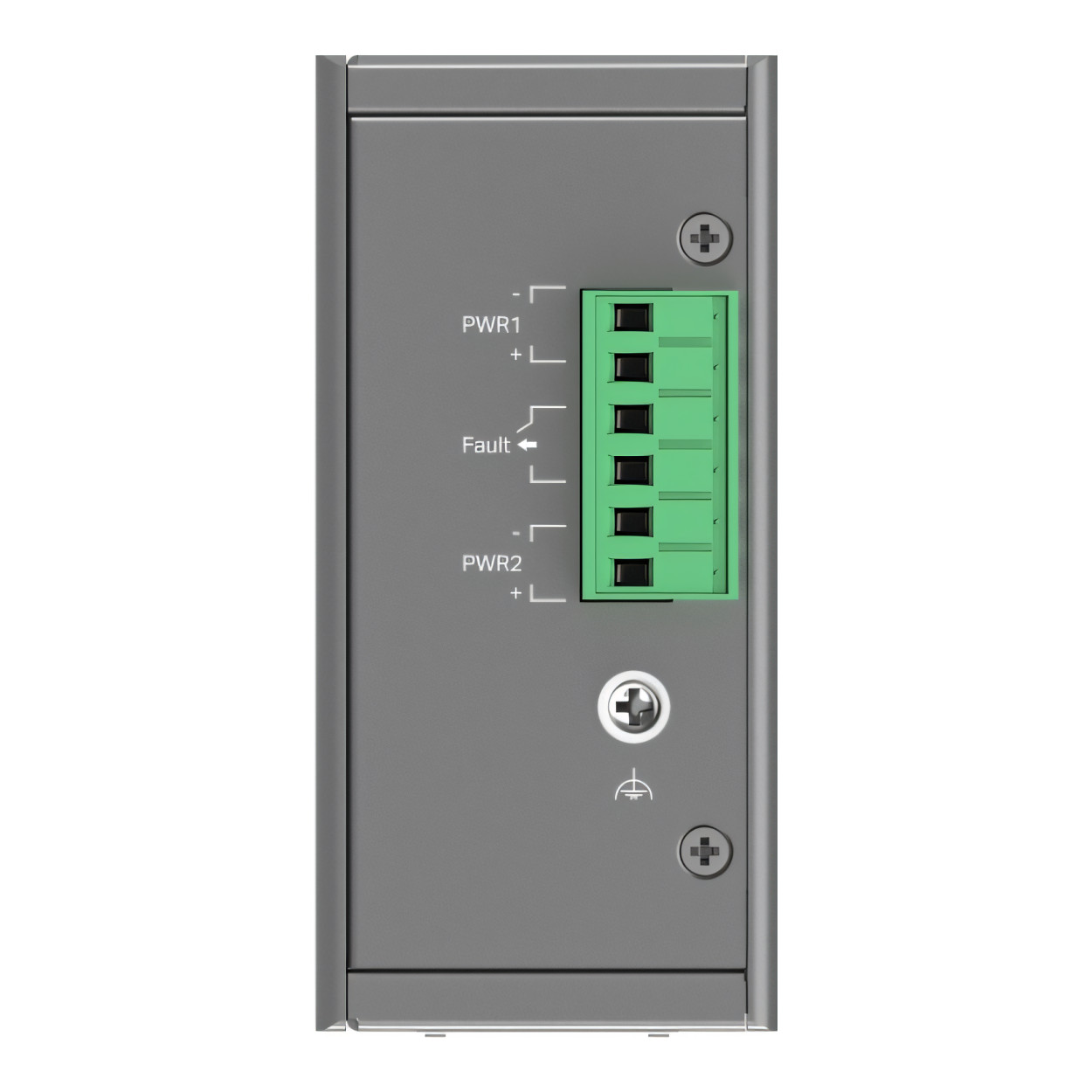

| Power Input | 9.6–60V DC, 1+1 Redundant Power Input |
| Surge Protection | ±6kV Common Mode on Ethernet Ports; ±4kV Common Mode on DC Power Inputs |
| Enclosure | IP40 Aluminium Casing |
| Mounting | DIN-Rail or Wall Mount |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% RH, Non-Condensing |
| Dimensions (W x D x H) | 129 x 95 x 45 mm |
| Certifications | FCC, CE, RoHS |
| Application | Industrial Automation, Surveillance, Energy Infrastructure, Smart Buildings and Harsh-Environment Networking |
| What's in the Box: |
|
Build a more resilient industrial network with the Omada IES208G, combining Gigabit copper and fibre connectivity, redundant power support and centralised management in a rugged fanless enclosure.
