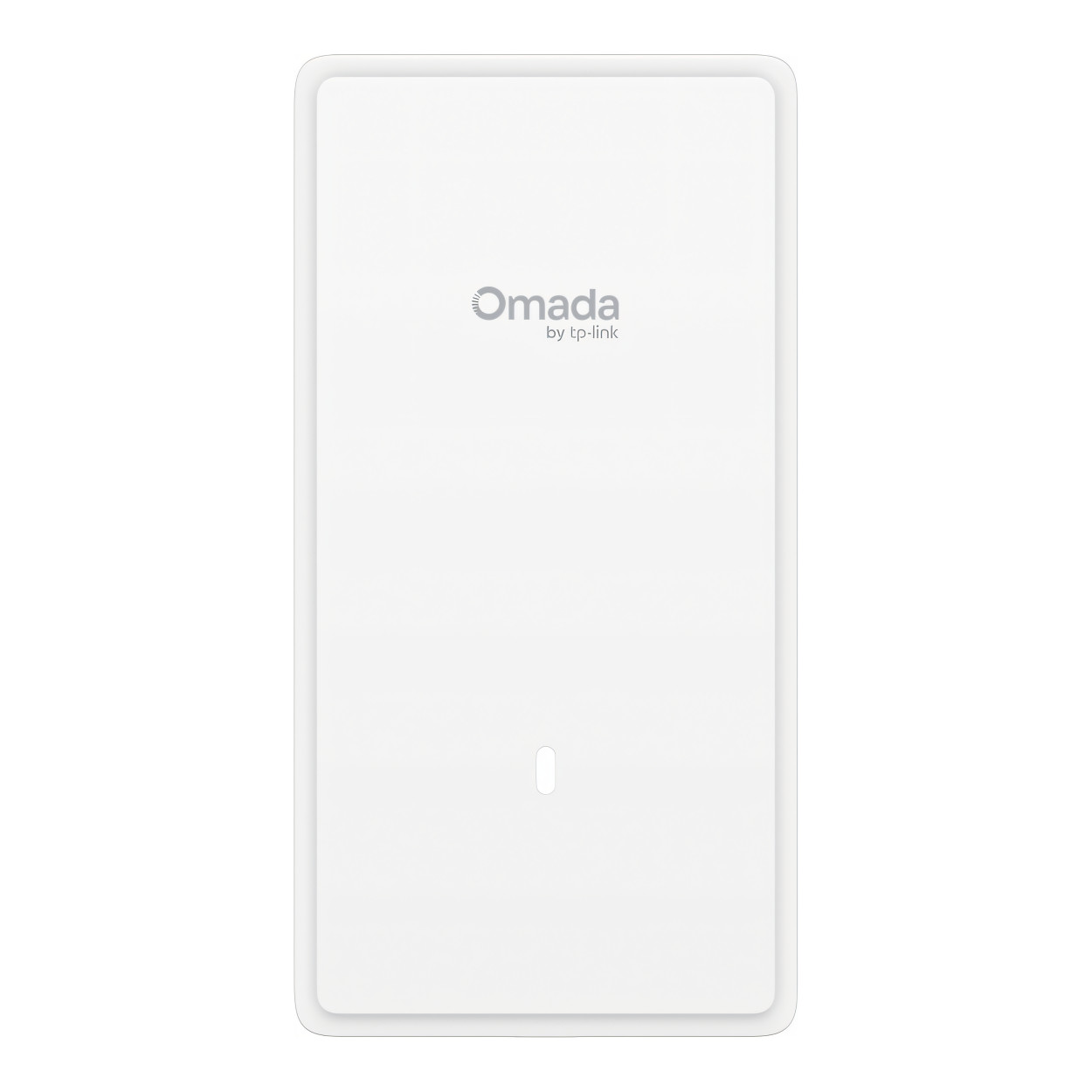

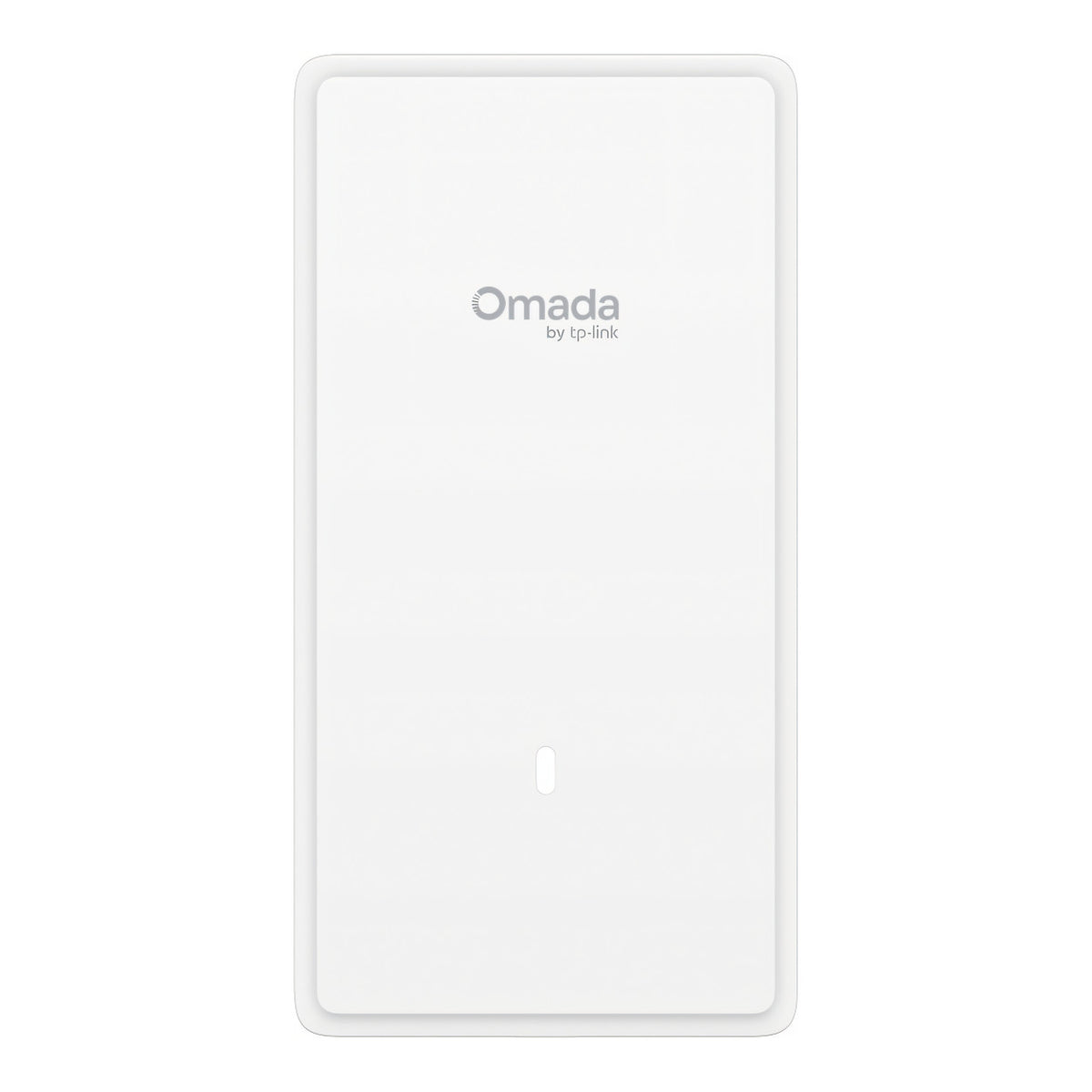

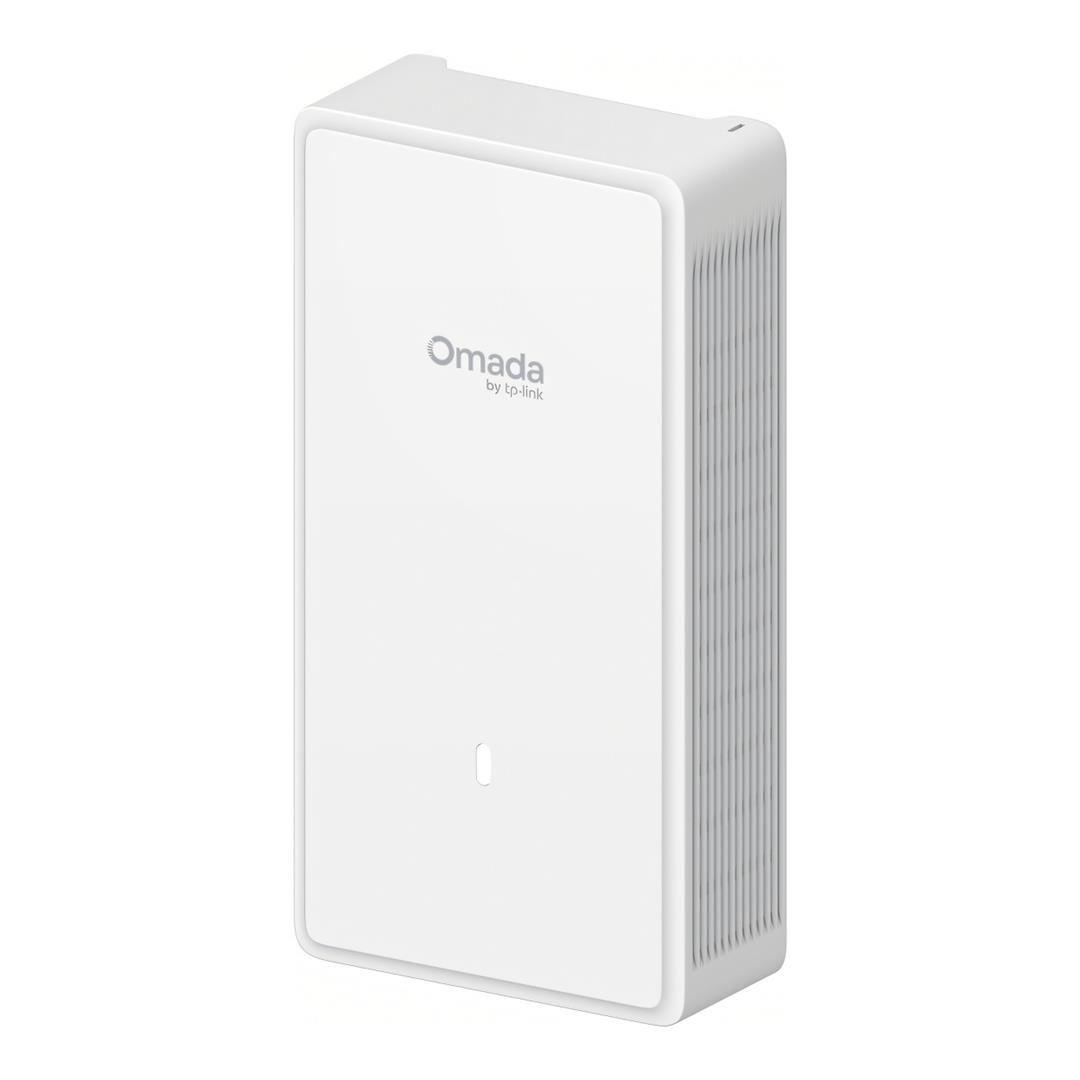

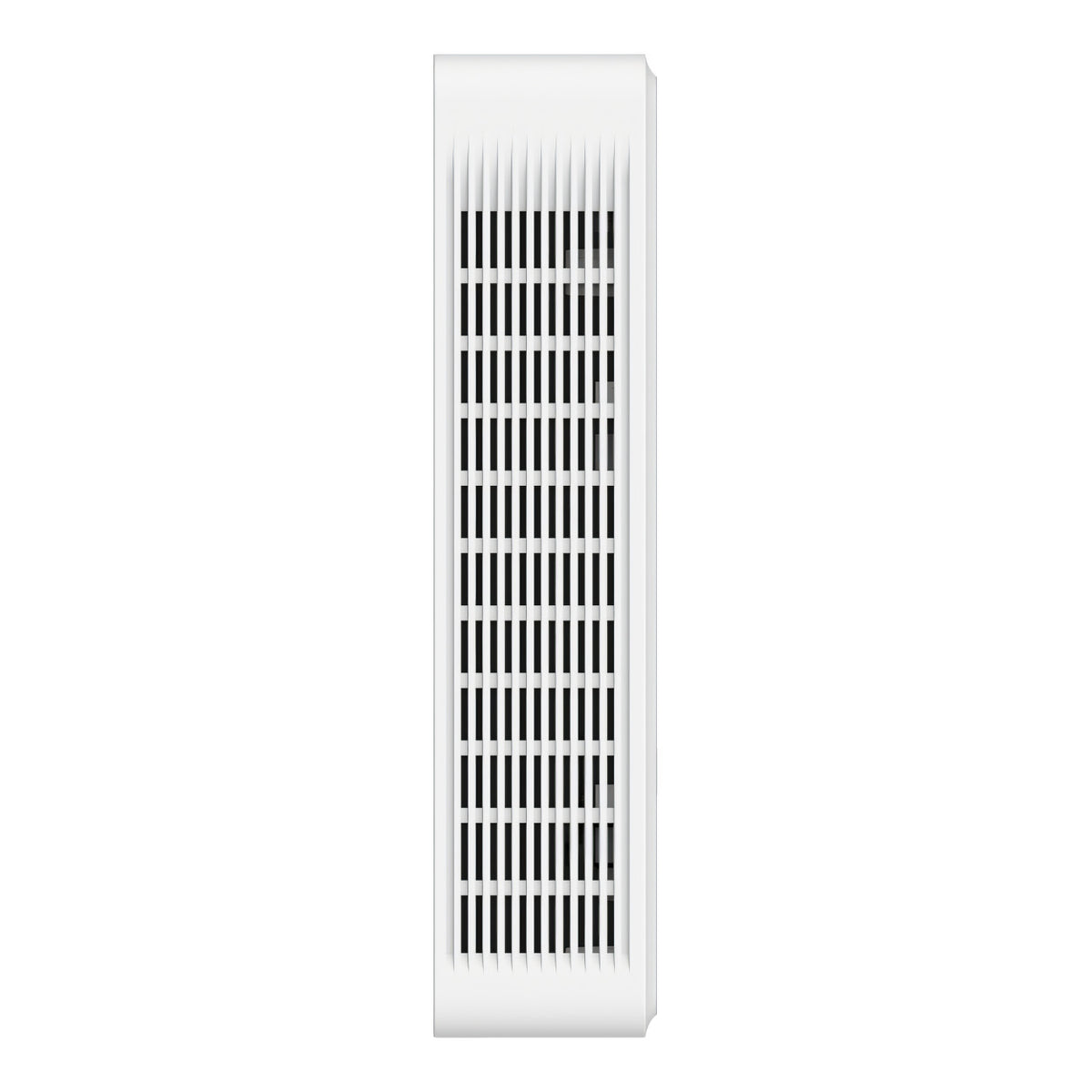

TP-Link Omada EAP775 BE9300 Tri-Band Wi-Fi 7 Wall Plate Access Point EAP775-Wall
The Omada EAP775-Wall is a BE9300 tri-band Wi-Fi 7 wall plate access point designed to deliver high-speed wireless and wired connectivity to individual rooms in hospitality, apartment, dormitory, office and similar deployments. It combines up to 9.3Gbps of aggregate wireless capacity with 2.5GbE connectivity, flexible PoE output and advanced Wi-Fi 7 technologies including 320MHz channels, Multi-Link Operation and 4K-QAM. Its discreet wall-mounted design includes a paintable cover to help the access point blend into the surrounding interior.
Key Features
- BE9300 tri-band Wi-Fi 7 with up to 5765Mbps on 6GHz, 2882Mbps on 5GHz and 688Mbps on 2.4GHz.
- Advanced Wi-Fi 7 technologies including 320MHz channels, MLO, 4K-QAM and Multi-RUs.

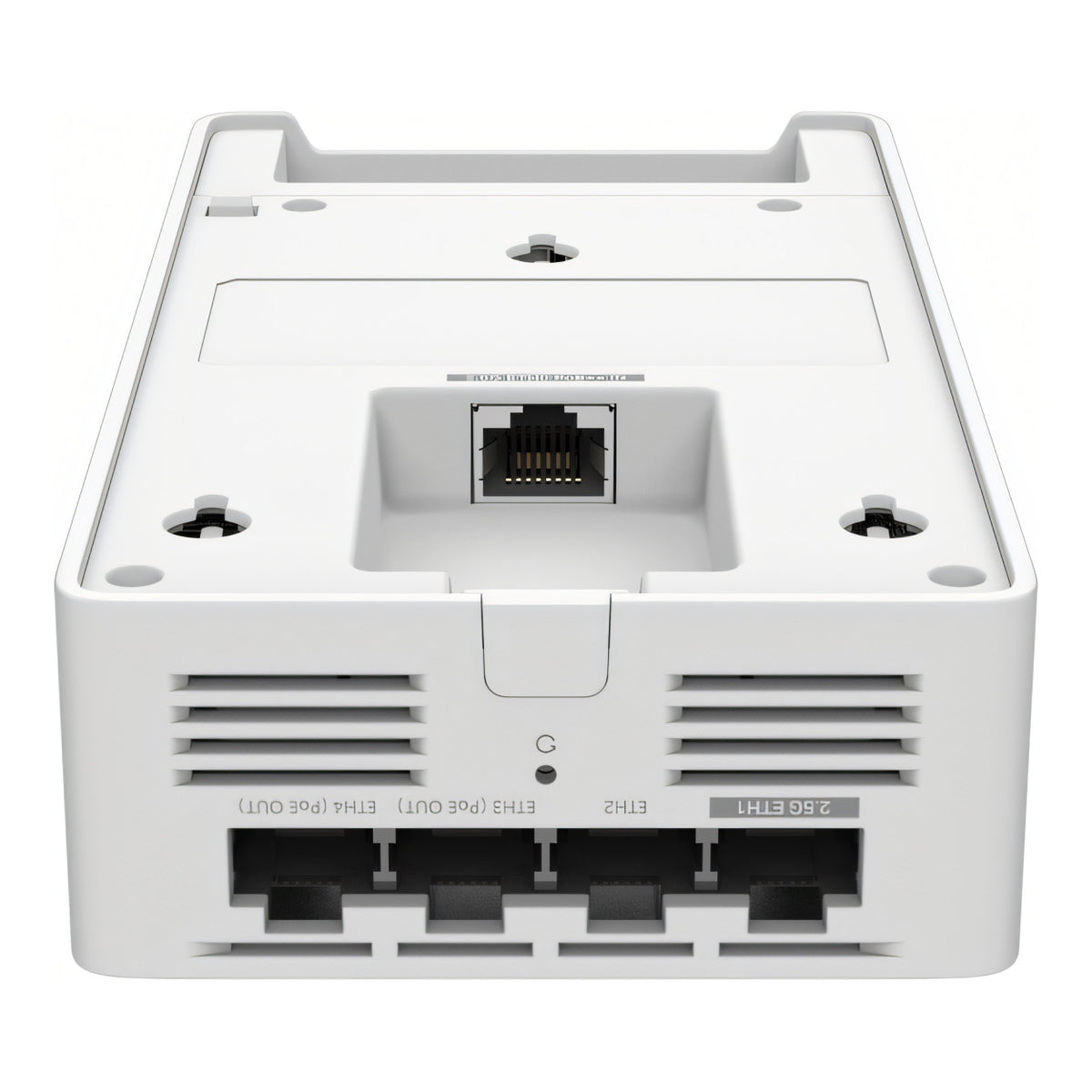

- 1 × 2.5GbE uplink, 1 × 2.5GbE downlink and 3 × Gigabit downlink Ethernet ports.
- Flexible PoE Out can power compatible IP phones, cameras and other network devices.
- 802.3at PoE+ and 802.3bt PoE++ input support.
- Omada Mesh, seamless roaming and centralised Omada SDN management.

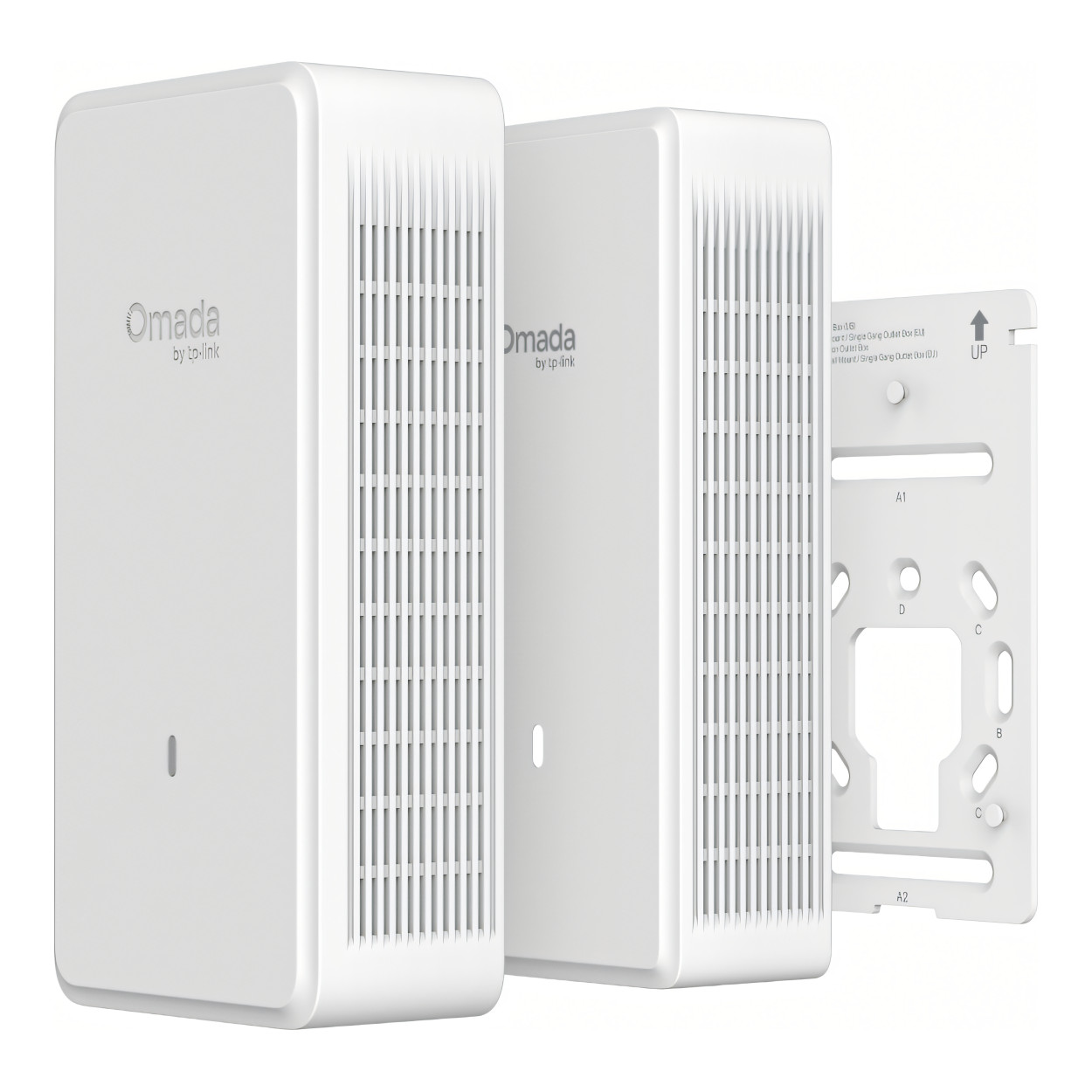

- Discreet wall-mounted design with an additional paintable cover.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Omada |
| Model | EAP775-Wall |
| Product Type | Wall Plate Wireless Access Point |
| Wi-Fi Class | BE9300 |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Wireless Bands | Tri-Band 2.4GHz / 5GHz / 6GHz |
| Wireless Streams | 6 Streams |
| 6GHz Wireless Rate | Up to 5765Mbps |
| 5GHz Wireless Rate | Up to 2882Mbps |
| 2.4GHz Wireless Rate | Up to 688Mbps |
| Wi-Fi 7 Technologies | 320MHz Channel Width / Multi-Link Operation (MLO) / 4K-QAM / Multi-RUs |
| Uplink Port | 1 × 2.5GbE RJ45 |
| Downlink Ports | 1 × 2.5GbE RJ45 + 3 × Gigabit RJ45 |
| PoE Out | 2 × Gigabit PoE Out or 1 × Gigabit PoE+ Out with 802.3bt Input |
| Power Supply | 802.3at PoE+ / 802.3bt PoE++ |
| Maximum Power Consumption | 43.35W with 25W PoE Out |
| Antennas | 6 × Internal Antennas |
| 2.4GHz Antenna Gain | 2 × 5dBi |
| 5GHz Antenna Gain | 2 × 5.5dBi |
| 6GHz Antenna Gain | 2 × 5.5dBi |
| Concurrent Client Capacity | 380+ under Omada Test Conditions |
| Coverage | Up to Approx. 100m² under Omada Test Conditions |
| SSIDs | Up to 24 (8 per Band) |
| Bluetooth | Bluetooth 5.2 |
| Management | Omada SDN / Centralised Cloud Management |
| Wireless Management Features | Omada Mesh / Seamless Roaming / Automatic Channel Assignment / Transmit Power Control |
| Security Features | WPA3 / Guest Network / Rogue AP Detection / Physical Security Lock |
| Mounting | Wall Mount |
| Dimensions (W × D × H) | 172.9 × 91.2 × 41.3mm |
Deliver high-performance Wi-Fi 7 and flexible multi-gigabit wired connectivity to individual rooms with the discreet, centrally managed Omada EAP775-Wall.
