TP-Link Omada EAP727 7 UR BE5000 5-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point
The Omada EAP727 is a BE5000 dual-band Wi-Fi 7 ceiling mount access point designed to provide high-speed wireless connectivity for offices, hospitality, education and other business environments. Its five-stream wireless design delivers up to 4324Mbps on 5GHz and 688Mbps on 2.4GHz, while advanced Wi-Fi 7 technologies including Multi-Link Operation, 4K-QAM and Multi-RUs help improve wireless efficiency. A 2.5GbE port with PoE+ support provides multi-gigabit wired connectivity and flexible installation.
Key Features
- BE5000 dual-band 5-stream Wi-Fi 7 access point.
- Up to 4324Mbps on 5GHz and 688Mbps on 2.4GHz.
- Wi-Fi 7 technologies including MLO, 4K-QAM, Multi-RUs and OFDMA.
- 160MHz channel bandwidth for high-speed 5GHz connectivity.
- 2.5GbE Ethernet port with 802.3at PoE+ support.
- Omada Mesh, seamless roaming and centralised Omada management.

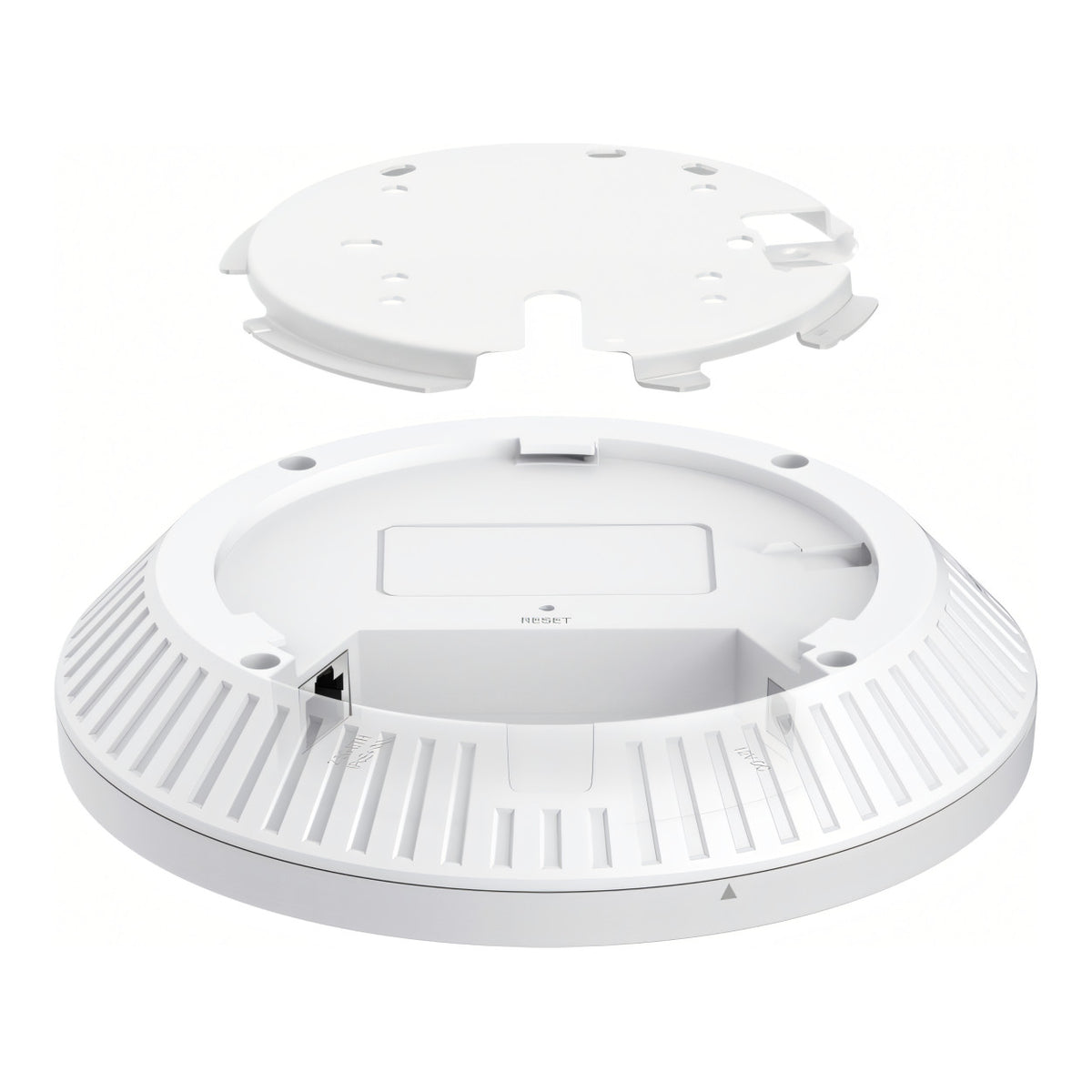

- Flexible ceiling, wall, junction-box and T-bar mounting.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Omada |
| Model | EAP727 |
| Product Type | Ceiling Mount Wireless Access Point |
| Wi-Fi Class | BE5000 |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless Bands | Dual-Band 2.4GHz / 5GHz |
| Wireless Streams | 5 Streams |
| 5GHz Wireless Rate | Up to 4324Mbps |
| 2.4GHz Wireless Rate | Up to 688Mbps |
| Maximum Channel Width | 160MHz on 5GHz |
| Wi-Fi 7 Technologies | Multi-Link Operation (MLO) / 4K-QAM / Multi-RUs / OFDMA |

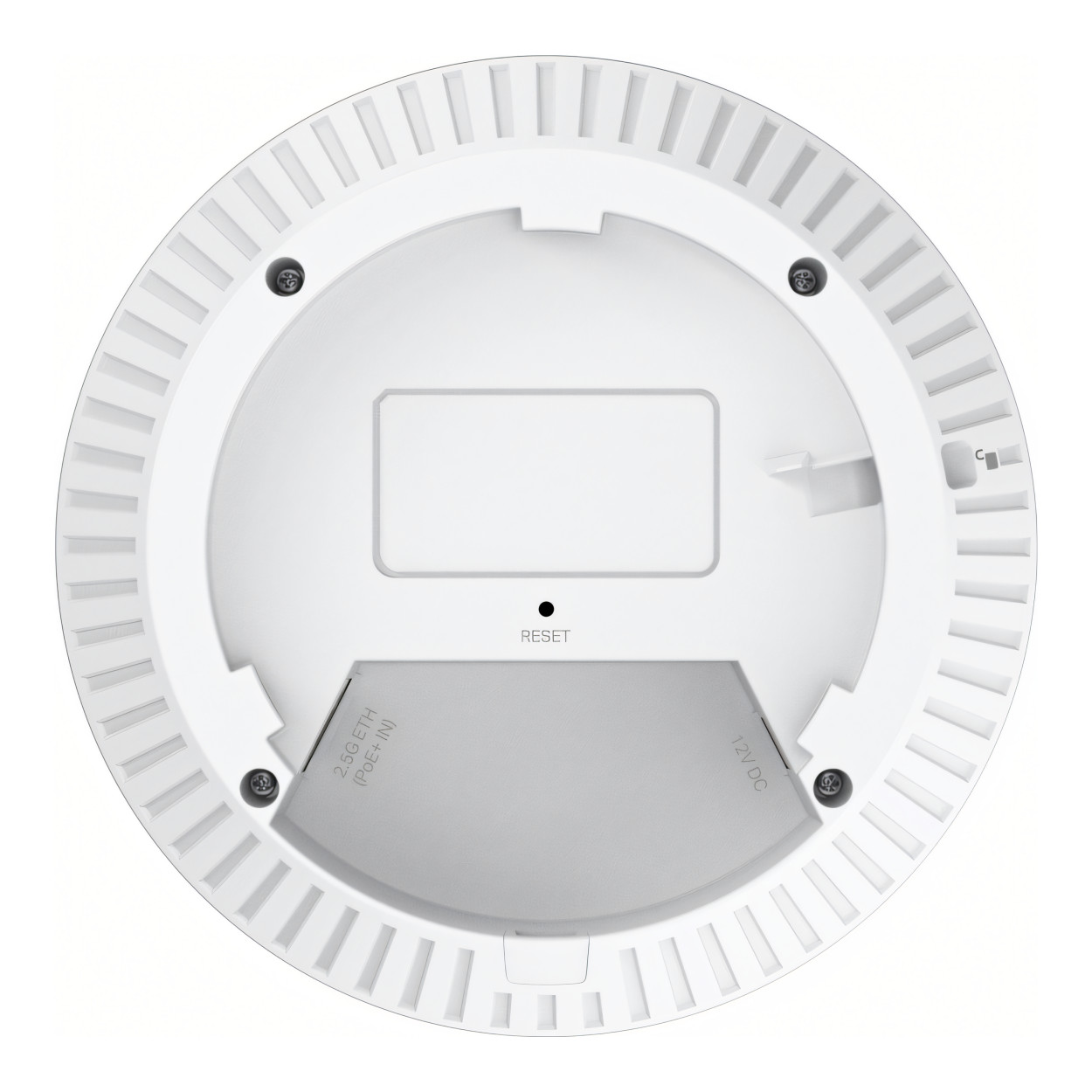

| Ethernet Interface | 1 × 2.5GbE RJ45 |
| Power Supply | 802.3at PoE+ / 12V 1.5A DC |
| Maximum Power Consumption | 17.5W via PoE / 15.8W via DC |
| 2.4GHz Antennas | 2 × Internal 4dBi |
| 5GHz Antennas | 3 × Internal 6dBi |
| Bluetooth Antenna | 1 × Internal 4dBi Peak Gain |
| Concurrent Client Capacity | 510+ under Omada Test Conditions |
| Coverage | Up to Approx. 185m² under Omada Test Conditions |
| Multiple SSIDs | Up to 16 (8 per Band) |
| Wireless Features | Mesh / Seamless Roaming / Beamforming / Band Steering / Load Balancing / Airtime Fairness / QoS |
| Wireless Security | WPA / WPA2 / WPA3 Personal and Enterprise / VLAN / MAC Filtering / Rogue AP Detection / Client Isolation |
| Management | Omada Central / Omada Hardware Controller / Omada Software Controller / Web UI / Omada App |
| SNMP | v1 / v2c / v3 |
| Mounting | Ceiling / Wall / Junction Box / T-Bar |
| Dimensions (W × D × H) | 160 × 160 × 36.7mm |
| Weight | 0.47kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Certifications | FCC / CE / VCCI / JRF / ICES |
| What's in the Box: |
|
Deploy fast, centrally managed Wi-Fi 7 connectivity with the Omada EAP727 and its combination of BE5000 wireless performance, 2.5GbE networking and flexible PoE+ installation.
