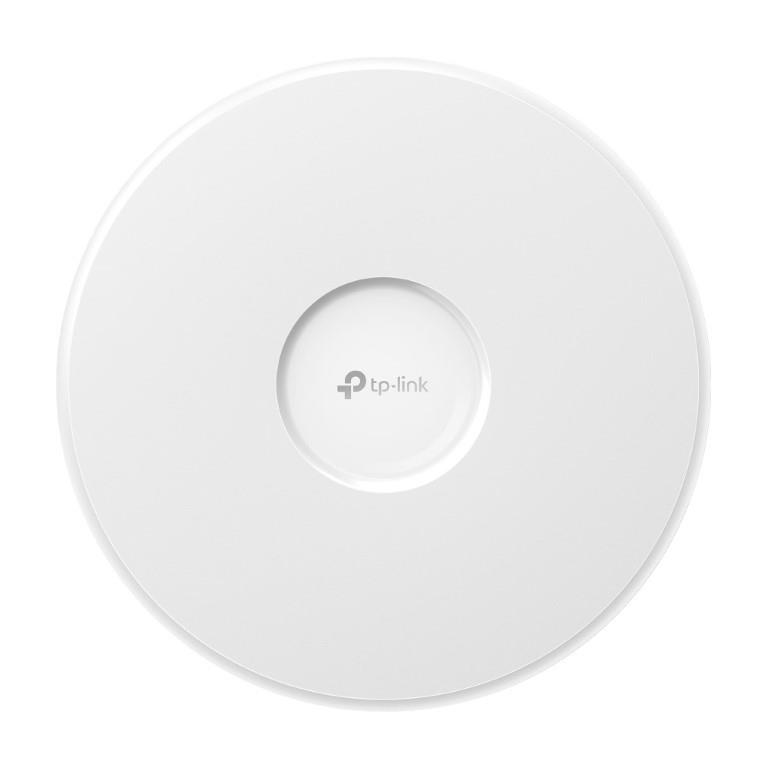

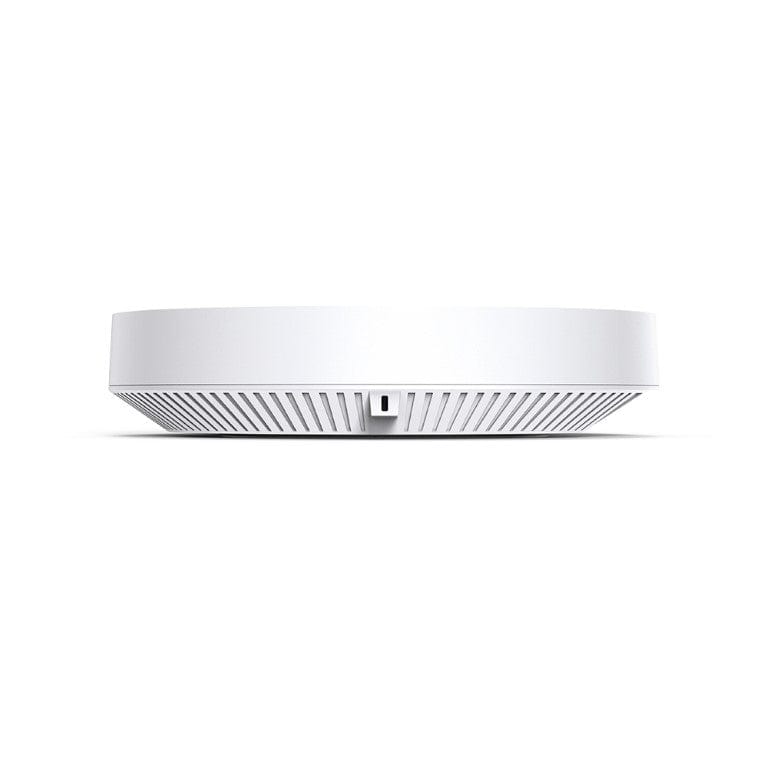

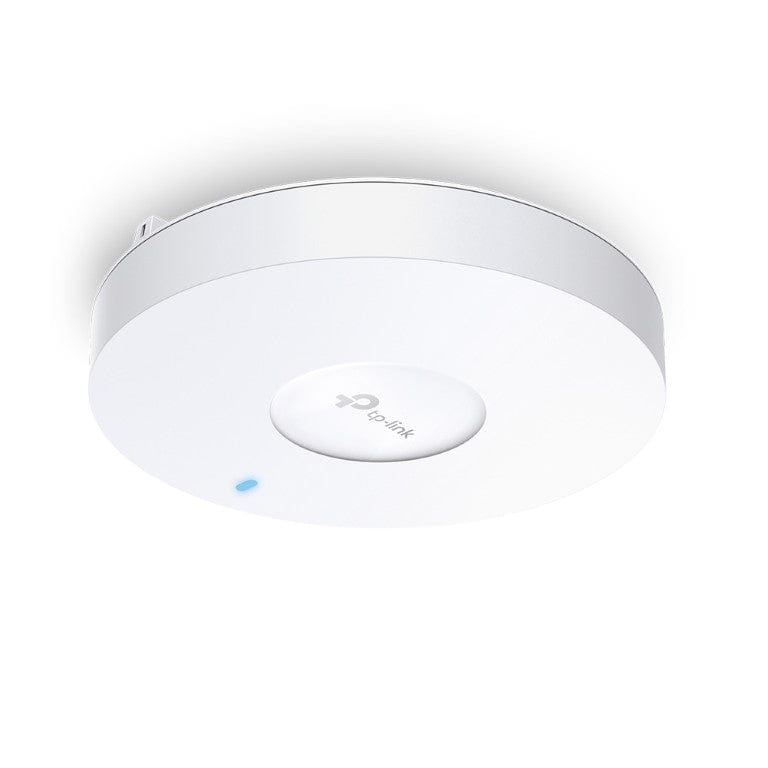

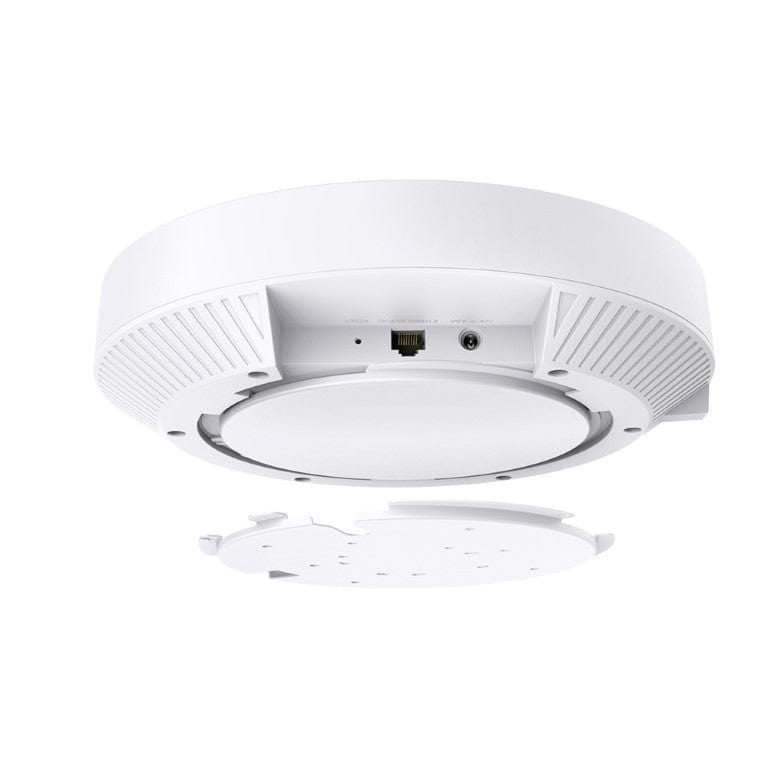

TP-Link Omada EAP690E HD AXE11000 Ceiling Mount Quad-Band Wi-Fi 6E Access Point

TP-Link Omada EAP690E HD AXE11000 Ceiling Mount Quad-Band Wi-Fi 6E Access Point

Features

• Ultra-Fast Wi-Fi 6E Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds, bringing more bandwidth, faster speeds, near-zero latency and eliminates interference.
• High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, BSS Coloring, and powerful chipset.
• 10G Wired Connection: Boosts overall throughput with a 10 Gbps Ethernet port supported by an 802.3bt PoE++ power supply.
• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.
• Advanced Wireless Tech: Supports Mesh Wi-Fi, Seamless Roaming, WPA3, Band Steering, Load Balancing, and Airtime Fairness technologies.
• Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.
• Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.

Designed for Business Environments in Heavy Wi-Fi Areas

Experience Better WiFi with Smart Antenna Technology

Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithm—improving performance, lowering interference, and extending coverage for user-heavy scenarios.

Reliable Business Networks with Intelligent Power Supply

Featuring intelligent power backup, the EAP690E HD seamlessly uses PoE++ as a backup power source when its DC power connection is disrupted—delivering a reliable and safe business network experience.

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Auto Channel Selection and Power Adjustment finetunes access points in the same network to optimize the overall wireless performance. By adjusting channel settings and transmission power levels, access points are less likely to interfere with each other’s Wi-Fi signals and improve overall WiFi performance.

Easy Deployment & Higher Performance by Omada Mesh

Easy Pairing, Less Wiring

With Omada Mesh, connect access points without redundant cabling, by wirelessly extending Wi-Fi signal to farther and hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Technical Specification

• 2.4 GHz: 4x 4.0 dBi
• 5 GHz_1: 4x 5.0 dBi (Smart Antennas)
• 5 GHz_2: 4x 5.5 dBi (Smart Antennas)
• 6 GHz: 4x 5.0 dBi

• 6 GHz:4804 Mbps
• 5 GHz_1: 2402 Mbps
• 5 GHz_2: 2402 Mbps
• 2.4 GHz: 1148 Mbps

• 44.9 W (802.3bt, full functionality)
• 40.6 W (12/4.5A, full functionality)
• 25.5 W (802.3at, 5GHz-2 and 6 GHz off)
• 12.95 W (802.3af, radio off, only main chip and LAN working)
