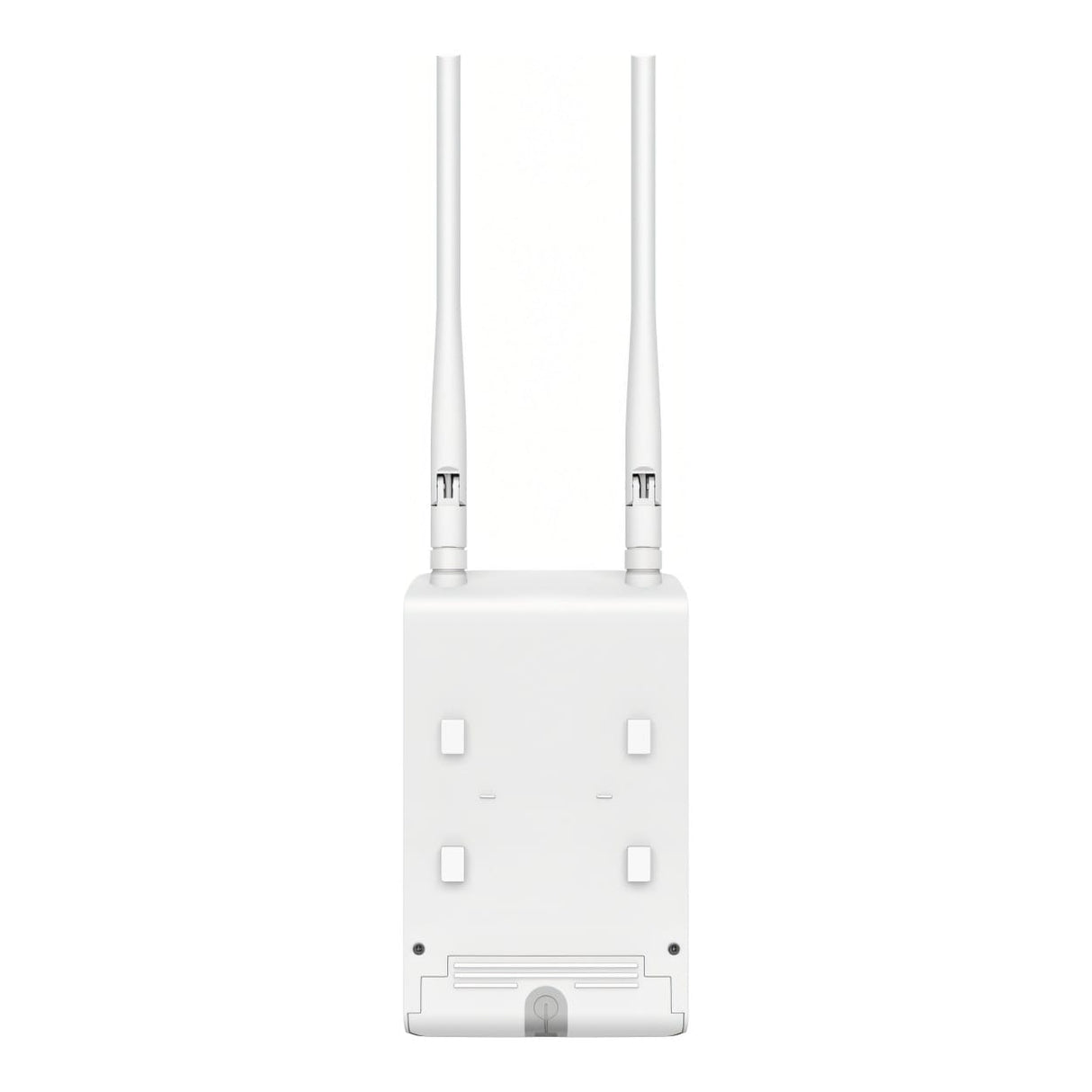

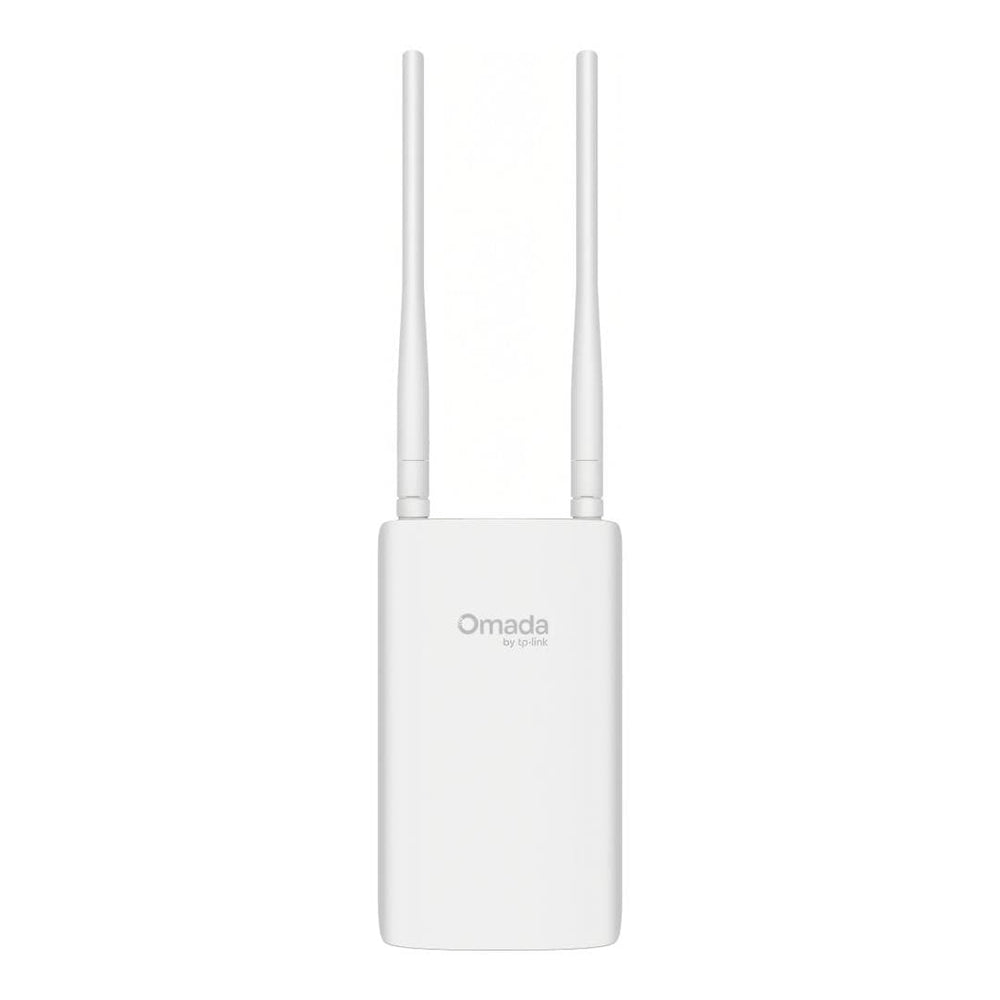

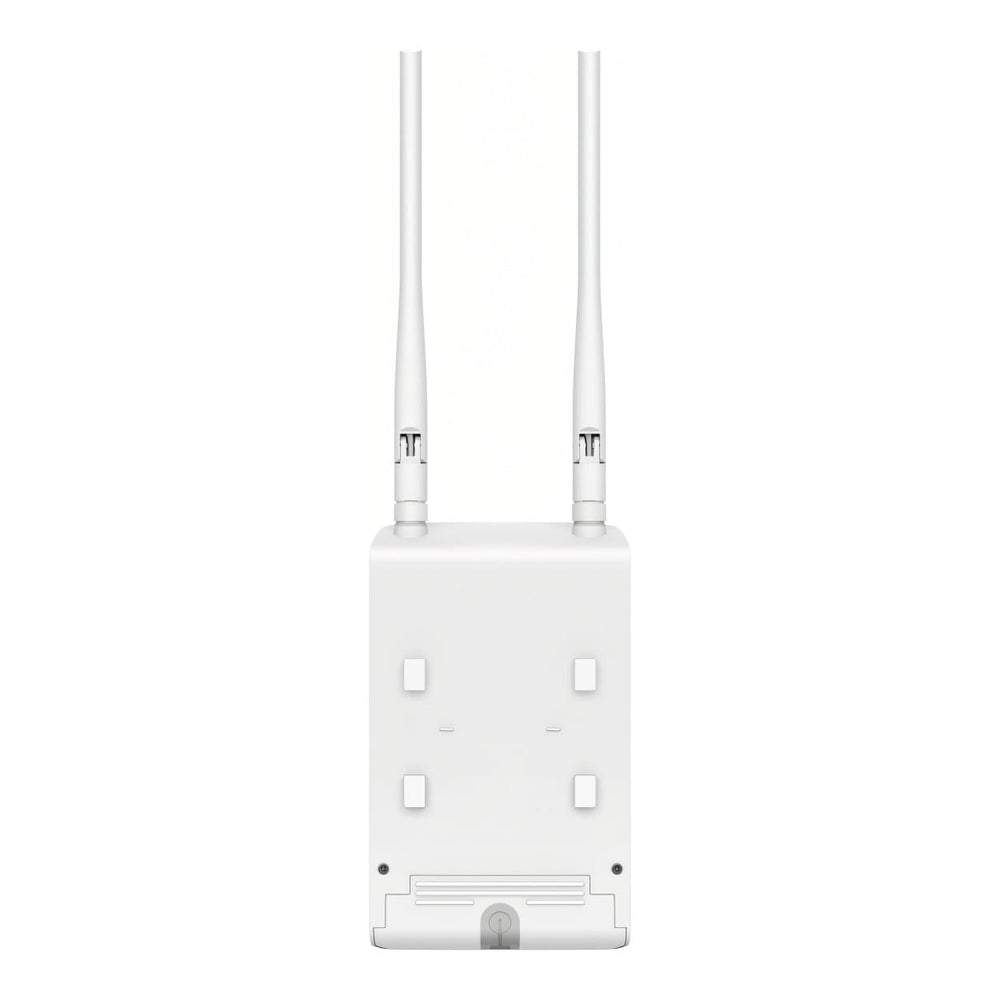

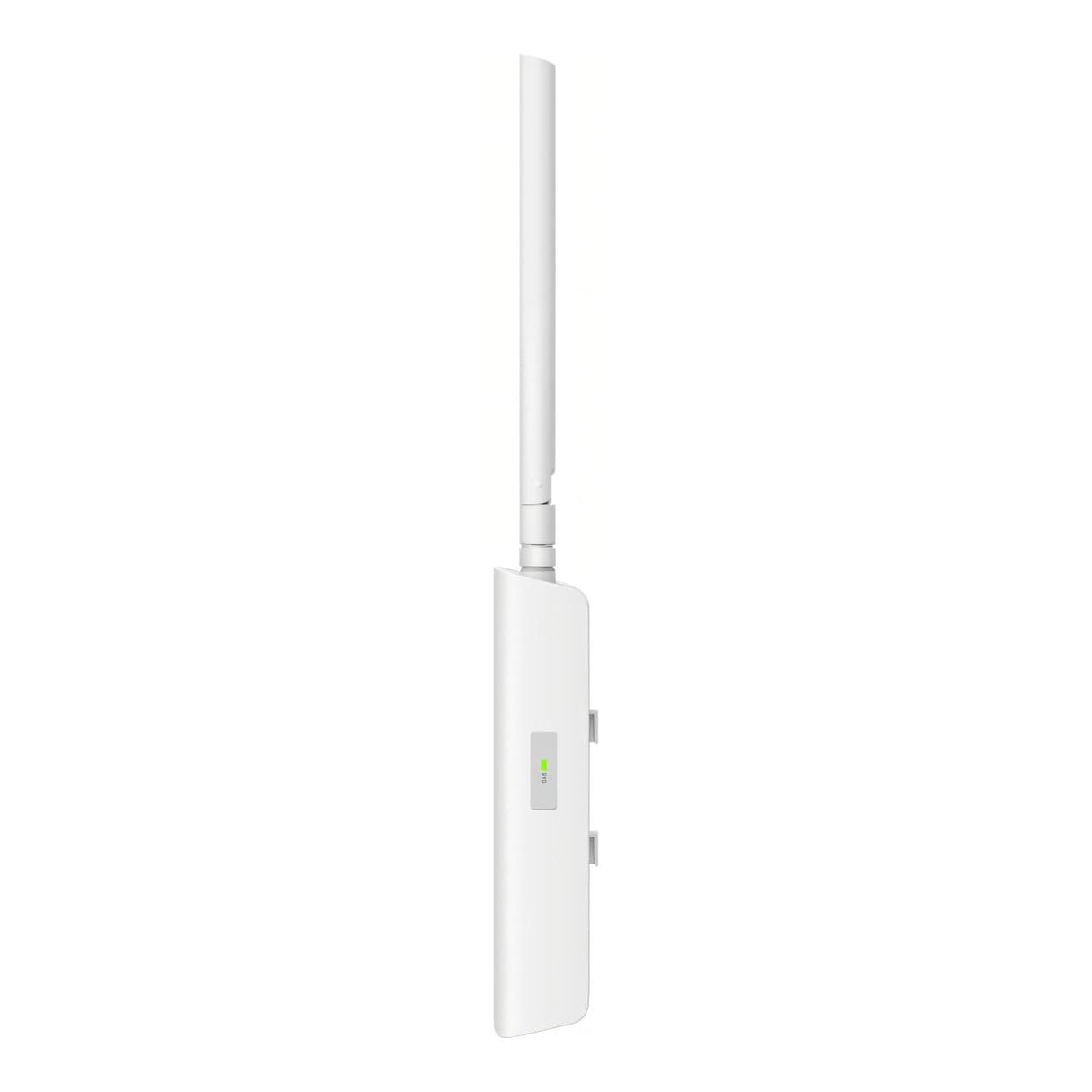

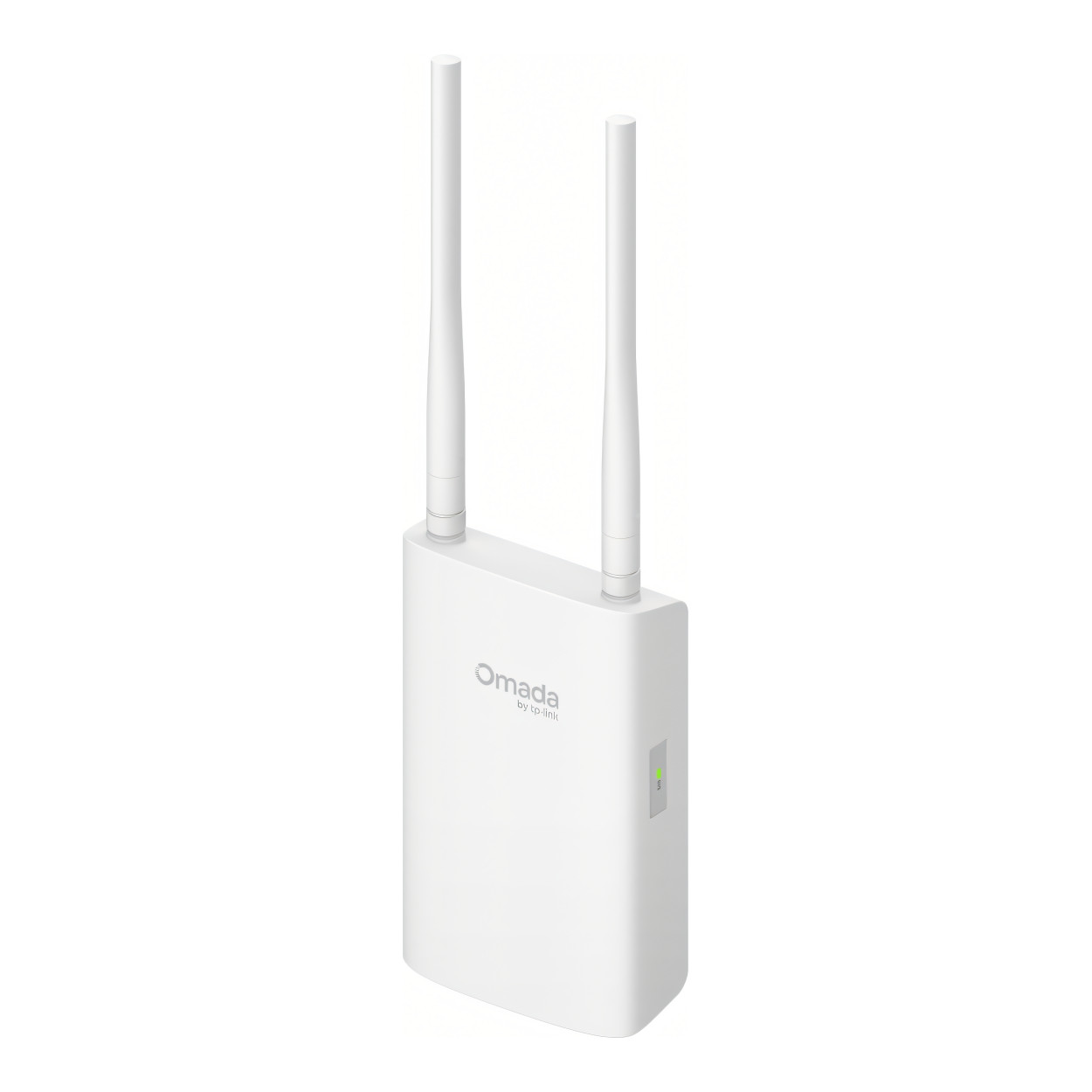

TP-Link Omada EAP603-Outdoor AX1800 Wireless Dual-Band Indoor/Outdoor Access Point

TP-Link Omada EAP603-Outdoor AX1800 Wireless Dual-Band Indoor/Outdoor Access Point

The TP-Link Omada EAP603-Outdoor is an AX1800 dual-band Wi-Fi 6 access point designed to deliver reliable wireless connectivity across indoor and outdoor business environments. It provides combined wireless rates of up to 1775Mbps, with up to 574Mbps on the 2.4GHz band and 1201Mbps on 5GHz. External omnidirectional antennas, long-range coverage, PoE+ and Passive PoE powering, Omada Mesh, seamless roaming and centralized cloud management make it suitable for outdoor cafés, farms, yards, parks, pools and other professional wireless deployments.

Key Features

• AX1800 dual-band Wi-Fi 6 wireless access point.
• Up to 574Mbps on 2.4GHz and 1201Mbps on 5GHz.
• Combined wireless rates up to approximately 1.8Gbps.
• 2 × external omnidirectional antennas per Wi-Fi band.
• Up to 200m coverage on 2.4GHz and 300m on 5GHz under suitable conditions.
• 1 × Gigabit Ethernet RJ45 port with PoE input.
• Supports IEEE 802.3at PoE+ and 48V Passive PoE.
• Passive PoE adapter included.
• IP66 protection when wall mounted and IP65 when pole mounted.
• 6kV lightning protection for demanding outdoor installations.
• Omada Mesh and Seamless Roaming support.
• Centralized management through the Omada SDN platform.

AX1800 Wi-Fi 6 Performance

The EAP603-Outdoor combines Wi-Fi 6 connectivity across the 2.4GHz and 5GHz bands. Wireless rates reach up to 574Mbps at 2.4GHz and 1201Mbps at 5GHz for a combined rate of approximately 1775Mbps. Technologies including OFDMA, MU-MIMO and 1024-QAM help improve wireless efficiency in environments with multiple connected devices.

Long-Range Omnidirectional Coverage

External omnidirectional antennas and high-power amplifiers are designed to provide broad wireless coverage across outdoor environments. Omada specifies coverage of up to 200m on the 2.4GHz band and up to 300m on 5GHz under suitable conditions. Actual coverage and performance vary according to obstacles, interference, client devices and installation environment.

Flexible PoE Deployment

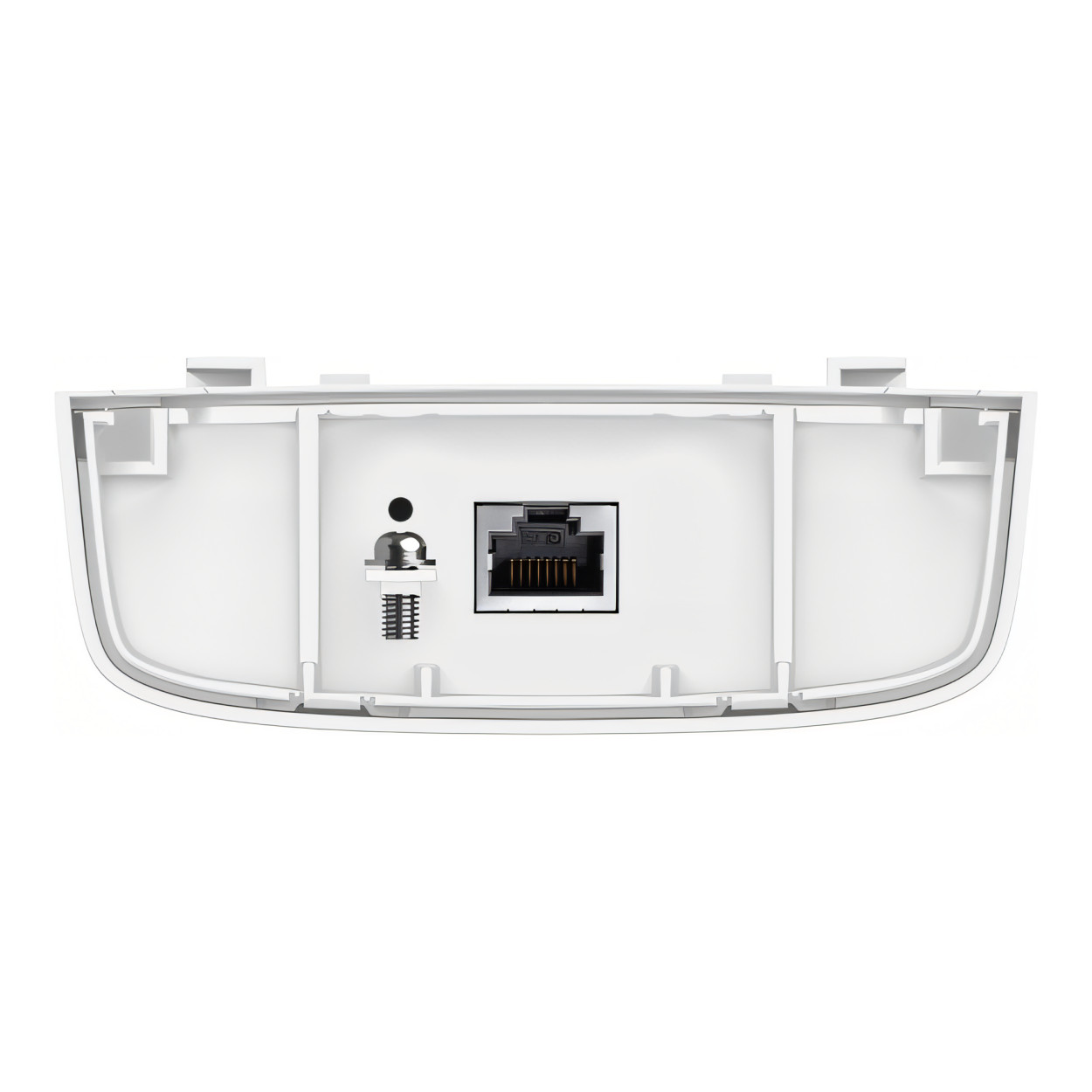

A Gigabit Ethernet port provides both network connectivity and power input. The EAP603-Outdoor supports IEEE 802.3at PoE+ for connection to compatible PoE switches and also supports 48V Passive PoE using the supplied adapter. The included Passive PoE adapter is intended for installation in a dry indoor environment.

Designed for Outdoor Environments

The enclosure is engineered for demanding indoor and outdoor deployments. Omada specifies IP66 weather protection when the access point is wall mounted and IP65 protection when pole mounted. The unit also incorporates 6kV lightning protection to improve resilience in outdoor installations.

Omada Mesh and Seamless Roaming

Omada Mesh enables compatible access points to extend network coverage without requiring a wired uplink at every deployment point. Seamless Roaming technologies help compatible wireless clients transition between access points as users move through the coverage area, supporting more consistent connectivity across larger installations.

Centralized Omada Management

Integration with the Omada SDN ecosystem enables centralized configuration and monitoring through compatible Omada controllers and cloud management platforms. Features such as automatic device identification and streamlined adoption help simplify multi-access-point deployment and ongoing network administration.

Technical Specifications

What’s in the Box:

• TP-Link Omada EAP603-Outdoor AX1800 Wi-Fi 6 Access Point
• External Antennas
• 48V Passive PoE Adapter
• Wall/Pole Mounting Kit
• Installation Documentation

The TP-Link Omada EAP603-Outdoor combines AX1800 Wi-Fi 6 performance, long-range omnidirectional coverage and weather-resistant construction with flexible PoE deployment and centralized Omada management. With Gigabit Ethernet, Mesh networking, seamless roaming and coverage rated up to 300m on 5GHz under suitable conditions, it provides a scalable wireless solution for professional indoor and outdoor environments.
