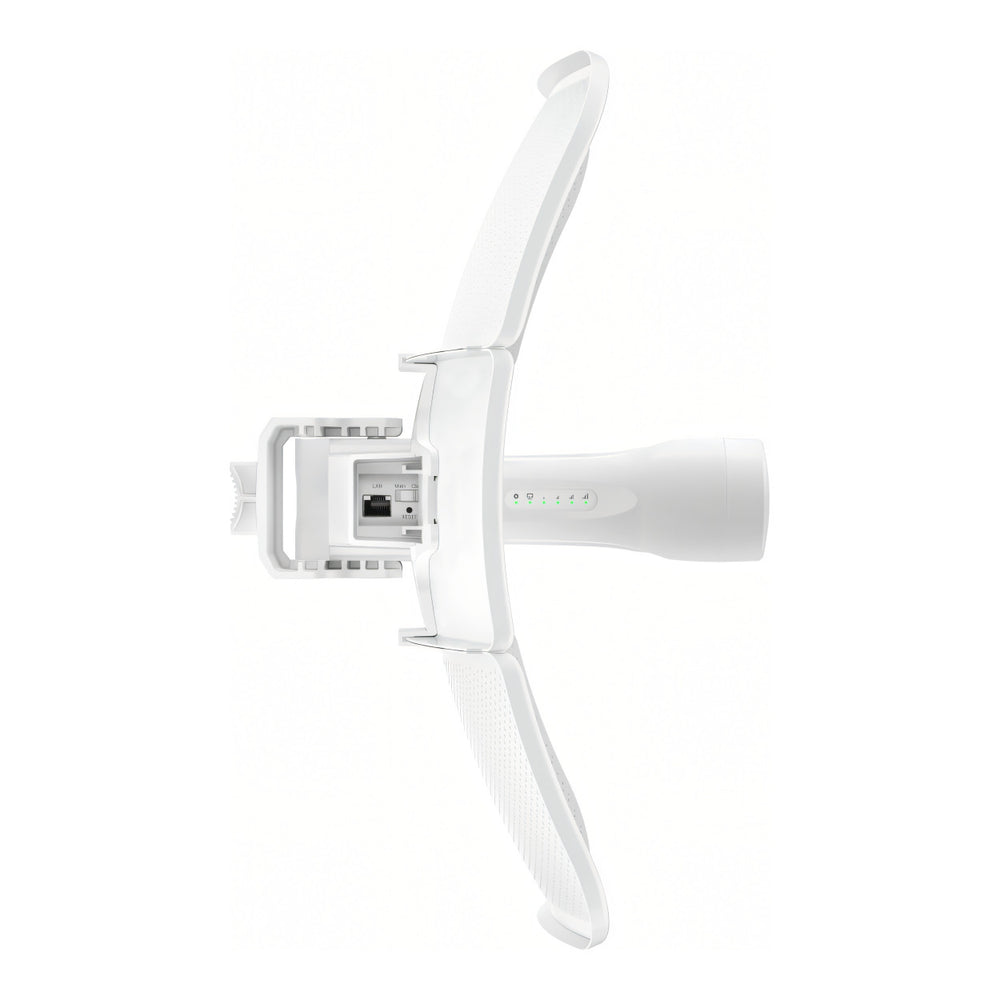

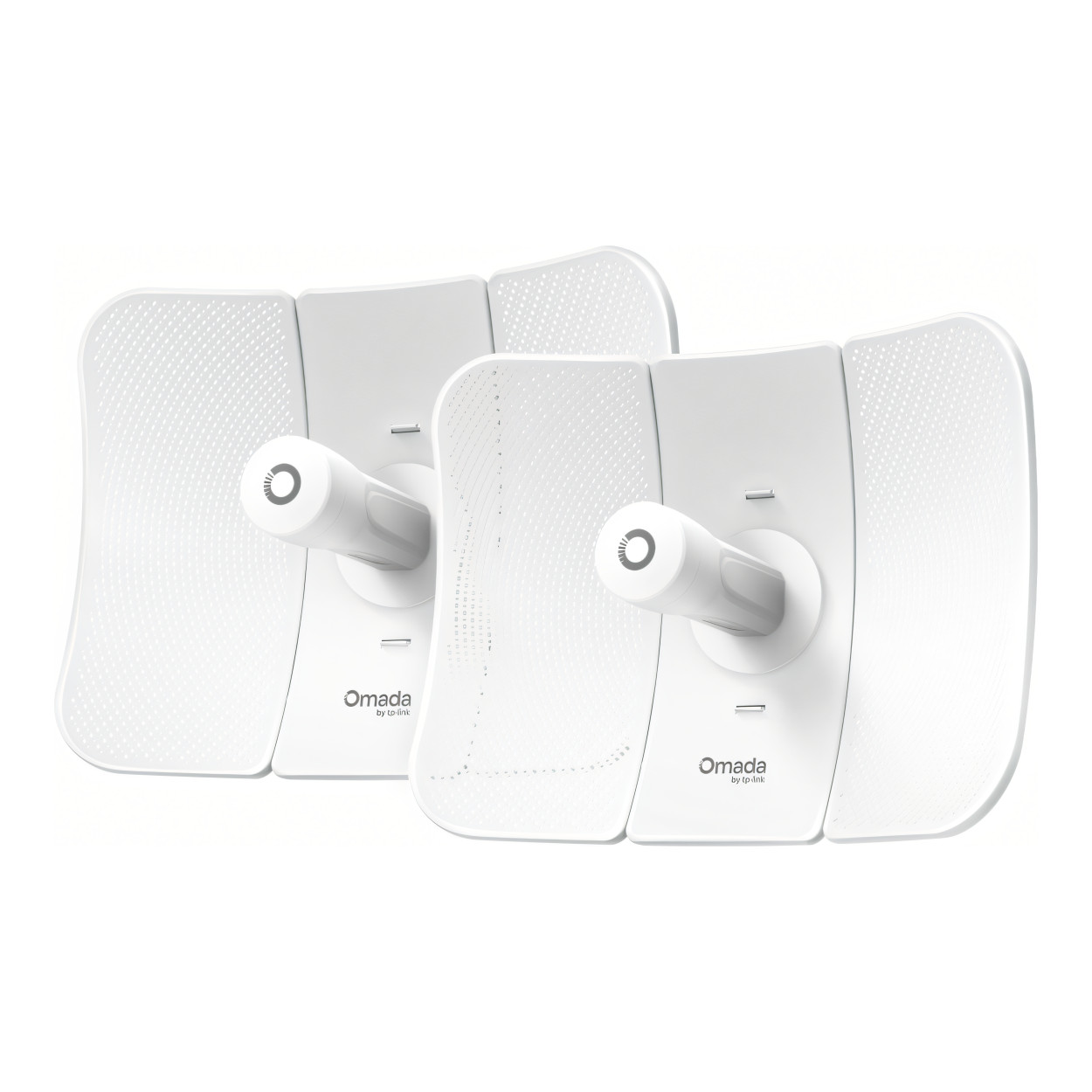

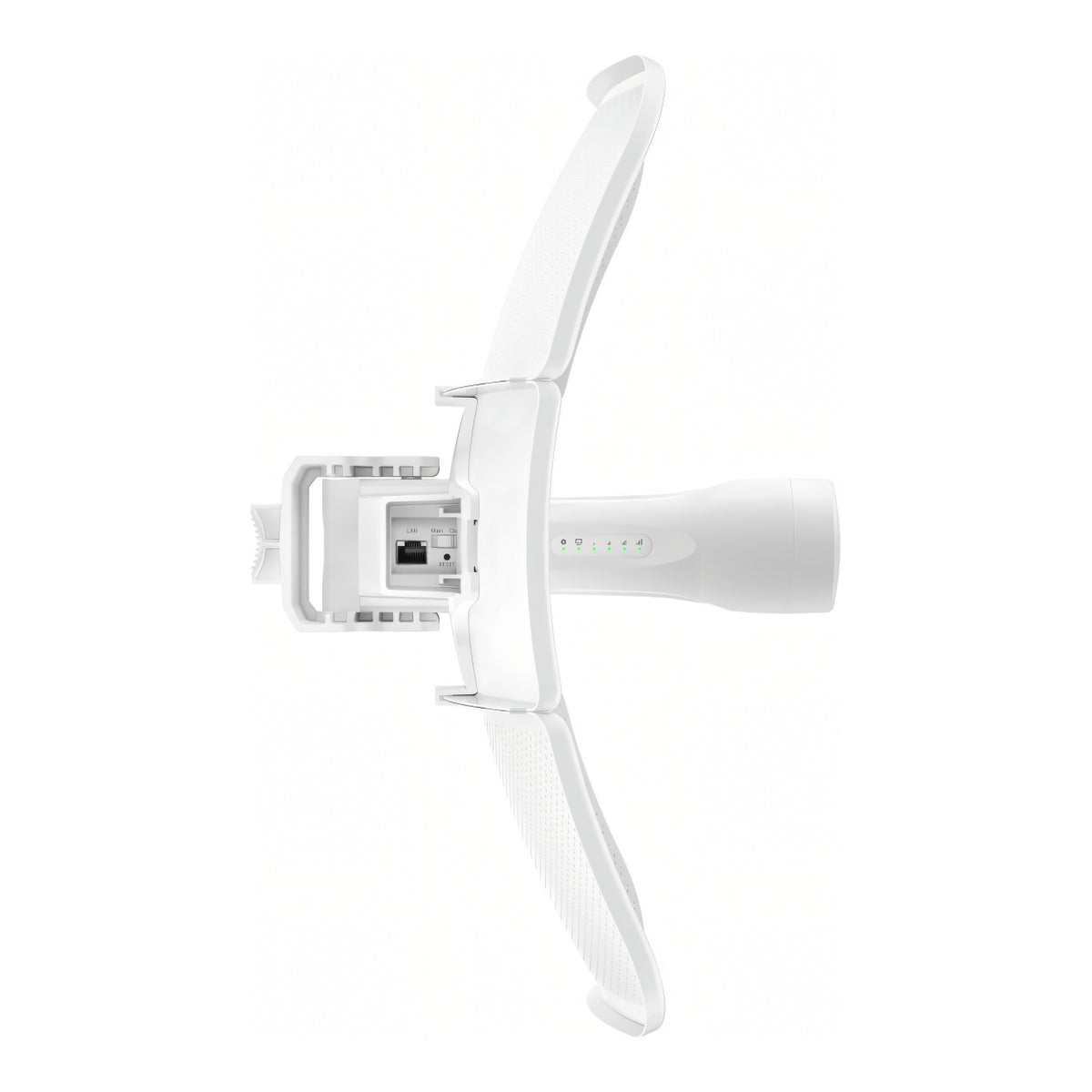

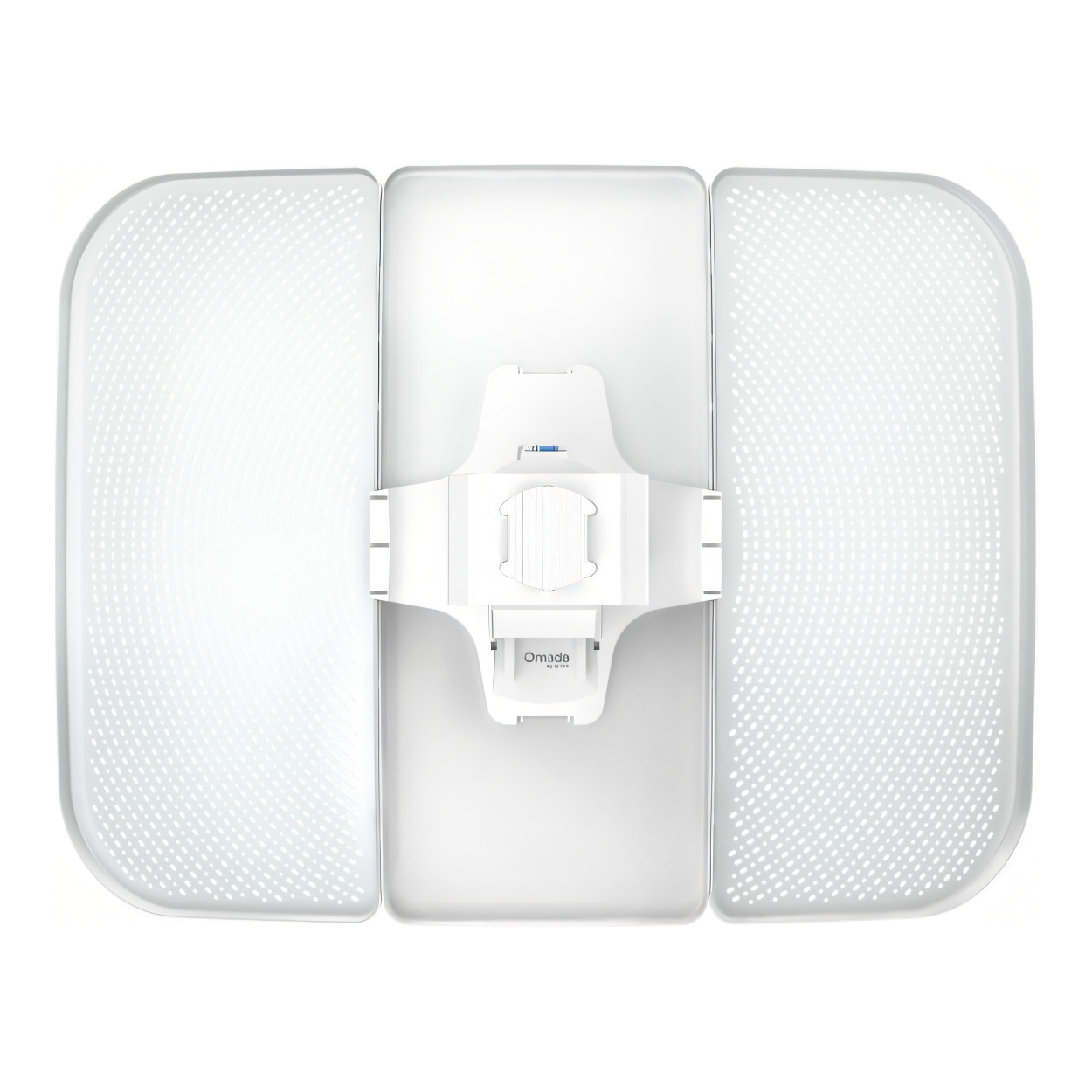

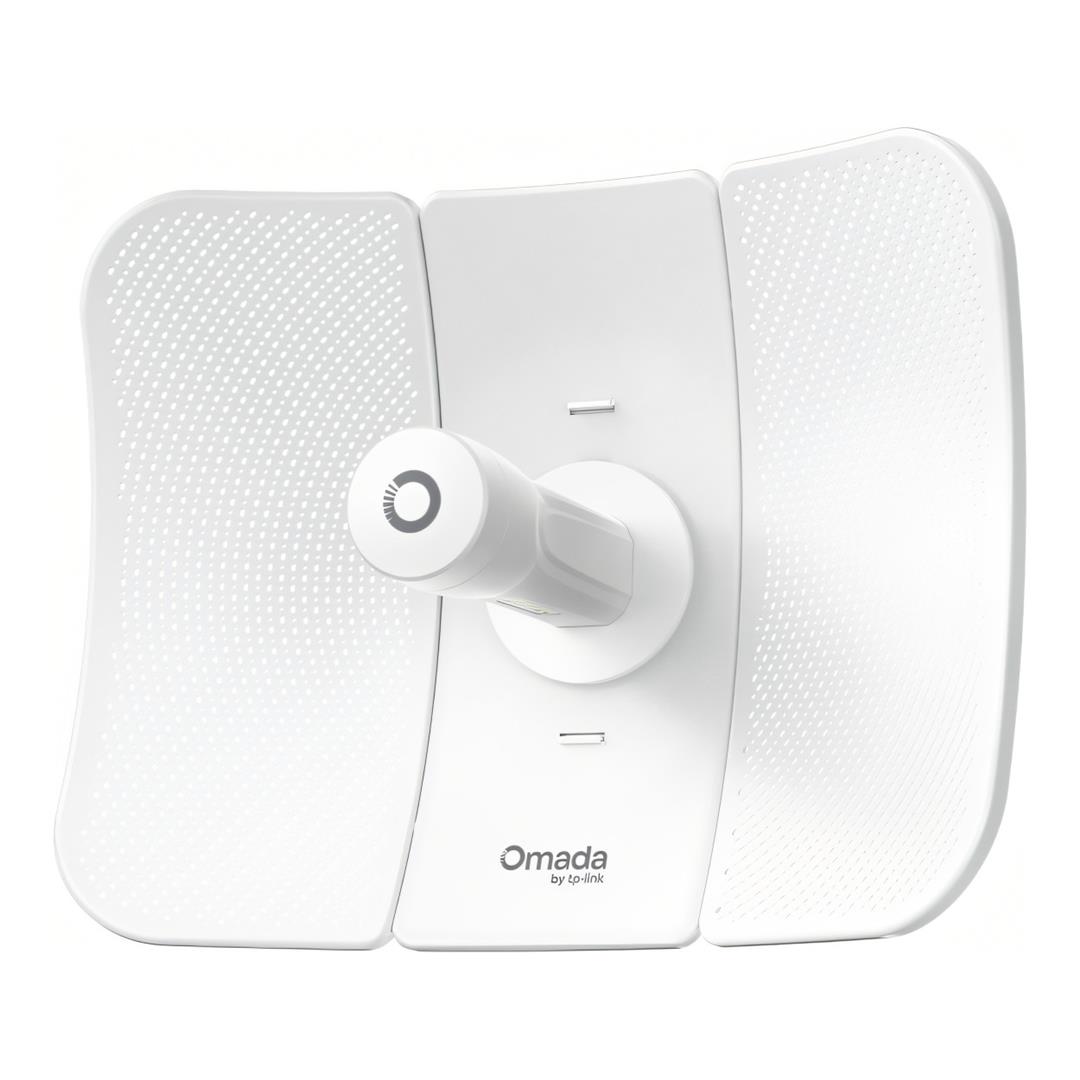

TP-Link Omada Beam Bridge 5 UR KIT 5GHz Ultra-Range Indoor/Outdoor Wireless Bridge
The Omada Beam Bridge 5 UR KIT is a preconfigured 5GHz wireless bridge solution designed to create reliable point-to-point network connections across long distances. With up to 867Mbps wireless signalling, high-gain 23dBi directional antennas and a maximum specified transmission distance of up to 15km, it is suited to connecting buildings, surveillance networks and remote outdoor sites where running physical network cabling may be impractical. Auto-pairing and app-guided alignment help simplify deployment, while IP65 weather protection supports demanding outdoor installations.
Key Features
- 5GHz 802.11ac wireless bridge with speeds of up to 867Mbps.
- Ultra-range point-to-point transmission of up to 15km under suitable conditions.
- 23dBi high-gain 2×2 dual-polarised directional MIMO antennas.
- Preconfigured auto-pairing for simplified point-to-point deployment.
- App-guided antenna alignment and built-in speed testing assist installation.
- Gigabit Ethernet with 802.3af PoE and 24V/48V passive PoE support.
- IP65 weatherproof enclosure with ±6kV Ethernet lightning protection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Omada |
| Model | Beam Bridge 5 UR KIT |
| Product Type | Indoor / Outdoor Wireless Bridge Kit |
| Wireless Application | Point-to-Point (PtP) Wireless Bridge |
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Frequency | 5GHz |
| Maximum Wireless Signal Rate | Up to 867Mbps |
| Channel Width | 20MHz / 40MHz / 80MHz |
| Wireless Transmission Distance | Up to 15km (9.3 miles) under Suitable Conditions |
| Wireless Configuration | 2×2 MIMO |
| Antenna Type | Dual-Polarised Directional MIMO |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9° Horizontal / 7° Vertical |
| Ethernet Interface | 1 × 10/100/1000Mbps Gigabit RJ45 PoE-In Port per Bridge |
| Power Supply | 802.3af PoE / 24V or 48V Passive PoE |
| Maximum Power Consumption | 15.8W |
| Pairing | Preconfigured Auto-Pairing |
| Installation Tools | App-Guided Alignment / Signal Strength Indicators / Speed Test |
| Wireless Features | MU-MIMO / Channel Optimisation / Automatic Channel Selection / Rate Limit / Guest Network |
| Wireless Security | VLAN / Rogue AP Detection / MAC Filtering / Wireless Encryption |
| Management | Standalone / Omada Central / Omada Hardware Controller / Omada Software Controller |
| Management Interfaces | Omada App / Web UI / SNMP / SSH |
| Cloud Access | Yes, with Omada Controller |
| Weather Protection | IP65 |
| Lightning Protection | ±6kV on Ethernet Port |
| Mounting | Pole Mount |
| Dimensions (W × D × H) | 366 × 280 × 207mm |
| Weight | 1.1kg |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Certifications | CE / FCC / RoHS |
| What's in the Box: |
|
Extend network connectivity between distant locations with the preconfigured Omada Beam Bridge 5 UR KIT and its long-range directional wireless design.
