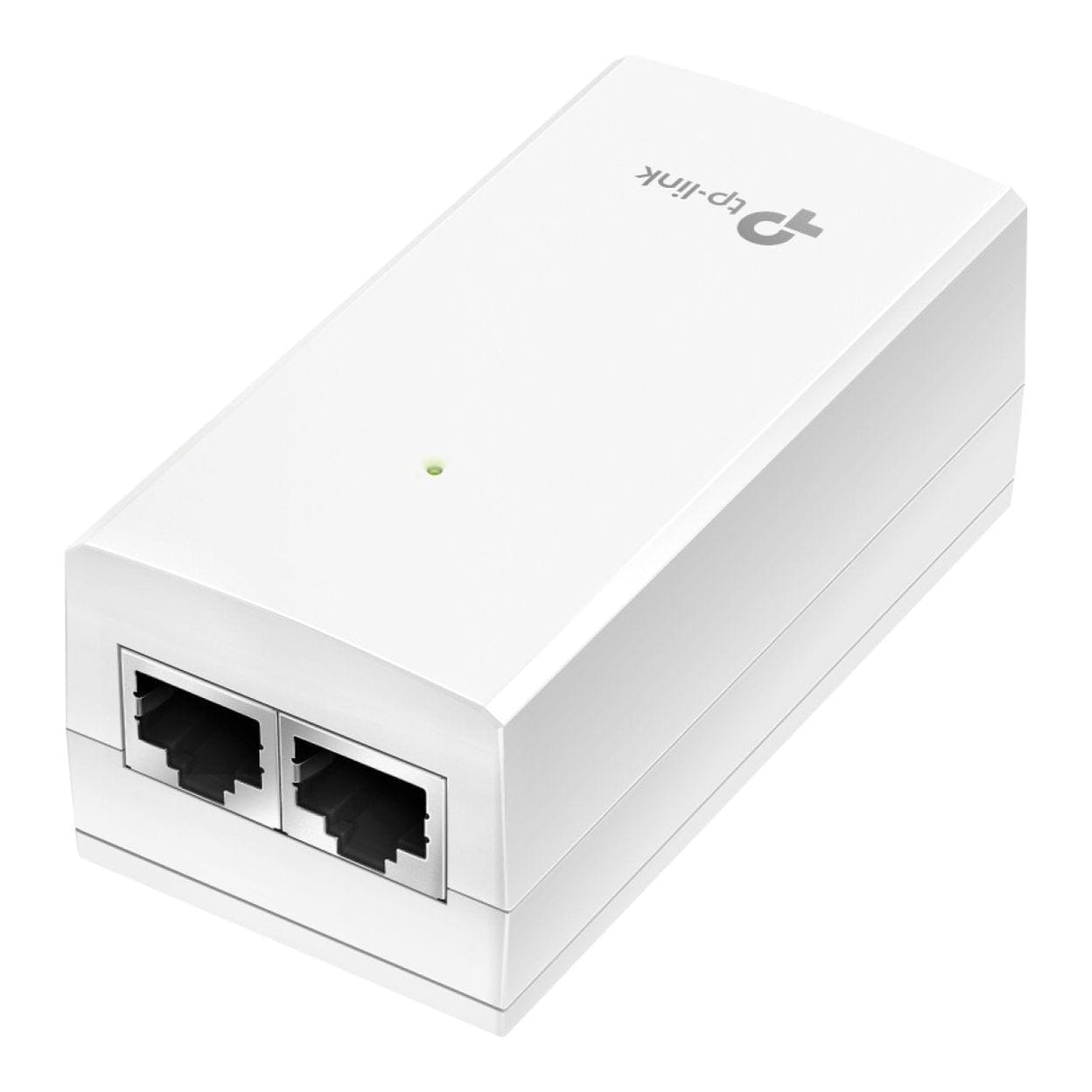

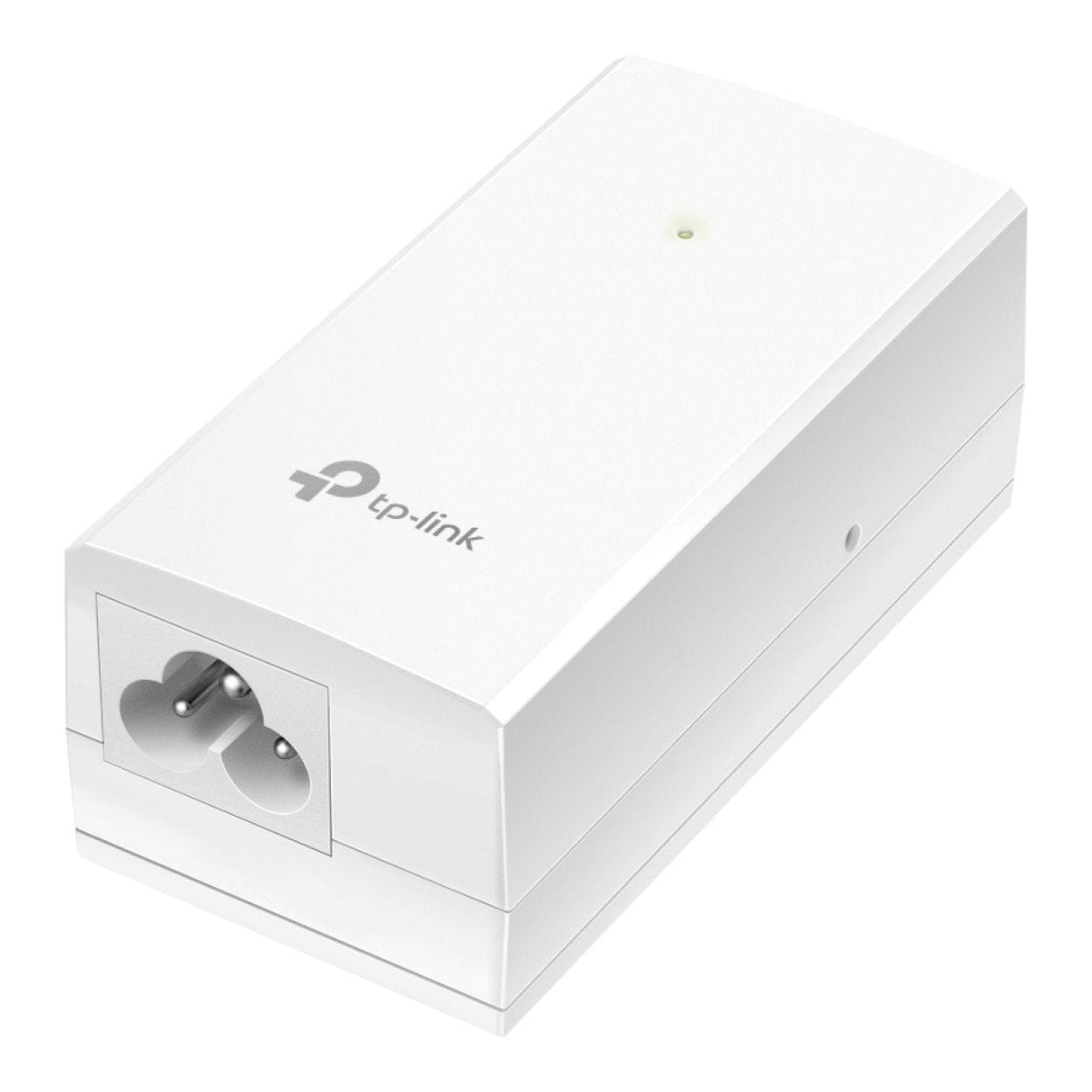

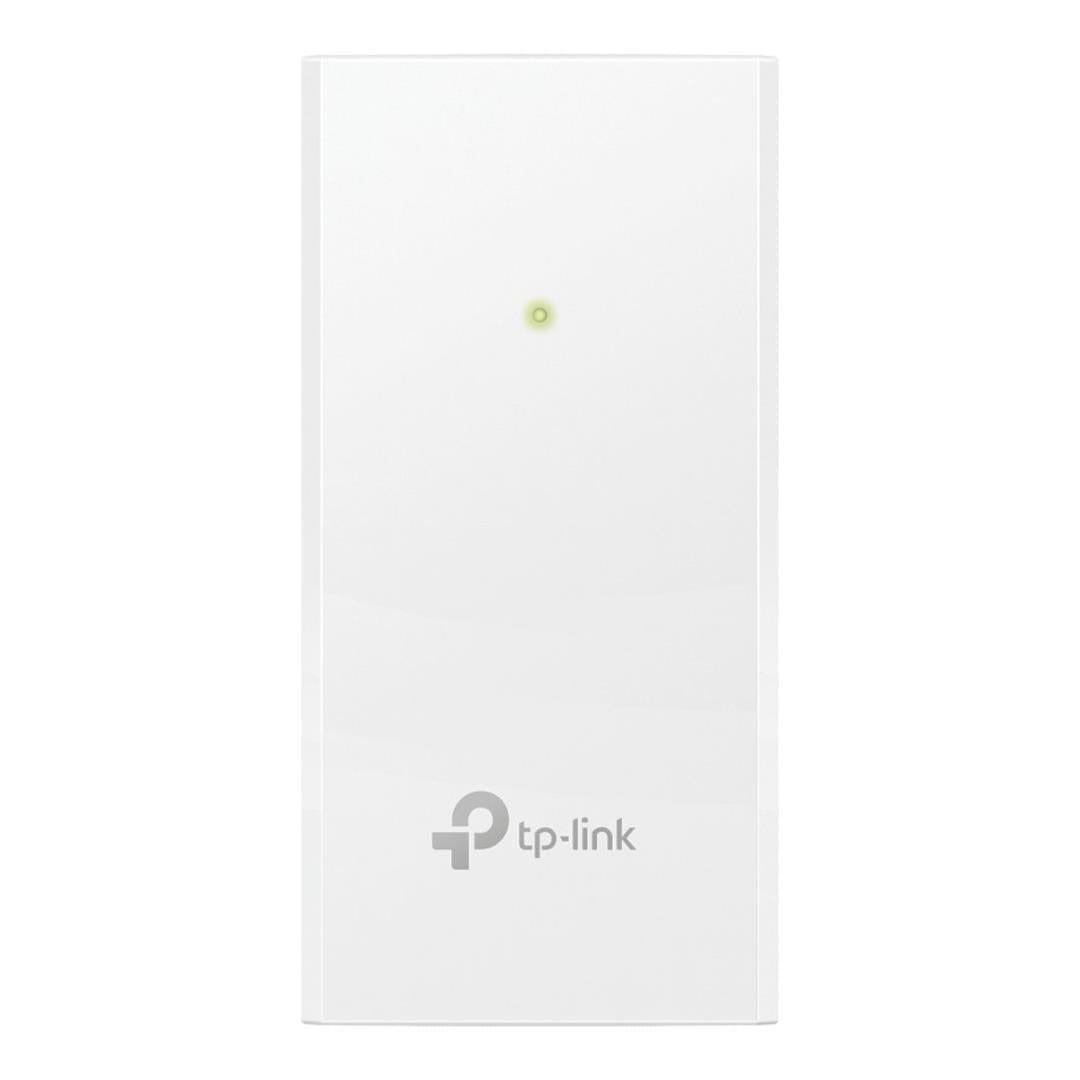

TP-Link Omada 48V PoE Adapter POE4818G

TP-Link Omada 48V PoE Adapter POE4818G

Passive PoE Adapter

Powers TP-Link products that support 48V passive PoE

Power Your Devices

Use the passive PoE adapter POE4818G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design

POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices

POE4818G is recommended to offer power supply to TP-Link’s passive PoE products which as follows.

• 48V Passive PoE supported
• Auto-determine the necessary power requirements
• Convenient wall-mounting design
• Gigabit speed support
• Plug-and-Play, requires no configuration

Specifications:

Interface

• 1 10/100/1000Mbps RJ45 Shielded Data IN Port
• 1 10/100/1000Mbps RJ45 Shielded Passive PoE Port
• 1 100~240V / 50~60Hz AC Power Input Port

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

LED Indicator: PWR

Dimensions (W x D x H): 85.8 × 43.9 × 35.0 mm

Certification: FCC, CE, RoHS
