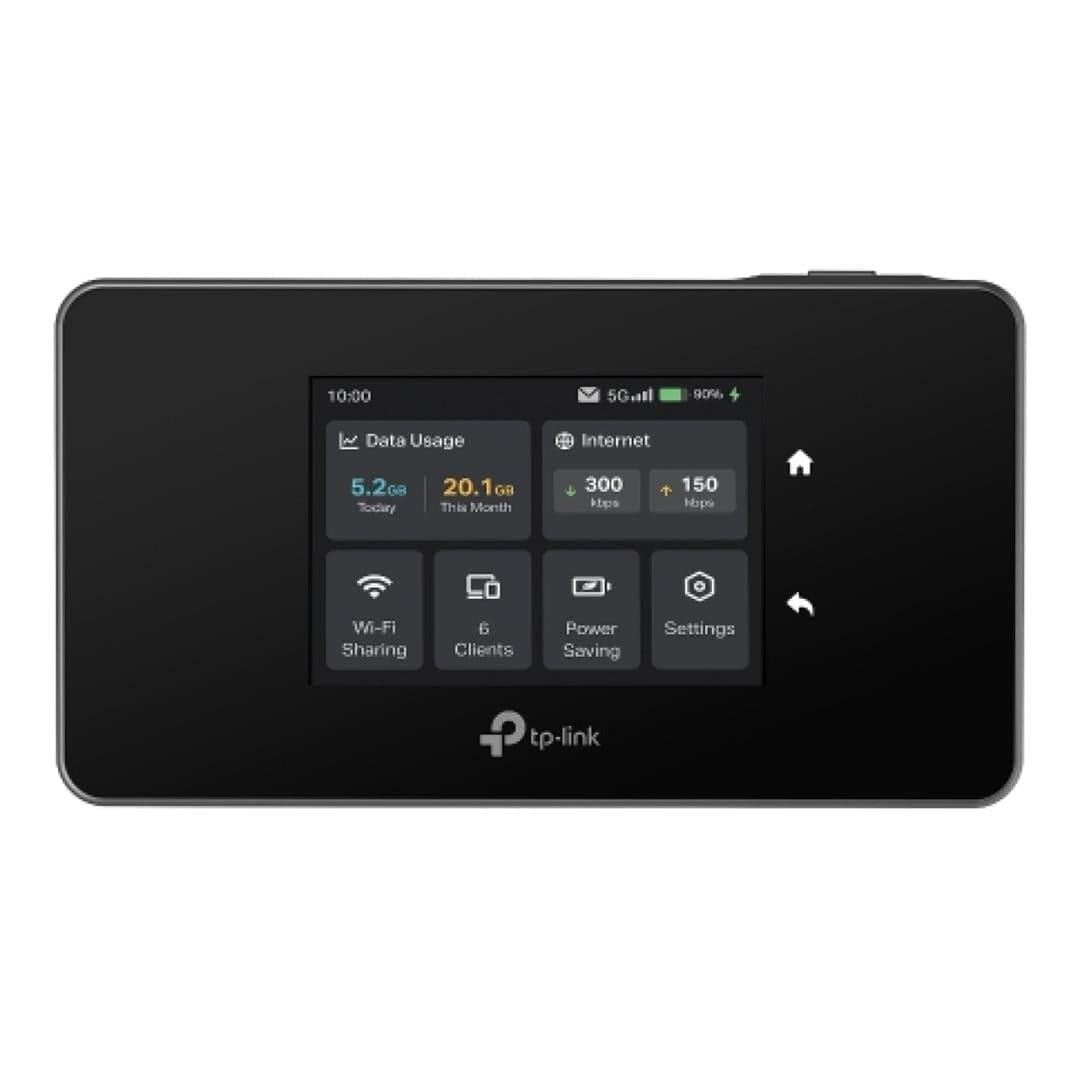

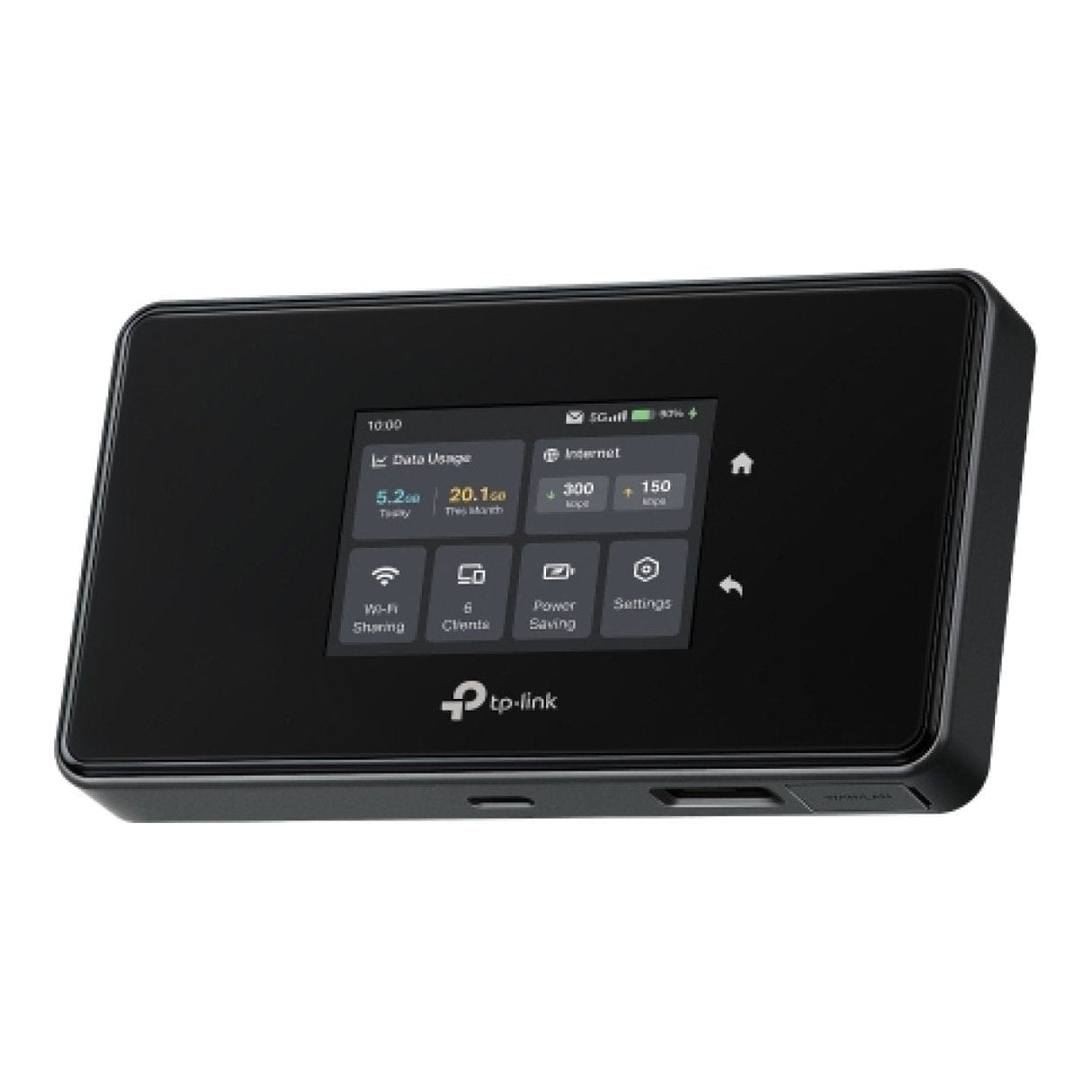

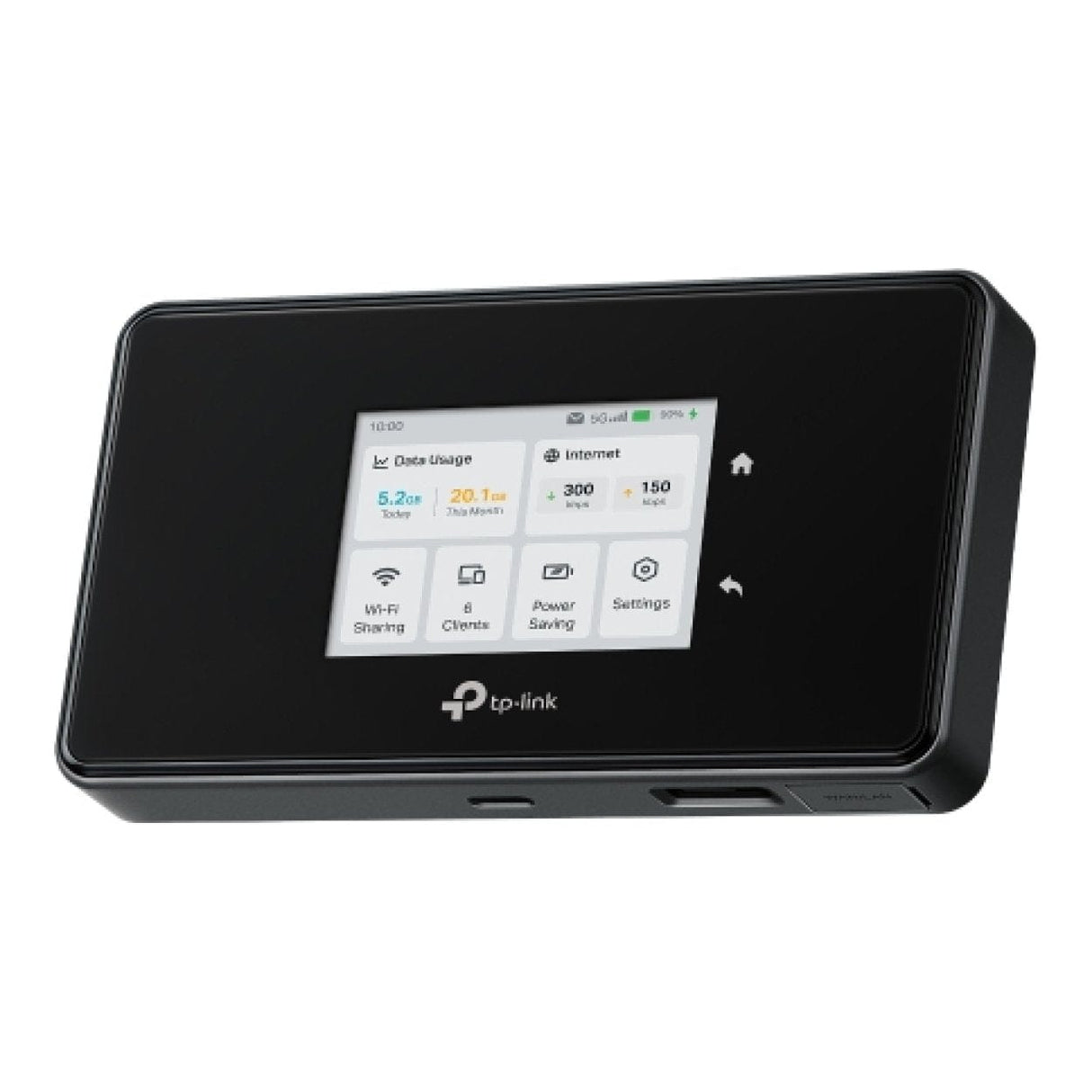

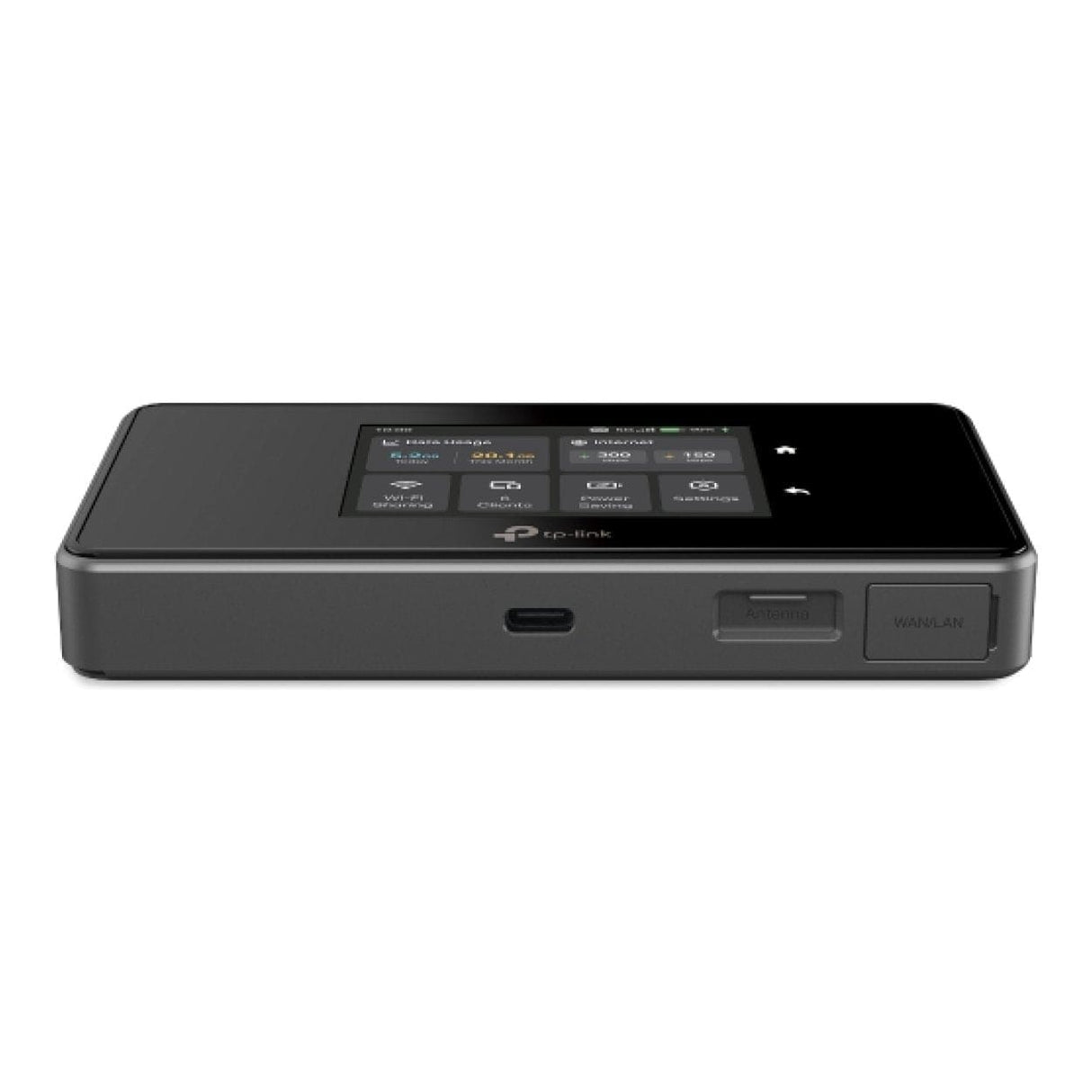

TP-Link M8550 5G Mobile Wi-Fi Router

TP-Link M8550 5G Mobile Wi-Fi Router

Share 5G Speed with Reliable Wi-Fi

Thanks to cutting-edge 5G tech, M8550 boosts up to 3.4 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6E technology, M8550 is designed to deliver a huge boost in coverage, speed, and total capacity.

Features:

• Superior 5G - Up to 3.4 Gbps Download Speed
• Powerful Wi-Fi 6E - Tri-Band AXE3600 Network
• Gigabit WAN/LAN Port - Provide Stable and Versatile Wired Connection
• Touch Screen - Easy Management at your fingertip
• VPN Encryption - Secure Access to Remote Servers
• Easy Network Sharing - Supports up to 32 devices simultaneously

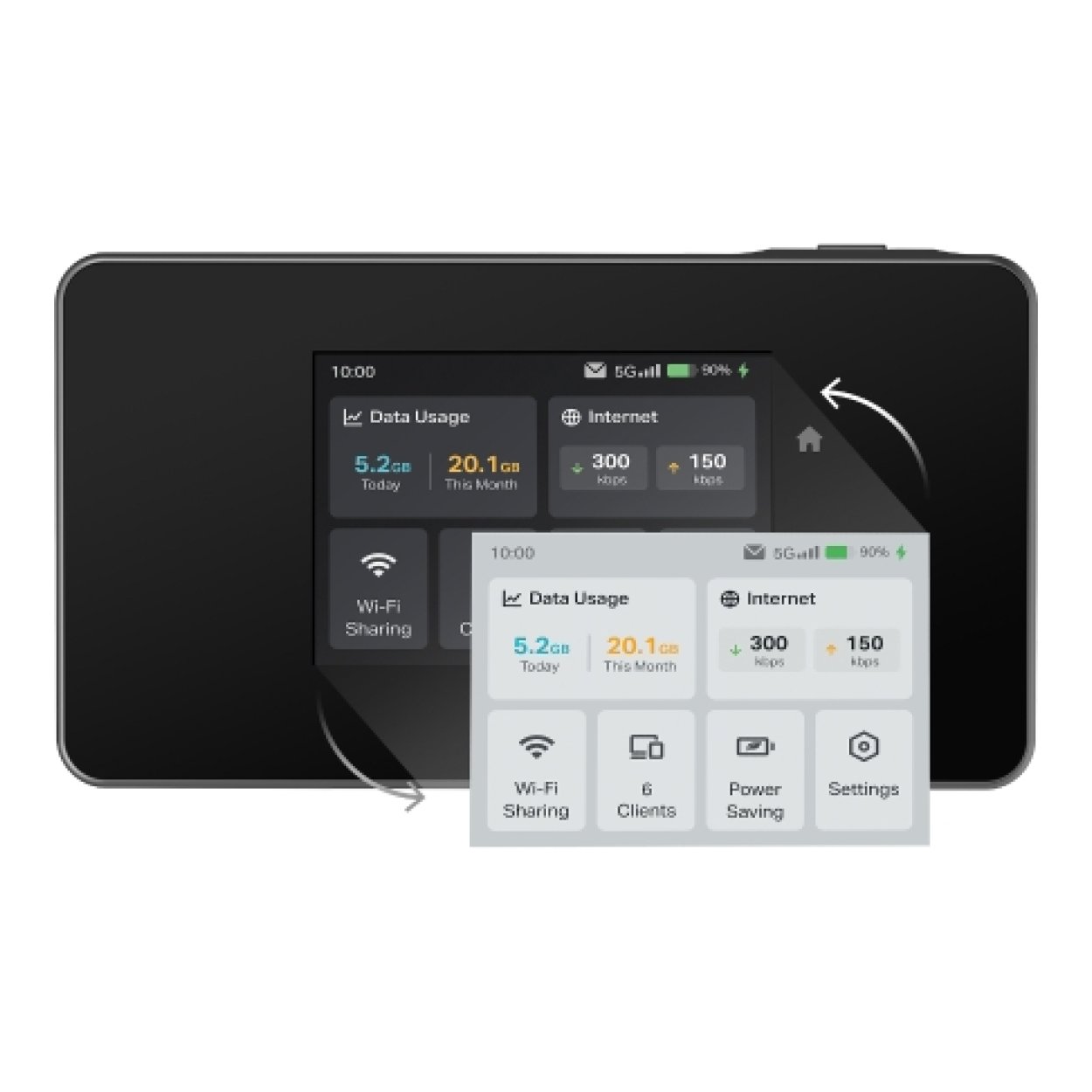

Premium Touchscreen, Instant Access

The intuitive screen display of M8550 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.

VPN Enhance Your Security

For professionals on the move, M8550 ensures safe and reliable access to corporate networks without individual device VPN installation and configuration. With WireGuard VPN, your data stays encrypted, protecting sensitive information while you work remotely. Stay productive, stay secure.

Technical Specifications:

HARDWARE FEATURES

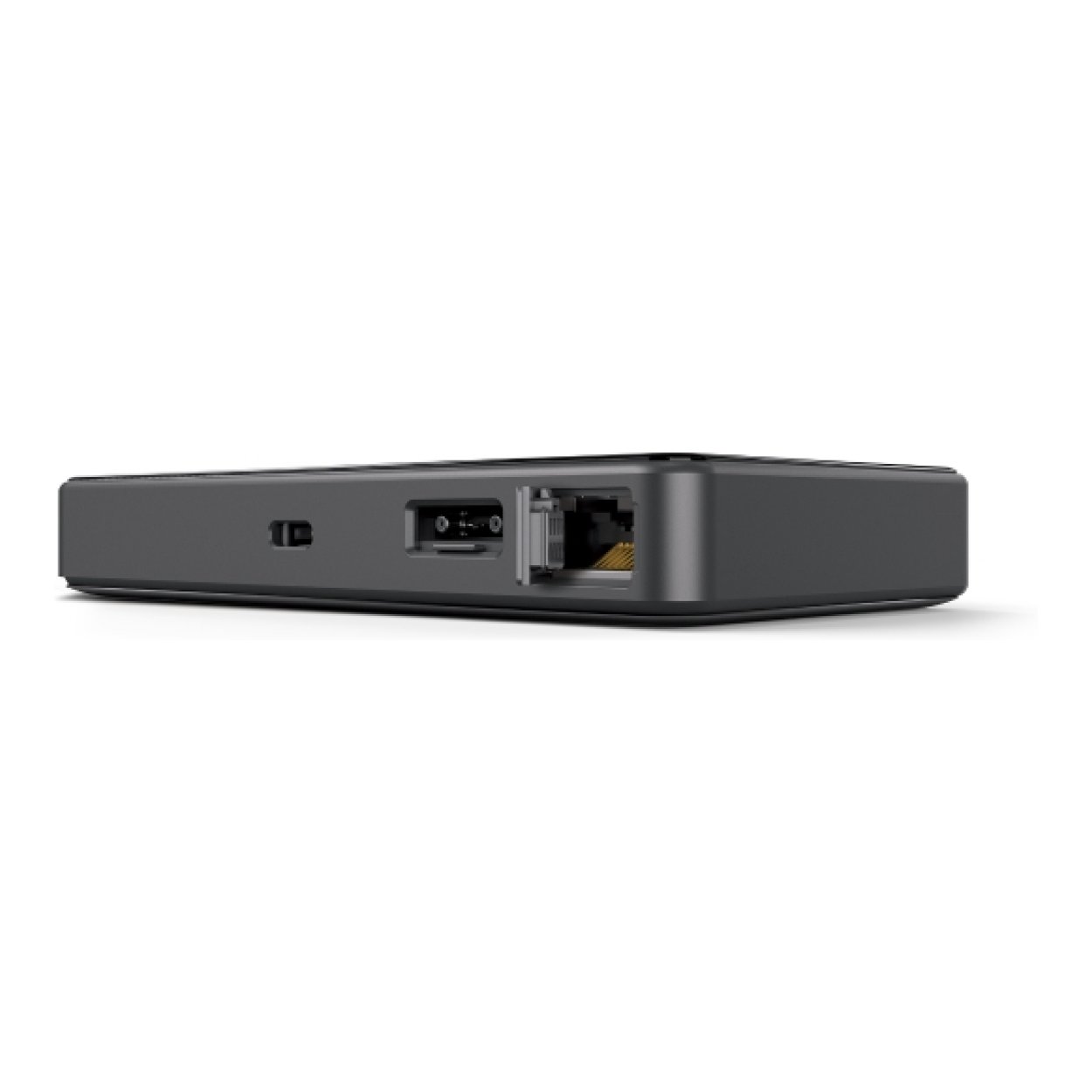

Interface: 1× USB-C Port for Power Supply, 1× Gigabit WAN/LAN Port, 1× Nano SIM Card Slot, 1× Micro SD Card Slot, 2× TS-9 Antenna Ports
Button: Power On/Off
Power Supply: 4680 mAh Rechargeable Battery; Charge Voltage: 5V-3A, 9V-2A, 12V-1.5A

Network Type: US Version
5G: N2/N5/N12/N14/N25/N29/N30/N41/N48/N66/N71/N77
4G FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
4G TDD-LTE: B41/B46/B48

Data Rates
5G Downlink: 3.4 Gbps
5G Uplink: 900 Mbps
LTE/4G Downlink: 1.6 Gbps
LTE/4G Uplink: 200 Mbps

Dimensions (W x D x H): 135 × 73.7 × 20.5 mm
Antenna: Internal Antenna
Micro SD Card Reader: Up to 2 TB (SD card sold separately)
Screen Display: 2.4 inch TFT Touch Screen

WIRELESS FEATURES
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Speeds: 688 Mbps (2.4 GHz), 2880 Mbps (5 GHz), 2880 Mbps (6 GHz)
Frequency: 2.4 GHz, 5 GHz, 6 GHz
Wireless Modes: 2.4 GHz Only, 5 GHz Only, 6 GHz Only, 2.4 GHz & 5 GHz, 2.4 GHz & 6 GHz
Wireless Security: WPA-PSK/WPA2-PSK, Wireless MAC Filtering
DHCP: DHCP server, DHCP Client List
Transmission Power: 2.4G < 20 dBm, 5G < 23 dBm

VPN
Wireguard

OTHERS
Network Services Enabled by Default
Web Server (Port 80/443, HTTP/HTTPS)
DNS (Port 53, UDP)
DHCP Server (Port 67/547, DHCP/DHCPv6)
SSH for app (Port 20001, SSH)
Tmpd for app (Port 20002, Tmpd)

Certification: CE, RoHS

Package Content: 5G AXE3600 Mobile Router M8550, Power Adapter, USB-C Cable, 4680 mAh Battery, Quick Installation Guide

System Requirements: Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone

Power Supply: 5V-3A, 9V-2A, 12V-1.5A
