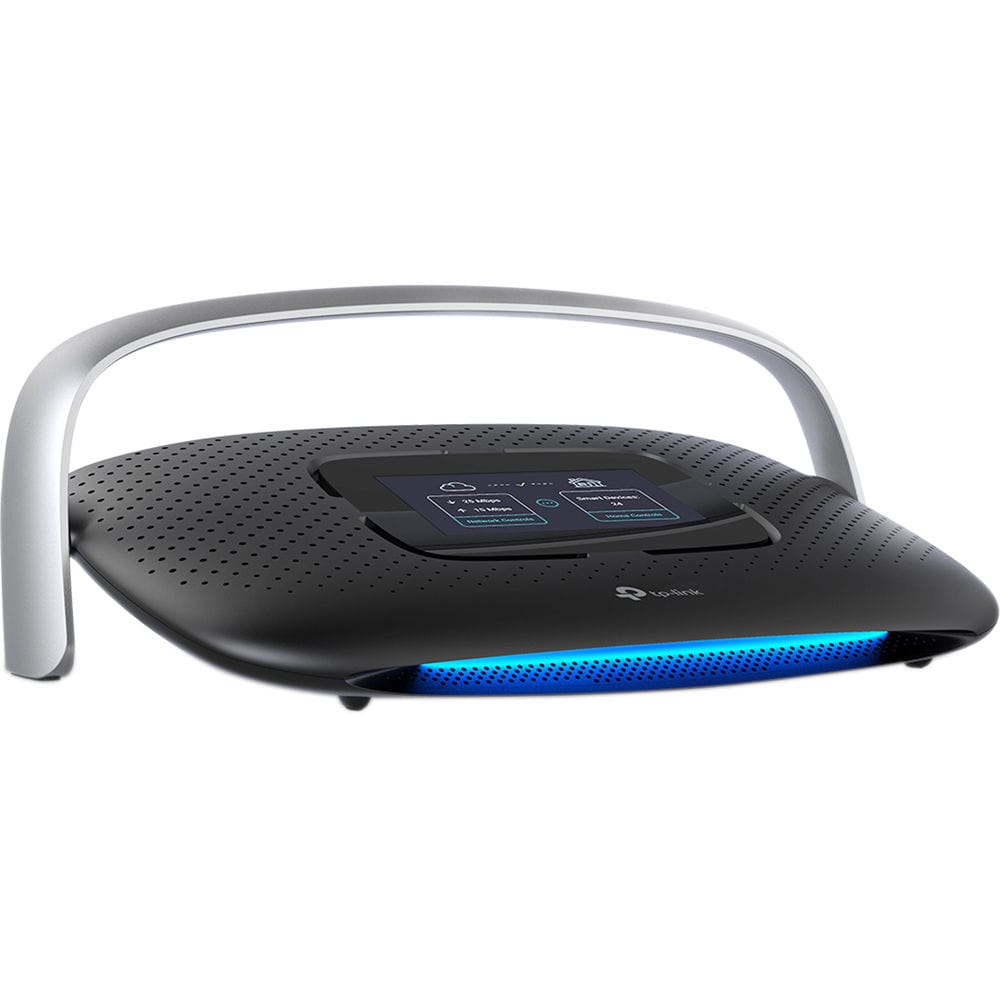

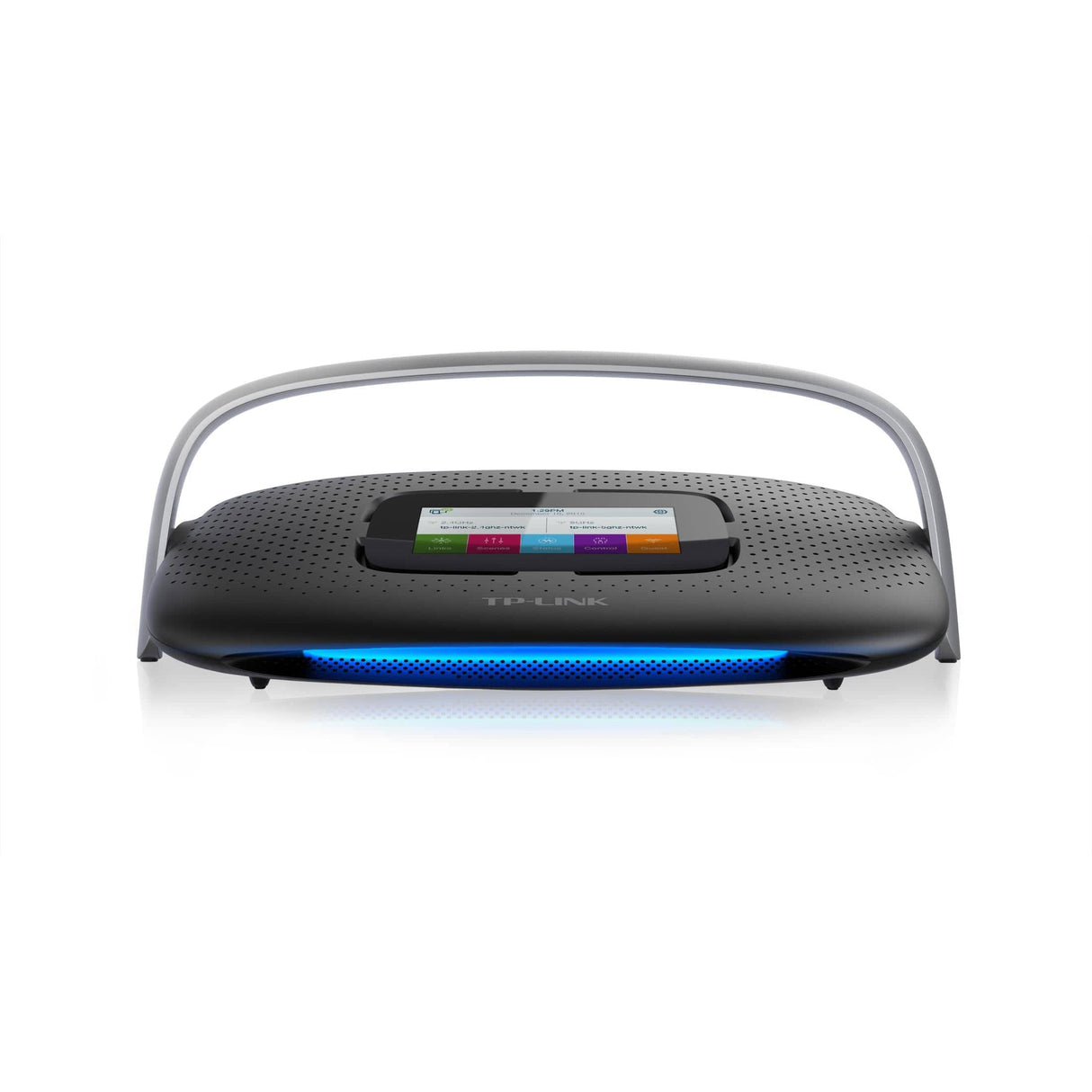

TP-Link Kasa SR20 All-In-One Smart Home Router and Hub

TP-Link Kasa SR20 All-In-One Smart Home Router and Hub

A Smart Home Starts with A Smarter Network

The SR20 makes it easy to set up and manage your smart home, whether you're just starting out or already fully integrated. It works with smart devices that use ZigBee and Z-Wave and serves as a Wi-Fi router for the rest of your wireless home.

Features:

• Connect your Wi-Fi, ZigBee and Z-Wave devices to a unified smart home network for increased performance, intelligence, reliability and peace of mind.
• Built-in smart home hub lets you control your favorite ZigBee, Z-Wave, and TP-Link Wi-Fi smart home devices from anywhere using the Kasa app.
• Easily set up, monitor and control your entire smart home network from the built-in touchscreen or the Kasa app.  Pause internet access, manage guest access, control smart home devices, and more.
• Experience Gigabit Wi-Fi for all your gaming and streaming. Dual-band AC1900 Wi-Fi provides 1300 Mbps in 5GHz and 600 Mbps in 2.4GHz.

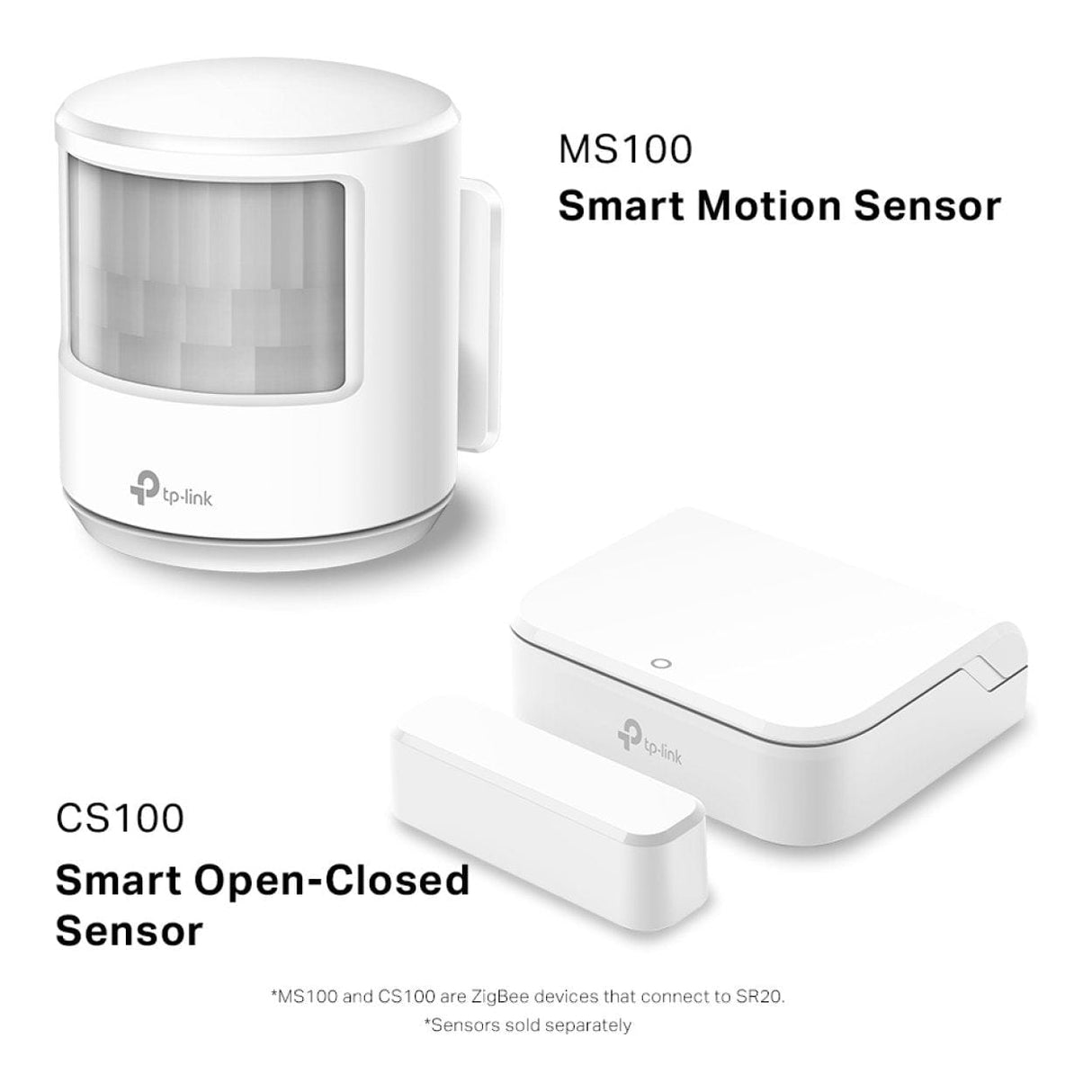

• Automatically turn on lights with sensors*, schedule lighting, set timers and more with built-in Smart Actions. (*Sensors sold separately)
• Requires a secured home Wi-Fi network connection

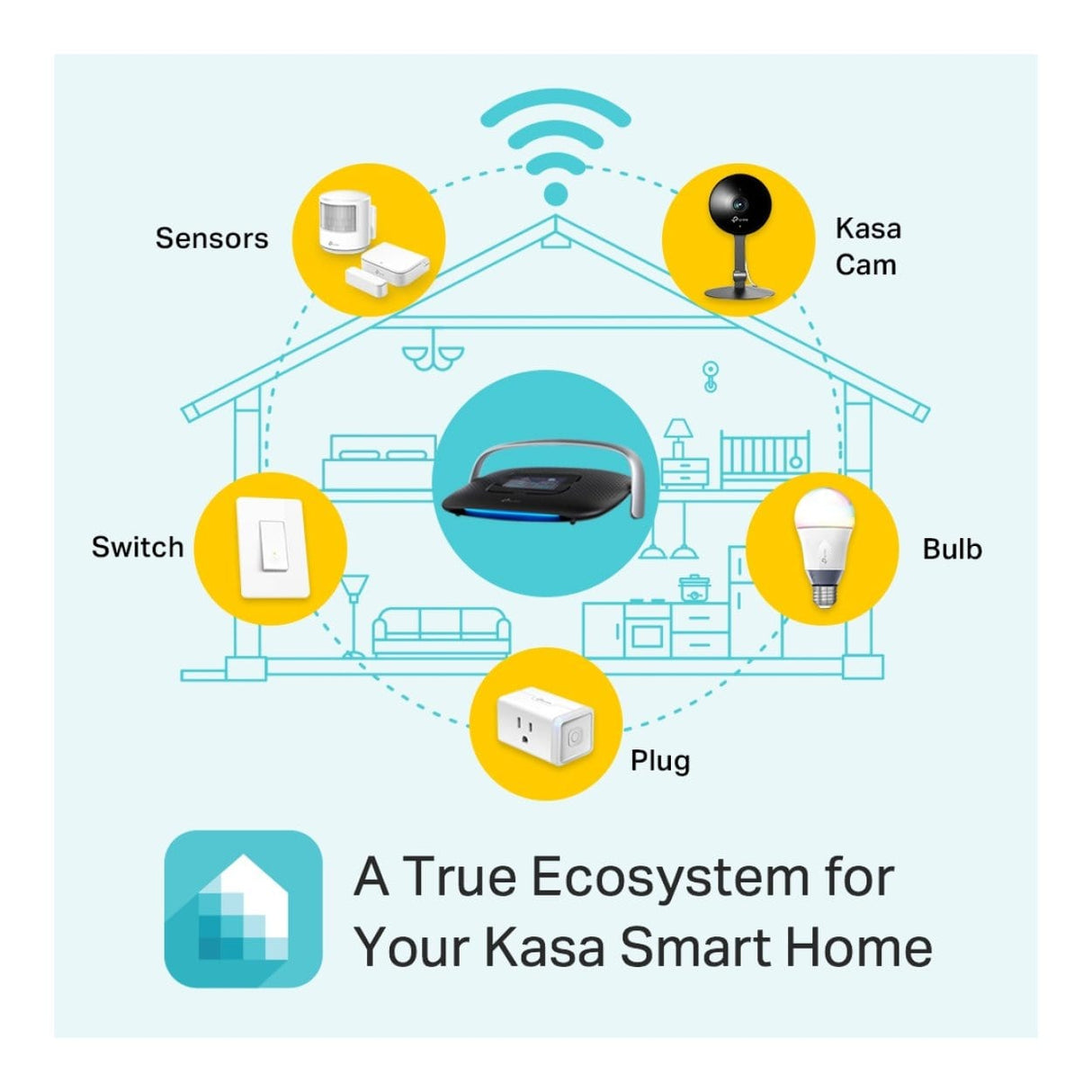

A True Ecosystem for Your Home

The SR20 seamlessly merges all the smart products and Wi-Fi devices in your home so they work together, making it easier for you to add them to the schedules and scenes you've already created.

A Home That Takes Care of You

The Kasa app brings your home together. You create the schedules and scenes that work best for you and Kasa runs them automatically, whether you're heading out the door for work or sliding under the covers for some much needed rest.

A Hub That Grows with You

Choose the smart products that work best for you and your life, and add them to your home with the SR20. The router and hub is always improving, and the number of products it works with grows over time.

Technical Specifications:

NETWORK

System Requirements

• iOS
• Android

SECURITY

Access Control

• Touch Screen Lockout
• Parental Control
• Local Management Control
• Host List
• Rule Management

Wi-Fi Security

• Supports WEP, WPA/WPA2 Enterprise, WPA/WPA2-PSK
• Supports WEP128
• Supports MAC Filtering
• Supports WPS

Firewall Features

• DoS
• SPI Firewall
• IP and MAC Address Binding

INTERFACES

Buttons

• 4.3" Capacitive Touch Screen
• Power On/Off Button
• Reset Button

HARDWARE FEATURES

Processor

• 1 GHz Dual-Core

Memory

• 128MB RAM
• 128MB Flash

Standards and Protocols

• IEEE 802.11 ac/n/a (5GHz)
• IEEE 802.11 b/g/n (2.4GHz + 256QAM)
• ZigBee 3.0 (2.4GHz)
• Z-Wave Plus (900MHz)

Interfaces

• 1 × WAN Gigabit Ethernet
• 4 × LAN Gigabit Ethernet
• 1 × USB 2.0
• 1 × USB 3.0

LED Panel

• Front LED Light Bar
• Home Button LED

Wi-Fi Chipset Features

• Dual Band 2.4GHz & 5GHz
• Enable/Disable Wireless Radio
• WPA/WPA2, WPA-PSK/WPA2-PSK, WEP128 Security

WIRELESS FEATURES

Frequency

• 1300 Mbps on 5GHz
• 600 Mbps on 2.4GHz

Transmission Power Sensitivity

5GHz

• 11a 6 Mbps: –94 dBm
• 11a 54 Mbps: –75 dBm
• 11ac HT20: –66 dBm
• 11ac HT40: –62 dBm
• 11ac HT80: –59 dBm
• 2.4GHz
• 11g 54 Mbps: –76 dBm
• 11n HT20: –73 dBm
• 11n HT40: –71 dBm

SOFTWARE FEATURES

Advanced Features

• WAN: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), Bigpond
• DHCP: Server, Client, Client List, Address Reservation
• Quality of Service: WMM, Bandwidth Control
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• USB Sharing: Samba (Storage), FTP Server, Media Server, Printer Server

System Tools

• Built-in Touchscreen Management Interface
• Remote Management via Kasa App
• Built-in Web Interface for Advanced Settings

Basic Functions

• Wi-Fi Router
• ZigBee HA Gateway
• Z-Wave Gateway
• Quick Setup via Kasa App & Touchscreen
• Internet Connection Test via App or Touchscreen
• Pause Internet Access for Clients
• Manage Guest Wi-Fi
• Speed Test via App or Touchscreen
• View Connected Devices
• Smart Home Control via Touchscreen

Protocols

• IPv4, IPv6
• ZigBee HA
• Z-Wave Plus

App Capabilities

• Easy Setup (Kasa App & Touchscreen)
• Internet Monitoring & Testing
• Guest Network Management
• Pause Screen Time
• Client Blocking

Supported Operating Systems

• Microsoft Windows
• Mac OS
• NetWare
• UNIX/Linux
• Compatible Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

GENERAL

Certifications

• FCC/IC
• ZigBee HA
• Z-Wave Plus

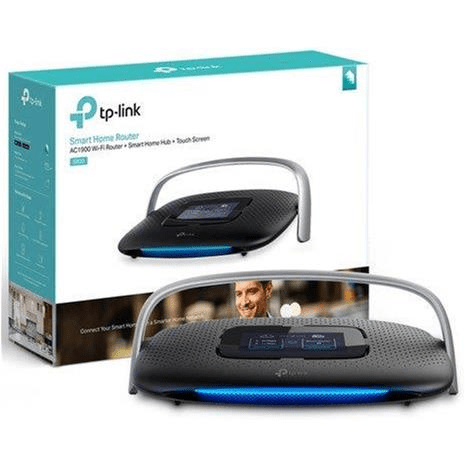

Package Contents

• SR20 Smart Home Router
• Plug-in Power Supply
• Optional Wall Mount Bracket
• Quick Start Guide

Environment

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: –40°C ~ 70°C (–40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% (non-condensing)
• Storage Humidity: 5% ~ 90% (non-condensing)

Dimensions (H × W × D)

• 318 × 171 × 119 mm

General Features

• Fast AC1900 Dual-Band Wi-Fi
• Built-in ZigBee & Z-Wave Smart Hub
• Built-in 4.3" Touchscreen
• 4 × Gigabit Ethernet LAN Ports
• Smart Home Device Management
• Easy Network Management via Touchscreen or App

Mobile App Features

• Setup & Management (Kasa App & Touchscreen)
• Guest Network Control
• Internet Speed Monitoring
• Screen Time Management
• Client Control (Block/Unblock)

Power Requirements

• 120VAC Input with 12V 3.3A Output

Rated Input Voltage

• 120VAC with 12V 3.3A Output
