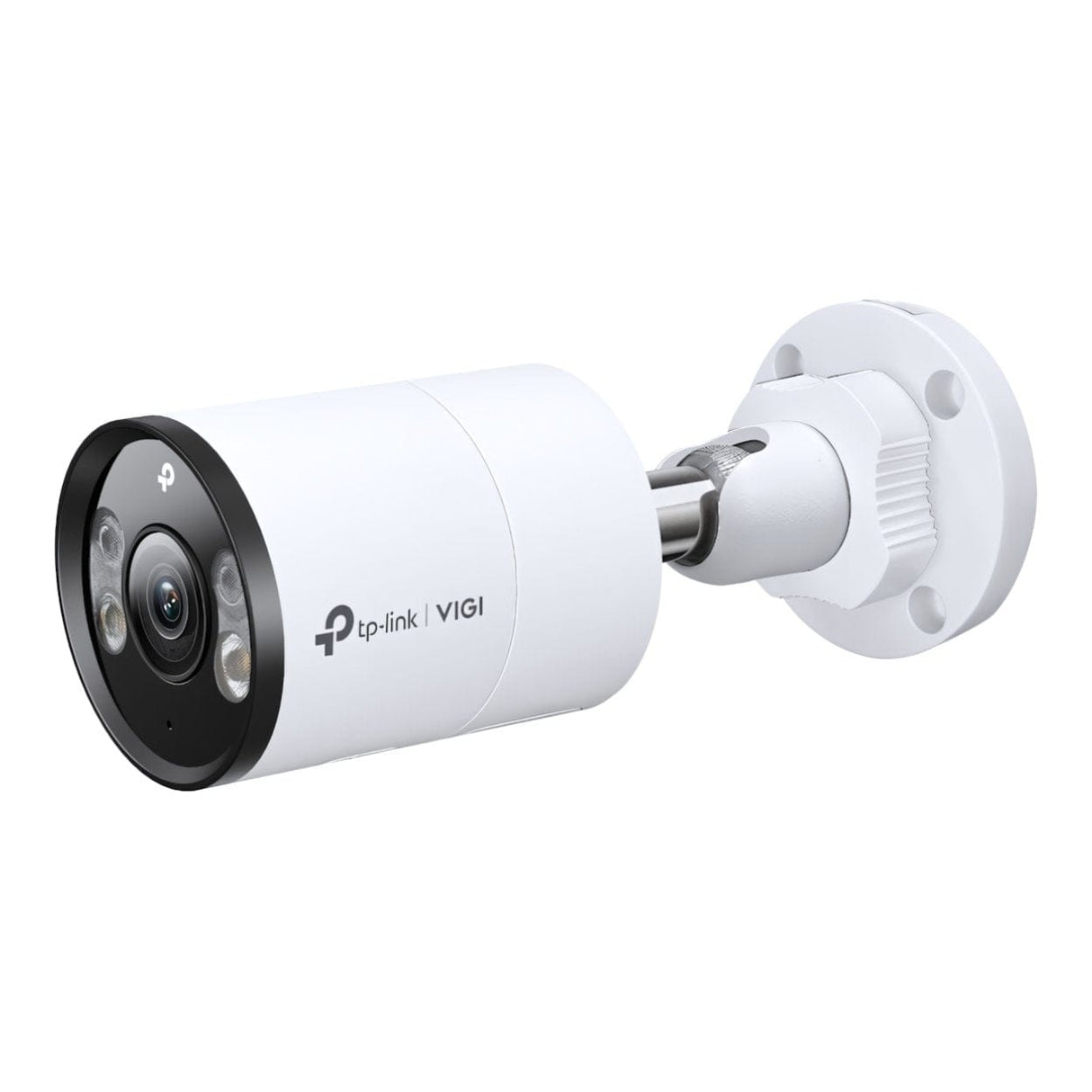

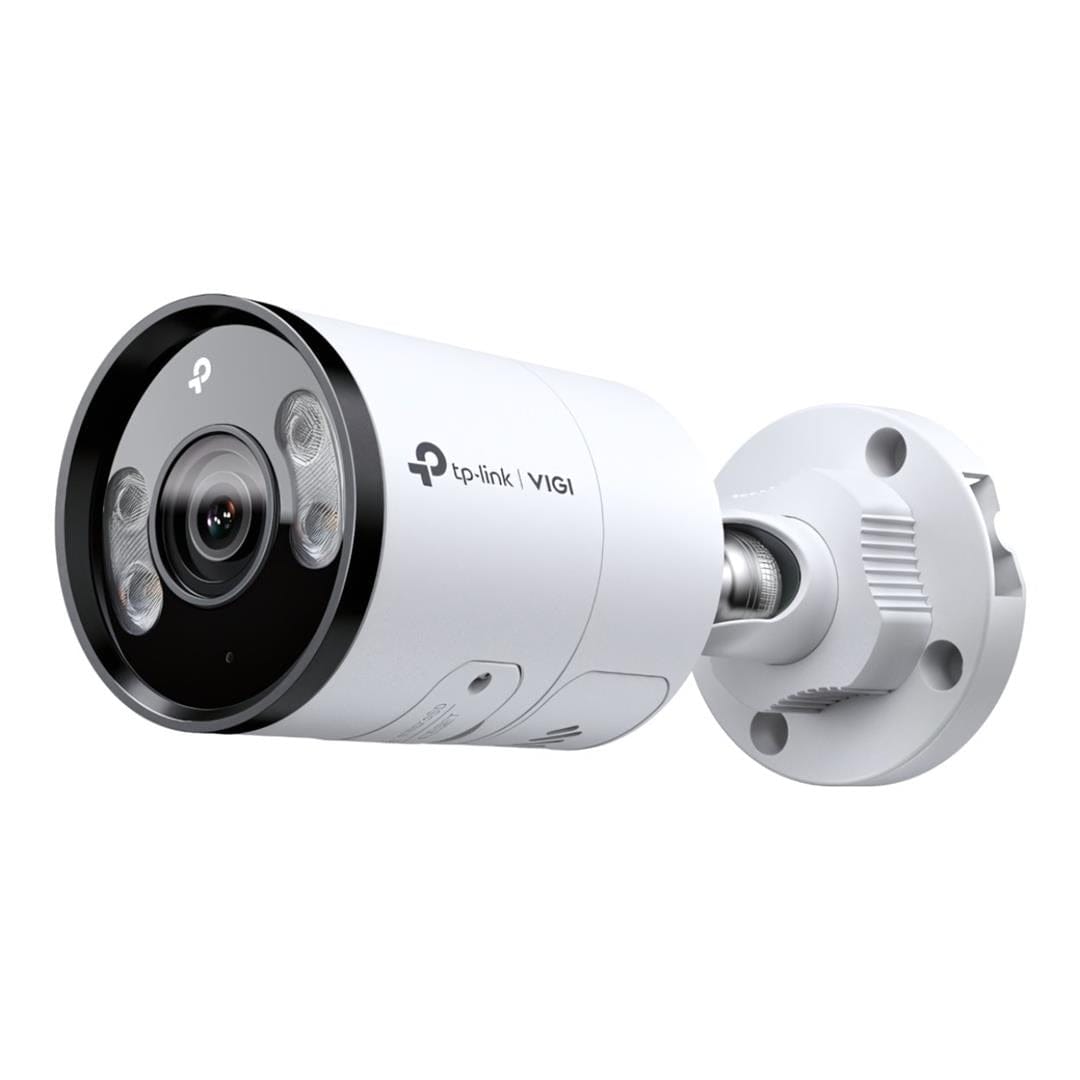

TP-Link InSight S385 VIGI 8MP Outdoor Full-Color Bullet Network Camera

TP-Link InSight S385 VIGI 8MP Outdoor Full-Color Bullet Network Camera

Features:

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics^§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology
• 12V DC/PoE

Technical Specifications:

Camera

Image Sensor: 1/2.7” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens

Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal 91.5°, Vertical 46.1°, Diagonal 109.6°
Lens Mount: M12*P 0.5
DORI Distance: Detect 107 m (350 ft), Observe 44 m (146 ft), Recognize 21 m (70 ft), Identify 11 m (35 ft)
Angle Adjustment (Manual): Pan 0° to 360°, Tilt 0° to 90°, Rotation 0° to 360°

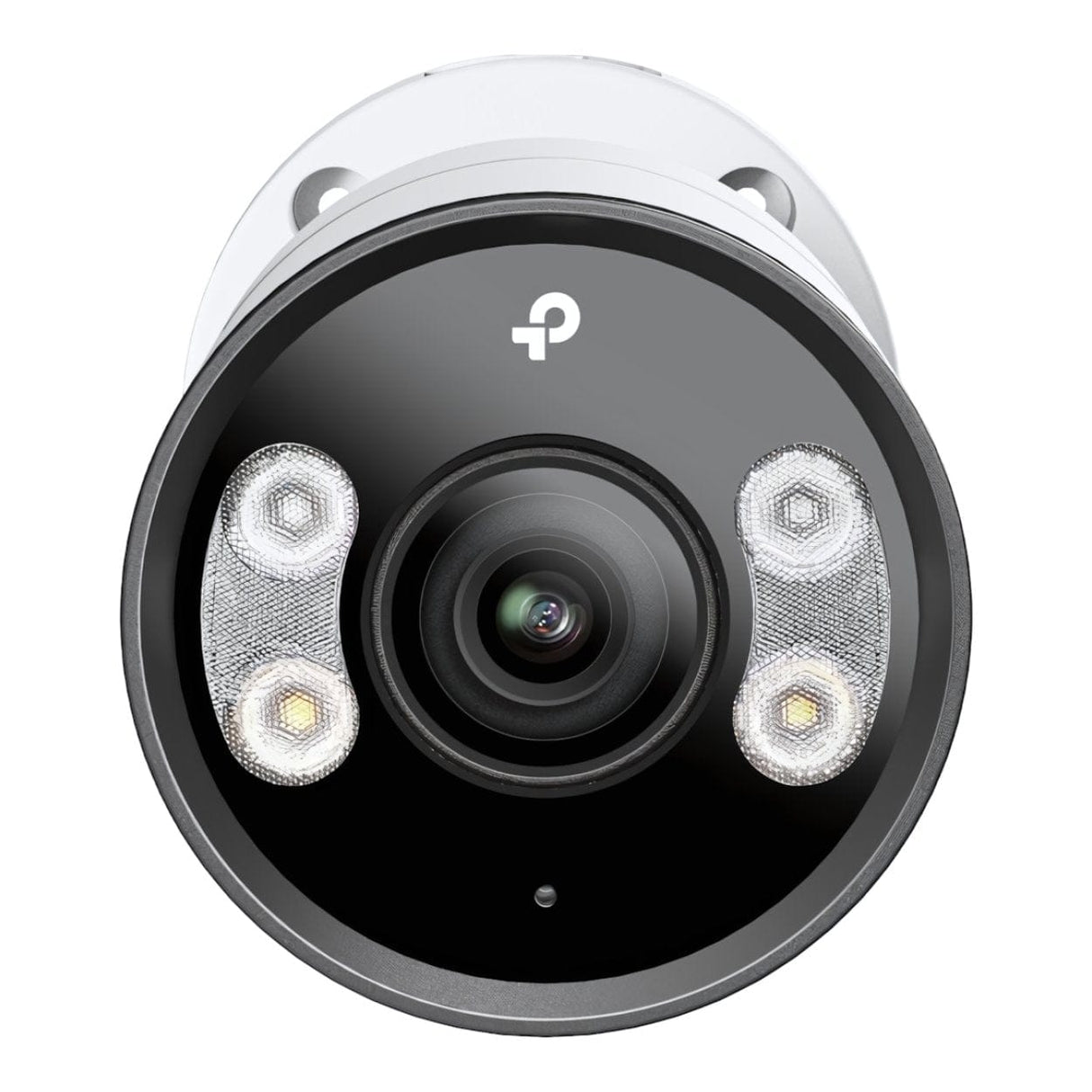

Illuminator

IR LED: 2 units, Range 98 ft (30 m), Wavelength 850nm
White LED: 2 units, Range 98 ft (30 m)
Illuminator On/Off Control: Auto / Scheduled / Always on / Always off

Video

Max Resolution: 3840 × 2160
Main Stream Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps; 60Hz: 1, 5, 10, 15, 20, 25 fps
Main Stream Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream Frame Rate: 50Hz: 1, 5, 10, 15, 20, 25 fps; 60Hz: 1, 5, 10, 15, 20, 25 fps
Sub-Stream Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+ Supported: Yes
H.265 Type: Main Profile
H.265+ Supported: Yes
Video Bit Rate: Main Stream 256 Kbps to 8 Mbps; Sub-Stream 64 Kbps to 512 Kbps


Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range: 120 dB (DWDR only with People & Vehicle Analytics enabled)
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

Audio

Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8 kHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)

Network

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: ONVIF (Profile S/T/G)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser: Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management

Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification), Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push
Deep Learning Function: People & Vehicle Analytics (search and filter based on attributes for faster post-event search)

Interfaces

Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-Board Storage: Built-In MicroSD Slot, up to 512 GB
Built-in Microphone: Yes, records within 16.4 ft (5 m) radius
Built-in Speaker: Yes
Audio: N/A

General

Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: ≤ 95% (Non-Condensing)
Storage Humidity: ≤ 95% (Non-Condensing)

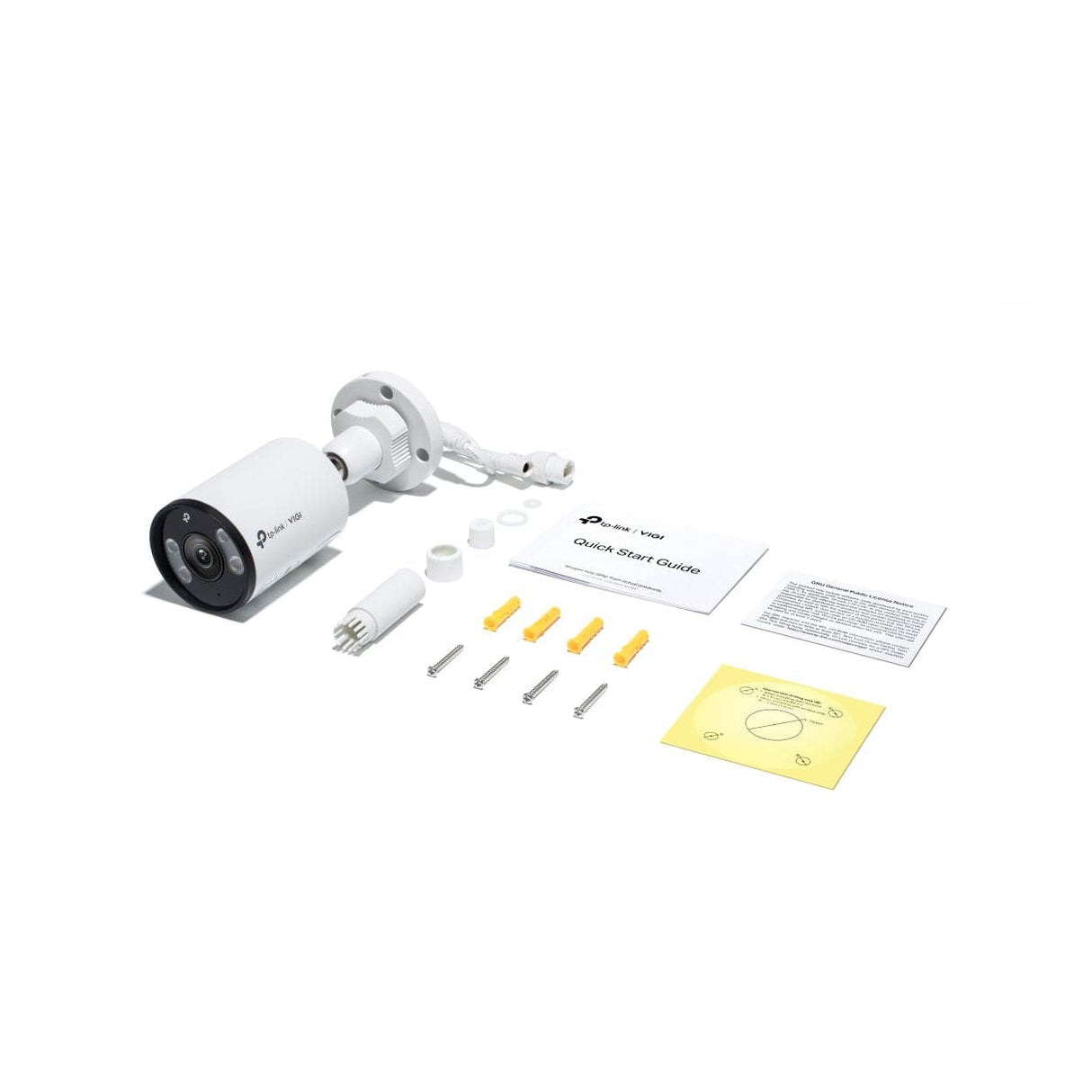

Package Content: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Material: Metal
Net Weight: 0.525 kg
Power Supply: 12V DC ± 5%, Max 10.5 W, 5.5 mm Coaxial Power Plug; PoE 802.3af/at, class 0, Max 11.5 W
Protection: IP67

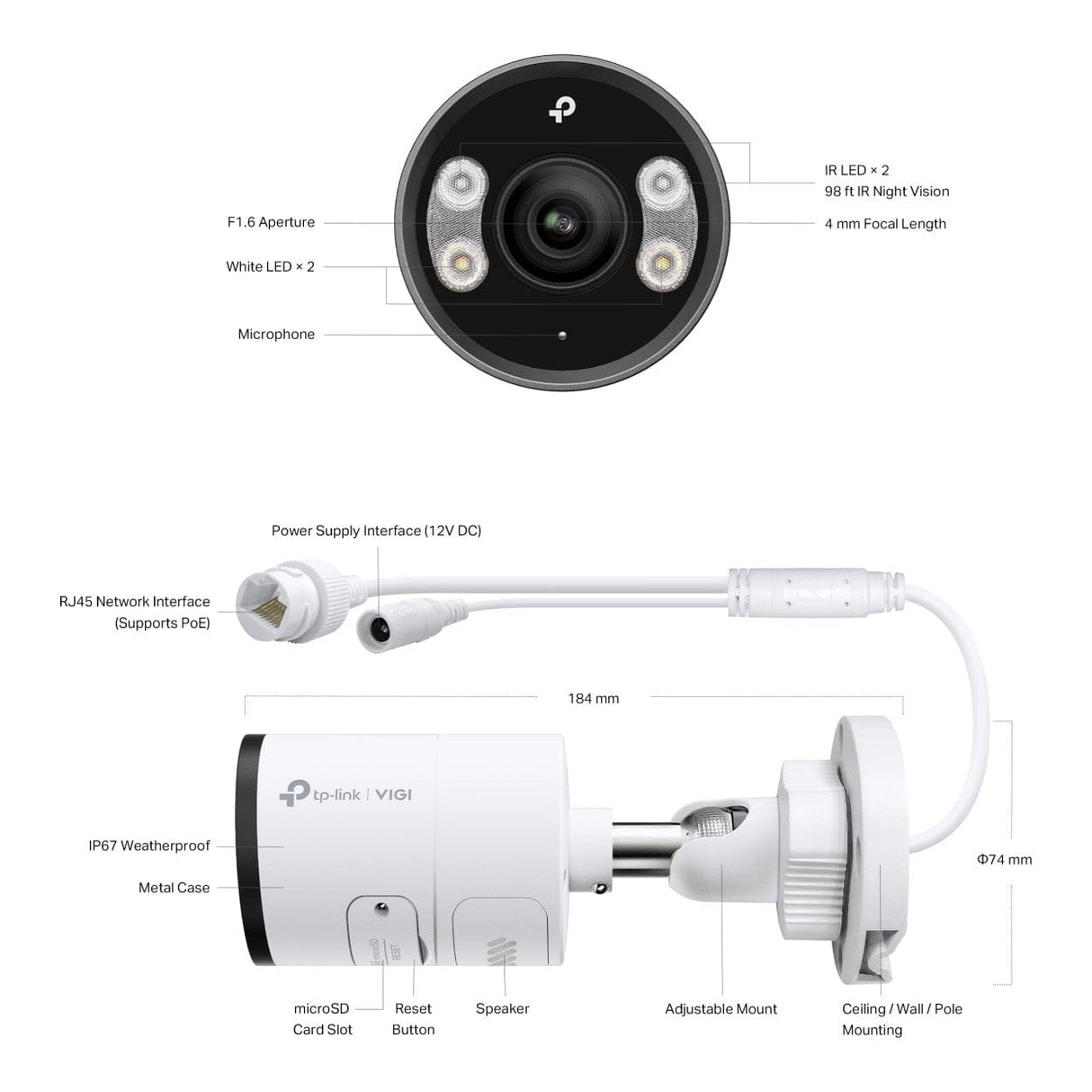

Product Dimensions (L × W × H): 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
