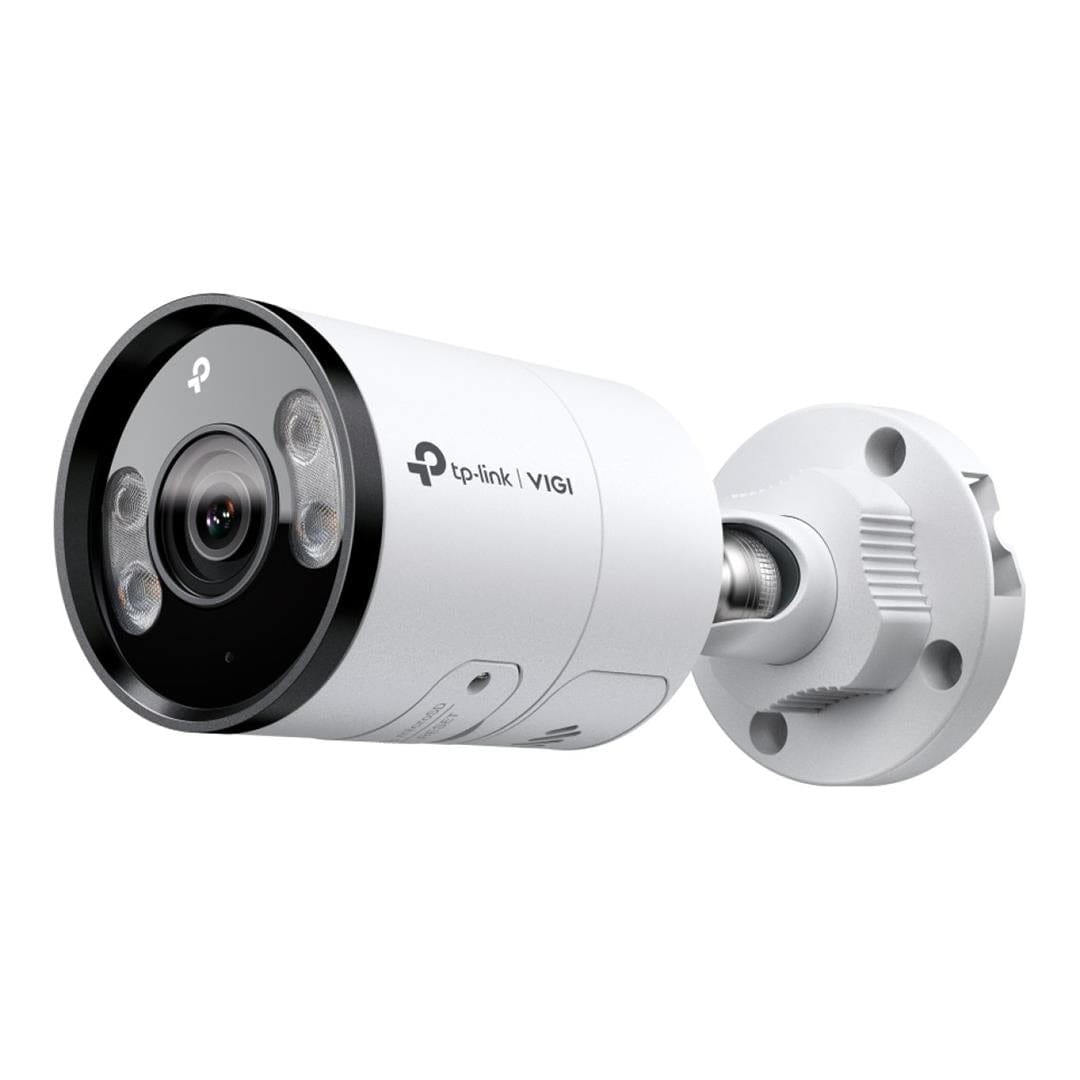

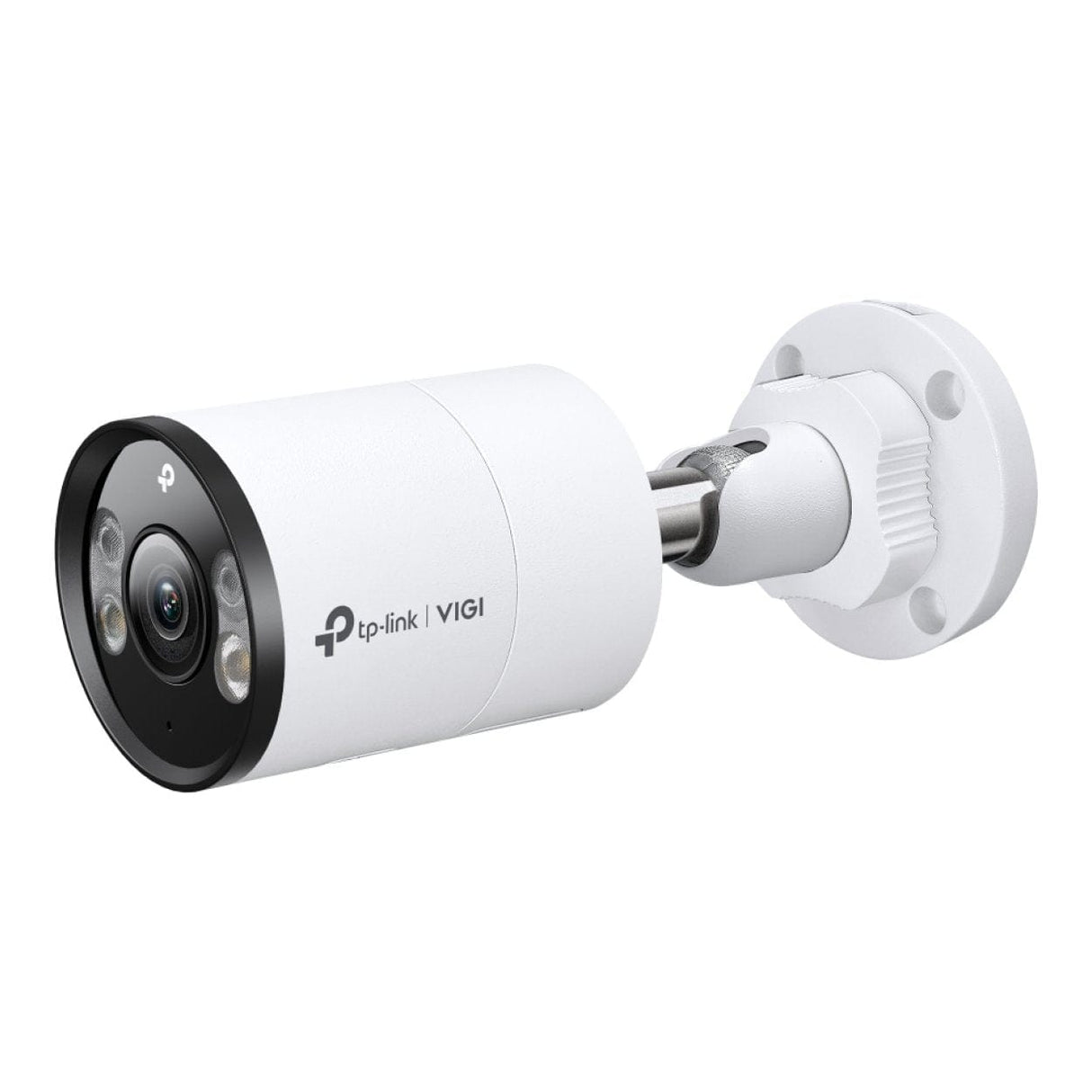

TP-Link InSight S355 VIGI 5MP Outdoor Full-Color Bullet Network Camera

TP-Link InSight S355 VIGI 5MP Outdoor Full-Color Bullet Network Camera

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Features:

• 5MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.â–³

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens
Type: Fixed Focal Lens
Focal Length: 2.8 / 4 / 6 mm
Aperture: F1.6
Field of View:

• 2.8 mm – Horizontal 111.4°, Vertical 58.8°, Diagonal 134°

• 4 mm – Horizontal 88°, Vertical 46°, Diagonal 105.4°

• 6 mm – Horizontal 57.3°, Vertical 31.3°, Diagonal 67.2°
  Lens Mount: M12*P 0.5
  DORI Distance:

• 2.8 mm – Detect 64 m, Observe 27 m, Recognize 13 m, Identify 6 m

• 4 mm – Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m

• 6 mm – Detect 120 m, Observe 50 m, Recognize 24 m, Identify 12 m
  Angle Adjustment: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°

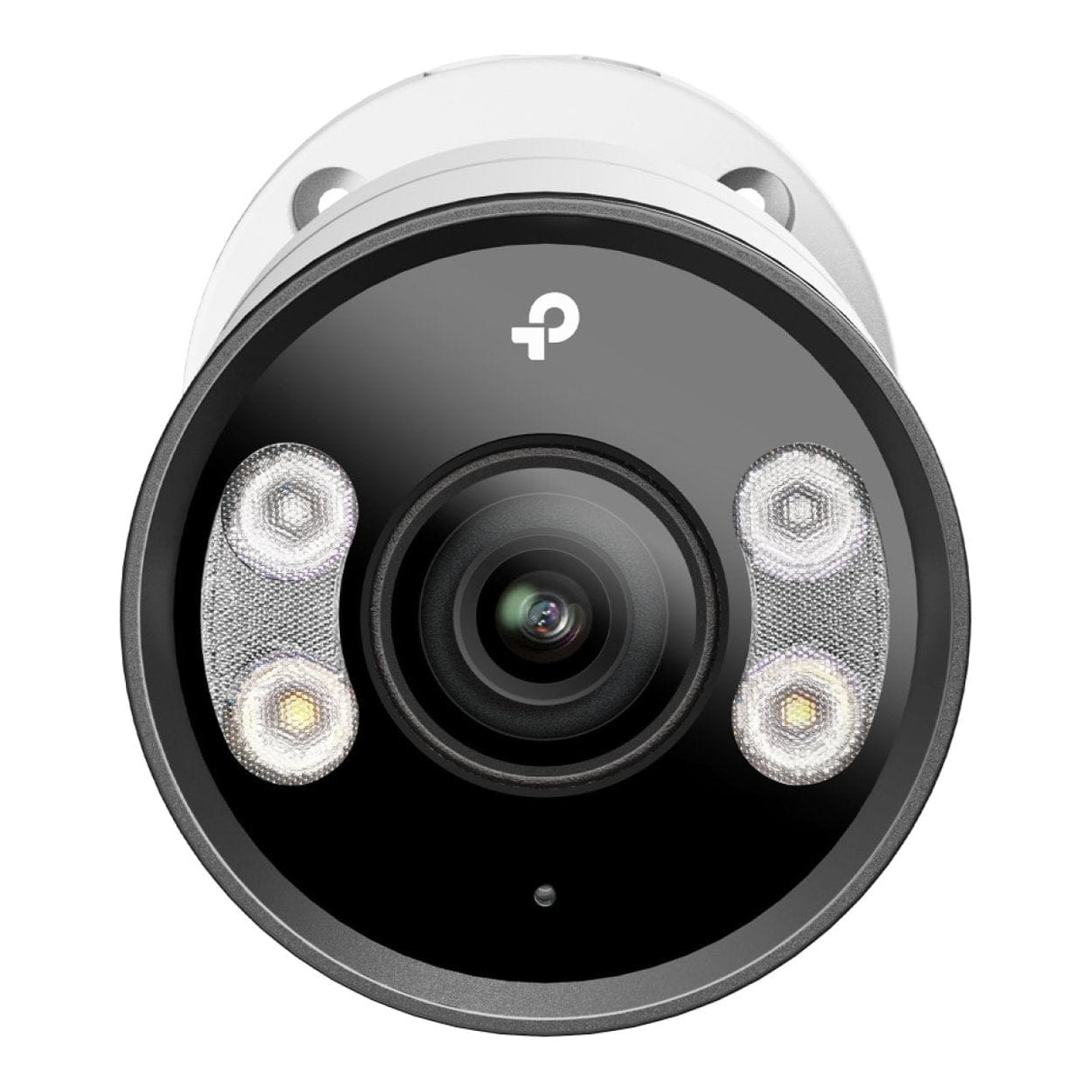

Illuminator
IR LED: 2 units, Range 30 m, Wavelength 850 nm
White LED: 2 units, Range 30 m
Illuminator Control: Auto / Scheduled / Always on / Always off

Video
Max Resolution: 2880 × 1620
Main Stream Frame Rate: 50Hz 1–25 fps, 60Hz 1–30 fps
Main Stream Resolution: 2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream Frame Rate: 50Hz 1–25 fps, 60Hz 1–30 fps
Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression: Main Stream H.265+/H.265/H.264+/H.264; Sub-Stream H.265/H.264
H.264 Type: High Profile, H.264+ Main Stream Supported
H.265 Type: Main Profile, H.265+ Main Stream Supported
Video Bit Rate: Main 256 Kbps–6 Mbps; Sub 64 Kbps–512 Kbps

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to IR Light, HLC Adjustable
Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range: 120 dB (DWDR when People & Vehicle Analytics enabled)
SNR: ≥ 52 dB
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

Audio
Audio Communication: Two-Way Audio
Audio Input/Output: Yes
Audio Compression: Yes
Sampling Rate: 8 KHz
Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)

Network
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: ONVIF Profile S/T/G
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm & Event Management
Smart Event: Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change Detection
Basic Event: Motion Detection (Enhanced Human & Vehicle Classification), Video Tampering, Exception (Illegal Login)
Alarm Linkage: Memory Card Recording, Message Push, Audible Warning, White Light Flashing
Output Notification: Message Push
Deep Learning Function: People & Vehicle Analytics for faster post-event search

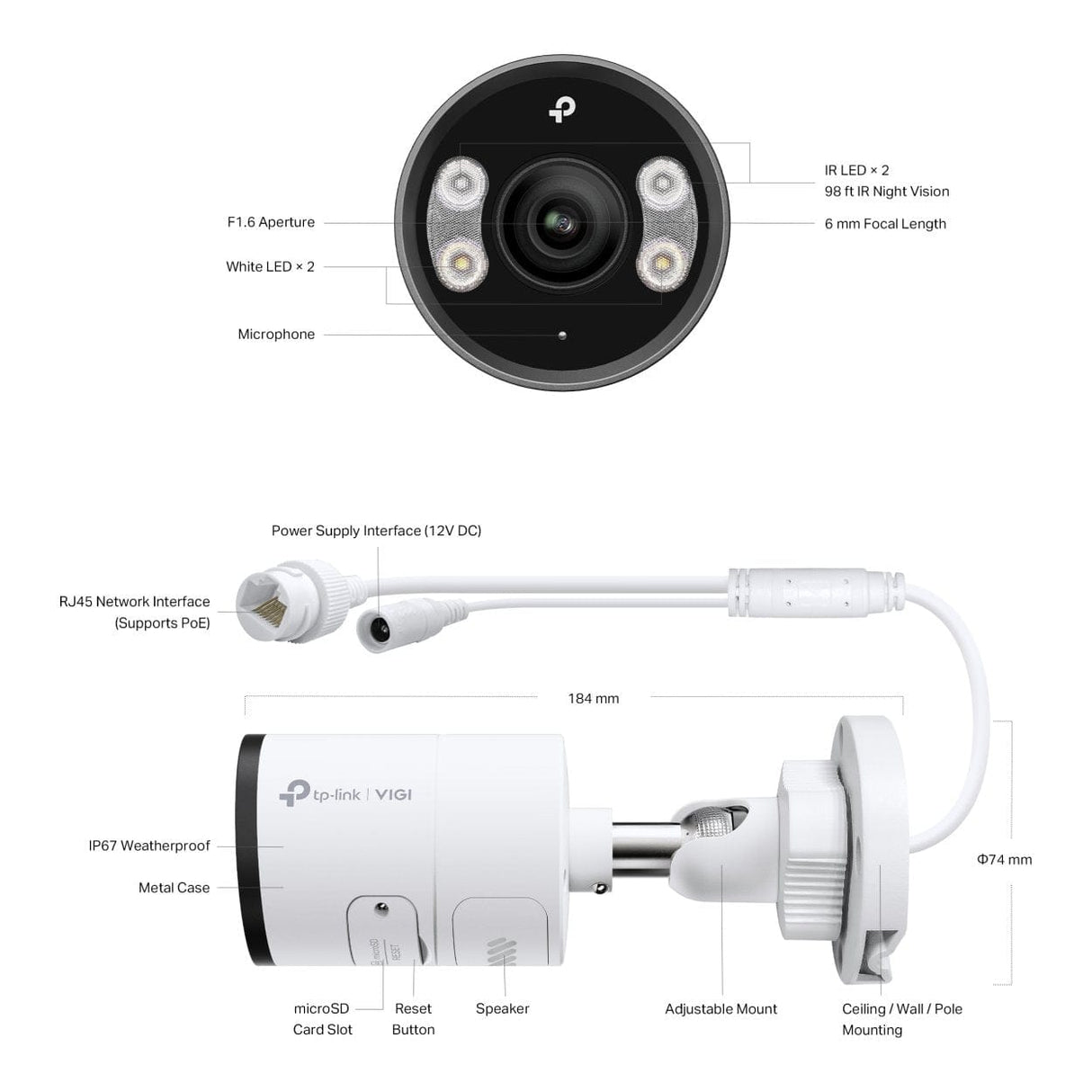

Interfaces
Network: 1 RJ45 10/100M Ethernet Port, PoE
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In MicroSD Slot, Up to 512 GB
Built-in Microphone: Yes (16.4-ft / 5 m radius)
Built-in Speaker: Yes

General
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: ≤95% Non-Condensing
Storage Humidity: ≤95% Non-Condensing
Material: Metal
Net Weight: 0.525 Kg
Power Supply: 12V DC ±5%, Max 9.7 W, 5.5 mm Coaxial; PoE 802.3af/at, class 0, Max 10.7 W
Protection: IP67
Dimensions (L x W x H): 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC

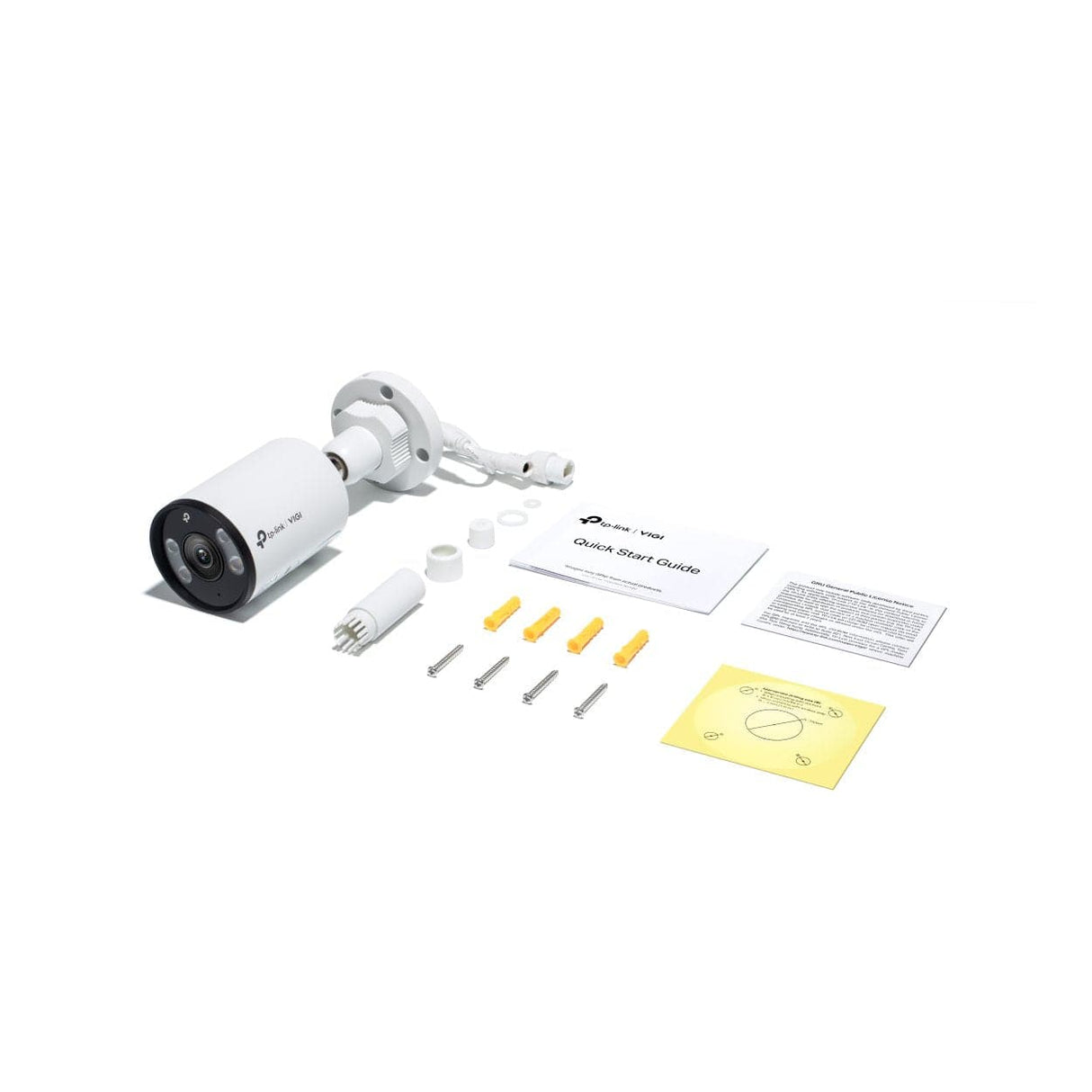

What's in the Box:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
