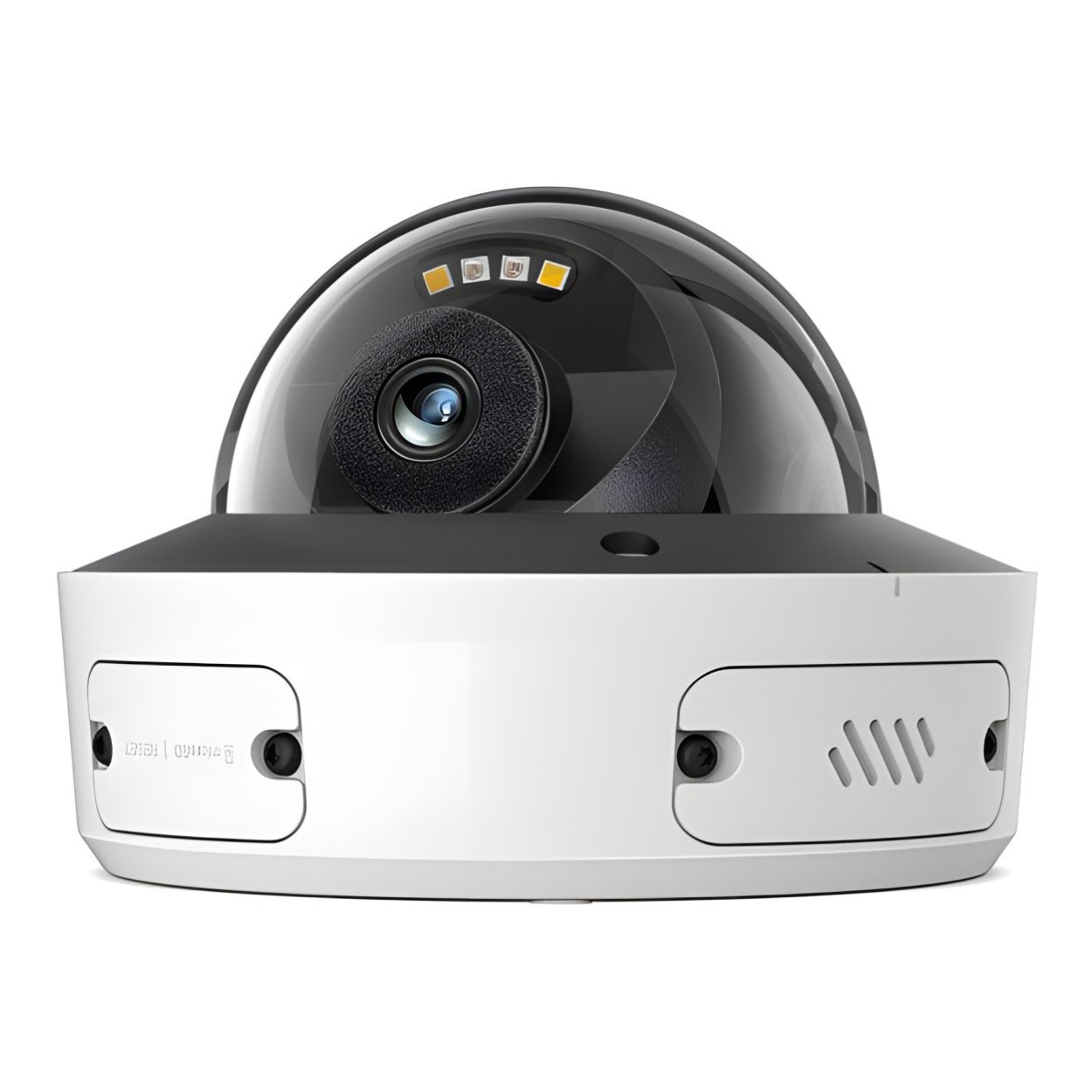

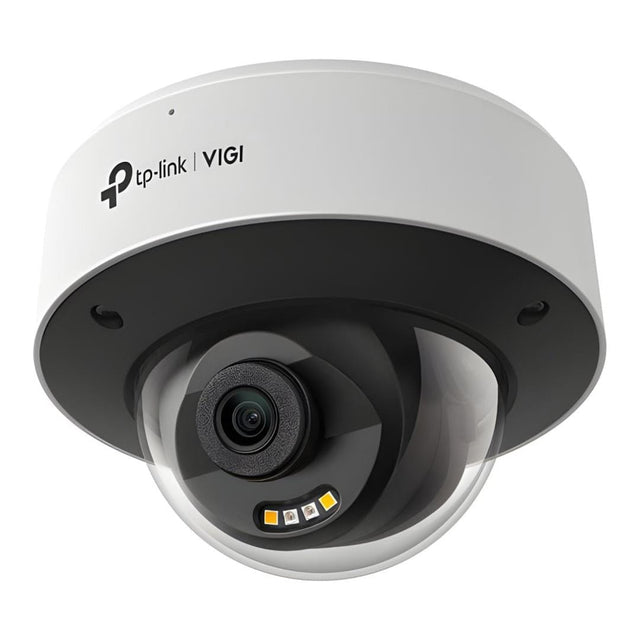

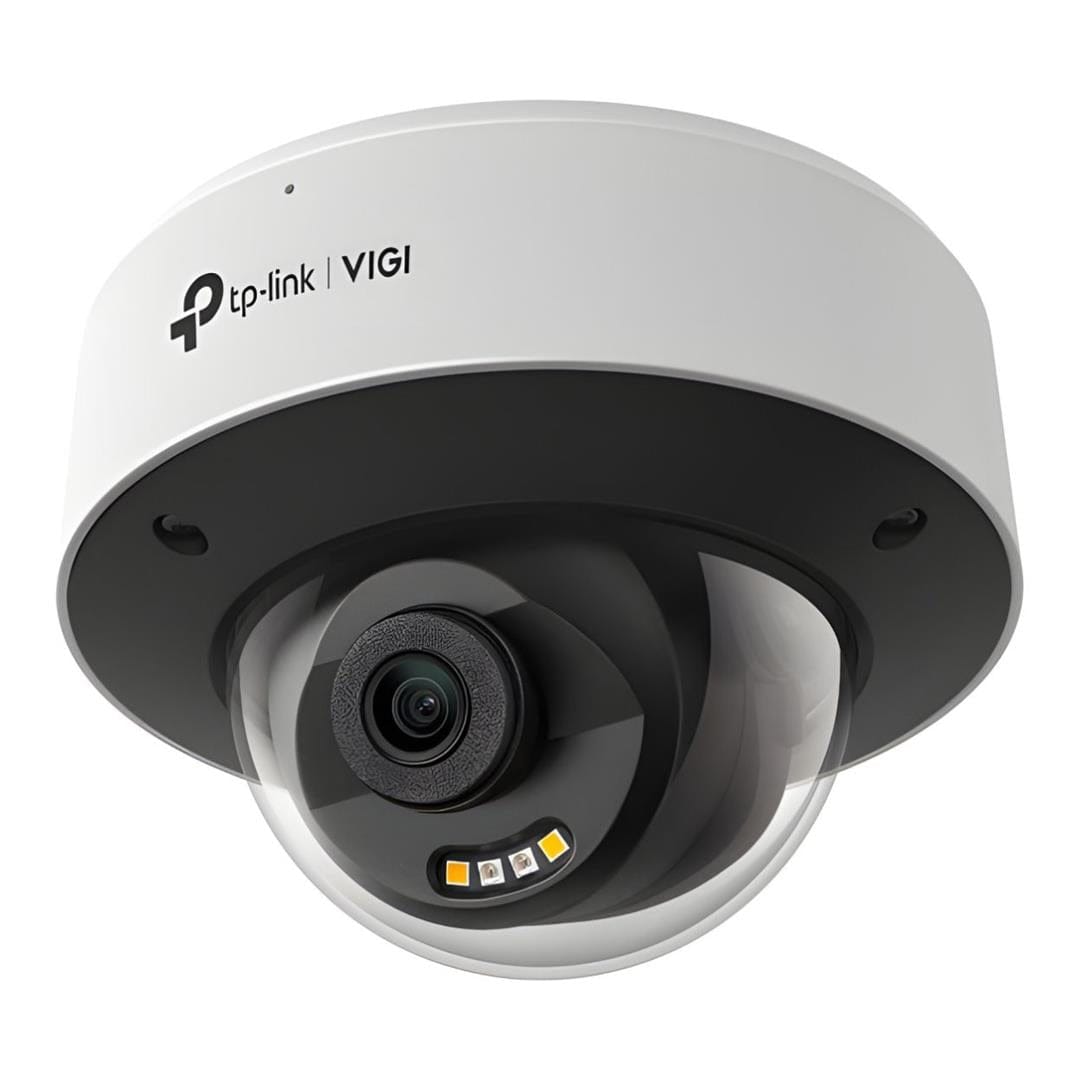

TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera

TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera

All The Colors, All The Time

8MP Full-Color Dome Network Camera

Features:

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal-Proof
• H.265+ Compression Technology

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.?

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specifications:

Camera
Image Sensor
1/2.7” Progressive Scan CMOS

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Minimum Illumination
0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism
IR Cut Filter

Day/Night Switch
Unified / Scheduled / Auto

Lens
Type
Fixed focal lens

Focal Length
2.8 mm / 4 mm

Aperture
F1.6

FOV
• 2.8 mm:
Horizontal: 110°
Vertical: 58.1°
Diagonal: 133.5°

• 4 mm:
Horizontal: 88°
Vertical: 46°
Diagonal: 105.4°

Lens Mount
M12 × P 0.5

DORI Distance
• 2.8 mm
Detect: 85 m
Observe: 35 m
Recognize: 17 m
Identify: 8 m

• 4 mm
Detect: 107 m
Observe: 44 m
Recognize: 21 m
Identify: 11 m

Angle Adjustment (Manual)
Pan: 0° to 346°
Tilt: 0° to 75°
Rotation: 0° to 355°

Illuminator
IR LED
• Quantity: 2
• Range: 30 m
• Wavelength: 850 nm

White LED
• Quantity: 2
• Range: 30 m

Illuminator Control
Auto / Scheduled / Always On / Always Off

Video
Max Resolution
3840 × 2160

Main Stream
Frame rate:
50 Hz: 1 / 5 / 10 / 15 / 20 / 25 fps
60 Hz: 1 / 5 / 10 / 15 / 20 / 25 fps

Resolutions:
3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Note:
Rotation at 90° or 270° limits frame rate to 20 fps.
HDR activation also limits frame rate to 20 fps.

Sub-Stream
Frame rate:
50 Hz: 1 / 5 / 10 / 15 / 20 / 25 fps
60 Hz: 1 / 5 / 10 / 15 / 20 / 25 fps

Resolutions:
848×480, 704×576, 640×480, 640×360, 352×288, 320×240

Note:
Rotation at 90° or 270° limits frame rate to 20 fps.
HDR activation limits frame rate to 20 fps.

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264

H.264 Type
High Profile

H.264+
Supported (Main Stream)

H.265 Type
Main Profile

H.265+
Supported (Main Stream)

Video Bit Rate
Main Stream: 256 Kbps – 8 Mbps
Sub Stream: 64 Kbps – 512 Kbps

Image Settings
Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Infrared overexposure prevention
HLC adjustable via client software

Image Enhancement
BLC / 3D DNR / HLC / Smart IR

Wide Dynamic Range
120 dB

SNR
≥ 52 dB

Privacy Mask
Up to 4 zones

ROI
1 region

OSD Setting
Supported

Audio
Two-way audio supported

Audio Input / Output
Supported

Audio Compression
Supported

Audio Sampling Rate
8 kHz

Noise Filtering
Supported

Audio Bit Rate
64 kbps (G.711 A-law)

Network
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF
Supported

API
Open Network Video Interface (Profile S/T/G)

Live View
Up to 3 main streams + 3 sub-streams

Client Software
VIGI App, Web UI, VIGI VMS, Utility

Security
Password protection
HTTPS encryption
IP address filtering
Digest authentication

Alarm and Event Management
Smart Events
Intrusion detection
Line-crossing detection
Region entry/exit detection
Object abandoned/removal detection
Loitering detection
People detection
Vehicle detection
Abnormal sound detection
Scene change detection

Basic Events
Motion detection (with human and vehicle classification)
Camera tampering
Illegal login exception

Alarm Linkage
Memory card recording
Message push
Audible warning
White light flashing

Output Notification
Message push

Deep Learning Function
People & Vehicle Analytics
Supports attribute-based search and post-event filtering

Interfaces
Network Interface
1 × RJ45 10/100M Ethernet port with PoE

Reset Button
Supported

Power Port
DC power input

Storage
Built-in microSD slot (up to 512 GB)

Microphone
Built-in microphone (≈ 5 m pickup radius)

Speaker
Built-in speaker

General
Operating Temperature
−30°C to 60°C

Storage Temperature
−40°C to 60°C

Operating Humidity
≤ 95% (non-condensing)

Package Contents
• Network camera
• Quick start guide
• Waterproof cable accessories
• Mounting kit

Material
Metal

Net Weight
0.62 kg

Power Supply
12 V DC ±5%, max 11 W
PoE 802.3af/at Class 0, max 12.3 W

Protection Rating
IP67 waterproof
IK10 vandal resistant

Dimensions
122 × 122 × 89 mm

Certifications
CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
