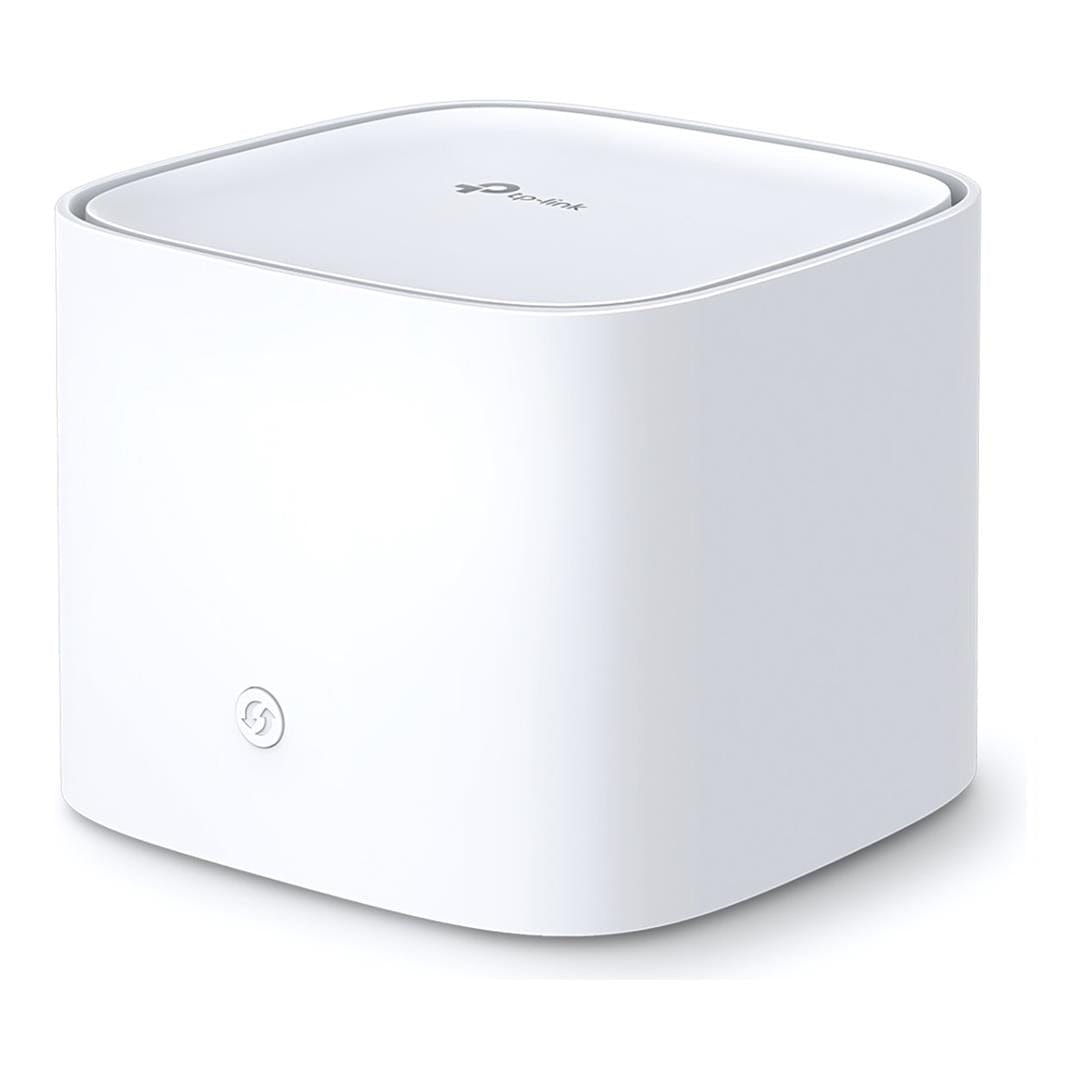

TP-Link HX520 AX3000 Dual-band Whole Home Mesh Wi-Fi 6 System White HX520(1-pack)

TP-Link HX520 AX3000 Dual-band Whole Home Mesh Wi-Fi 6 System White HX520(1-pack)

Fast. Stable. Everywhere.

AX3000 Whole Home Mesh WiFi System

Features:

• Dual Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
• Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.
• One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.**
• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experience.^†
• EasyMesh Compatible: Create a unified smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.**
• Easy Setup and Use: Set up your mesh WiFi in minutes with the powerful Aginet app.
• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Advanced Mesh Powered by WiFi 6

Armed with WiFi 6 technology, HX520 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.

Extensive WiFi Coverage

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

Whole Home Coverage

Empowered by EasyMesh technology, HX520 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX520 unit whenever you want.

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

More Connections, No More Buffering

Enhanced by WiFi 6, featuring with OFDMA and 160 MHz bandwidth, HX520 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance.

2-in-1 Router and Access Point

Flexible and multifunctional, HX520 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

More Ethernet Ports for More Options

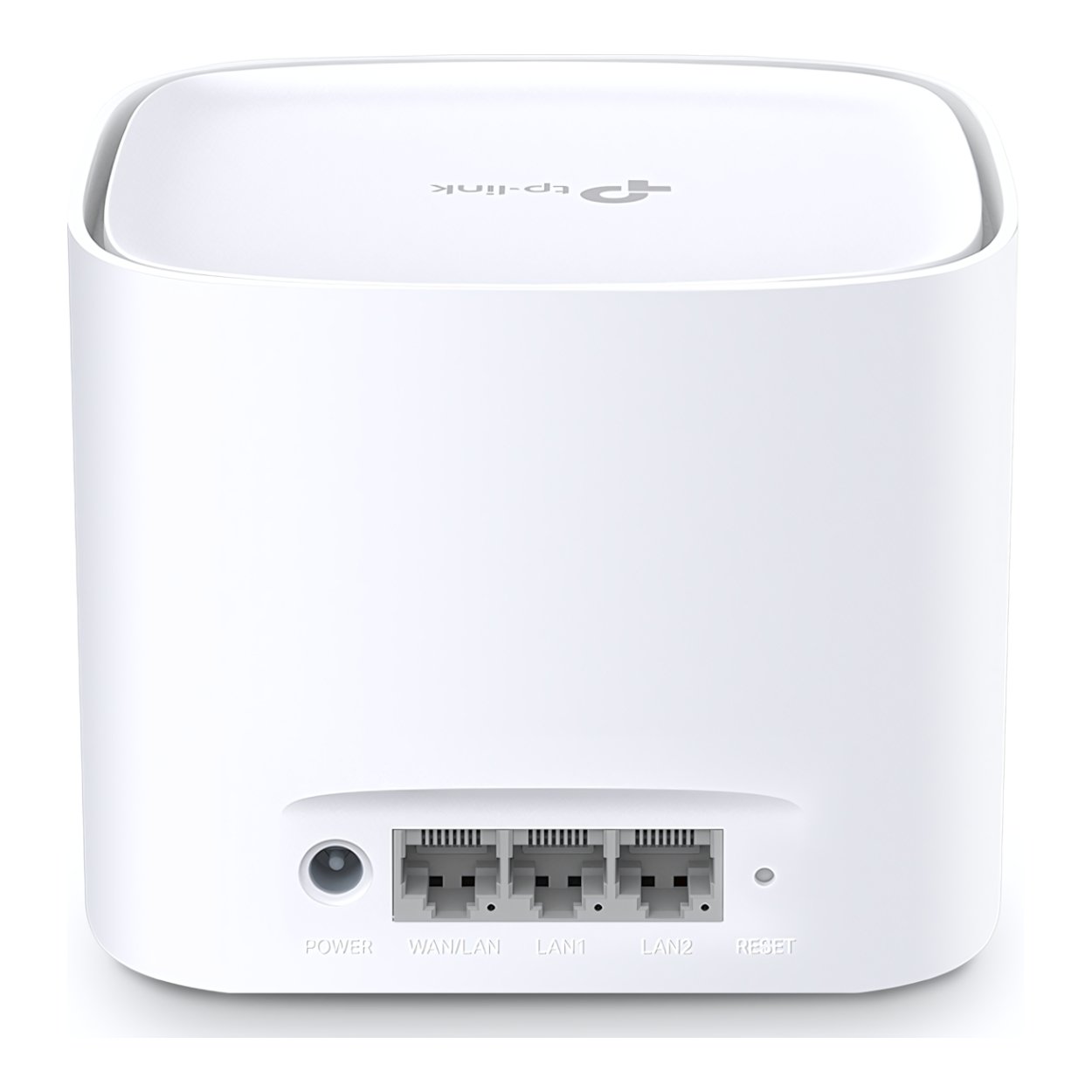

Each unit has 3 gigabit Ethernet ports for fast and reliable wired connections. Supports Ethernet Backhaul for more stable speeds.

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Support TR-369/069 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server, TR-369/TR-069) system or the Aginet ACS. Compatibility with TR-181, TR-111, and TR-143 ensures advanced operations, enhancing service efficiency for home users.

Technical Specifications:

Hardware Features
External Power Supply 12 V ⎓ 1.5 A
Interface 3× Gigabit Ports

*Per Unit
1 Port supports WAN/LAN auto-sensing

Button Reset Button
WPS Button

Dimensions ( W x D x H ) 4.7 x 4.7 x 3.8 in
(120 x 120 x 96.5 mm)

Wireless Features
Frequency 2.4 GHz and 5 GHz
Signal Rate AX3000
5 GHz: Up to 2402 Mbps (HE160)
2.4 GHz: Up to 574 Mbps (HE40)*

Wireless Security WPA/WPA2/WPA3 Personal encryptions
Wireless Standards Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz

Transmission Power CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID

Software Features
WAN Type Dynamic IP/Static IP/PPPoE
Quality of Service WMM
Firewall Security SPI Firewall
Management Features Local management: WebGUI, Aginet App (for end users)

Remote management: TR-069, TR-098, TR-181, TR-369, TR-111, TR-143 for service providers
Aginet App for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Wi-Fi Schedule
Protocols IPv4
IPv6
Working Modes Router Mode
Access Point Mode
Mesh Technology EasyMesh compatible, and supports 802.11k/v/r and Ethernet backhaul

OTHERS
Certifications CE
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• 1 HX520 Unit
• 1 RJ45 Ethernet Cable
• 1 Power Adapter
• 1 Quick Installation Guide
