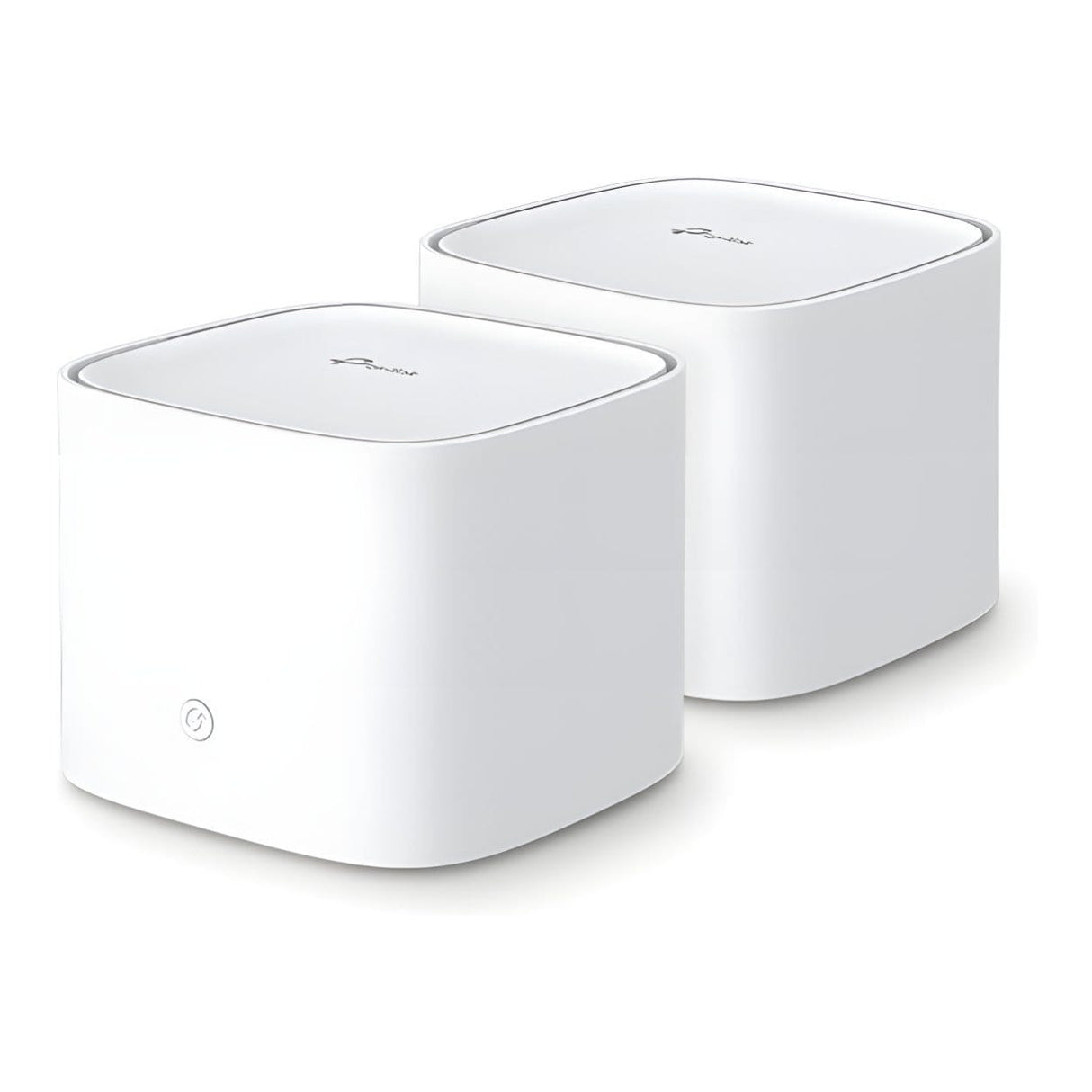

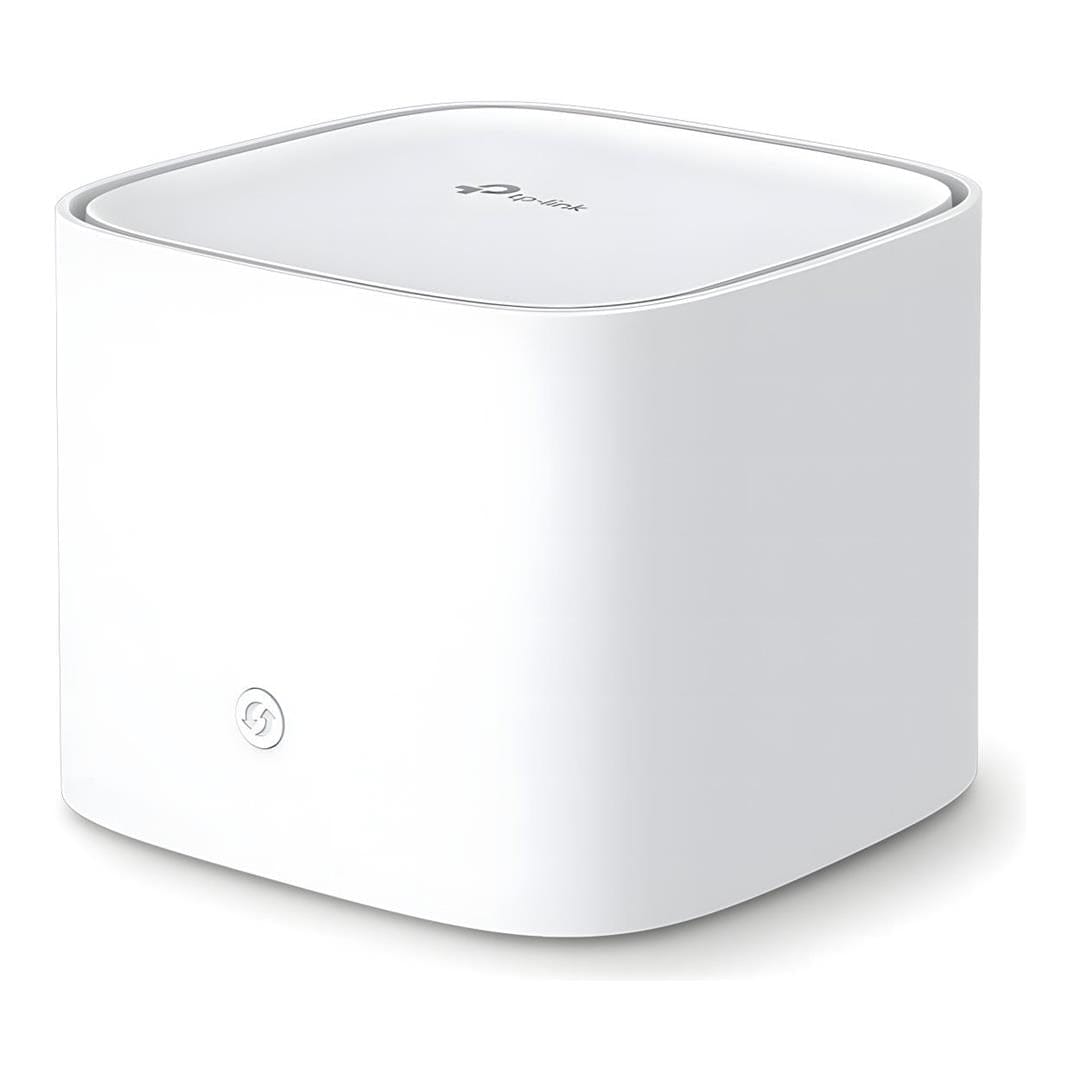

TP-Link HX510 AX3000 Whole Home Mesh Wi-Fi System

TP-Link HX510 AX3000 Whole Home Mesh Wi-Fi System

Fast. Stable. Everywhere.

AX3000 Whole Home Mesh WiFi System

Features:

• Dual Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
• Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.
• One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.**
• Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.^†
• Wi-Fi CERTIFIED EasyMesh™: Experience strong, stable, and seamless wireless connections  based on standard mesh technology.
• Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
• Remote Management: TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported

Advanced Mesh Powered by WiFi 6

Armed with WiFi 6 technology, HX510 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.

Extensive WiFi Coverage

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

Whole Home Coverage

Empowered by EasyMesh technology, HX510 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX510 unit whenever you want.

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

More Connections, No More Buffering

Enhanced by WiFi 6, featuring with OFDMA and 160 MHz bandwidth, HX510 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance.

2-in-1 Router and Access Point

Flexible and multifunctional, HX510 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

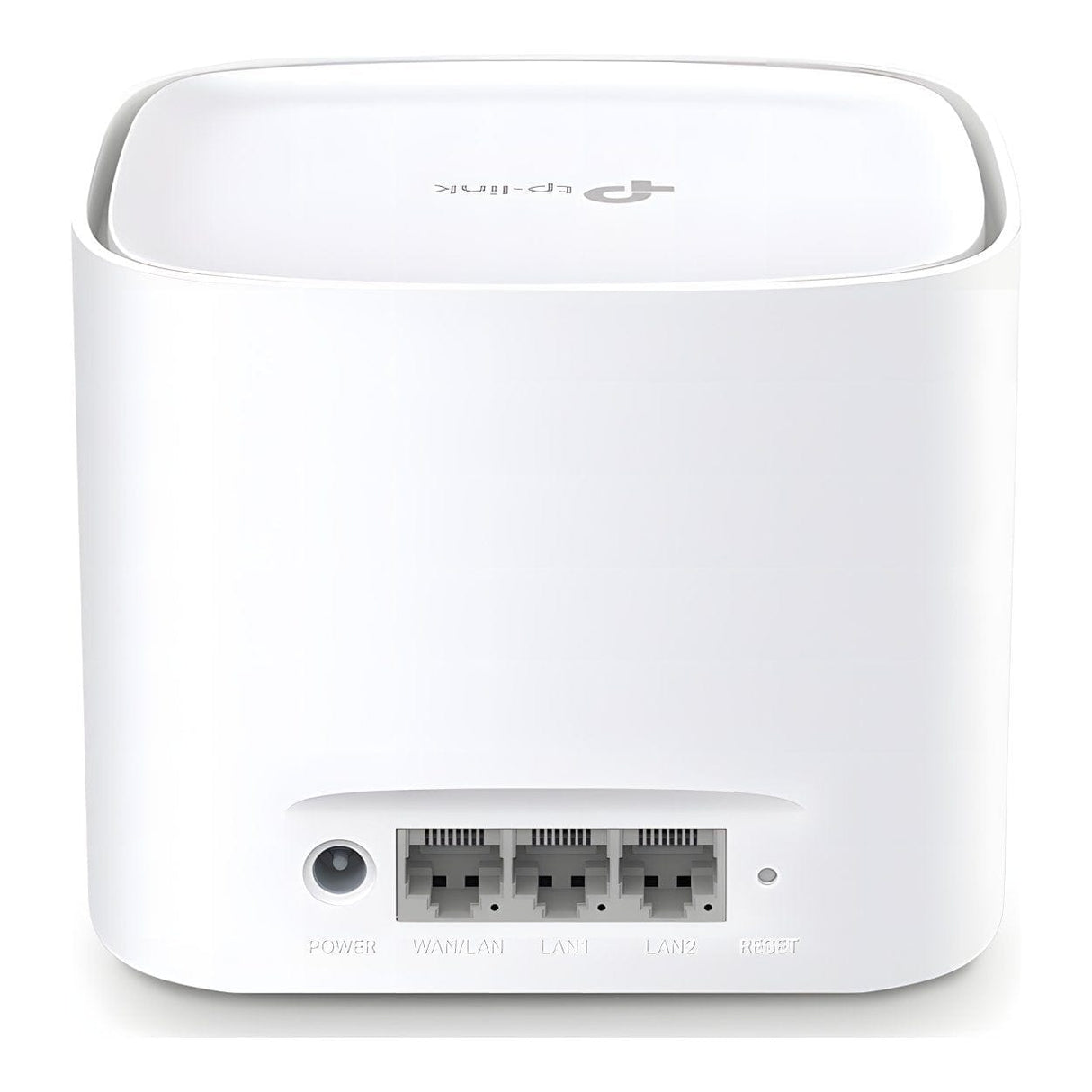

More Ethernet Ports for More Options

Each unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports Ethernet Backhaul for more stable speeds.

Support TR-069 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Technical Specifications:

Hardware Features
Interface
3 × Gigabit ports (per unit)
1 port supports WAN/LAN auto-sensing

Buttons
Reset button
WPS button

External Power Supply
12 V ⎓ 1.5 A

Dimensions (W × D × H)
120 × 120 × 96.5 mm (4.7 × 4.7 × 3.8 in)

Wireless Features
Wireless Standards
Wi-Fi 6
IEEE 802.11a/n/ac/ax (5 GHz)
IEEE 802.11b/g/n/ax (2.4 GHz)

Frequency
2.4 GHz and 5 GHz

Signal Rate
AX3000
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Security
WPA-PSK / WPA2-PSK / WPA3 Personal

Transmission Power
FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

Multi-SSID
• 2 × 5 GHz Multi-SSID
• 2 × 2.4 GHz Multi-SSID

Software Features
Quality of Service
WMM

Advanced Features
Parental controls
QoS (Quality of Service)
Address reservation
Port forwarding
Wi-Fi schedule

WAN Type
Dynamic IP / Static IP / PPPoE

Management Features
Local management
TAUC cloud management
TR-069 (TR-098 / TR-181)
TR-111
TR-143

Firewall Security
SPI firewall

Protocols
IPv4
IPv6

Working Modes
Router mode
Access point mode

What's in the Box:

• 1 HX510 unit
• 1 RJ45 Ethernet cable
• 1 power adapter
• 1 quick installation guide

Smartphone / Tablet Requirements
Android 4.4 or later
iOS 9.0 or later

Certifications
CE
FCC
Wi-Fi CERTIFIED 6™
Wi-Fi CERTIFIED EasyMesh™

Environment
Operating temperature: 0°C – 40°C (32°F – 104°F)
Storage temperature: −40°C – 60°C (−40°F – 140°F)
Operating humidity: 10% – 90% (non-condensing)
Storage humidity: 5% – 90% (non-condensing)
