TP-Link HB210 BE3600 Dual-band Whole Home Mesh Wi-Fi 7 System HB210(1-pack)

TP-Link HB210 BE3600 Dual-band Whole Home Mesh Wi-Fi 7 System HB210(1-pack)

Super Mesh-Powered WiFi 7

BE3600 Whole Home Mesh WiFi 7 System

Features:

• 3.6 Gbps Dual Band WiFi 7: 4-stream dual band WiFi enables gaming, streaming, and high-speed downloading on multiple devices—all at the same time.

• Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across two bands.

• Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.

• Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.

• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalised and safer online experience.

• Gigabit Wired Speeds: 1× Gigabit WAN/LAN port and 1× Gigabit LAN port ensure fast wired connections and strong Ethernet backhaul.

• Easy Setup and Use: Set up your mesh network in minutes with the powerful Aginet app.

• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Wi-Fi 7 — Revolutionize Your WiFi Experience

WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

3.6 Gbps Dual Band WiFi 7

Both 2.4 GHz and 5 GHz bands are upgraded to the latest WiFi technology with faster speeds and higher efficiency, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive gaming, and blazing-fast downloads.

Extensive WiFi Coverage and Stronger Signals

A high-performance antenna array and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Whole Home Coverage Backed by a Robust Backhaul

Empowered by EasyMesh technology, HB210 delivers strong WiFi signals to every corner of your home. Wireless backhaul and ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HB210 unit wherever you want.

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

More Connections,
No More Buffering

Enhanced by WiFi 7 and featuring OFDMA and Multi-link operation (MLO), you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.

2-in-1 Router and Access Point

The versatile and multi-purpose HB210 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.

Gigabit Wired Connectivity

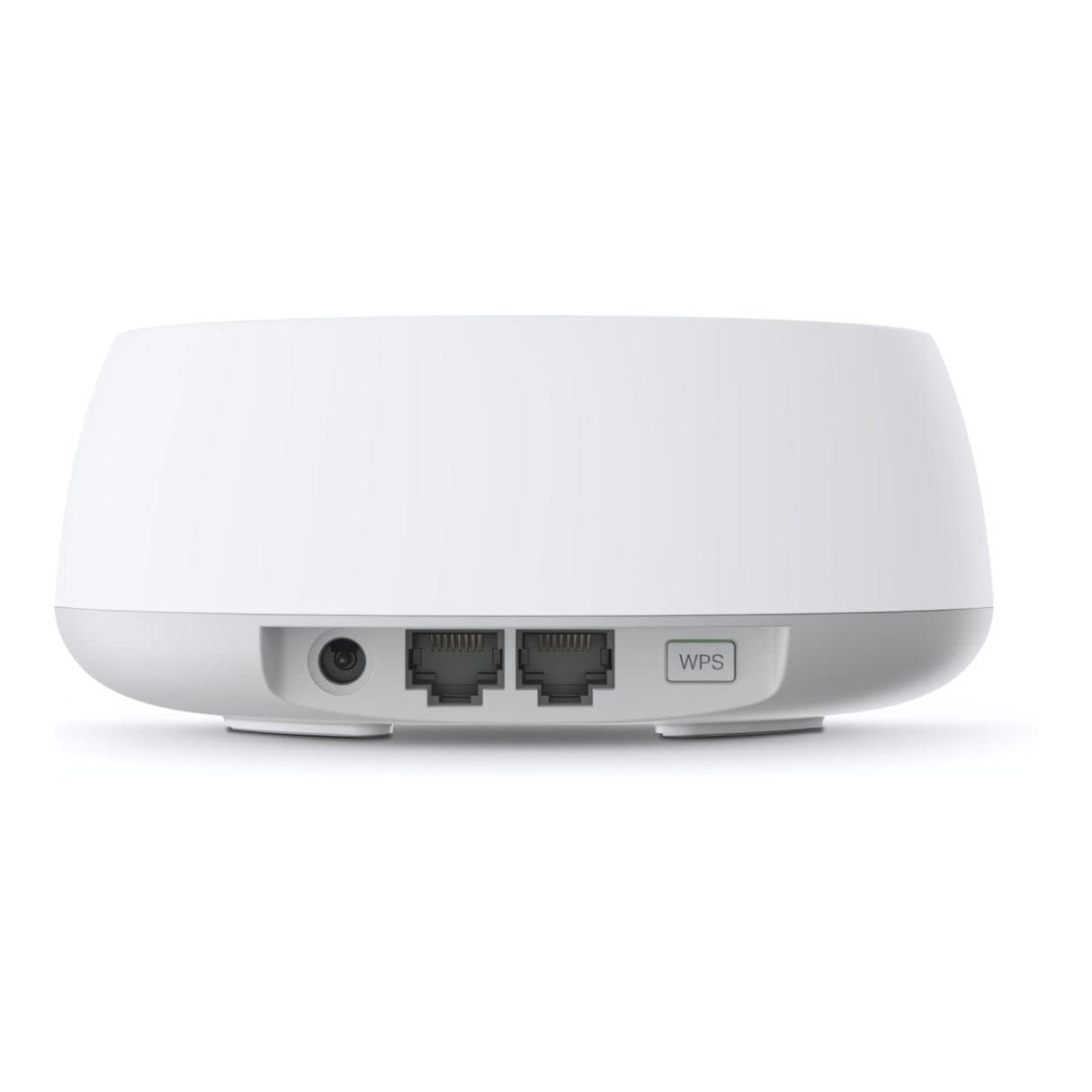

Each unit features two Gigabit Ethernet ports, a WAN/LAN port, and a LAN port, ensuring fast and stable wired connectivity for internet access and Ethernet backhaul to strengthen the mesh network.

Technical Specifications:

Hardware Features
External Power Supply: 12 V / 1.5 A
Interface: 1× GbE WAN/LAN Port
1× GbE LAN Port

*Per Unit
Button: WPS Button
Reset Button
Dimensions (W x D x H): 5.91 × 5.91 × 2.44 in
(150 × 150 × 62 mm)

Wireless Features
Frequency: 2.4 GHz, 5 GHz
Signal Rate: BE3600
5 GHz: Up to 2880 Mbps (EHT160)
2.4 GHz: Up to 688 Mbps (EHT40)*
Wireless Security: WPA / WPA2 / WPA3-Personal
Wireless Standards: IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power:
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
Multi-SSID: 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology: EasyMesh compatible and supports 802.11k/v/r

Software Features
WAN Type: Dynamic IP / Static IP / PPPoE / PPTP / L2TP
Quality of Service: WMM
Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
Management Features: Local management: WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers
Aginet app for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features: Multi-Link Operation (MLO), 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color
QoS (Quality of Service), Port Forwarding, CWMP
Parental Controls, Wi-Fi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistics
Protocols: IPv4
IPv6
VPN Server: PPTP, OpenVPN, IPsec
Working Modes: Router Mode
Access Point Mode

Others
Certifications: CE
Environment: Operating Temperature: 0 ℃–40 ℃ (32 ℉–104 ℉)
Storage Temperature: -40 ℃–60 ℃ (-40 ℉–140 ℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What’s in the Box:

• 1× HB210 Unit
• 1× Power Adapter
• 1× RJ45 Ethernet Cable
• 1× Quick Installation Guide
