TP-Link EAP223 Promotion: Buy 20 X EAP223 And Get 1 Free OC200 TP-PROMO8

TP-Link EAP223 Promotion: Buy 20 X EAP223 And Get 1 Free OC200 TP-PROMO8

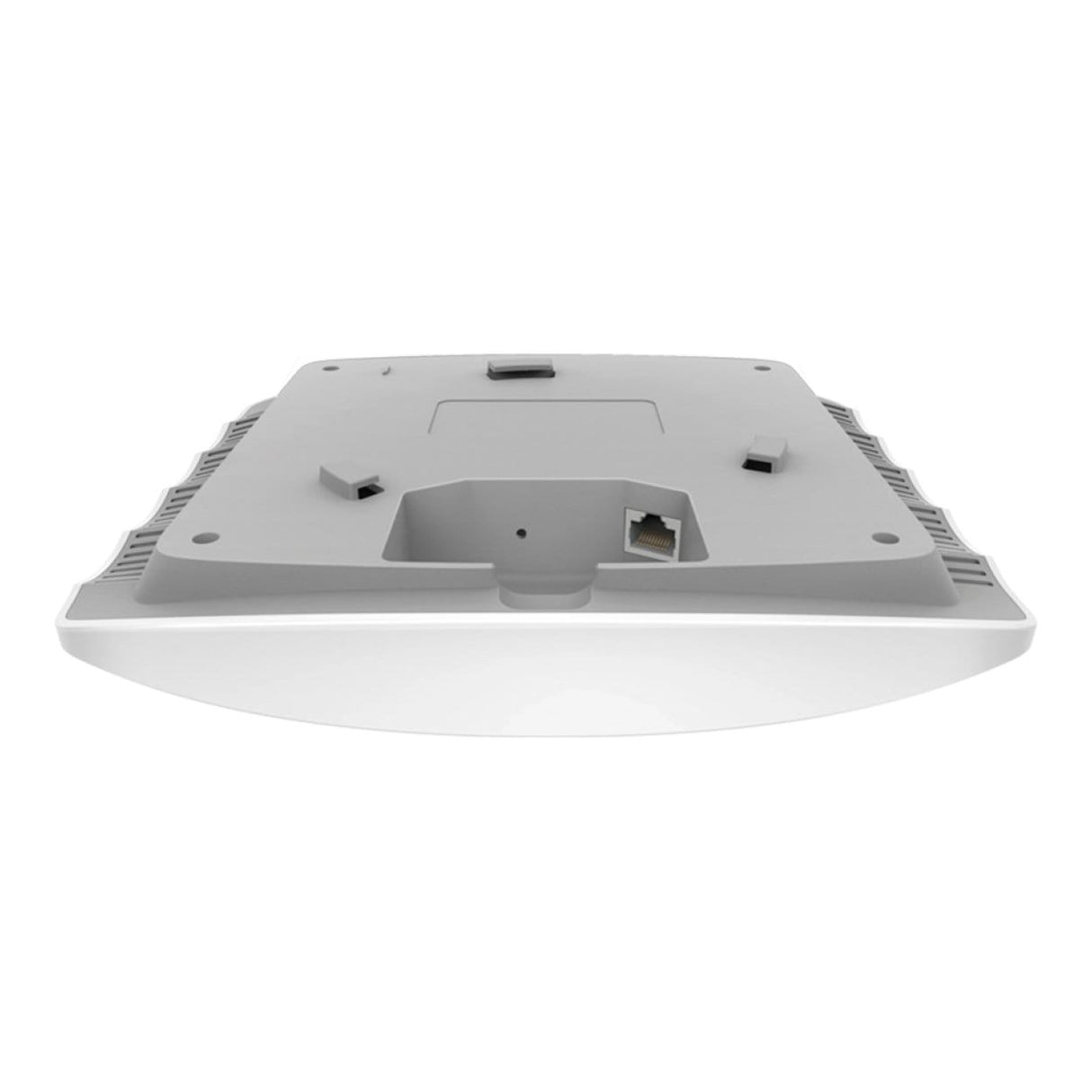

This promotional offer includes 20 units of the TP-Link EAP223 Wi-Fi 6 access point. The bundle provides one free TP-Link OC200 ceiling mount. The EAP223 supports dual-band connectivity with AX1800 speeds. It features MU-MIMO and OFDMA technology for efficient data transmission. The unit is suitable for enterprise environments requiring reliable wireless coverage. The included OC200 mount ensures secure ceiling installation.

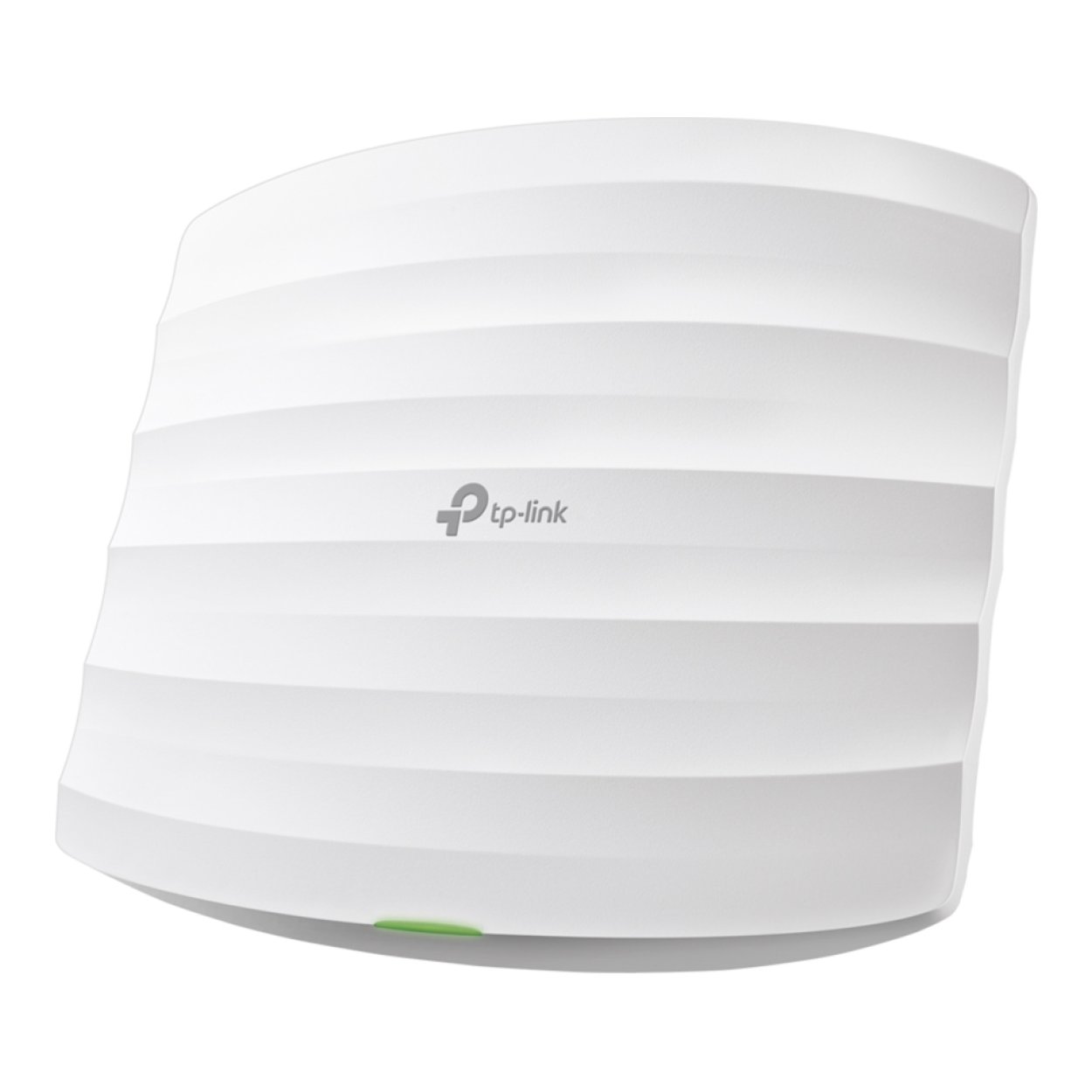

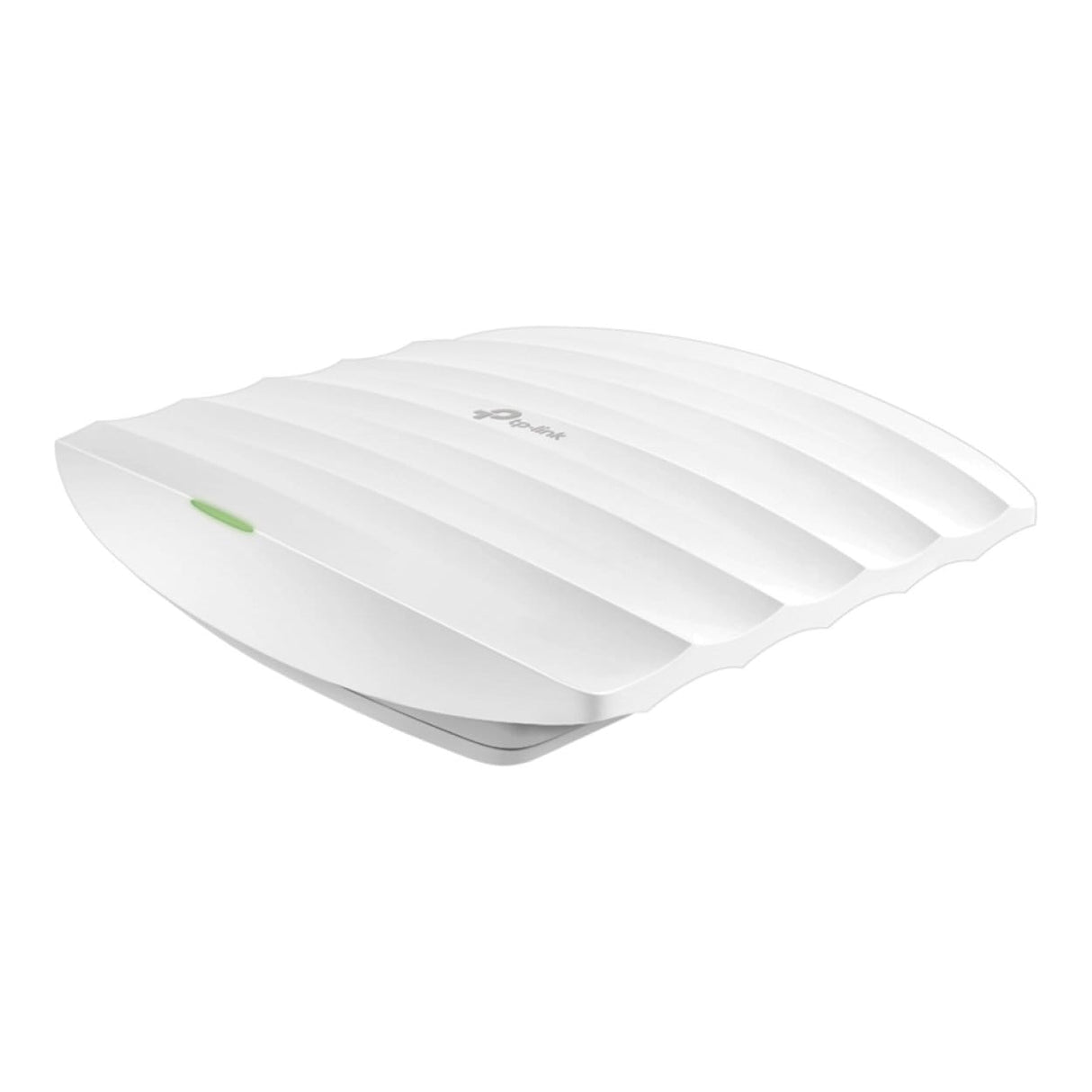

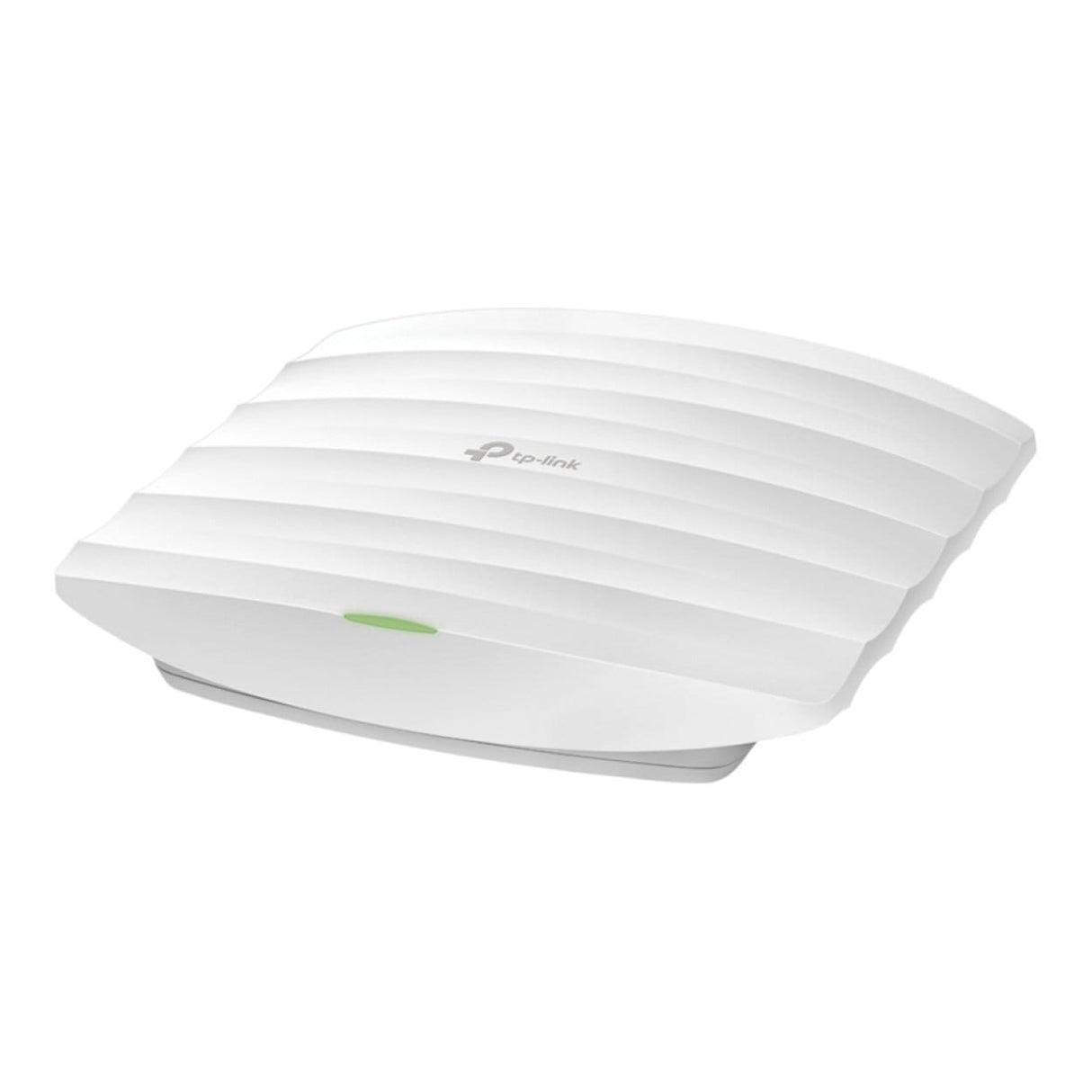

EAP223

Technical Specifications:

Hardware Features

Interface
1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE And Passive PoE)

Physical Security Lock
Yes

Button
Reset

Power Supply

• 802.3af PoE
• 24 V Passive PoE (+4,5 Pins; -7,8 Pins, PoE Adapter Not Included)

Maximum Power Consumption
12.6 W

Antenna
3 × Internal Omni Antennas:

• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi

Mounting Options
Ceiling Mount
Wall Mount (Kits Included)

Dimensions (W × D × H)
205.5 × 181.5 × 37.1 mm

Wireless Features

Coverage Area
Up To 115 m² (1250 ft²)

Concurrent Clients
220+

Wireless Standards
IEEE 802.11ac/n/g/b/a

Frequency
2.4 GHz
5 GHz

Signal Rate

• 5 GHz: Up To 867 Mbps
• 2.4 GHz: Up To 450 Mbps

Wireless Functions

• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjustable In dBm)
• QoS (WMM)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics Based On SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID To VLAN Mapping
• Rogue AP Detection
• 802.1X Support

Transmission Power

• CE: ≤ 20 dBm (2.4 GHz, EIRP); ≤ 23 dBm (5 GHz, EIRP)
• FCC: ≤ 24 dBm (2.4 GHz); ≤ 22 dBm (5 GHz)

Management Features

Omada App Support
Yes

Centralized Management

• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, Or Omada Cloud-Based Controller)

Email Alerts
Yes

LED On/Off Control
Yes

Management MAC Access Control
Yes

SNMP Support
v1
v2c

System Logging
Local / Remote Syslog

SSH Support
Yes

Web-Based Management
HTTP / HTTPS

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes (Requires Omada Cloud-Based Controller)

System Requirements

Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Microsoft Windows 11
Linux

Environmental

Operating Temperature
0°C To 40°C

Storage Temperature
-40°C To 70°C

Operating Humidity
10% To 90% RH, Non-Condensing

Storage Humidity
5% To 90% RH, Non-Condensing

Certifications

Compliance Certifications
CE
FCC
RoHS

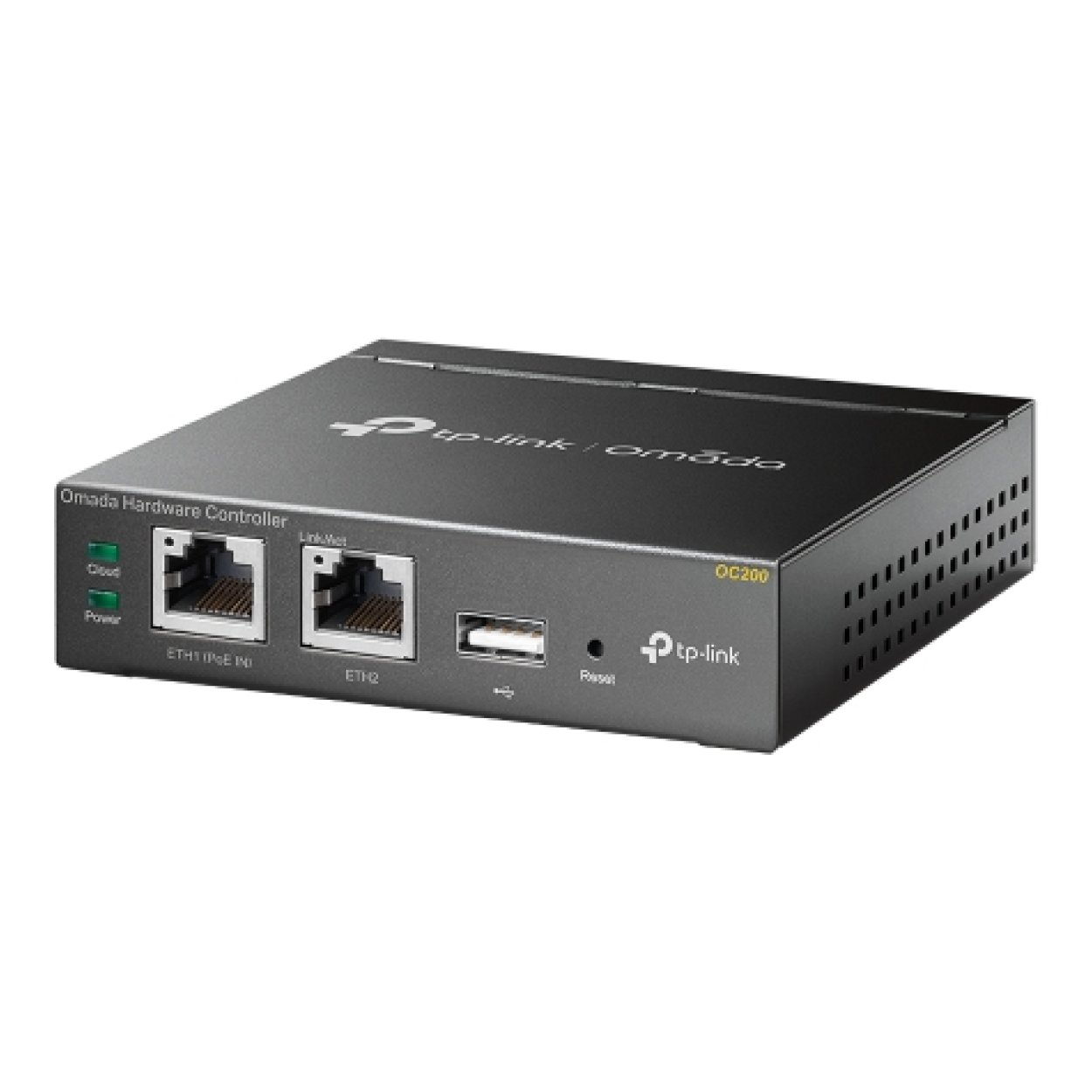

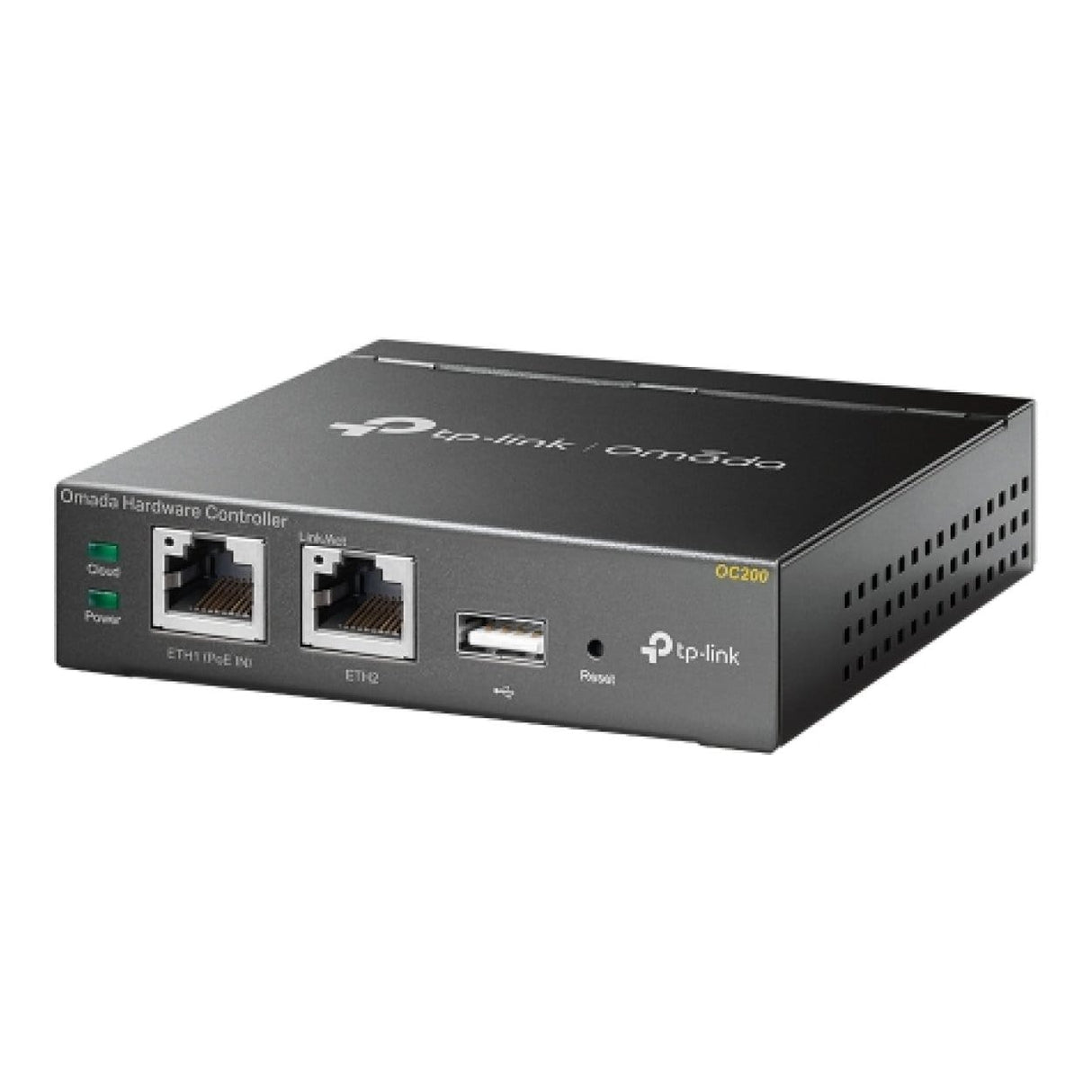

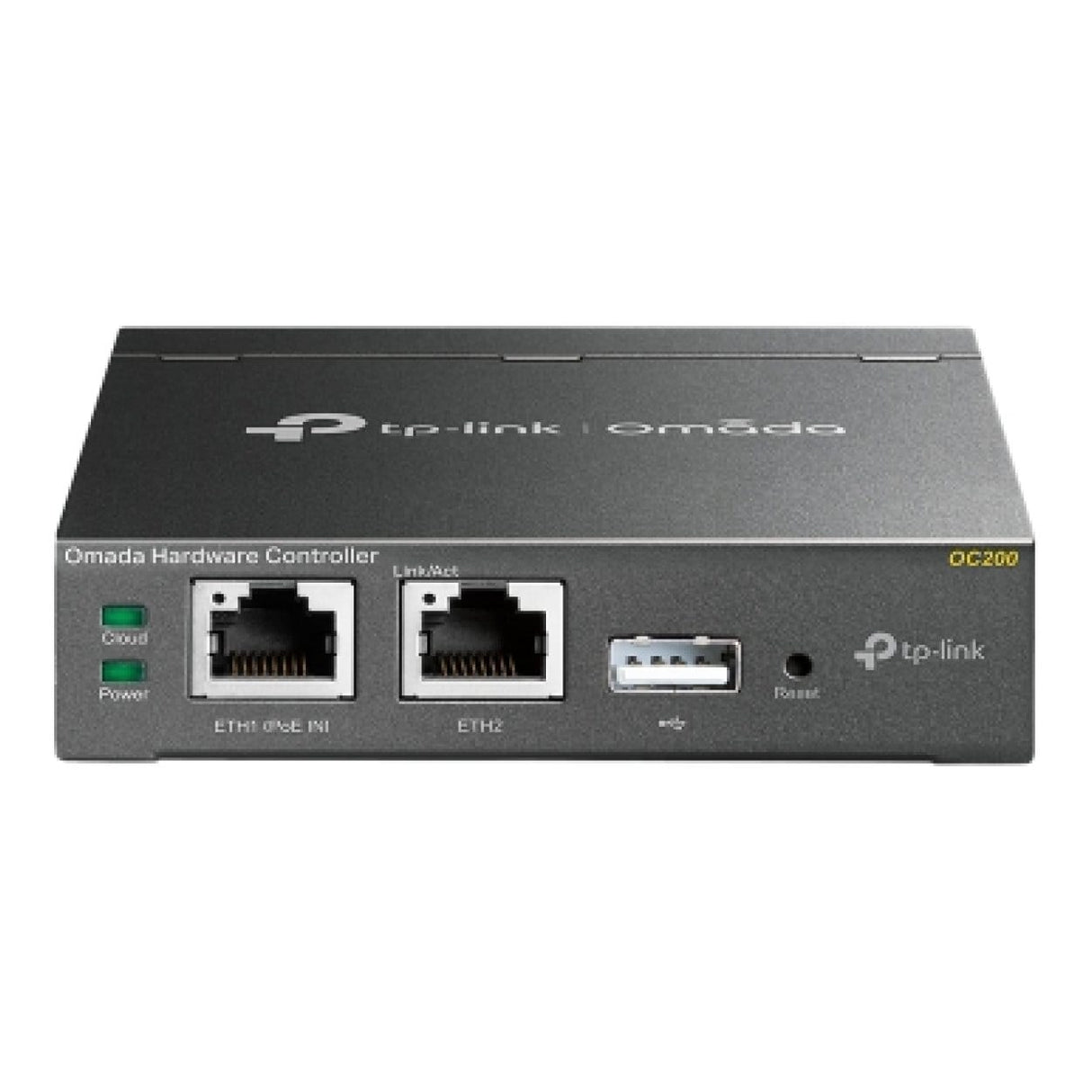

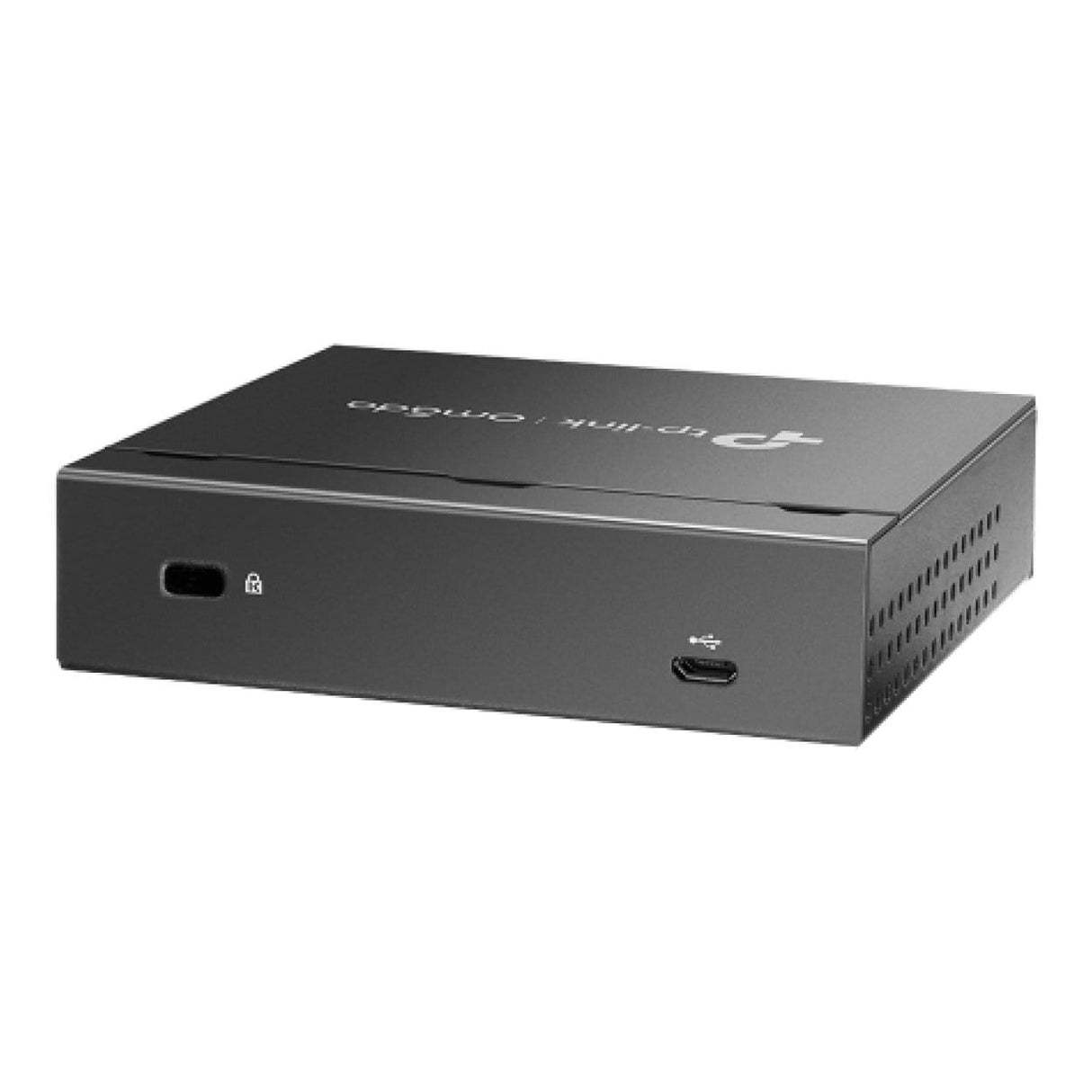

OC200

Hardware Features

Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1

Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Features

Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection

AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF

Authentication
Captive Portal

Management Features

Omada App
Yes

Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• 20 x EAP223
• 1 x OC200
• Quick Installation Guide
