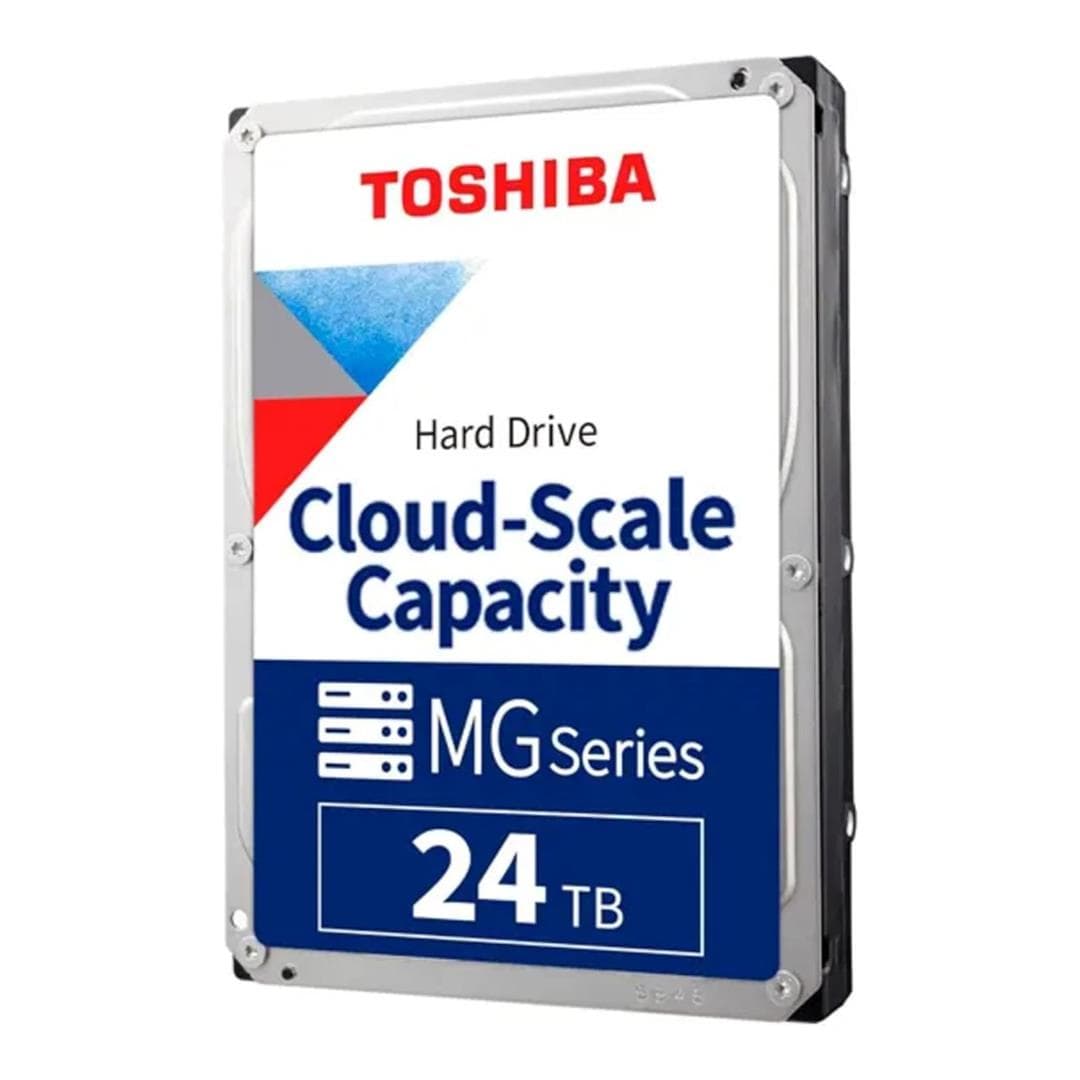

Toshiba MG11ACA24TE 3.5-inch 24TB SATA Internal HDD

Toshiba MG11ACA24TE 3.5-inch 24TB SATA Internal HDD

Designed for 24/7 operations, the 24TB MG11 7200 rpm SATA III 3.5" Internal Enterprise HDD from Toshiba features a 10-disk helium-sealed design, providing 24TB of conventional magnetic recording (CMR) storage, 7200 rpm, and data transfers up to 295 MB/s for optimal application compatibility and data reliability. Its capacity is delivered using Toshiba's Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. The 3.5" form factor integrates easily into cloud-scale and rack-scale storage infrastructures, big data, video surveillance, and more. Also featured is a 2.5 million hour MTBF, an ARF of 0.35%, an annual workload of up to 550TB, 600,000 load/unload cycles, and a non-recoverable error rate of 10 per 10¹⁶ bits read.

Applications:

• Data center applications
• Big data
• Video surveillance
• Capacity-optimized cloud-scale and rack-scale storage systems
• Compliance data archives and data lifecycle management storage systems
• Data backup infrastructure

Features:

• 24TB capacity
• Conventional Magnetic Recording (CMR) for broad compatibility
• Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) technology
• 10-disk helium-sealed design for improved storage density
• 3.5" form factor
• 7200 rpm
• Lower operational power profile provides excellent power efficiency (W/TB) for better TCO
• 550TB transferred per year workload rating

Specifications:

Total Installed Storage: 24 TB

Drive Type: SATA III / 3.5" HDD (7200 rpm)

Read Speed: Sustained: 295 MB/s

Write Speed: Sustained: 295 MB/s

Encryption Support: No

Mean Time Between Failures (MTBF): 2.5 Million Hours

Endurance (Total Bytes Written): 550 TB

Power Draw: 8.11 W (Active), 4.35 W (Idle)

Input Power: 5 VDC, 12 VDC

Operating Conditions: 5 to 55°C at 5 to 90% Humidity

Operating Shock: 50 G / 490.00 ms

Storage Conditions: -40 to 70°C at 5 to 95% Humidity

Dimensions: 147 x 101.85 x 26.1 mm

Weight: 730 g
