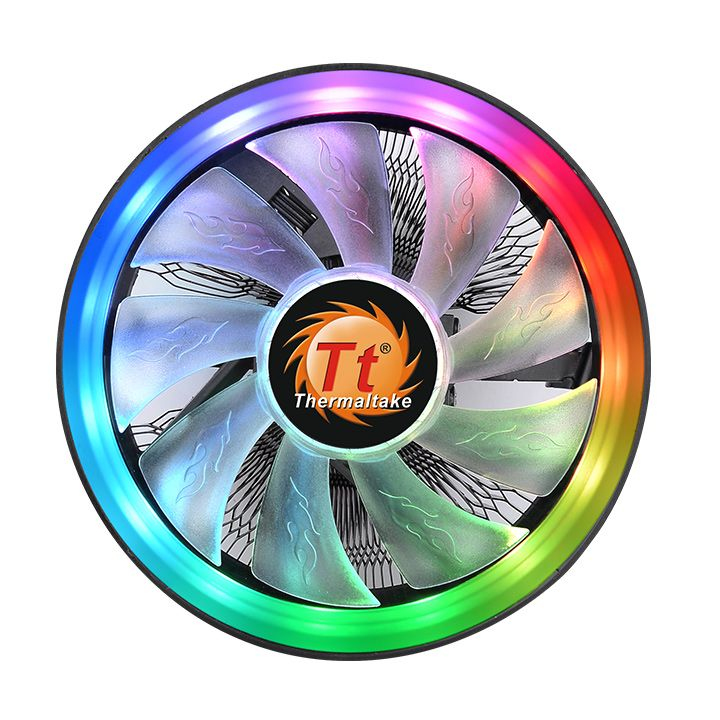

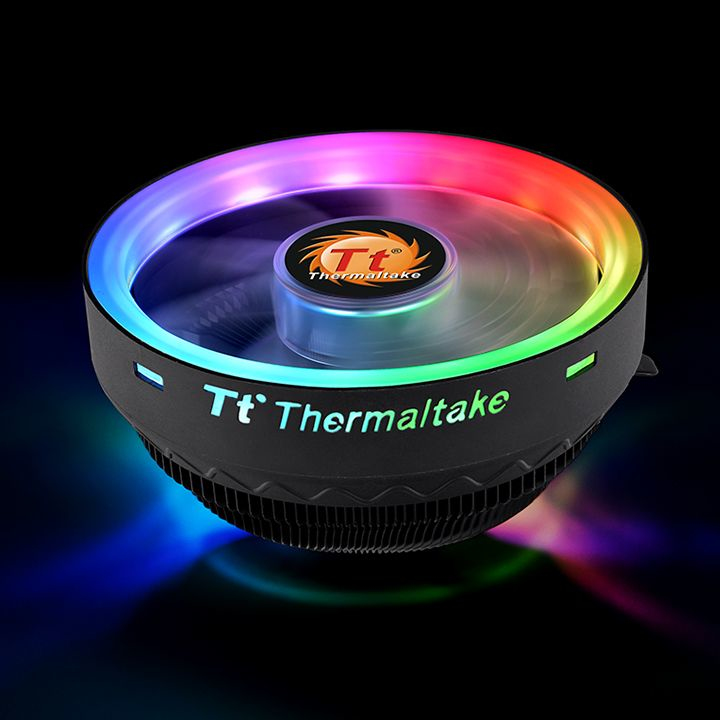

Thermaltake UX100 ARGB Lighting CPU Cooler 120mm Black 1800rpm CL-P064-AL12SW-A

Thermaltake UX100 ARGB Lighting CPU Cooler 120mm Black 1800rpm CL-P064-AL12SW-A

The Thermaltake UX100 ARGB Lighting CPU Cooler combines compact CPU cooling with vibrant addressable RGB illumination for gaming and desktop PC builds. Featuring a 120 mm hydraulic-bearing fan and aluminium fin heatsink, the UX100 delivers airflow of up to 38.82 CFM while operating at a maximum noise level of 27 dBA. Its low-profile 66 mm overall height makes it suitable for systems where space around the CPU socket is limited, while the integrated 5V 3-pin ARGB connection enables lighting integration with compatible motherboard RGB ecosystems.

Key Features

• 120 mm Cooling Fan: Equipped with a 120 x 120 x 25 mm fan designed to provide effective airflow across the aluminium heatsink.
• ARGB Lighting: Integrated addressable RGB illumination adds customisable lighting to compatible PC builds.
• 5V 3-Pin ARGB Connection: Connects to compatible motherboard 5V 3-pin addressable RGB headers for lighting control.
• 1800 RPM Fan Speed: Fan operates at up to 1800 RPM for effective CPU cooling.
• 38.82 CFM Airflow: Provides maximum airflow of up to 38.82 CFM.
• 1.48 mmH2O Air Pressure: Delivers static pressure of up to 1.48 mmH2O.
• Low Noise Operation: Maximum rated fan noise of 27 dBA.
• Hydraulic Bearing: Uses a hydraulic bearing design with a rated MTTF of 30,000 hours.
• Aluminium Fin Heatsink: Aluminium fins provide a large surface area for CPU heat dissipation.
• Low-Profile Design: Overall dimensions of 122 x 122 x 66 mm make the cooler suitable for compact system configurations.
• 65 W TDP: Designed for processors with thermal requirements of up to 65 W TDP.
• Intel & AMD Support: Compatible with a range of Intel LGA and AMD AM4/FM/AM-series sockets.

Cooling Performance

Socket Compatibility

ARGB Lighting

The UX100 incorporates addressable RGB lighting to add customisable illumination around the CPU cooling area. The lighting system uses a 5V 3-pin ARGB connector for connection to compatible motherboard addressable RGB headers, allowing the cooler's lighting to be integrated with the rest of a compatible system's lighting setup.

Technical Specifications

What's Included:

• 1 x Thermaltake UX100 ARGB Lighting CPU Cooler
• CPU Socket Mounting Hardware

Please Note: The UX100 has a rated cooling capacity of 65 W TDP. Check your processor's thermal requirements and motherboard socket compatibility before installation. The ARGB lighting requires a compatible 5V 3-pin addressable RGB connection for motherboard-controlled lighting.

The Thermaltake UX100 ARGB is a compact CPU cooler that combines a 120 mm hydraulic-bearing fan, aluminium heatsink and addressable RGB illumination, making it a practical option for compatible Intel and AMD systems requiring cooling for CPUs rated up to 65 W TDP.
