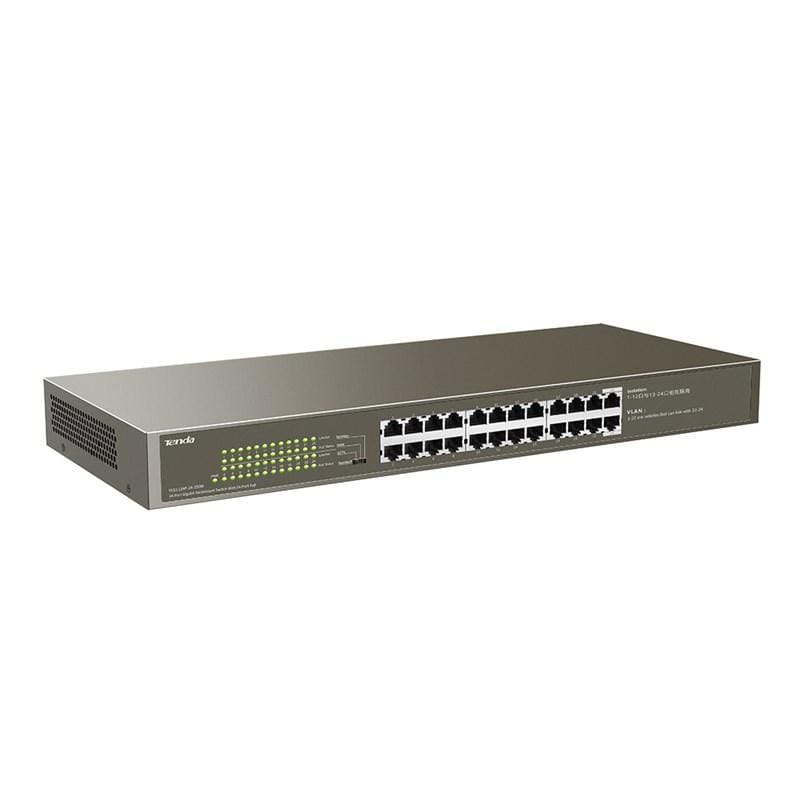

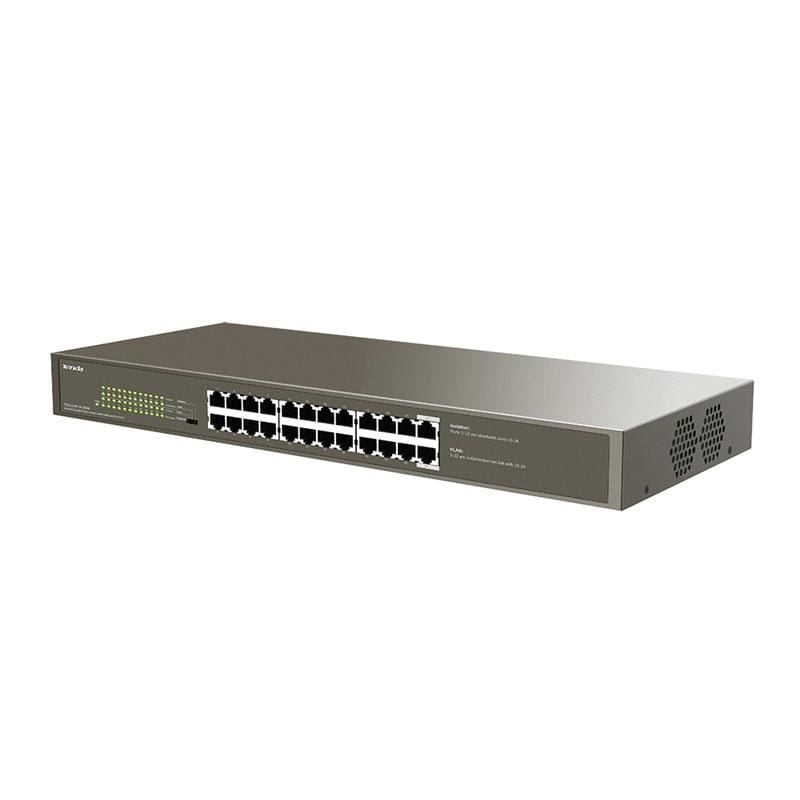

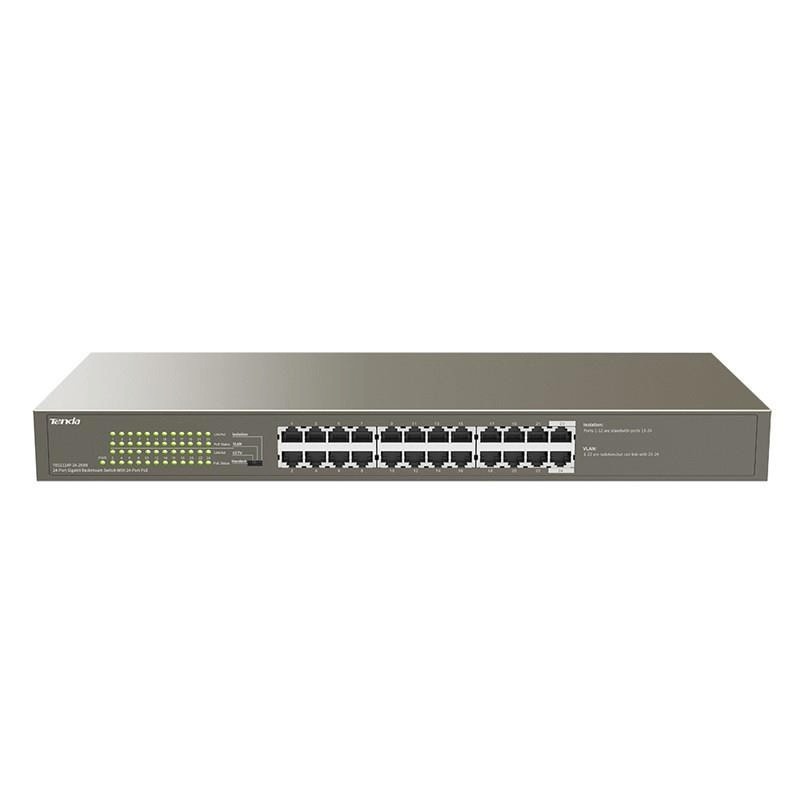

Tenda TEG1124P-24-250W Switch Gigabit Ethernet PoE

TEG1124P-24-250W is a Tenda PoE switch that offers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras. 6KV Lightning Protection PoE Switch is the only engineering switch In real projects,APs and cameras are often installed outdoors or at an elevated location, which increases the chance of lightning strikes on cameras and PoE-powered switches. The result is that individual devices are damaged when the outcome is light, and even the whole local area network is damaged.Tenda TEG11 series switches have professional lightning protection design - 6KV Lightning Protection for Ports and the power,and they have two levels of protection design respectively, which effectively suppress the lightning current from the network cable and power supply, equivalent to adding a security wall to the entire network monitoring system. The test standard is much higher than the national CCCrequest. In the thunderstorm, Tenda TEG11 series switches can also provide a stable and reliable service to the surveillance network and guarantee the normal transmission of the picture. 225W PoE power supply simplified wiring Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 225W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Specification

Network standards

IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at

LED Indicator

24*Link/Act per device
24*PoE per device
1*Power per device

Interfaces

24*10/100/1000 Base-T ports(Data/Power)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

1

Dimension

440.0mmx178.0mmx44.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

48 Gbps

Packet forwarding rate

35.7Mpps

Buffer

2M

MAC address table

8K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 225W

Input voltage

100-240V AC 50/60Hz

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
